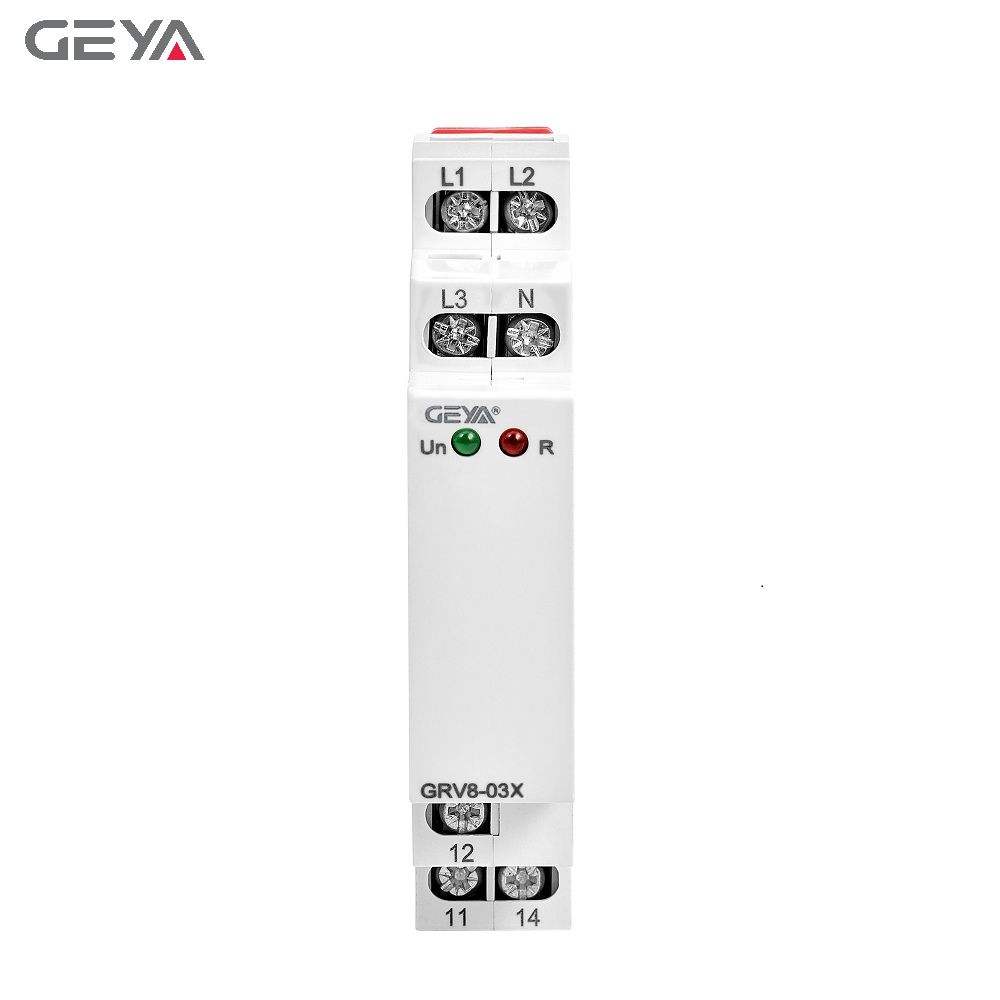

GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v

GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grv8-03x M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v - Buy 3 Phase Voltage Monitoring Relay phase Sequence Voltage Relay 3 Phase Voltage Monitor Relay Din Rail Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

············This link price is only for GRV8-03X M265···········
Applications -Control for connection of moving equipment(site equipment, agricultural equipent,refrigerated trucks). -Control for protection of persons and equipment against the consequences of reverse running. -Normal/emergency power supply switching. -Protection against the risk of a driving load(phase failure).
Function Features -Controls its own supply voltage(True RMS measurement). -Set 8-level rated operating voltage through knob. - Measuring frequency range:45Hz-65Hz. - Voltage measurement accuracy<1%. - Anti-harmonic design, optimized for high interference occasions. - Relay status is indicated by LED. - 1-MODULE,DIN rail mounting.
GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v
GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v
GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v
GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v
GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v
GEYA GRV8-03X M265 Three Phase Voltage Monitoring Relay Adjustable Delay Time 220v
If you want to know more technical information or price, please kindly contact us freely!
Technical parameters
M460
M265
Function
Monitoring 3-phase voltage

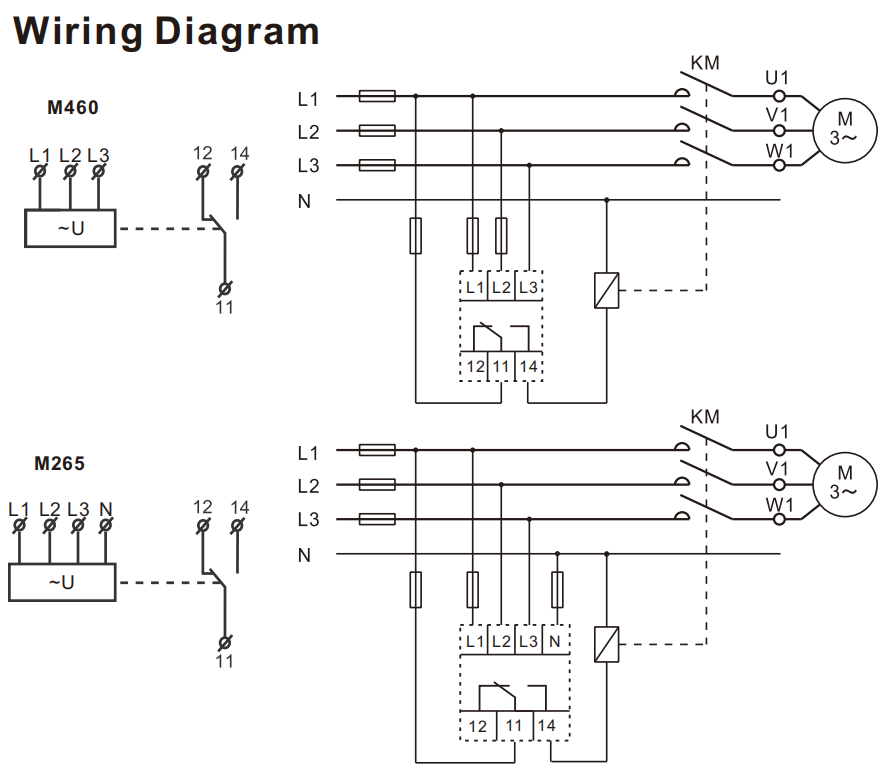

Monitoring terminials
L1-L2-L3
L1-L2-L3-N
Supply terminals
L1-L2
L1-N
Voltage range
220-230-240-380-400
-415-440-460(P-P)
127-132-138-220-230-240-254-265(P-N)
Rated supply frequency
45Hz-65Hz
Measuring range
176V-552V
101V-318V
Threshold adjustment voltage
2%-20% of Un selected

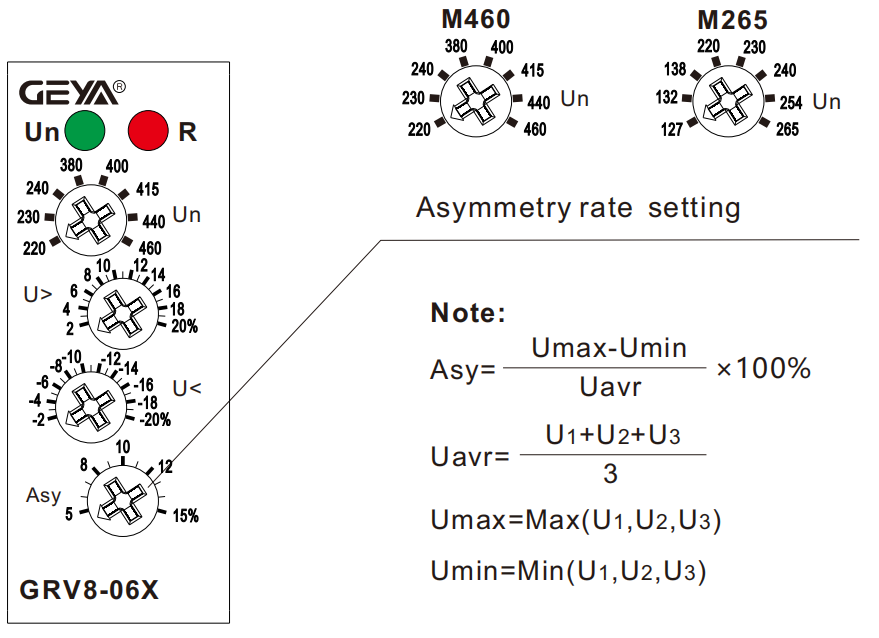

Adjustment of asymmetry threshold
5%-15%
Hysteresis
2%
Phase failure value
70% of Un selected
Min=165V
70% of Un selected
Time delay
Adjustable 0.1s-10s,10%
Measurement error
≤1%
Run up delay at power up
0.5s time delay
Konb setting accuracy
10% of scale value

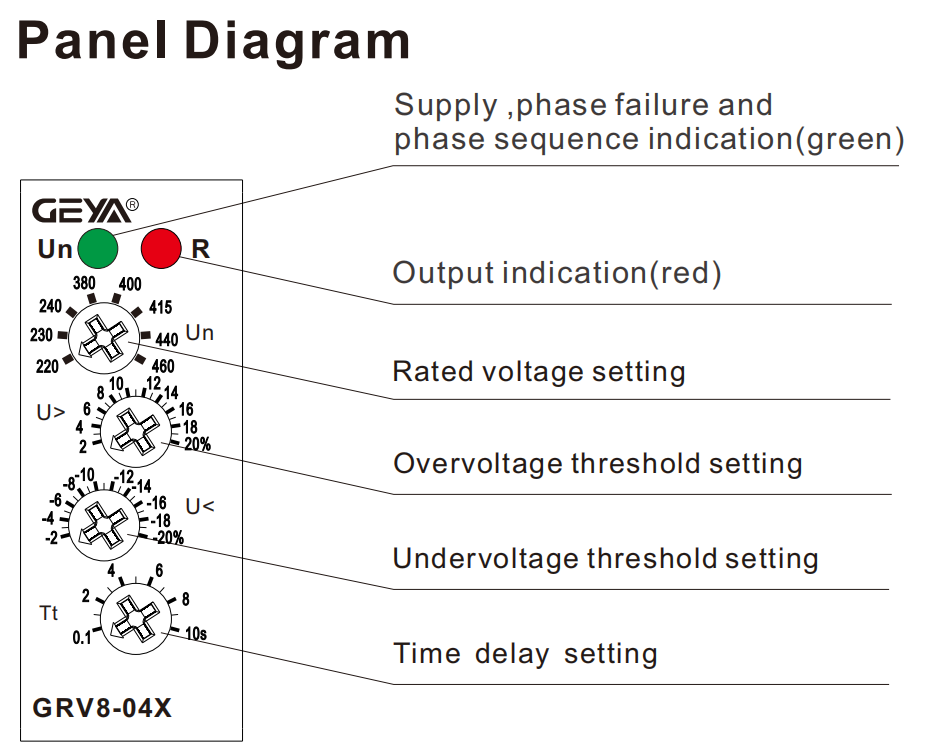

Supply indication
green LED
Output indication
red LED
Reset time
1000ms
Output
1×SPDT
Current rating
10A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Temperature coefficient
0.05%/℃,at=20℃(0.05%F,at=68F)
Mechanical life
1*10^7
Electrical life(AC1)
1*10^5
Operating temperature
-20℃ to +55℃（-4℉ to 131℉）
Storage temperature
-35℃ to +75℃（-22℉ to 158℉）
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage category
III
Pollution degree
2
Tightening torque
0.8Nm
Max.cable size(mm^2)
solid wire max.1×2.5or 2×1.5/withsleeve max.1×2.5(AWG12)

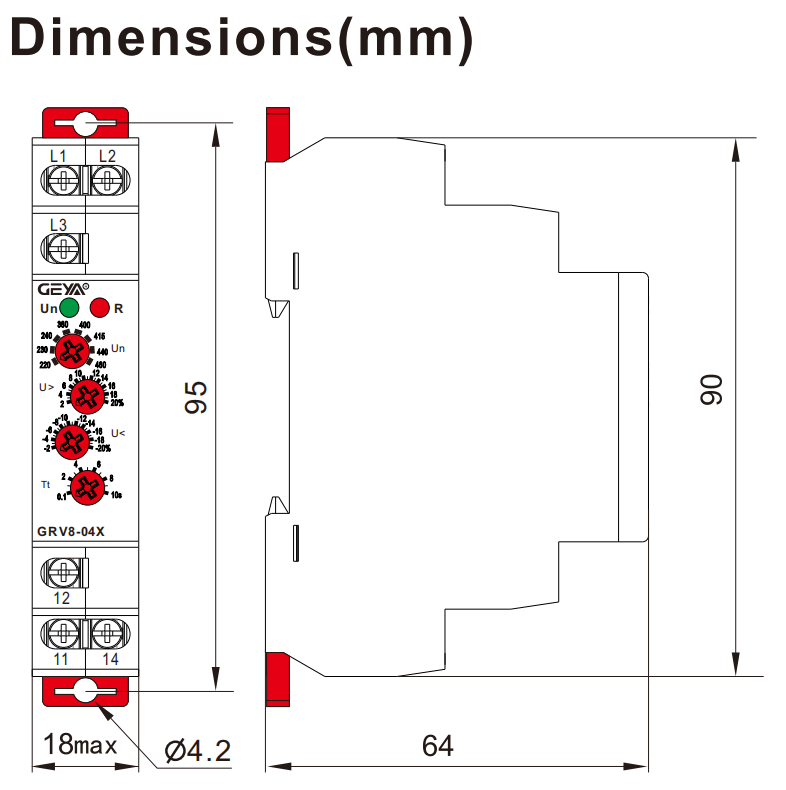

Dimensions
90×18×64mm
Weight
61g-66g
Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRV8-03X
M265
62.3
75.7
823
5.29
8.70
17.10
GRV8-04X
64.3
77.7
843
5.41
8.90
17.50
GRV8-05X
64.3
77.7
843
5.41
8.90
17.50
GRV8-06X
64.3
77.7
843
5.41
8.90
17.50
GRV8-07X&08X
63.4
76.8
834
5.35
8.81
17.32
GRV8-03X
M460
61
74.2
808
5.20
8.55
16.80
GRV8-04X
63.4
76.6
832
5.34
8.79
17.28
GRV8-05X
63.4
76.6
832
5.34
8.79
17.28
GRV8-06X
63.4
76.6
832
5.34
8.79
17.28
GRV8-07X&08X
61.6
75.0
816
5.25
8.63
16.96
