Home > Products > Automation Relay > GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width

GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Grv8-09 Phase Sequence Relay Phase Failure Relay 8a 2spdt 36mm Width Phase Monitoring Device 36mm Width - Buy Sequence Relay 3 Phase Voltage Monitoring Relay dc Voltage Monitor Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
············This link price is only for GRV8-09-M265············
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width

****This link price is for GRV8-09- M265 AC Monitoring Voltage Relay


GEYA voltage monitoring relay control for connection of moving equipment(site equipment, agricultural equipment, refrigerated trucks). Control for protection of persons and equipment against the consequences of reverse running.
Normal/Emergency power supply switching. Protection against the risk of a driving load(phase failure).

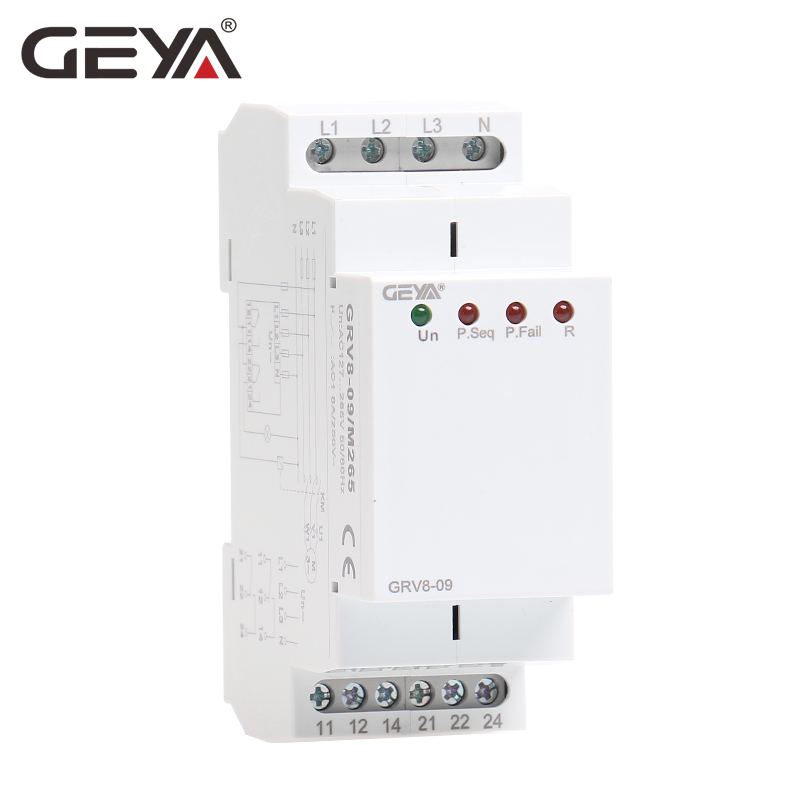

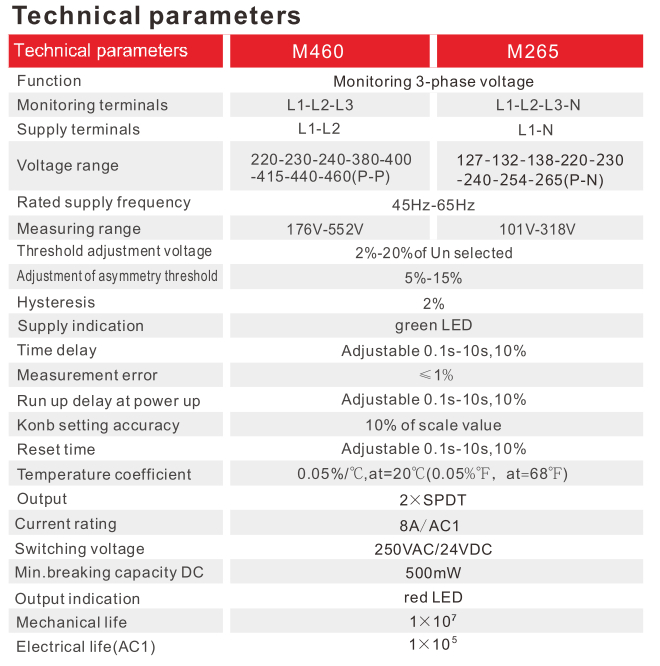

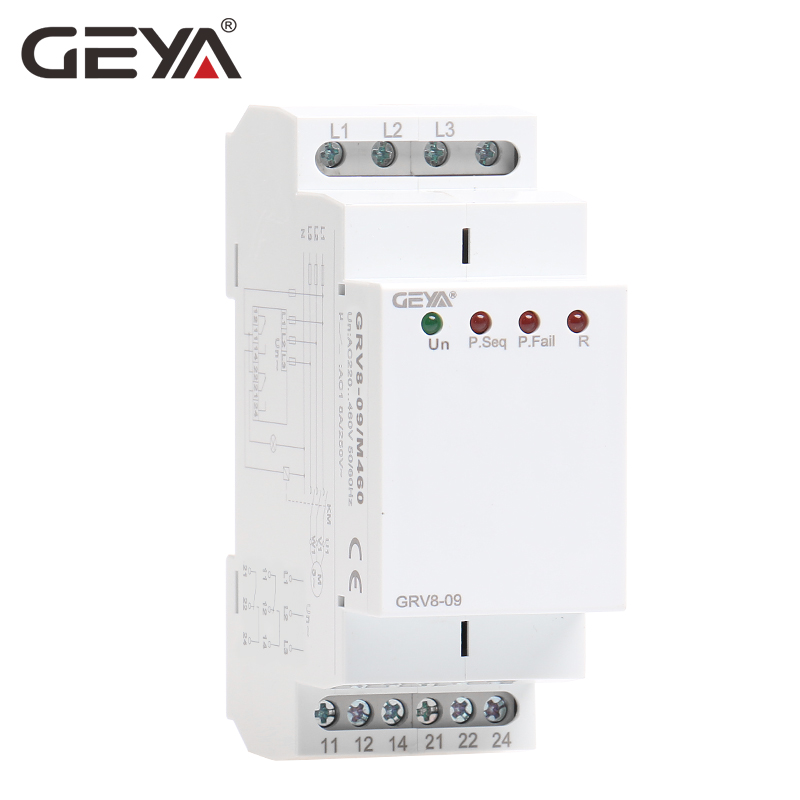

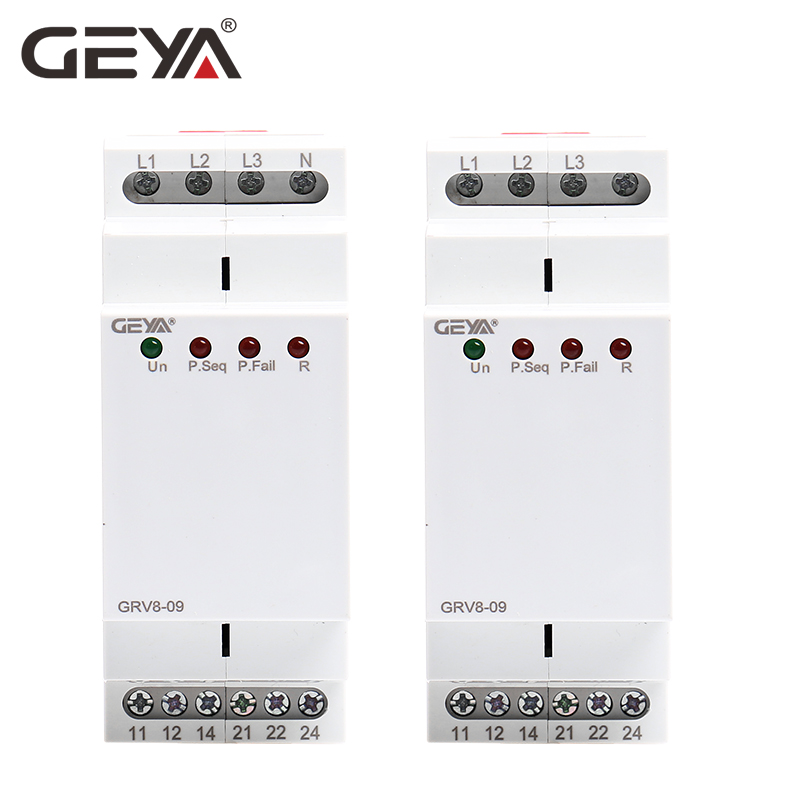

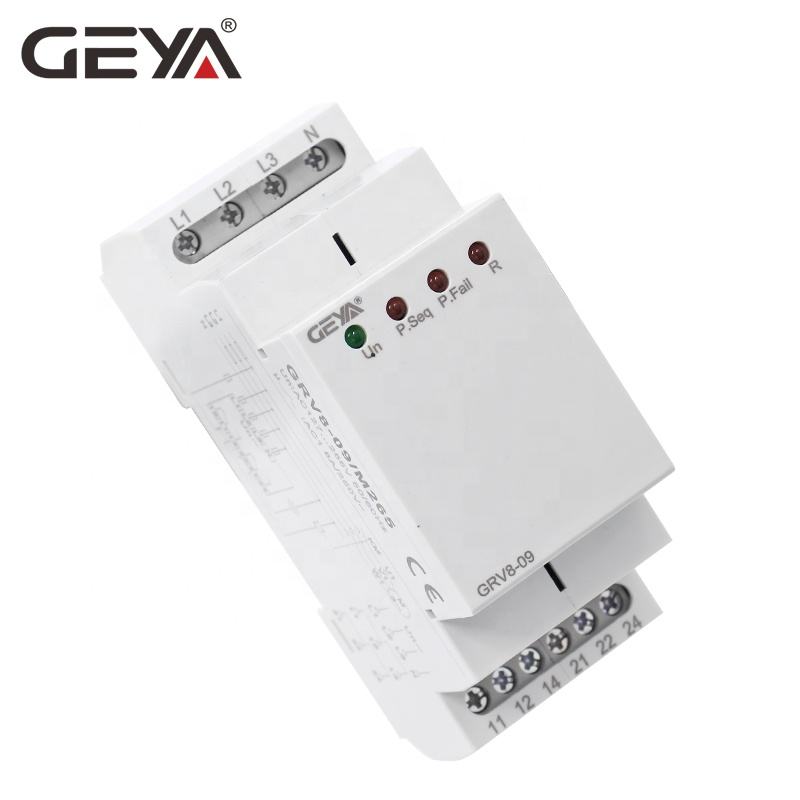

- GRV8-09 Voltage Monitoring Relay
-Voltage Range: M265 M460
-Controls its own supply voltage(True RMS measurement)
-Set 8-level rated operating voltage through knob.
-2 C/O OUTPUT
-Measuring frequency range : 45Hz-65Hz.
-Voltage measurement accuracy<1%
-Relay status is indicated by LED
-2-MODULE,DIN rail mounting.
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GRV8-09

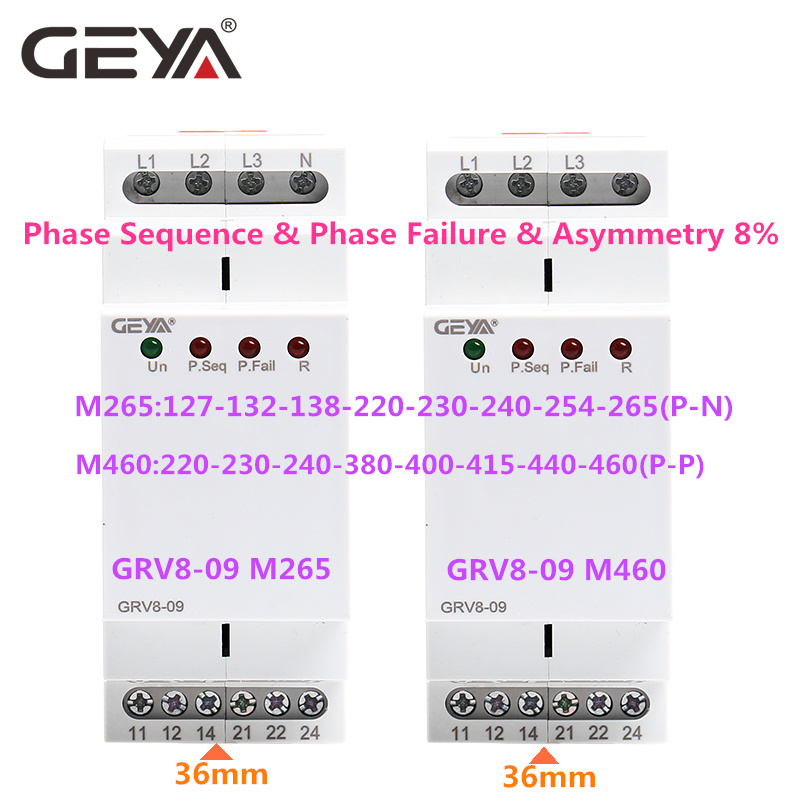

Voltage Relay Selection
Please leave a message which specification needed?

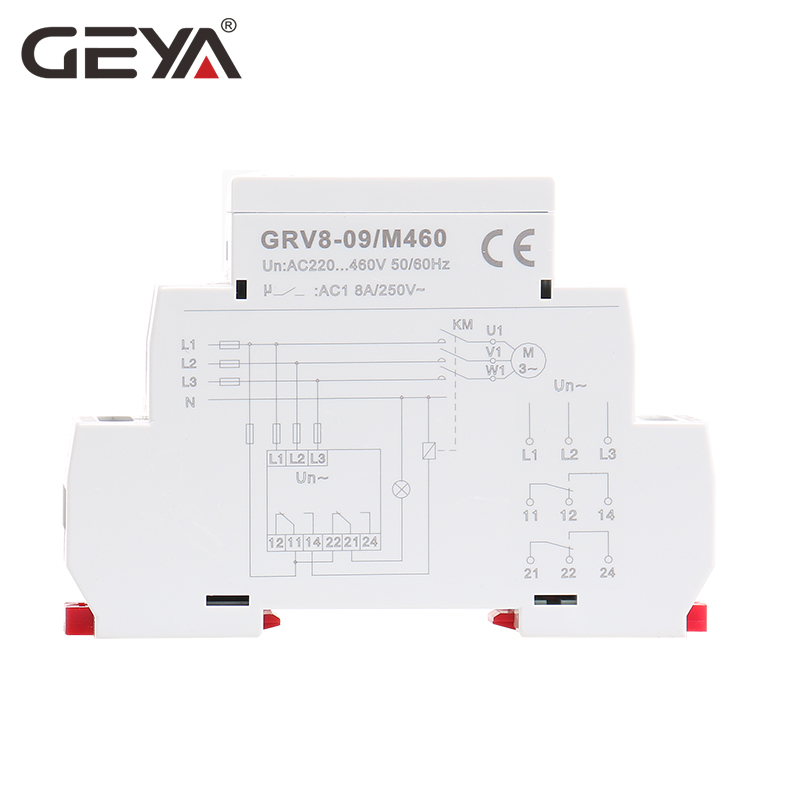

M460
220-230-240-380-400-415-440-460VAC(P-P)

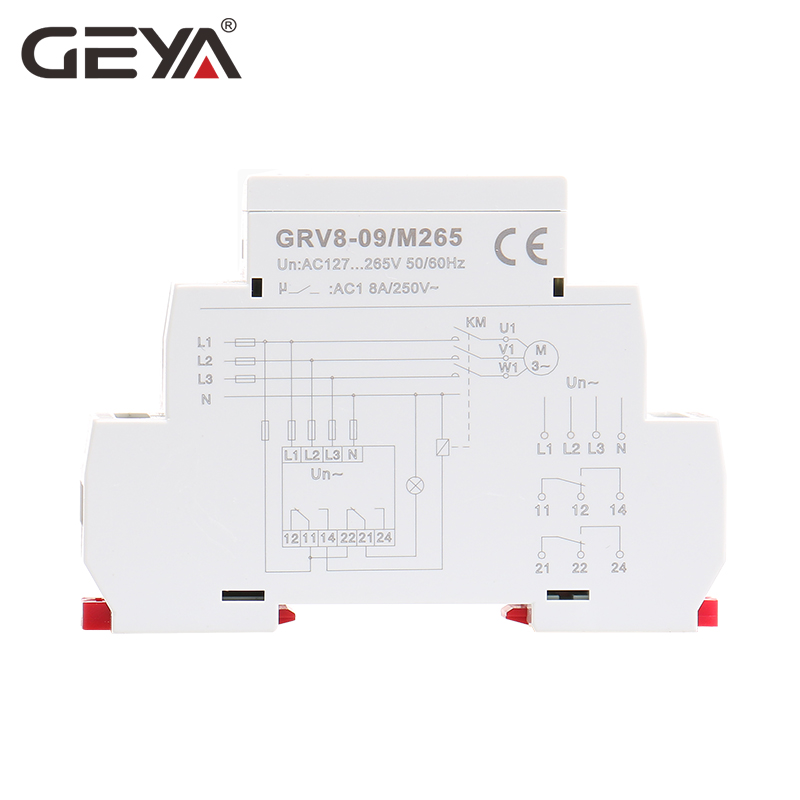

M265
127-132-138-220-230-240-254-265VAC(P-N)
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
GEYA GRV8-09 Phase Sequence Relay Phase Failure Relay 8A 2SPDT 36mm Width Phase Monitoring Device 36mm Width
HOW TO CHOOSE THE MODEL
Function code
Over voltage
Under voltage
Asymmetry
Delay time
Phase sequence
Phase failure
Rest time
09


8%

●
●

10
2~20%
-20~2%
5~15%
0.1~10s
●
●
0.1s~10s
Note: ● means the function is available
If you want to know more technical information or price, please kindly contact us freely!
