GEYA GRV8-SV AC/DC110V...240V LCD Display Voltage Relay Mini Relay Low Voltage protection Relay 230 v

GEYA GRV8-SV AC/DC110V...240V LCD Display Voltage Relay Mini Relay Low Voltage protection Relay 230 v

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grv8-sv Ac/dc110v...240v Lcd Display Voltage Relay Mini Relay Low Voltage Protection Relay 230 V - Buy Electric Voltage Protector To Relay voltage Protation Relay dc-under-voltage-relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GRV8-SV AC/DC110V...240V··········
Applications -Control for connection of moving equipment(site equipment,agricultural equipent,refrigerated trucks). -Normal/emergency power supply switching. Function Features -Controls its own supply voltage(True RMS measurement). -LCD display. - Measuring frequency range:45Hz-65Hz. - Voltage measurement accuracy<1%. - 2-MODULE,DIN rail mounting.
GEYA GRV8-SV AC/DC110V...240V LCD Display Voltage Relay Mini Relay Low Voltage protection Relay 230 v
GEYA GRV8-SV AC/DC110V...240V LCD Display Voltage Relay Mini Relay Low Voltage protection Relay 230 v
GEYA GRV8-SV AC/DC110V...240V LCD Display Voltage Relay Mini Relay Low Voltage protection Relay 230 v
GEYA GRV8-SV AC/DC110V...240V LCD Display Voltage Relay Mini Relay Low Voltage protection Relay 230 v
GRV8-SV
Function
Over voltage,under voltage
Rated supply voltage
AC/DC110V...240V
Rated supply frequency
45~65Hz,0Hz
Operaton voltage range
50V~350V
Burden
AC max.3VA
Over voltage operation value
65V~300V,OFF
Under voltage operation value
OFF,65V~300V

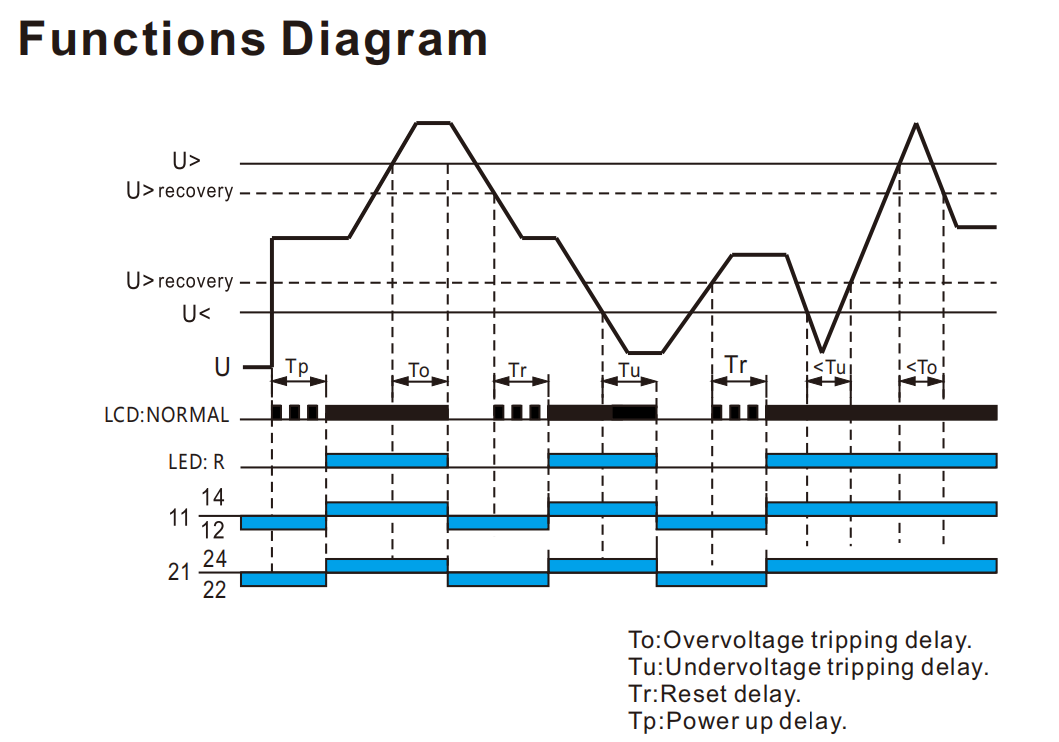

Over/under voltage action delay
0.1s~20s
Power-up delay
0.5s~300s
Reset time
0.5s~300s
Measurement error
≤1%
Output
2×SPDT
Current rating
8A/AC1
Switching voltage
250VAC/24VDC
Electrical life(AC1)
1×10^7
Mechanical life
1×10⁵
Operating temperature
-20℃~+60℃
Storage temperature
-35℃~+75℃
Mounting/DIN rail
Din rail EN/IEC60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
Ⅲ.
Pollution degree
2
Max.cable size(mm²)
solid wire max.1×2.5or 2×1.5/with sleeve max.1×2.5(AWG12)
Tightening torque
0.4Nm

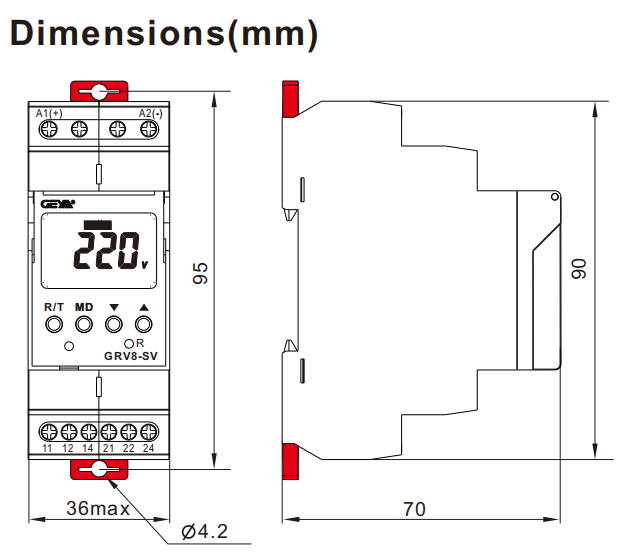

Dimensions
82×36×68mm
Weight
100g
Standards
EN60255-1,IEC60947-5-1
