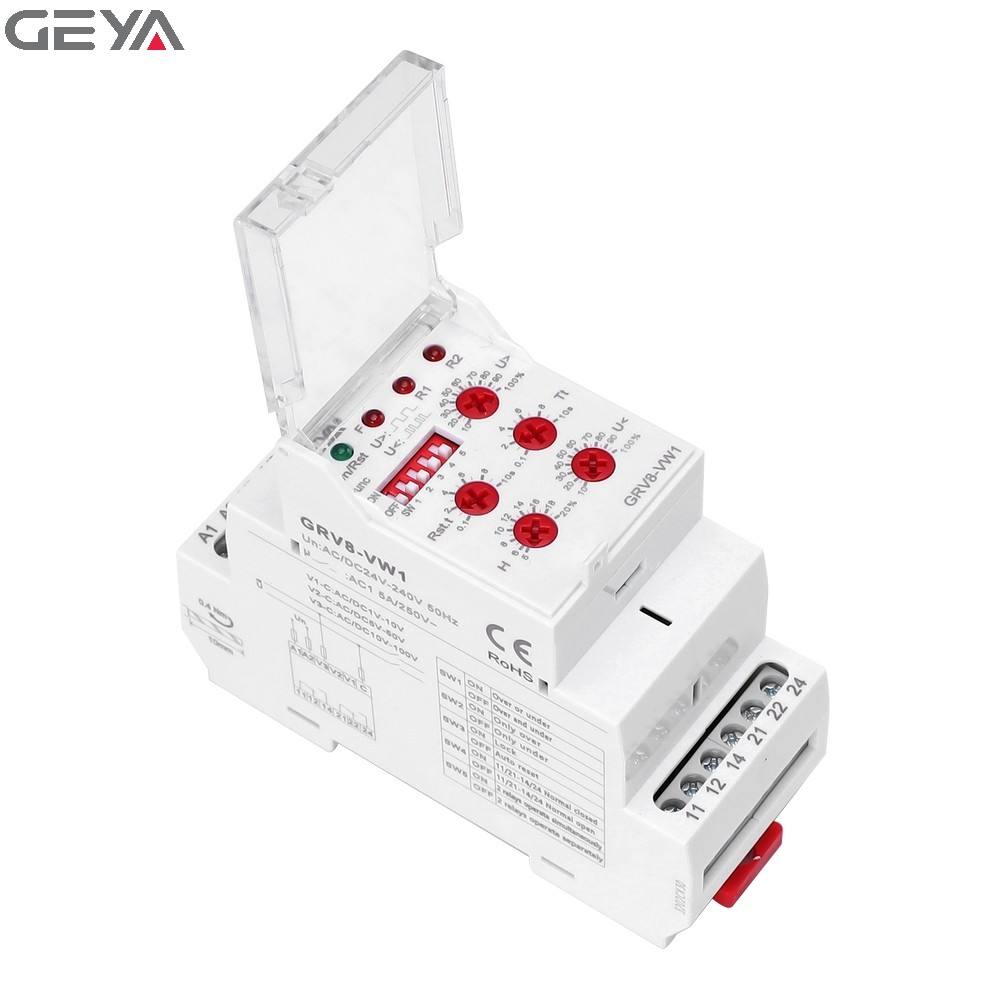

GEYA GRV8-VW1 Single Phase Isolation Monitoring Voltage Relay Electric Voltage Protector to Relay AC/DC1V-100V 50/60Hz

GEYA GRV8-VW1 Single Phase Isolation Monitoring Voltage Relay Electric Voltage Protector to Relay AC/DC1V-100V 50/60Hz

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Grv8-vw1 Single Phase Isolation Monitoring Voltage Relay Electric Voltage Protector To Relay Ac/dc1v-100v 50/60hz - Buy Voltage Sensing Relay adjustable Voltage Protector voltage Monitoring Relays For Din Rail Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

···········This link price is only for GRV8-VW1 AC/DC 1V-100V ··········
Applications -Used for overvoltage and undervoltage protection of electrical equipment.
-Monitor weak load carrying capacity or voltage signals that require isolation.

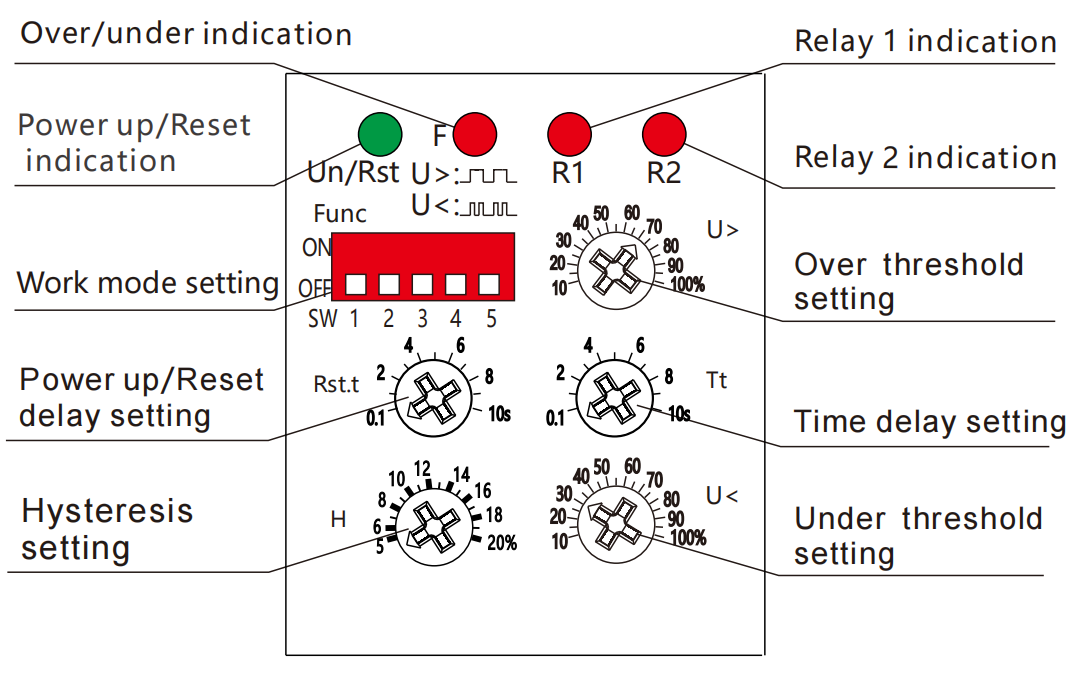

Function Features -True RMS measurement with high measurement accuracy. -Overvoltage and undervoltage selection monitoring or simultaneous monitoring. -The output contact is normally open or normally closed and can be set. -Two sets of contact outputs, which can act separately and independently. -36mm wide, 35mm clamp rail installation.
GEYA GRV8-VW1 Single Phase Isolation Monitoring Voltage Relay Electric Voltage Protector to Relay AC/DC1V-100V 50/60Hz
GEYA GRV8-VW1 Single Phase Isolation Monitoring Voltage Relay Electric Voltage Protector to Relay AC/DC1V-100V 50/60Hz
GEYA GRV8-VW1 Single Phase Isolation Monitoring Voltage Relay Electric Voltage Protector to Relay AC/DC1V-100V 50/60Hz
Function
Monitoring voltage

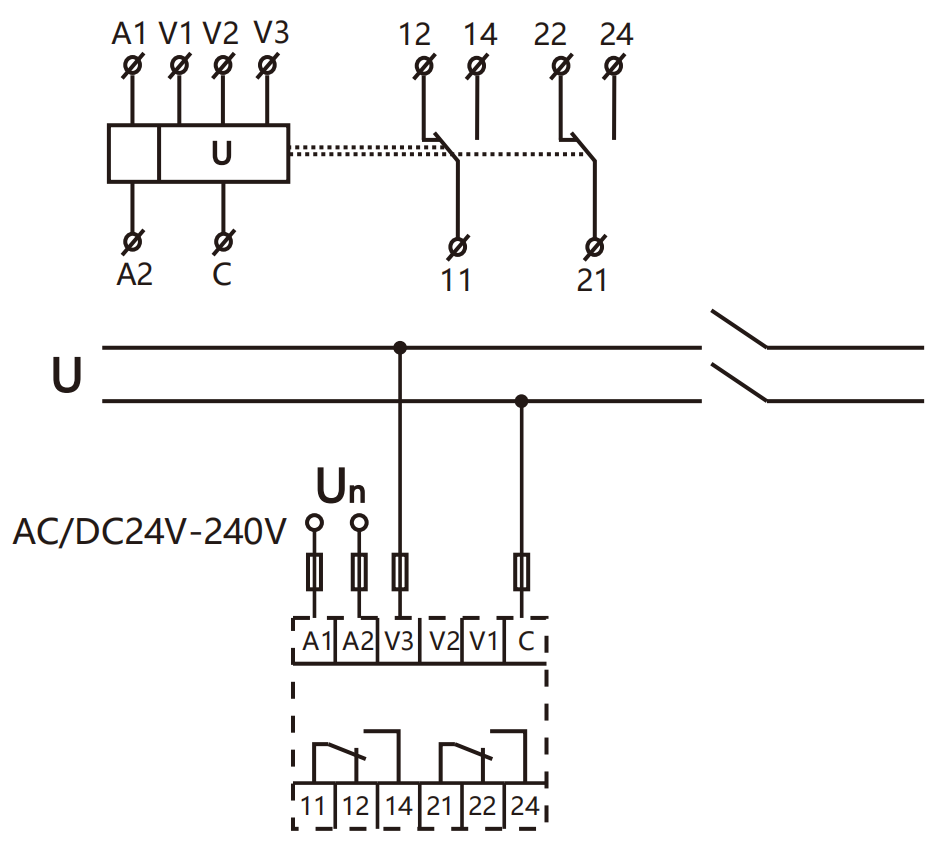

Supply terminals
A1,A2
Rated supply voltage
AC/DC24-240V 50/60Hz
Monitoring voltage input terminal
V1,V2,V3,C
Monitoring voltage range
AC/DC15V-600V50/60Hz
Rated insulation voltage
600V
Hysteresis
Only over or under:5%-20% adjustable;Over and under:fixed 3%
Supply/Reset indication
Green LED
Measurement error
≤2%
Time delay
0.1s-10s
Power up delay/Reset time
0.1s-10s
knob setting accuracy
10%
Output
2xSPDT
Current rating
5A/AC1
Switching voltage
250VAC/24VDC
Min.breaking capacity DC
500mW
Output indication
Red LED
Mechanical life
5×10⁶
Electrical life(AC1)
5×10⁴
Operating temperature
-20℃to+55℃(-4°F to 131°F)
Storage temperature
-35℃to+75℃(-22°Fto158°F)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP40 for front panel/IP20 terminals
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm²)
solid wire max.1x2.5or 2x1.5/with sleeve max.1x2.5(AWG 12)

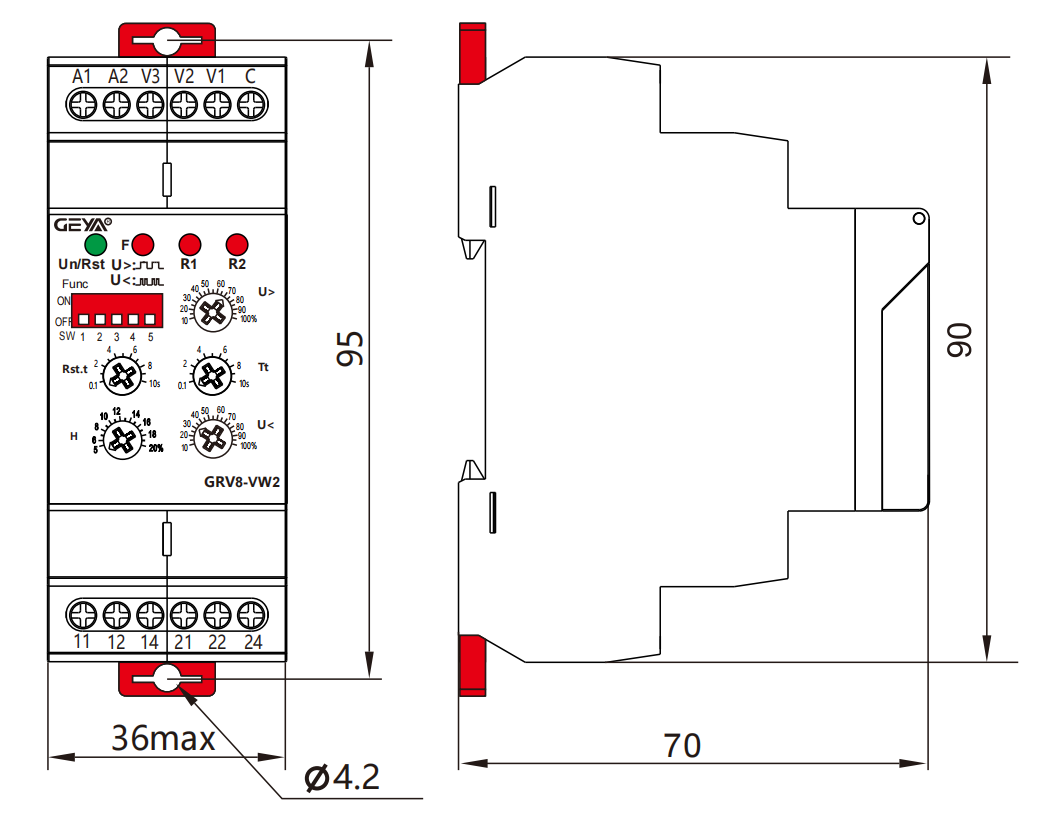

Dimensions
90mm×36mm×70mm
Weight
100g
Standards
IEC60947-5-1
