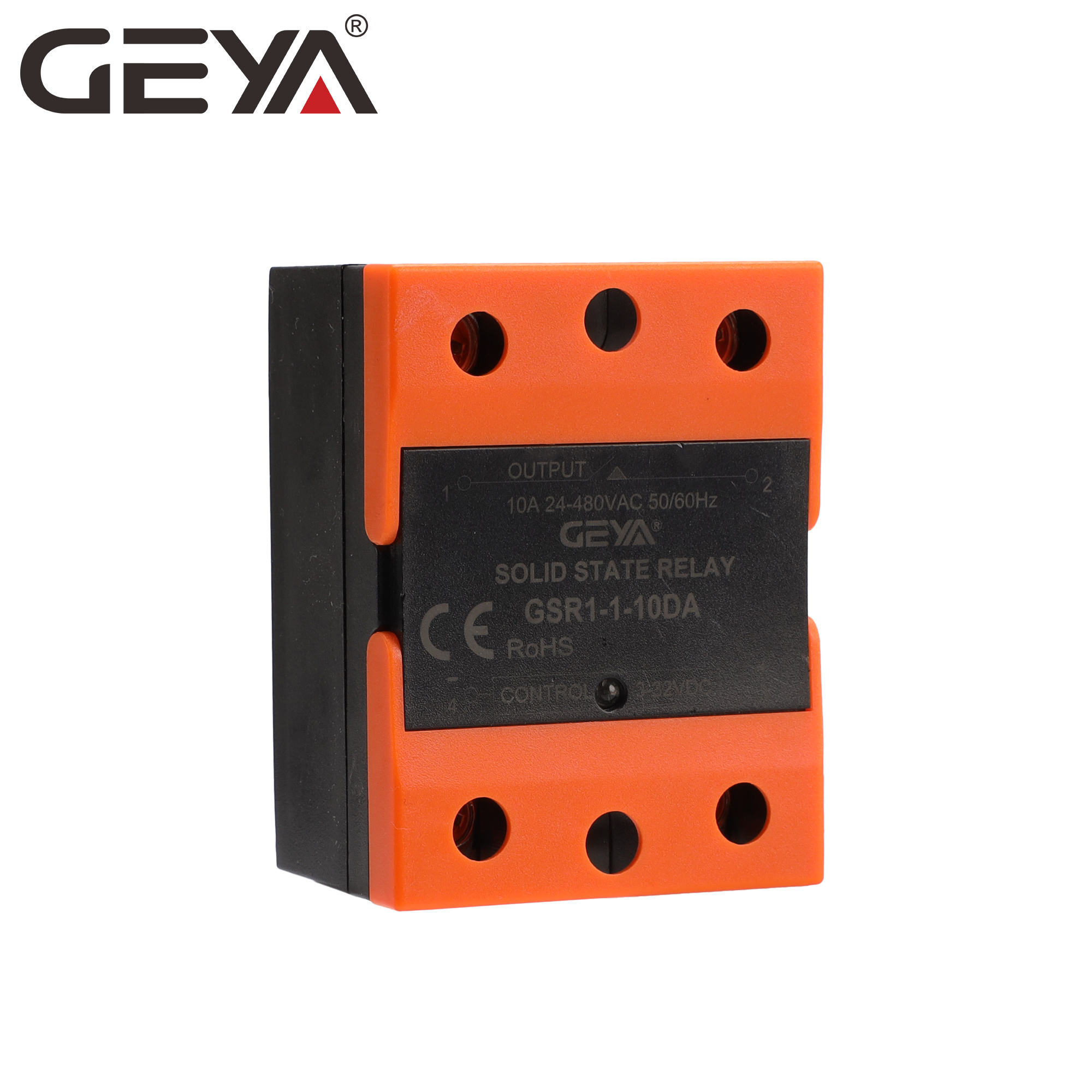

GEYA GSR1-1 10DA-120DA Single Phase Din Rail 3.3v DC to DC 24v Solid State Switching Control SSR 25DA Relay 40A 12V 5V 40amp

GEYA GSR1-1 10DA-120DA Single Phase Din Rail 3.3v DC to DC 24v Solid State Switching Control SSR 25DA Relay 40A 12V 5V 40amp

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gsr1-1 10da-120da Single Phase Din Rail 3.3v Dc To Dc 24v Solid State Switching Control Ssr 25da Relay 40a 12v 5v 40amp - Buy Ac Dc Ssr Solid State Relay 12v 5v 25da Switching 40a Electronics Price Rele Control ac Dc Normally Closed Silent Ssr Solid State Relay 24vdc 12v 5v 25da Switching 40a Electronics Price Rele Control 100a 200 Amp Dpdt 3v 5v 50amp Single Phase Din Rail 24v 12v Dc Ssr Relay 30a Solid State Relay Manufacturers 100 Amp Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··········This link price is only for GSR1-1-120DA············
-Wide input voltage range and small control current, less than or equal to 15mA
-No mechanical action parts, long service life and high reliability;
-Fast switching speed, zero voltage on, zero current off, low RF interference;
-Built in resistance capacitance absorption to protect the impact of the product on the starting instant current;
-Photoelectric isolation between input and output circuits, insulation and withstand voltage of 2500V
-The product is small in size and filled with epoxy resin, which is shockproof, moisture-proof and corrosion-proof
GEYA GSR1-1 10DA-120DA Single Phase Din Rail 3.3v DC to DC 24v Solid State Switching Control SSR 25DA Relay 40A 12V 5V 40amp
input parameter
Control voltage range
3-32VDC
Minimum control current
5mA
Maximum control current
15mA
Ensure that the voltage is turned on
3.5VDC
Ensure shutdown voltage
1.5VDC
Output parameters
Output voltage range
24-480VAC
Specification / maximum load current
10A
25A
40A
60A
80A
100A
120A
Peak voltage
800VAC
1200VAC
insulation resistance
1000MΩ/500VDC
Leakage current under off state
≤8mArms
≤2mArms
Saturation pressure drop in on state
≤1.5V
On-off reaction delay
≤10ms
General characteristics

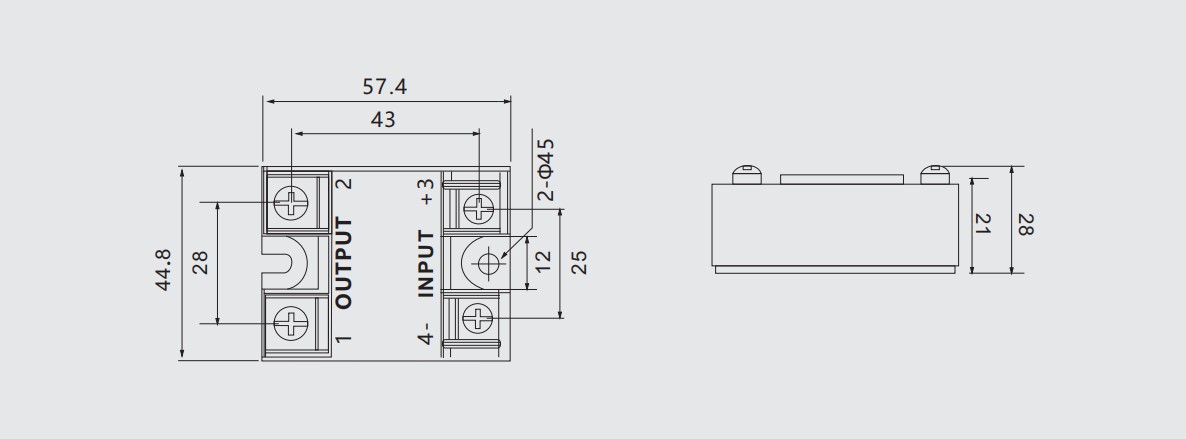

size
57.4L×44.8W×28H
weight
100g
Insulation and withstand voltage between input and output
2500Vrms
Insulation and withstand voltage between input and output and housing
4000Vrms
ambient temperature
-20°~75°C
Installation mode
Bolt fixing
Relevant certification
CE
Item No.
Description
Product weight
/KG
Inner box quantity
Inner box size
(CM)
1 box weight
KG
PCS/CTN
(PCS)
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
Single phase
GSR1-1-10DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-25DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-40DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-60DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-80DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-100DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-120DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-10AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-25AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-40AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-60AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-80AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-100AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-10DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-25DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-40DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-60DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-80DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-100DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
