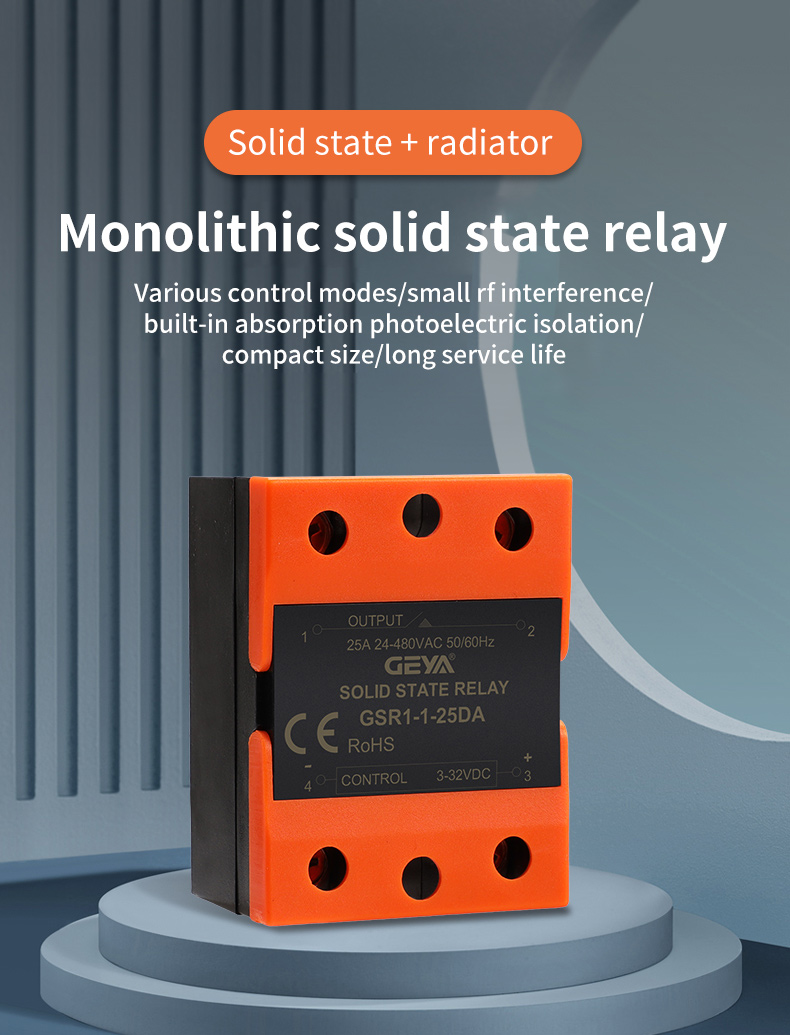

GEYA GSR1-1-25AA Din Rail Ssr Aa 25a 30a 40a 60a 16a Single-phase Solid State Relay Dc to Dc

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gsr1-1-25aa Din Rail Ssr Aa 25a 30a 40a 60a 16a Single-phase Solid State Relay Dc To Dc - Buy Solid State Relay Esr 40 Da-h ssr-40da 40a Dc Control Ac Input 4~32vdc Output 24~380vac Zero Crossing Single-phase Solid State Relay 24 Volt Dc Relay Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··········This link price is only for GSR1-1-25AA·········

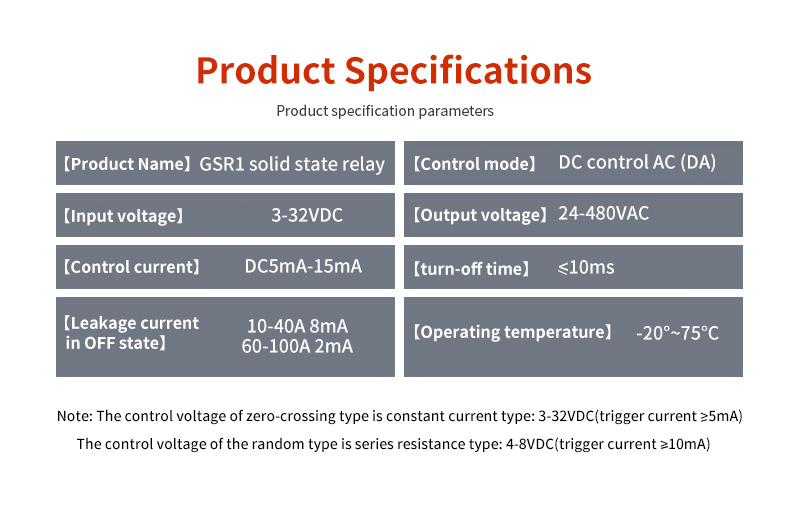

input parameter

Control voltage range

3-32VDC

Minimum control current

5mA

Maximum control current

15mA

Ensure that the voltage is turned on

3.5VDC

Ensure shutdown voltage

1.5VDC

Output parameters

Output voltage range

24-480VAC

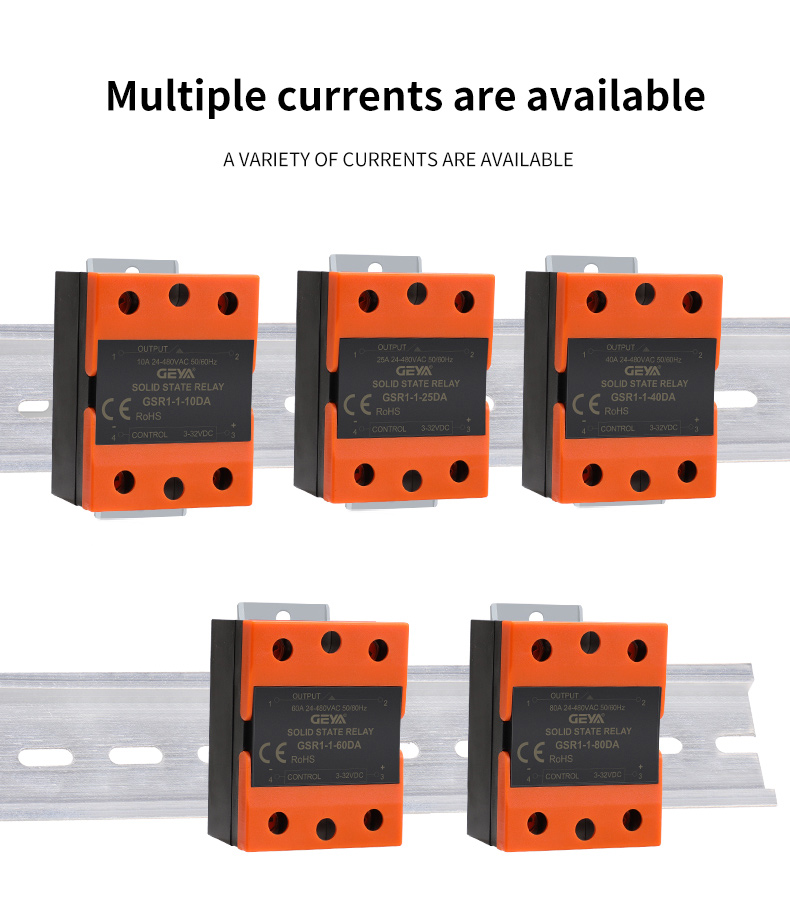

Specification / maximum load current

10A

25A

40A

60A

80A

100A

120A

Peak voltage

800VAC

1200VAC

insulation resistance

1000MΩ/500VDC

Leakage current under off state

≤8mArms

≤2mArms

Saturation pressure drop in on state

≤1.5V

On-off reaction delay

≤10ms

General characteristics

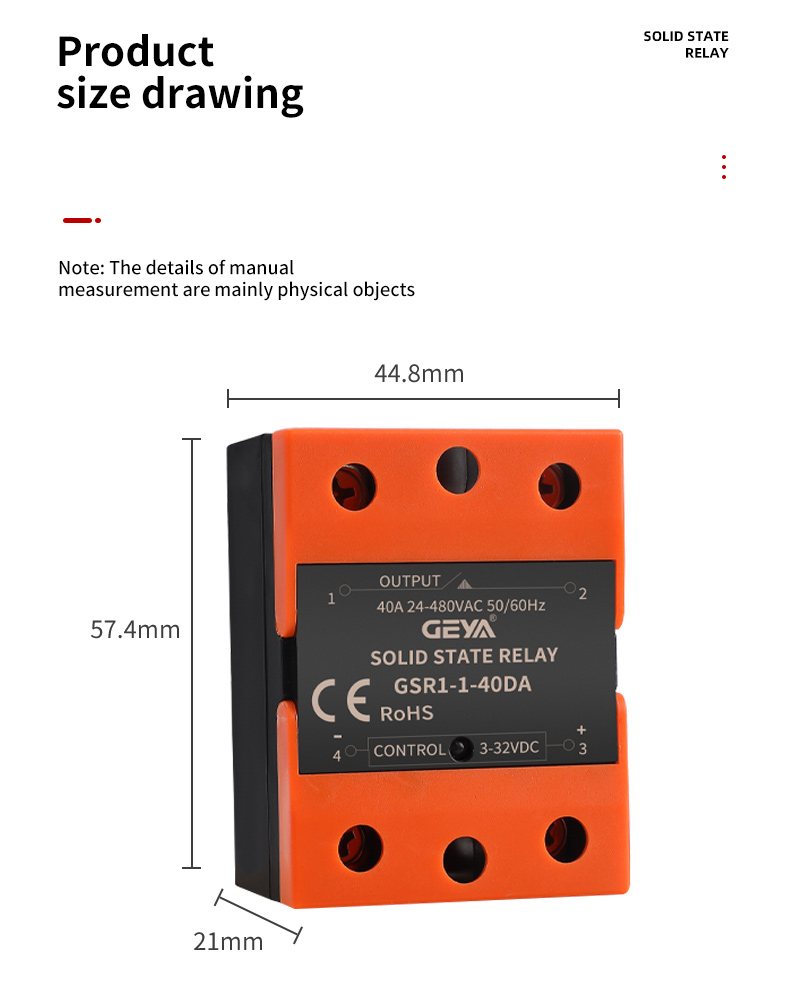

size

57.4L×44.8W×28H

weight

100g

Insulation and withstand voltage between input and output

2500Vrms

Insulation and withstand voltage between input and output and housing

4000Vrms

ambient temperature

-20°~75°C

Installation mode

Bolt fixing

Relevant certification

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
