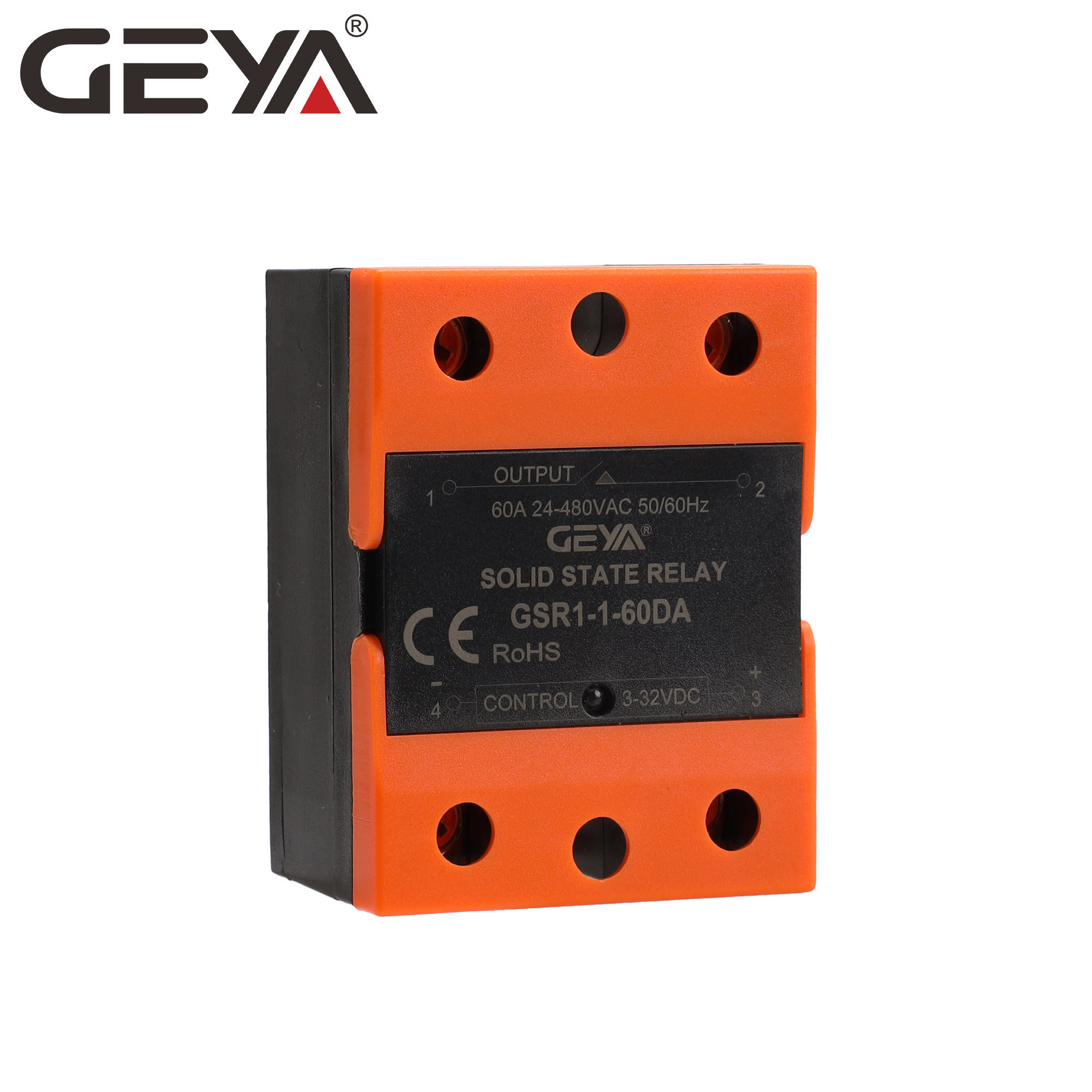

GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR

GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gsr1-1-60da Single Phase Direct Current Solid State Relay Dc Control Ac Ssr - Buy Solid State Relay dc To Ac Solid State Relay Ssr industrial Solid State Relay Dc Controlled Ac Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

·············This link price is only for GSR1-1-60DA·············
GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR
GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR
GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR
GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR

SSR Working:

The control inputs are connected internally to an LED, which shines across an air gap to light sensors.The light sensor is connected to the transistors which open or close, supplying the relay's load with power.When a transistor is closed, current can flow freely through the relay, causing the load and power supply to be connected. When a transistor is open, almost all current is blocked, causing the load to become disconnected from the power supply. The pairing of an LED with light sensors is called an optocoupler, and is a common technique to link two parts of a circuit without a direct electrical connection.

SSRs perform the same job as Mechanical Relays, but have the following advantages:
**SSRs produce less electromagnetic interference than mechanical relays during operation. This is mostly due to the absence of a
phenomenon called contact arcing only present in mechanical relays, where the physical contacts of the relay tend to spark
internally while switching. The reduced interference can also be attributed to the fact that SSRs do not use electromagnets to
switch.
**The switch contacts of a mechanical relay will eventually wear down from arcing. An SSR will have a longer life because its
internals are purely digital. Properly used, they will last for millions of cycles.
**SSRs turn on and off faster than mechanical relays (≈1ms compared to ≈10ms).
**SSRs are less susceptible to physical vibrations than mechanical relays.
**Since the switch inside an SSR isn't a mechanical switch, it does not suffer from contact bounce and operatessilently.
GEYA GSR1-1-60DA Single Phase Direct Current Solid State Relay DC Control AC SSR
GSR1-1-60DA

Load Current
25A
Load Voltage
90-480V AC
Control Voltage
3-32V DC
Control Current
DC15-35mA
On Voltage
≤1.3V
Off Leakage Current
≤2mA
On-Off Time
≤10mS
Dielectric Strength
Input-Output-Floor≥2500VAC
Insulation Resistance
1000MΩ/500V DC
Ambient Temoerature
-30~75℃
Mounting Methods
Bolt Fixing
The Work Instructions
LED
Item No.
Description
Product weight
/KG
Inner box quantity
Inner box size
(CM)
1 box weight
KG
PCS/CTN
(PCS)
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
Single phase
GSR1-1-10DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-25DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-40DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-60DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-80DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-100DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-120DA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19










GSR1-1-10AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-25AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-40AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-60AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-80AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-100AA
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19










GSR1-1-10DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-25DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-40DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-60DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-80DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
GSR1-1-100DD
Single phase
0.095
10
18.7*10.2*70
1.044
200
39*38*22
22
19
