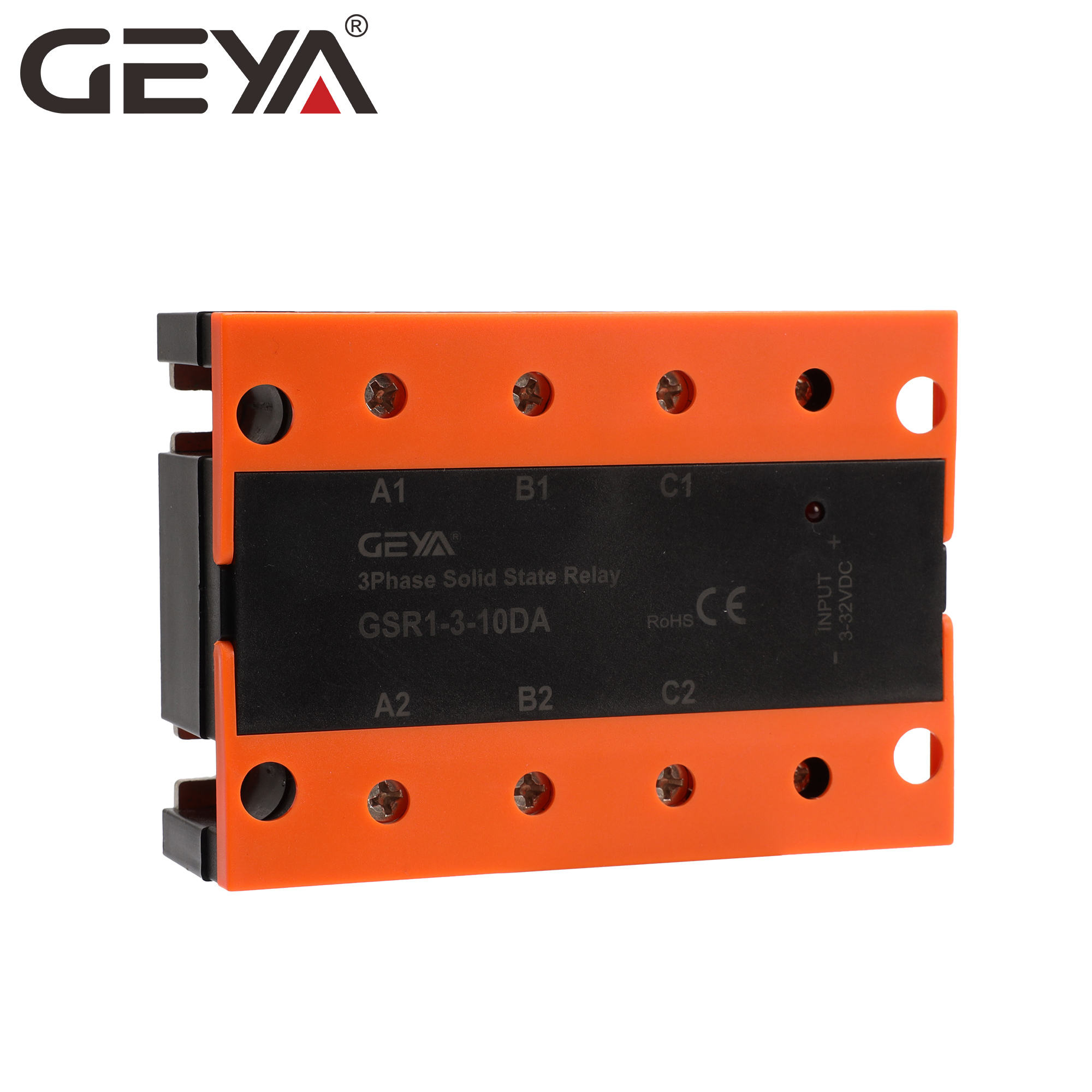

GEYA GSR1-3 10DA-120DA 3 Phase Ssr in Electrical 24vdc zero Crossing Dc to Dc Solid State Relay 40a 220v Releji 25 Amp 50 Amp

GEYA GSR1-3 10DA-120DA 3 Phase Ssr in Electrical 24vdc zero Crossing Dc to Dc Solid State Relay 40a 220v Releji 25 Amp 50 Amp

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Geya Gsr1-3 10da-120da 3 Phase Ssr In Electrical 24vdc Zero Crossing Dc To Dc Solid State Relay 40a 220v Releji 25 Amp 50 Amp - Buy Din Rail Zero Crossing 3.3v 24v Ac Dc Dc 3 Phase Solid State Relay Ssr Electrical Relay Price 240v 40 Amp Types 5v 20a 50a 100a Dual Spdt 120v Small Three Phase 12vdc Solid State Relay 40 Amp 10a 230v 25a 24v 60a 5a Switch Types 200a 100 Amp 30 Amp Dc Output 12v Normally Closed Three Phase Ssr 100a 150a Solid State Relay 25amp 120v Ac To Ac 100amp Motor Control Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

- Wide input voltage range and small control current, less than or equal to 20mA;
-No mechanical action parts, long service life and high reliability;
-Fast switching speed, zero voltage on, zero current off, low RF interference;
-Built in resistance capacitance absorption to protect the impact of the product on the starting instant current;
-Photoelectric isolation between input and output circuits, insulation and withstand voltage of 2500V;
-The product is small in size and filled with epoxy resin, which is shockproof, moisture-proof and corrosion-proof
GEYA GSR1-3 10DA-120DA 3 Phase Ssr in Electrical 24vdc zero Crossing Dc to Dc Solid State Relay 40a 220v Releji 25 Amp 50 Amp
input parameter
Control voltage range
70-280VDC
Minimum control current
5mA
Maximum control current
10mA
Ensure that the voltage is turned on
90VAC
Ensure shutdown voltage
50VAC
Output parameters
Output voltage range
24-480VAC
Specification / maximum load current
10A
25A
40A
60A
80A
100A
120A
Peak voltage
800VAC
1200VAC
insulation resistance
1000MΩ/500VDC
Leakage current under off state
≤8mArms
≤2mArms
Saturation pressure drop in on state
≤1.5V
On-off reaction delay
≤10ms
General characteristics
size
105L×74W×33H
weight
500g
Insulation and withstand voltage between input and output
2500Vrms
Insulation and withstand voltage between input and output and housing
4000Vrms
ambient temperature
-20°~75°C
Installation mode
Bolt fixing
Relevant certification
CE
Item No.
Description
Product weight
/KG
Inner box quantity
PCS/CTN
(PCS)
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
Three phase
GSR1-3-10DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-25DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-40DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-60DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-80DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-100DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-120DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-150DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-200DA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-10AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-25AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-40AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-60AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-80AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-100AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-120AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-150AA
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-200AA
three phase
0.285
1
50
44*24*25
15
14.25








GSR1-3-10DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-25DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-40DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-60DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-80DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-100DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-120DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-150DD
three phase
0.285
1
50
44*24*25
15
14.25
GSR1-3-200DD
three phase
0.285
1
50
44*24*25
15
14.25
