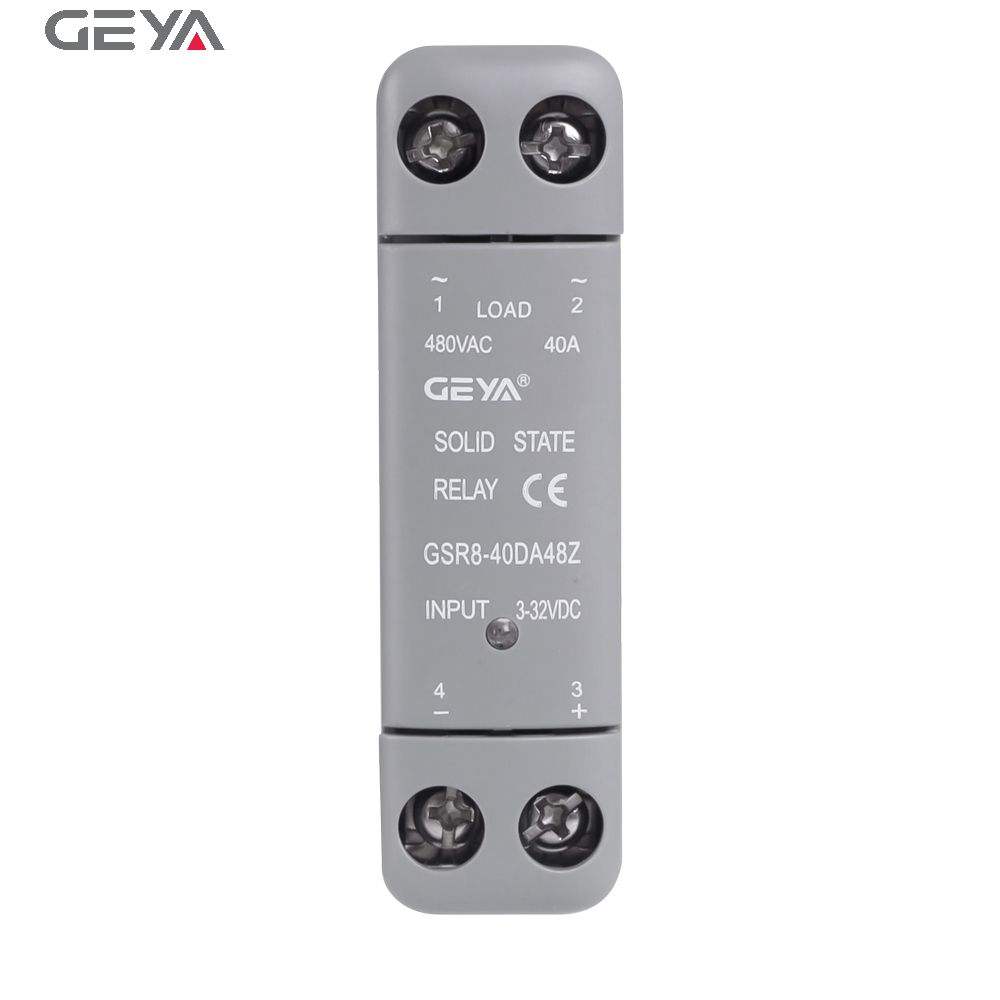

GEYA GSR8-40DA48Z Original Single Phase Normally Closed Solid State Relay DC to AC SSR Switching With Heast Sink SSR

GEYA GSR8-40DA48Z Original Single Phase Normally Closed Solid State Relay DC to AC SSR Switching With Heast Sink SSR

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gsr8-40da48z Original Single Phase Normally Closed Solid State Relay Dc To Ac Ssr Switching With Heast Sink Ssr - Buy Solid State Relay dc Ac Solid State Relay Ssr electrical Solid State Relay Module Dc To Ac solid State Relay 8ch 20a solid State Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

···········This link price is only for GSR8-40DA48Z··········
Features -Rating of 15A,25A,40A,60A -Output voltage of 24-480VAC and 24-600VAC -Control voltage of 4-32VDCand 90-280VAC. -Zero Crossing orRandom-on Switching. -Integrated IP20 touch-safe removable covers -LED input statusindicator. -Integrated Heatsink -DIN Railand PanelMount
GEYA GSR8-40DA48Z Original Single Phase Normally Closed Solid State Relay DC to AC SSR Switching With Heast Sink SSR
GEYA GSR8-40DA48Z Original Single Phase Normally Closed Solid State Relay DC to AC SSR Switching With Heast Sink SSR
Description
Specification Limits
Control Voltage Range
4-32VDC
90-280VAC
Maximum Reverse Voltage
-6VDC
/
Minimum Turn-On Voltage
4VDC
90VAC
Must Turn-Off Voltage
1V
10VAC
Minimum Input Current [for on-state]
10mA
6.5mA
Maximum Input Current [mA]
20mA
18mA
Maximum Turn-On Time [msec]
1/2 Cycle
1/2 Cycle
Maximum Turn-Off Time [msec]
1/2 Cycle
1/2 Cycle
Description
15A
25A
40A
60A
Dielectric Strength,Input to Output [50/60 Hz]
2500 Vrms
Dielectric Strength,Input/Output to Base [50/60 Hz]
2500 Vrms
Minimum Insulation Resistance[@500 VDC]
10⁹Ω
Maximum Capacitance,Input/Output
0.8 pF
Ambient Operating Temperature Range
-30 to 80℃
Ambient Storage Temperature Range
-30 to 100℃
Humidity per IEC60068-2-78
95%
LED Input Status Indicator
Red
Housing Material
PBT+30%GF
Baseplate Material
Pure copper/Alumina
Weight
280
