Product Description

This link price is only for GYAG15-Q30-NA.if you need other specification，please feel free to contact us！

The proximity switch has a difference between two wires and three wires. Three wire proximity switch is divided into NPN type and
PNP type. They have different wiring modes.
The wiring of the two-wire proximity switch is relatively simple. The proximity switch is connected in series with the load and
then connected to the power supply.

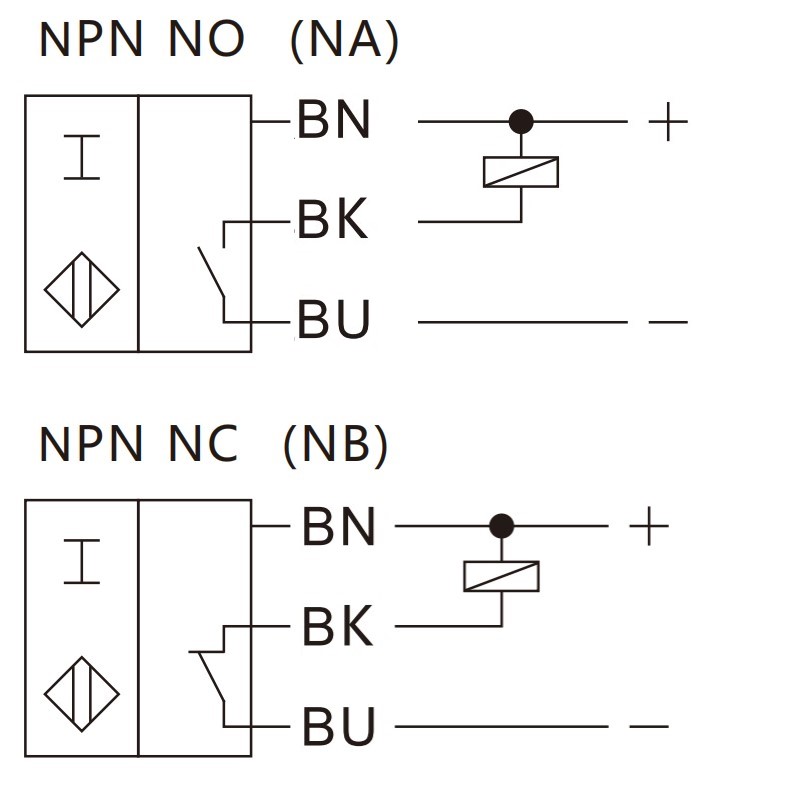

Wiring of three-wire proximity switch: red (brown) wire is connected to the positive end of the power supply; the blue wire is
connected to the 0V end of the power supply; the yellow (black) line is the signal line, which should be connected to the load.

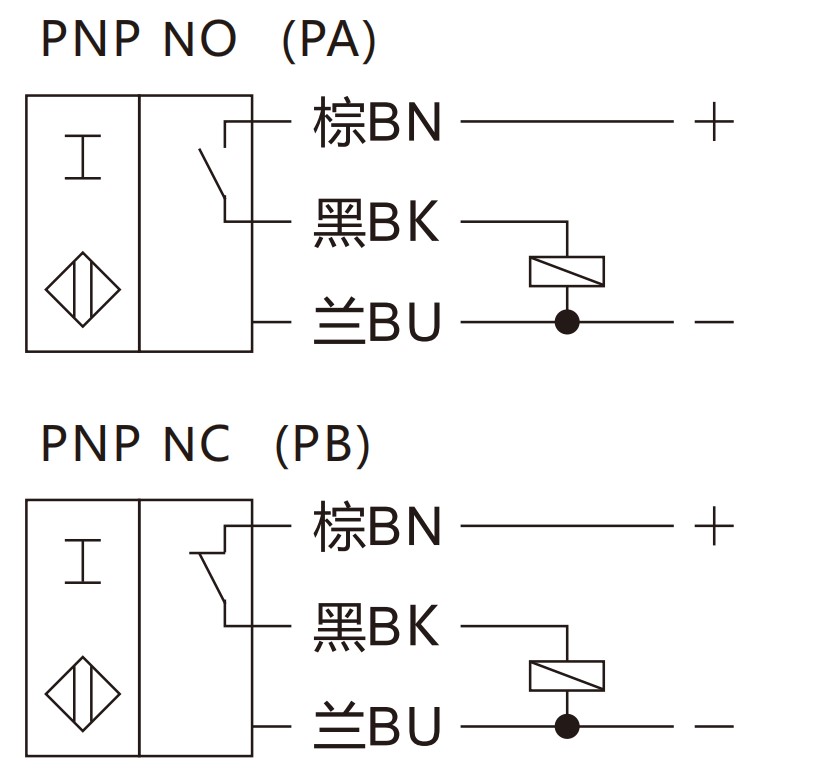

The other end of the load shall be connected to the positive end of the power supply for the NPN-type proximity switch, and to the
0V end of the power supply for the PNP-type proximity switch.
A load of proximity switch can be a signal lamp, relay coil, or digital input module of PLC.

item	value
Model Number	GYAG15-Q30-NA
Type	Non-screen shield type
Place of Origin	China
	Zhejiang
Brand Name	GEYA
Usage	Detection distance
Theory	Detect objects with magnetism
Output	NPN/PNP NO(NC)
Description	Proximity Sensor
Voltage range	DC10-30V
Max operating Distance	10mm
Specifical	NPN DC 3WIRE NO
