Product Description

··············This link is for the price of individual modules·············

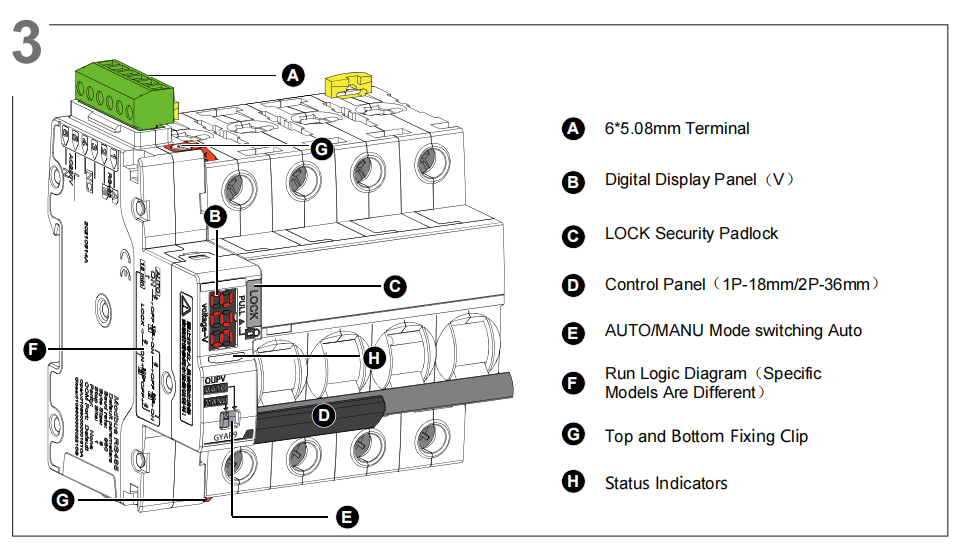

Product Features 1.Visual voltage display makes it easier formaintenance personnel to judge the circuitduring maintenance. 2.Equipped with a LOCK padlock device toachieve a double protection mechanismand provide additional protection forcircuit maintenance 3.Supports MODBUS 485 remote communication function to remotely understand the working status of thedevice 4.Supports local operation fault storage,and when the remote communicationfunction is restored,the device data canbe read 5.Remote automatic mode can operate safely and efficiently based on MCU self-test

Standard	EN 50155,GB/T 24338.4-2018,EN 45545-2,IEC 61373

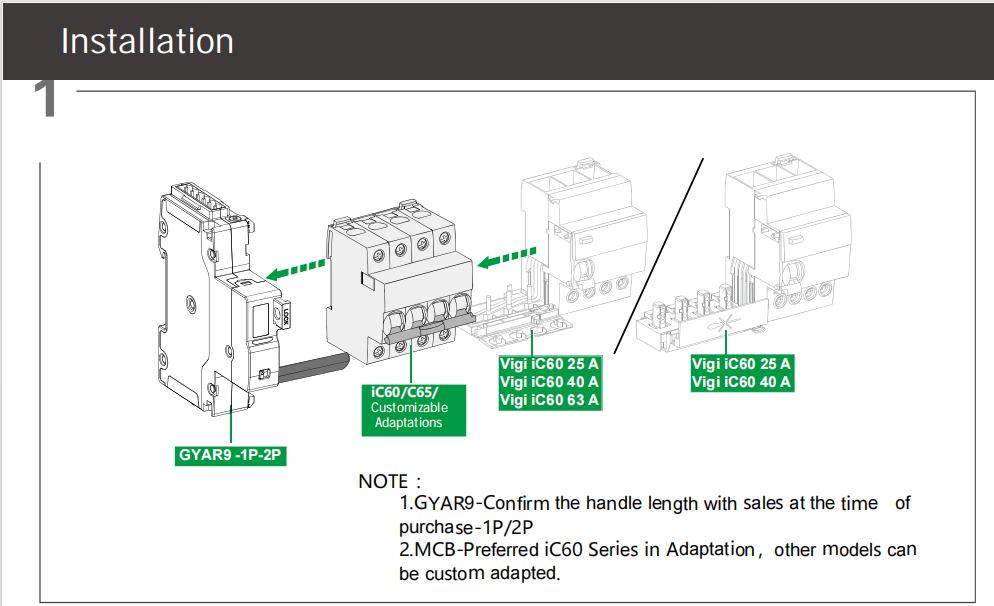

Adaption	Acti9 Series 1P-4
Electrical Characteristics
Operating Voltage	230V AC(70%~125%)24-48V DC(optional)

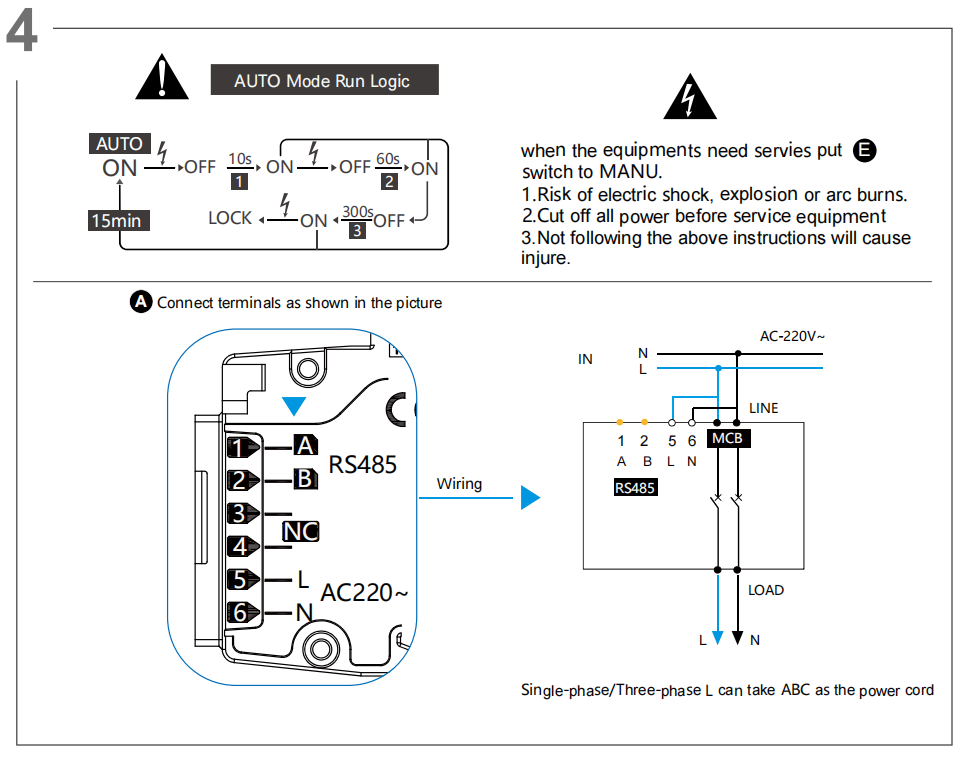

Control signal	MODBUS-RS485 Wet node 230V high level/pulse signal (optional)
Over&Under voltage function	160-275V±5V(optional)
Timing function	Available(optional)
Digital display	3-digit voltage,switching times,fault status
Effective control signal duration	>400ms
Closing action time	<1s
Opening action time	<0.5s
Control circuit cable length	≤1500m
Current-carrying capacity of auxiliary contacts(terminals 8-9-10)	1CO,minimum operating current 3mA(24VDC)(resistive)(optional)
Current-carrying capacity of signaling contacts(terminals 5-6-7)	Maximum operating current 2A(30V DC),0.5A(125V AC)(optional)
Power consumption	≤1.5VA(static);≤25VA(dynamic)
Rated insulation voltage	400V
Rated Impulse Withstand Voltage Uimp (between S2C-RM DC and MCB	4kV(4.9KV at sea level)
Self-locking protection	Within 10s of 3CO/20s of 4CO/30s of 6CO,the product will self-lock and recover automatically after 40s.
Electrical life	10000 times,3 times/minute
Mechanical Characteristics
Indicator Light	Green,Normal status
Auto/Manual switching	Auto Remote control of opening&closing available Manual Remote control of opening&closing disabled
Mechanical life	10000
Protection class	lp20
Hazard class according to EN 45545-2	EN 45545-2 R26/HL3
Shock and vibration resistance According to IEC 61373	category 1-class A/B-body mounted
Resistance to heat and humidity IEC/EN 60068-2-30	28 cycles(55℃/90-96%,25℃/95-100%)
Ambient Temperature	-25…+70℃
Storage Temperature	-40...+70℃

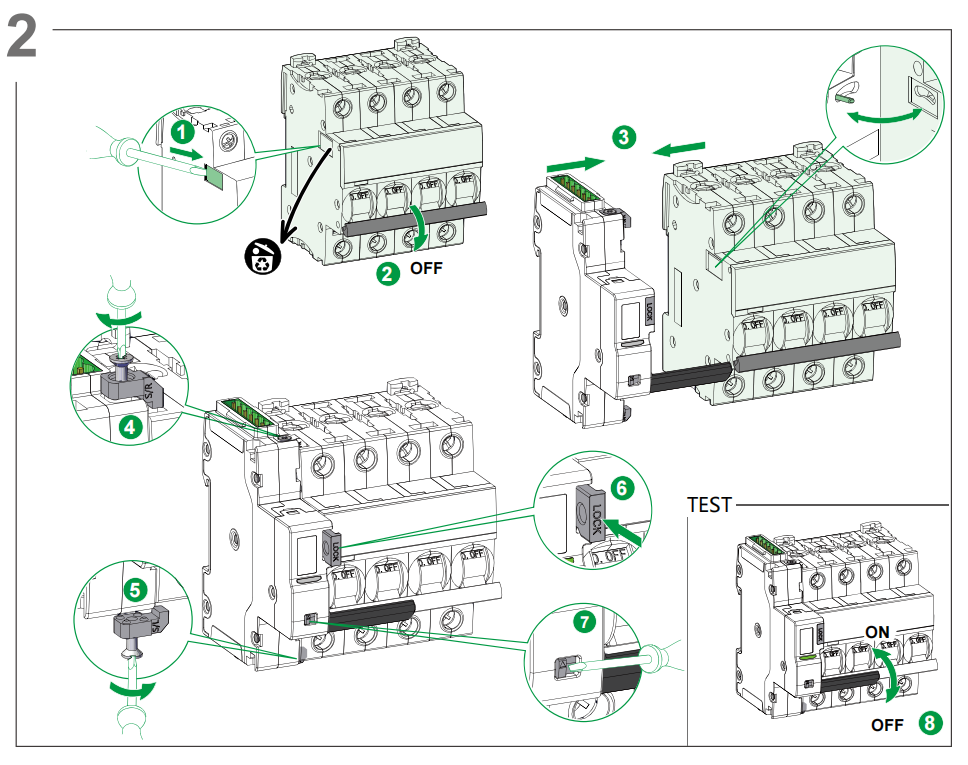

Installation and Wiring
Power and control signal terminal wiring capacity	28-12AWG 2.5mm²
Auxiliary signal terminal wiring capacity	28-14AWG 1.5mm²

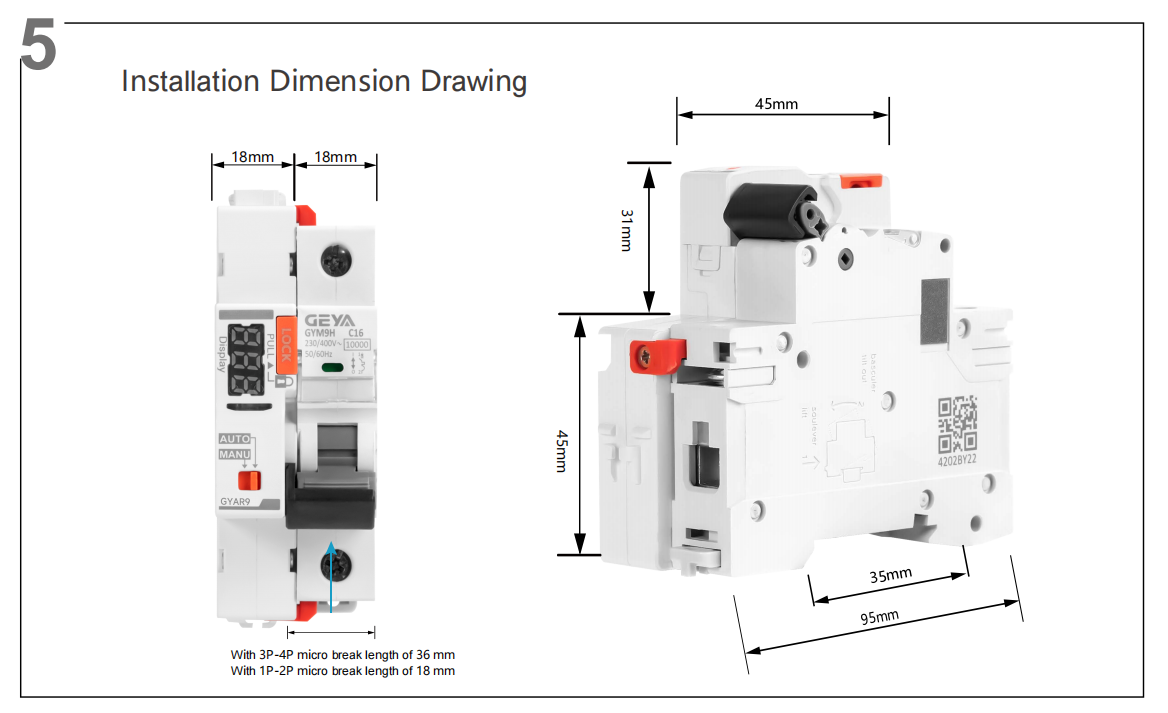

DIN rail mounting	DIN rail EN 60715(35 mm)
Mounting position	Mounting on DIN rail Any position

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
