Product Description

··········This link price is only for GYCM3-125L/3300 alloy contacts···········

GYCM3L series residual current circuit breakers (hereafter simply referred to as circuit breakers) are one of the new type breakers which have been developed using international advanced design and manufacturing technology.The rated insulation voltage of the breakers is 800V. In the circuit of AC50Hz, the rated working voltage 400V or bellow and the rated working current up to 630A, the breakers are suitable for infrequent turn-on or turn-off and infrequent motor starting-up. The breakers have overload, short-circuit and under-voltage protection performances so as to protect the circuit and the power equipment from damage. Besides, they can provide indirect contact protection and detect the longstanding ground fault which may cause fire.When the other protections were out of order, GYCM3L breakers (rated residual current is 30mA) can provide direct contact protection.

Frame current Inm(A)					125
Type					GYCM3L-125
Pole number					3/4
Rated current In(A)					16/20/25/32/40/ 50/63/80/100/125
Rated insulation voltage Ui(V)					AC800
Rated impulse voltage Uimp(V)					8000
Rated working voltage Ue(V) 50Hz/60Hz					AC400
Arc-over distance(mm)					50(0)²
Limiting short-circuit breaking ability lcu(kA)					50
Operating short-circuit breaking ability Ics(kA)					35
Rated residual current I△n(A)	Type acresidual current protection	Type U release,non-delay time	0.03/0.1/0.3/0.5
				Type V relesase, non-delay time、 Adjustable delay time	0.1/0.3/0.5
				Type W release, non-delay time、 Adjustable delay time	0.3/1/3/10
		TypeA residual curentprolection	Type VA release, non-delay time、 Adjustable delay time	0.1/0.3/0.5
Rated residual non-operating current I△no(A)					1/2l△n
Rated residual short-circuit breaking capacity l△m(kA)					1/4lcu
Utilization category					A
Electrical durability (times)"					8000
Mechanical durability(times)"			without maintenance	20000
Mechanical durability(times)"				maintenance	40000

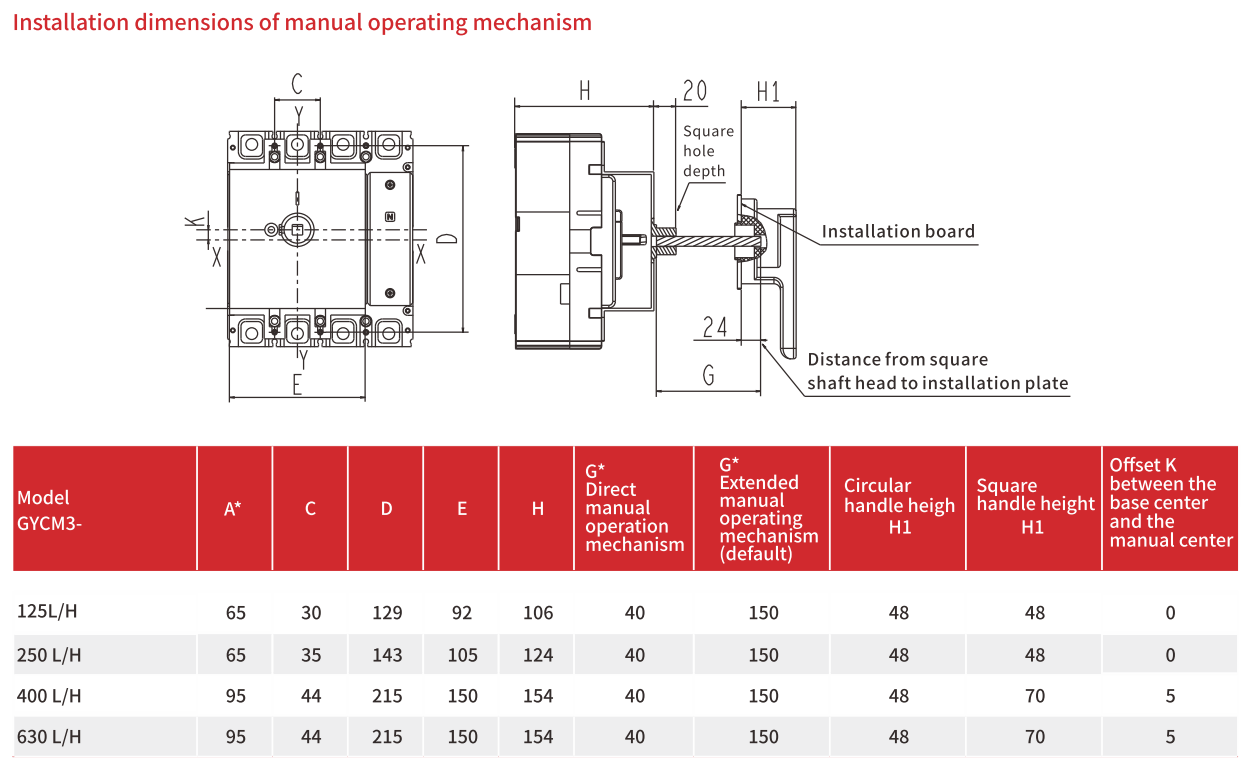

Outline dimensions (mm)			width	92/122
				length	150
				height	92

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
