Product Description

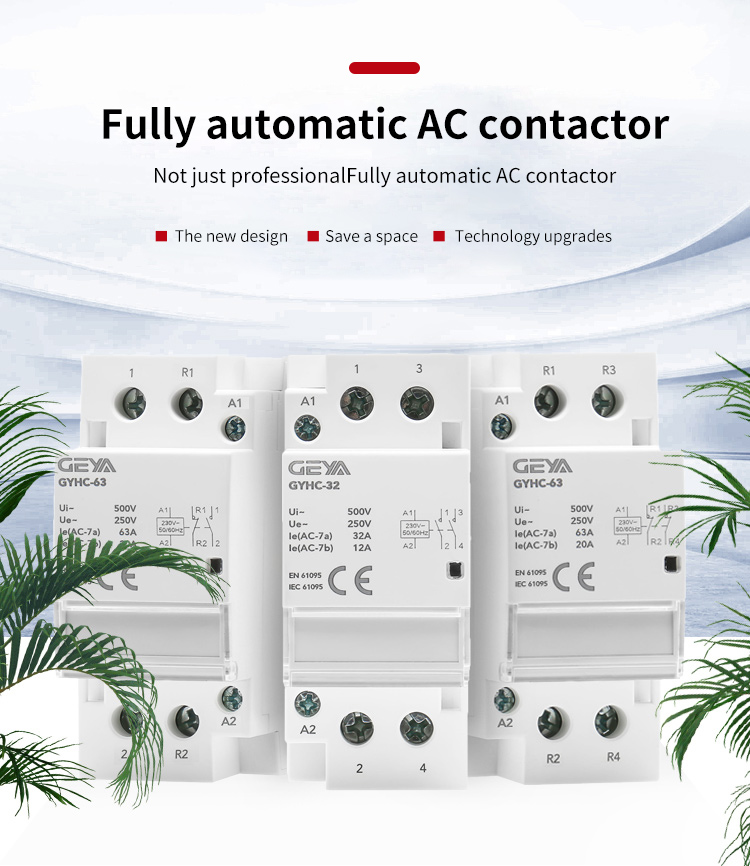

GEYA GYHC-16 2P 1NO1NC 220V 16A Household Modular Contactor AC Din Rail Type

This link price is only for GYHC-16 2P 1NO1NC.

The new GYHC series modular contactor uses a new technology platform and apply automated production and testing equipment tocreate advanced ultra-quiet and long-life contactors.
It can be used for remote control, Lighting, heating, ventilation, rolling curtains, public hot water, Mechanical ventilation system, Low inductive micro-inductive load environment.

*Low power consumption
The GYHC series modular contactor optimizes the electromagnetic system, greatly reducing the holding power of the contactor, and
completely solving the problem of high energy consumption of traditional contactors.
*Low noise
Adopts a new design to improve product reliability. 60% of the production process is automated, and key processes throughout the
process are monitored automatically. Eliminate the noise problems encountered in the operation of traditional contactors from the
design and manufacturing process
*Super long life
Electrical life greater than 100,000 times Mechanical life is more than 12,000,000 times

*NO: Normally Open Contact
*NC: Normally Close Contact

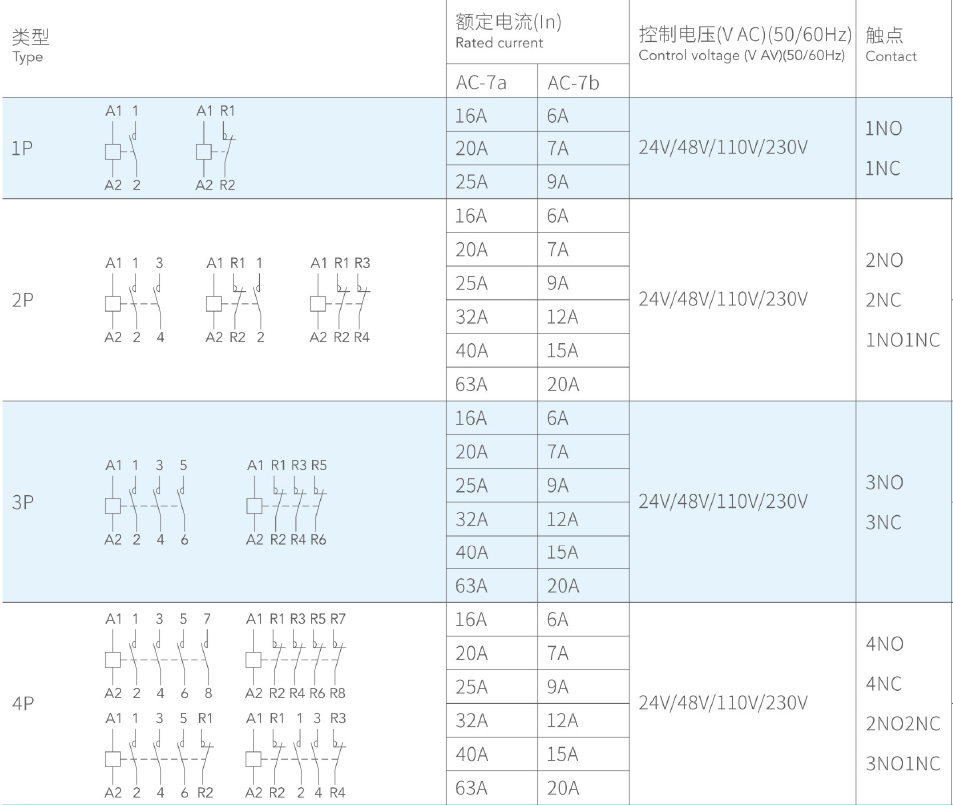

	16A	20A	25A	32A	40A	63A
2P	2NO	2NO	2NO	2NO	2NO	2NO
		2NC	2NC	2NC	2NC	2NC	2NC
		1NO1NC	1NO1NC	1NO1NC	1NO1NC	1NO1NC	1NO1NC
4P	2NO2NC	2NO2NC	2NO2NC	2NO2NC	2NO2NC	2NO2NC
		3NO1NC	3NO1NC	3NO1NC	3NO1NC	3NO1NC	3NO1NC
		4NO	4NO	4NO	4NO	4NO	4NO

Item	Product width	Number of inner boxes	Number of outer boxes packed	Product weight (kg)	N.W（kg）	G.W (kg)	Carton size
GYHC 16/20/25A 1P	18mm	12	120	0.119	14.280	15.41	480mm×232mm×240mm
GYHC 16/20/25A 2P	18mm	12	120	0.127	15.180	16.31	480mm×232mm×240mm
GYHC 16/20/25A 3P	36mm	6	60	0.211	12.660	13.79	480mm×232mm×240mm
GYHC 16/20/25A 4P	36mm	6	60	0.218	13.080	14.21	480mm×232mm×240mm
GYHC 32/40/63A 2P	36mm	6	60	0.242	14.520	15.65	480mm×232mm×240mm
GYHC 32/40/63A 3P	54mm	4	40	0.338	13.520	14.65	480mm×232mm×240mm
GYHC 32/40/63A 4P	54mm	4	40	0.338	13.520	14.65	480mm×232mm×240mm
AS auxiliary 2NO	9mm	12	120	0.038	4.500	5.63	480mm×232mm×240mm
AS auxiliary 1NO+1NC	9mm	12	120	0.038	4.500	5.63	480mm×232mm×240mm
