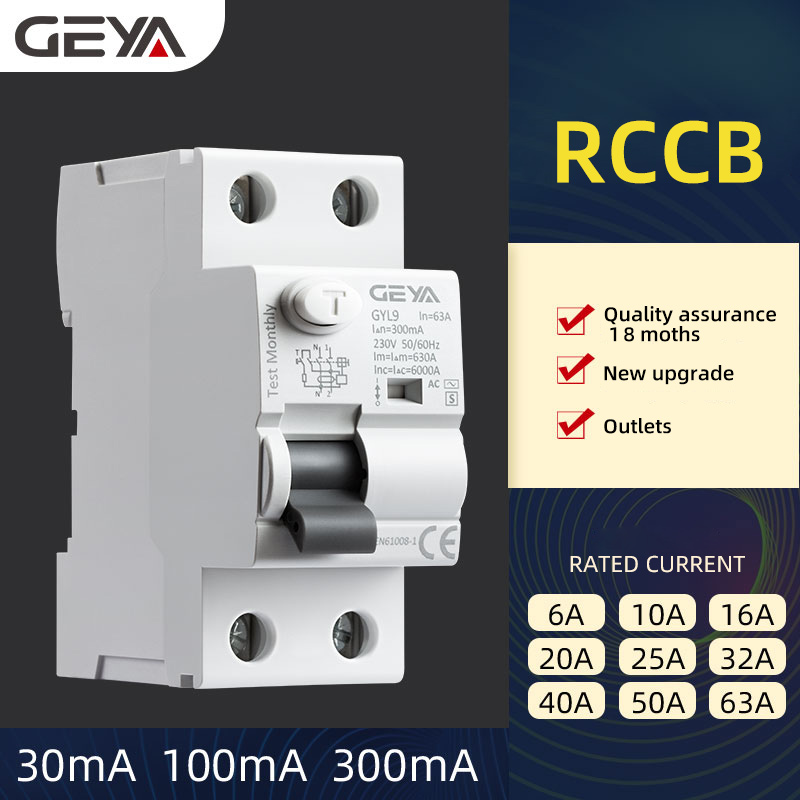

GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA

GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyl9 Id Rccb 10ka Residual Circuit Device Rcd Electronic 10ma30ma 100ma 300ma Elcb Rccb 80a Current Ratings 2p 16a 30ma - Buy Residual Current Circuit Breaker id Rccb 80a rcd Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

··················This link price is only for GYL9 2P-80A 30mA AC··················

GYL9 earth leakage circuit breaker is suitable to the circuit of AC50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 63A.

When people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments, It also can be used in the infrequent starting of the circuit and motors.
The circuit breaker is suitable to industry, commerce, high-rise building, household and other kinds of places.
This product meets the standard of IEC/EN61008-1.

It has the following features:
In complicance with IEC/EN61008-1
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
With functions of fault indicator.
Maximum connecting ability of 35mm2,wiring torque 3.5N *m, applicable to a variety of installing equipments, wiring stronger. Protection class:IP20
GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA
GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA
GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA
GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA
GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA
GEYA GYL9 ID RCCB 10KA Residual Circuit Device RCD Electronic 10mA30mA 100mA 300mA ELCB RCCB 80a Current Ratings 2P 16A 30mA
Specification
Description
PCS/CTN
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
16-25A
GYL9M 2P 30mA AC
100
49*40*17.5
20
19
32-40A
100
49*40*17.5
20
19
50-63A
100
49*40*17.5
20
19
80A
100
49*40*17.5
20
19
16-25A
GYL9M 2P 100mA AC
100
49*40*17.5
20
19
32-40A
100
49*40*17.5
20
19
50-63A
100
49*40*17.5
20
19
80A
100
49*40*17.5
20
19
100A
100
49*40*17.5
20
19
16-25A
GYL9M 2P 300mA AC
100
49*40*17.5
20
19
32-40A
100
49*40*17.5
20
19
50-63A
100
49*40*17.5
20
19
80A
100
49*40*17.5
20
19
100A
100
49*40*17.5
20
19
16-25A
GYL9M 4P 30mA AC
50
49*40*17.5
20
19
32-40A
50
49*40*17.5
20
19
50-63A
50
49*40*17.5
20
19
16-25A
GYL9M 4P 100mA AC
50
49*40*17.5
20
19
32-40A
50
49*40*17.5
20
19
50-63A
50
49*40*17.5
20
19
80A
50
49*40*17.5
20
19
100A
50
49*40*17.5
20
19
16-25A
GYL9M 4P 300mA AC
50
49*40*17.5
20
19
32-40A
50
49*40*17.5
20
19
50-63A
50
49*40*17.5
20
19
80A
50
49*40*17.5
20
19
100A
50
49*40*17.5
20
19
