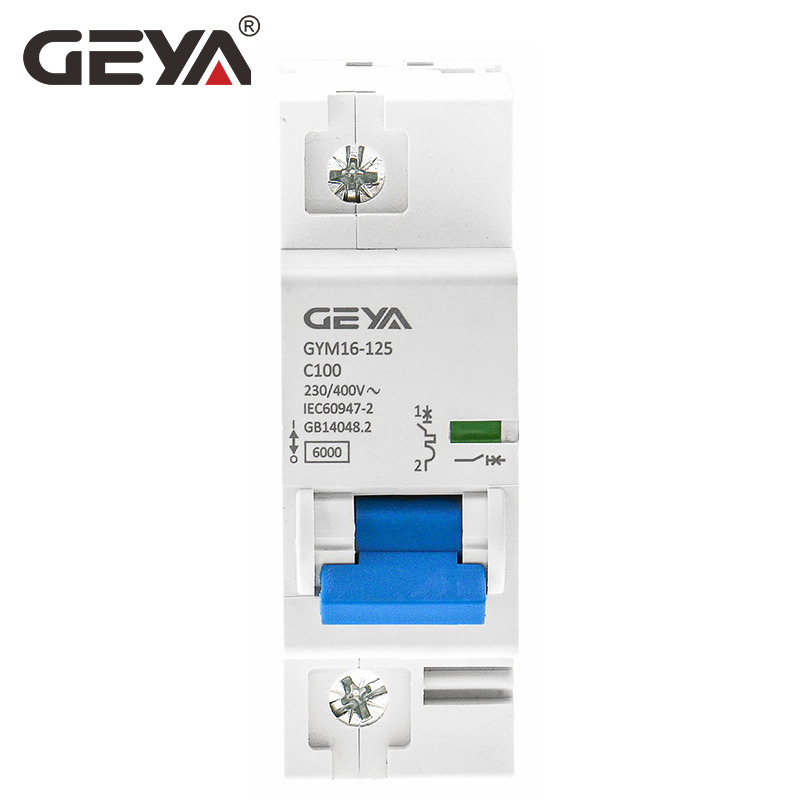

GEYA GYM16-125 AC Din Rail Modular Mini Circuit Breaker 100A 50/60HZ MCB

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Gym16-125 Ac Din Rail Modular Mini Circuit Breaker 100a 50/60hz Mcb - Buy Mini Circuit Breaker mcb single Pole Mini Circuit Breaker Mcb Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··········This link price is only for GYM16-125A 1P··········

GYM16 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 240V/415V and rated current from 1A to 125A.

It also can be used for non-frequent on-and-off switch operation under normal circumstance.

1. In complicance with IEC/EN60947.2
2 Maximum connecting ability of 50mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger

Technical Data

Rated current In	63 -125A
Poles	1P 2P 3P 4P
Rated voltage Ue	1P: 240/415V~ 2/3/4P:415V~
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	Icu=Ics=6000A 6kV
Rated impulse withstand voltage(1.2/50) Uimp	2kV
Dielectric test voltage at and ind. freq.for 1min Polution degree	2
Thermo-magnetic release characteristic Electrical life	(8-12)In 4000
Mechanical life	10000
Installation
Contact position indicator	Yes
Portection degree	IP20
Reference temperature for setting of thermal element	40℃
Ambient temperature (with daily average ≤35℃)	-5~+40℃
Storage temperature	-25~+70℃
Terminal connertion type	Cable/U-type busbar/Pin -type busbar
Terminal size top/bottom for cable	50mm / 18-1/0
Tightening torque	3.5N*m 31

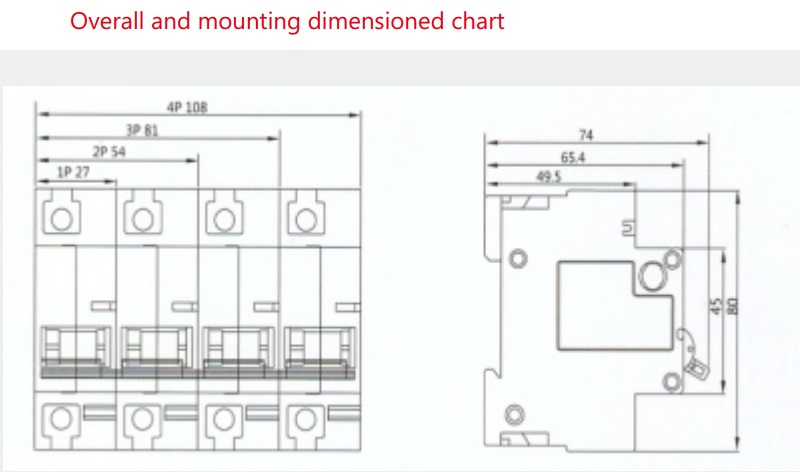

Mounting	On DIN rail FN 60715 (35mm) by means of fast clip device
Connection	Top and bottom

GEYA TEAM ONLINE

24hours
*6 Sales Manager

*20 Sales Assistant
* 5 Technical Engineer
*10 QC Inspector
*120 Professional Worker

GEYA Electrical is established in February 2007, with annual turnover more than 10 million dollars.Headquarters is based in Wenzhou, China.

In the past 12 years, GEYA was focusing on the low voltage electrical and automation control project research, development and production. The current products offers a wide range of low voltage electrical and automation control items including ACB, MCB, MCCB, RCCB, Contactor, Inverter, Solar Energy System, Time Relay, Control Relay, Voltage Relay, PLC Relay Module, Timer Switch, Distribution boxes and other related accessories and components.
GEYA products are certified to required industry standards, with approvals according to ROHS, ISO9001, CCC, CE, CB, SAA, SEMKO, TUV, EN. In addition to providing OEM&ODM service for our worldwide customers, we also welcome our customers to distributor our brand to overseas market, and we will provide our customers more competitive sales policies.
Today, GEYA sales area covers 6 continents, with more than 1000 foreign companies purchasing products from us. There is no doubt we will be promoting our products to more countries.
Our belief is Modernization - Accuracy - Reliability - Quality - Customer Satisfaction.
