Home > Products > Circuit Breaker > GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate

GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gym9 1p 2p 3p 4p 10ka Mcb From 1a To 63a High Breaking Capacity Miniature Circuit Breaker With Ce Certificate - Buy Miniature Circuit Breaker 10ka Mcb c60n Circuit Breaker Mcb Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

This link price is only for GYM9-63A-2P type A.

GYM9 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.

In complicance with IEC/EN60898-1
With indicator function in the contact position.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
Protection calss: IP20
Breaking Capacity: 10000A
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate

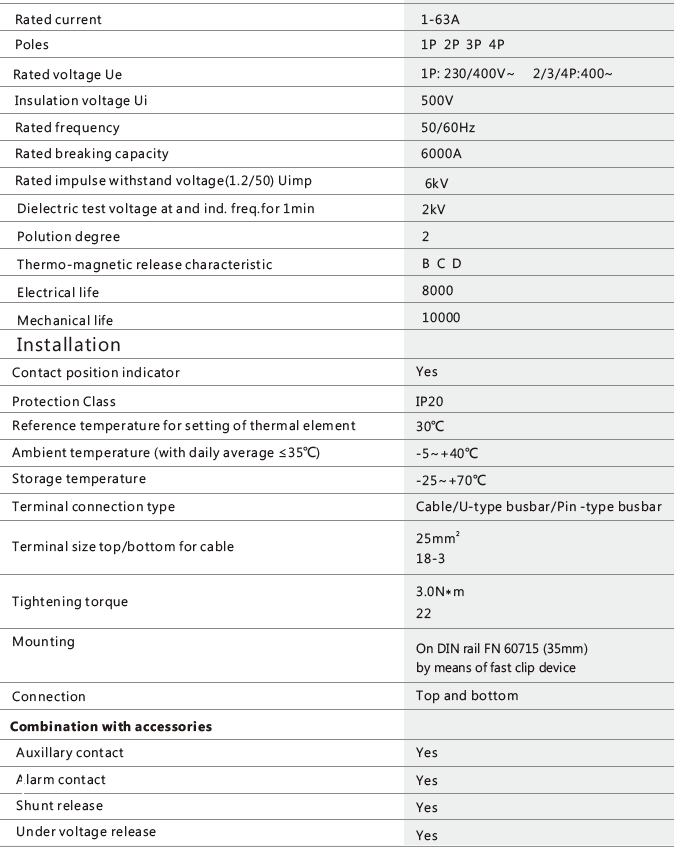

Technical Data
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
GEYA GYM9 1P 2P 3P 4P 10KA MCB From 1A to 63A High Breaking Capacity Miniature Circuit Breaker with CE Certificate
Specification
Description
PCS/CTN
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
1-4A
GYM9 1P
6kA
240
47*23.5*34
26
24
6-25A
240
47*23.5*34
26
24
32-40A
240
47*23.5*34
26
24
50-63A
240
47*23.5*34
26
24
1-4A
GYM9 2P
6kA
120
47*23.5*34
26
24
6-25A
120
47*23.5*34
26
24
32-40A
120
47*23.5*34
26
24
50-63A
120
47*23.5*34
26
24
1-4A
GYM9 3P
6kA
80
47*23.5*34
26
24
6-25A
80
47*23.5*34
26
24
32-40A
80
47*23.5*34
26
24
50-63A
80
47*23.5*34
26
24
1-4A
GYM9 4P
6kA
60
47*23.5*34
26
24
6-25A
60
47*23.5*34
26
24
32-40A
60
47*23.5*34
26
24
50-63A
60
47*23.5*34
26
24
