GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit

GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gym9 6ka 230v 400v Mcb 50/60hz 1 Pole Miniature Breaker Circuit - Buy Breaker Circuit miniature Circuit Breaker ic60n Mcb Circuit Breaker 230v 400v Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

············This link price is only for GYM9-63A-1P type A············

GYM9 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.

In complicance with IEC/EN60898-1

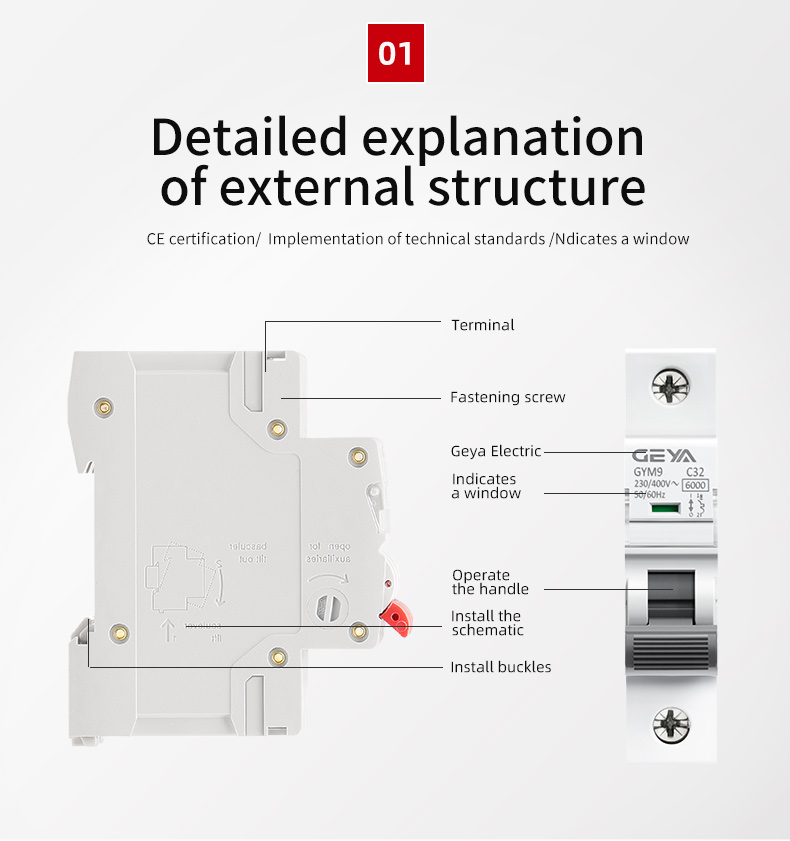

With indicator function in the contact position.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
Protection calss: IP20
Breaking Capacity: 10000A
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
Technical Data
Rated current
1-63A
Poles
1P 2P 3P 4P
Rated voltage Ue
1P:230/400v~ 2/3/4P:40O~
Insulation voltage Ui
500v
Rated frequency
50/60Hz
Rated breaking capacity
6000A
Rated impulse withstand voltage(1.2/50)Uimp
6kV
Dielectric test voltage at and ind.freq.for 1min
2kV
Polution degree
2
Thermo-magnetic release characteristic
B C D
Electrical life
8000
Mechanical life
10000
Installation

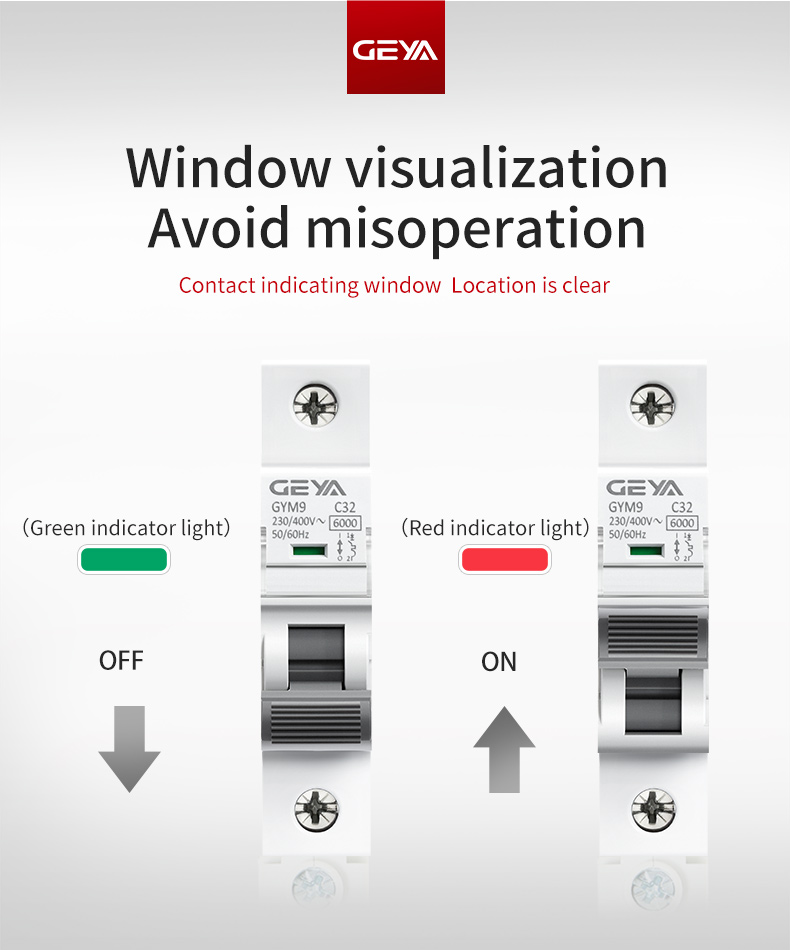

Contact position indicator
Yes
Protection Class
IP20
Reference temperature for setting of thermal element
30℃
Ambient temperature (with daily average ≤35℃)
-5~+40℃
Storage temperature
-25~+70℃
Terminal connection type
Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable
25mm²
18-3
Tightening torque
3.0N-m
22

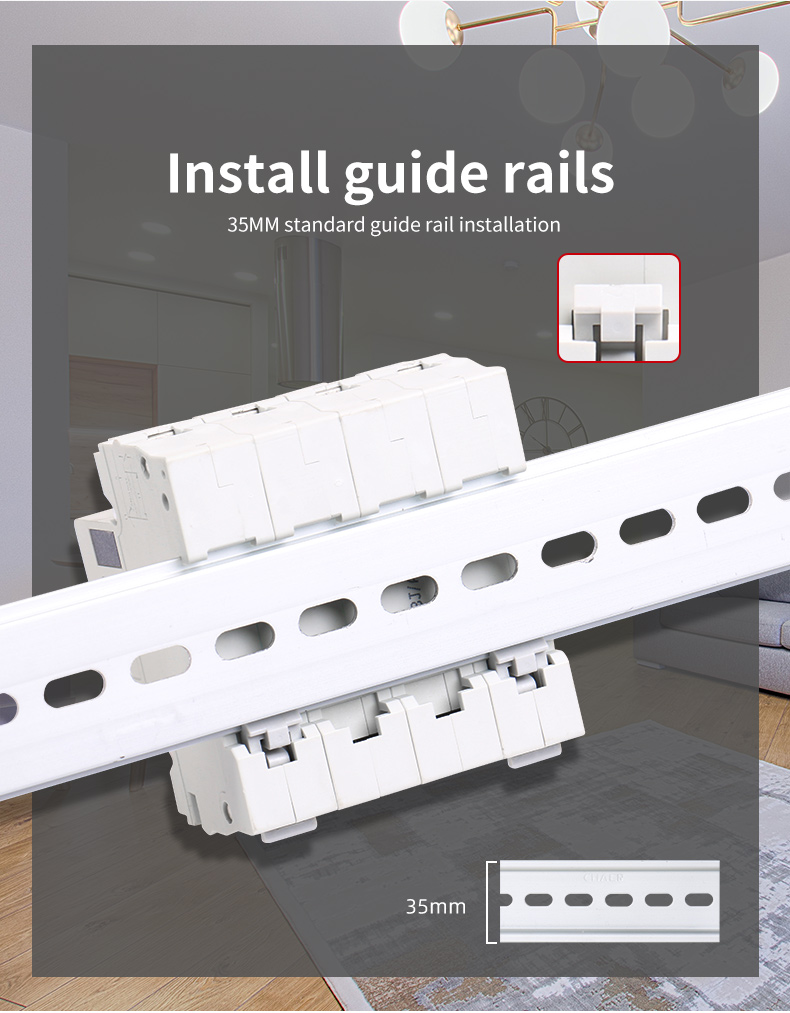

Mounting
On DIN rail FN 60715(35mm)
by means of fast clip device

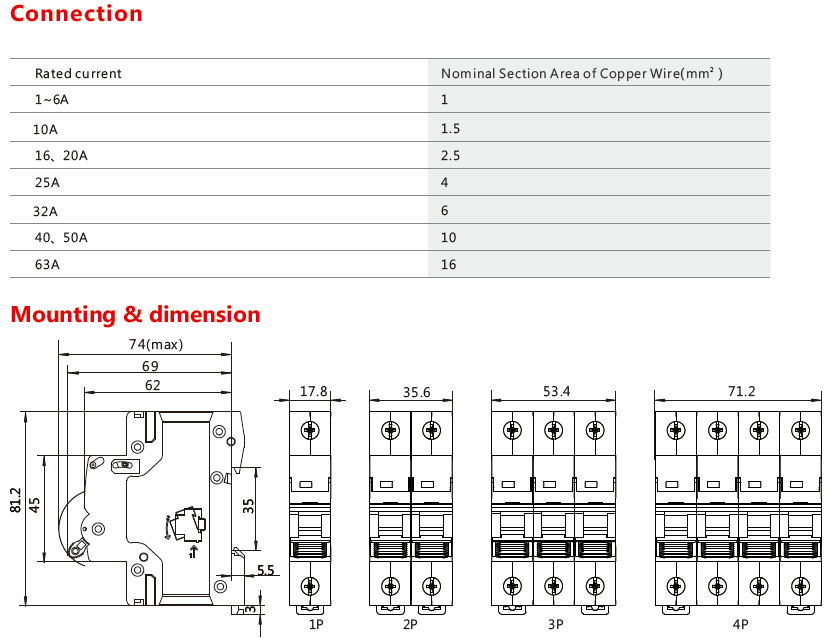

Connection
Top and bottom
Combination with accessories
Auxillary contact
Yes
Alarm contact
Yes
Shunt release
Yes
Undervoltage release
Yes
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
GEYA GYM9 6KA 230V 400V MCB 50/60Hz 1 Pole Miniature Breaker Circuit
Specification
Description
PCS/CTN
Carton Size
(CM)
G.W.
(KG)
N.W.
(KG)
1-4A
GYM9 1P
6kA
240
47*23.5*34
26
24
6-25A
240
47*23.5*34
26
24
32-40A
240
47*23.5*34
26
24
50-63A
240
47*23.5*34
26
24
1-4A
GYM9 2P
6kA
120
47*23.5*34
26
24
6-25A
120
47*23.5*34
26
24
32-40A
120
47*23.5*34
26
24
50-63A
120
47*23.5*34
26
24
1-4A
GYM9 3P
6kA
80
47*23.5*34
26
24
6-25A
80
47*23.5*34
26
24
32-40A
80
47*23.5*34
26
24
50-63A
80
47*23.5*34
26
24
1-4A
GYM9 4P
6kA
60
47*23.5*34
26
24
6-25A
60
47*23.5*34
26
24
32-40A
60
47*23.5*34
26
24
50-63A
60
47*23.5*34
26
24
