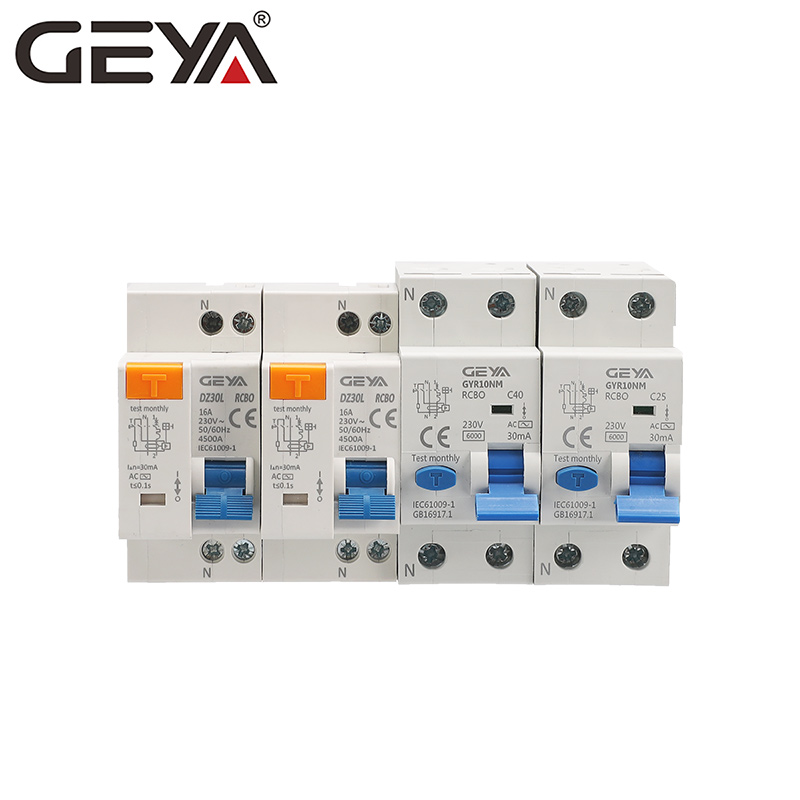

GEYA GYR10 Mini 1P RCBO AC & a Type Compact MCB/RCD Residual Circuit Breaker with Overload Protection Electronic Type RCBO

GEYA GYR10 Mini 1P RCBO AC & a Type Compact MCB/RCD Residual Circuit Breaker with Overload Protection Electronic Type RCBO

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyr10 Mini 1p Rcbo Ac & A Type Compact Mcb/rcd Residual Circuit Breaker With Overload Protection Electronic Type Rcbo - Buy 1p Rcbo rcd dz47-63 1p Mini Circuit Breaker Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

···········This link price is only for GYR10NM-Electronic A type 2P 32A-40A 30/100/300mA···········
GEYA GYR10 Mini 1P RCBO AC & a Type Compact MCB/RCD Residual Circuit Breaker with Overload Protection Electronic Type RCBO
Rated current (In)
6A,10A,16A,20A,25A,32A,40A,63A
Rated voltage (Un)
230VAC/240VAC
Breaking Capacity
4.5KA/6KA
Rated Tripping Current
30mA,100mA,300mA
Type
AC TYPE, A TYPE
Characteristic
B CURVE, C CURVE
Number of Poles
2POLE 4POLE
Terminal Capacity
cable up to 25mm²
Width
36mm/module, 72mm/module
Standards
IEC61009,EN61009
Items
Specifical
PCS/CTN (MOQ)
Dimension
N.W
G.W
L
W
H
2P Magnetic
AC type
6A-25A, 30mA/100mA/300mA
60
47*23.5*17.5
14
15
32A-40A, 30mA/100mA/300mA
60
47*23.5*17.5
14
15
2P Magnetic
A type
6A-25A,30mA/100mA/300mA
60
47*23.5*17.5
14
15
32A-40A,30mA/100mA/300mA
60
47*23.5*17.5
14
15
2P Electronic
AC type
6A-25A, 30mA/100mA/300mA
60
47*23.5*17.5
14
15
32A-40A, 30mA/100mA/300mA
60
47*23.5*17.5
14
15
2P Electronic
A type
6A-25A,30mA/100mA/300mA
60
47*23.5*17.5
14
15
32A-40A,30mA/100mA/300mA
60
47*23.5*17.5
14
15
4P Magnetic
AC type
6A-25A,30mA/100mA/300mA
30
52*25.5*20
12
13
32A-40A,30mA/100mA/300mA
30
52*25.5*20
12
13
4P Electronic
AC type
6A-25A,30mA/100mA/300mA
30
52*25.5*20
12
13
32A-40A,30mA/100mA/300mA
30
52*25.5*20
12
13
4P Electronic
A type
6A-25A,30mA/100mA/300mA
30
52*25.5*20
12
13
32A-40A,30mA/100mA/300mA
30
52*25.5*20
12
13
