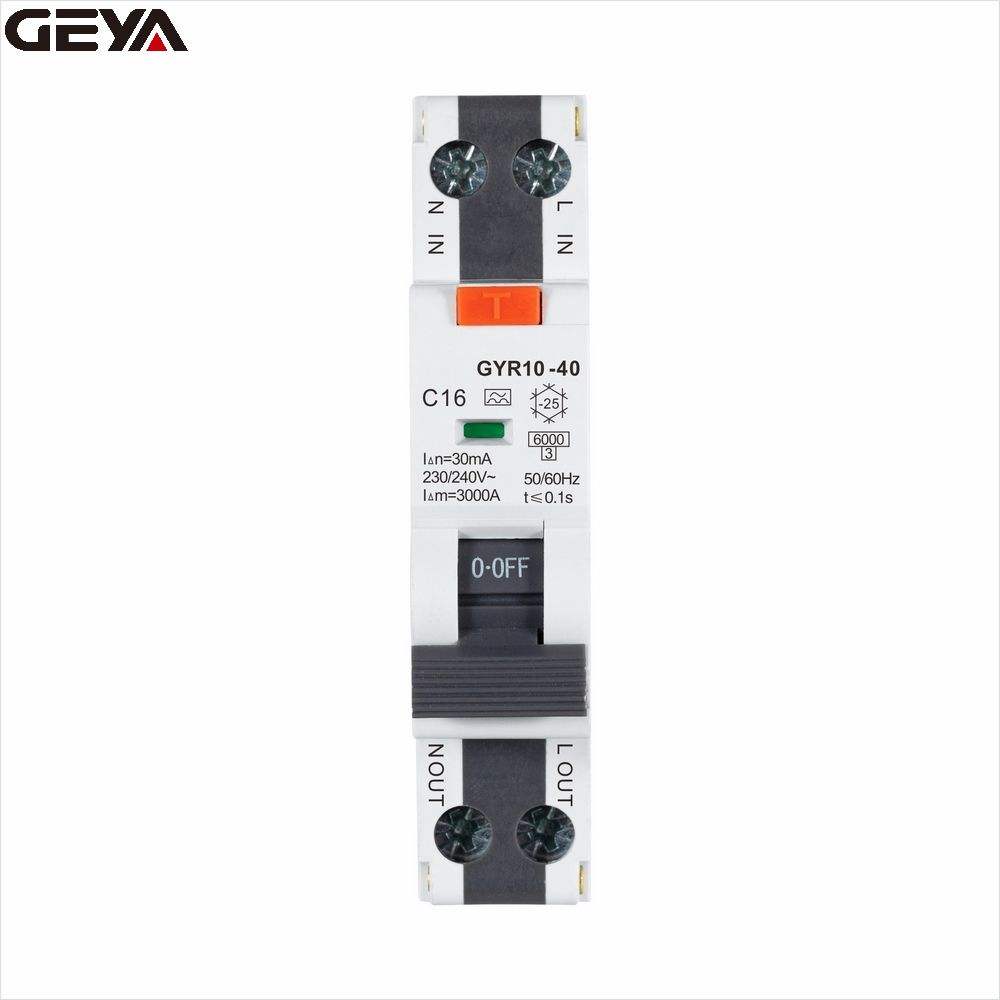

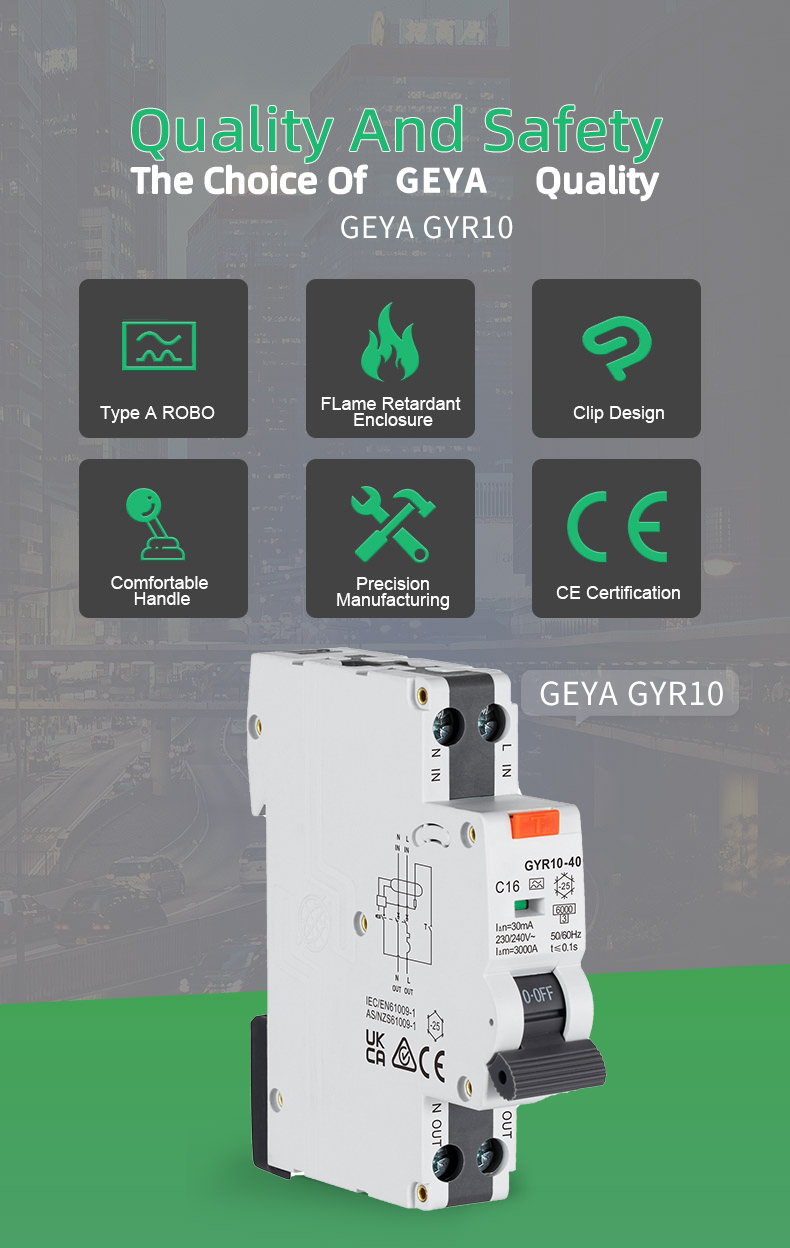

GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO

GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyr10n-40 1p+n Single Module Rcbo Circuit Breaker Residual Current Circuit Breaker With Over Current Protection Rcbo - Buy Display Modules Single Phase Rcbo 2pole 30ma Residual Current Circuit Breaker With Over Current And Leakage Protection lightweight Silicon Solar Pv Module Factory Price Residual Current Circuit Breaker With Over Current Protection Rcbo rcbo Circuit Breaking Bd Arc Fault Protection Afdd Arc Fault Detection Device With Integrated Rcbo Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

···········This link price is only forGYR10N-40 6A-50A 30mA AC·············
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO
GEYA GYR10N-40 1P+N Single Module RCBO Circuit Breaker Residual Current Circuit Breaker With Over Current Protection RCBO

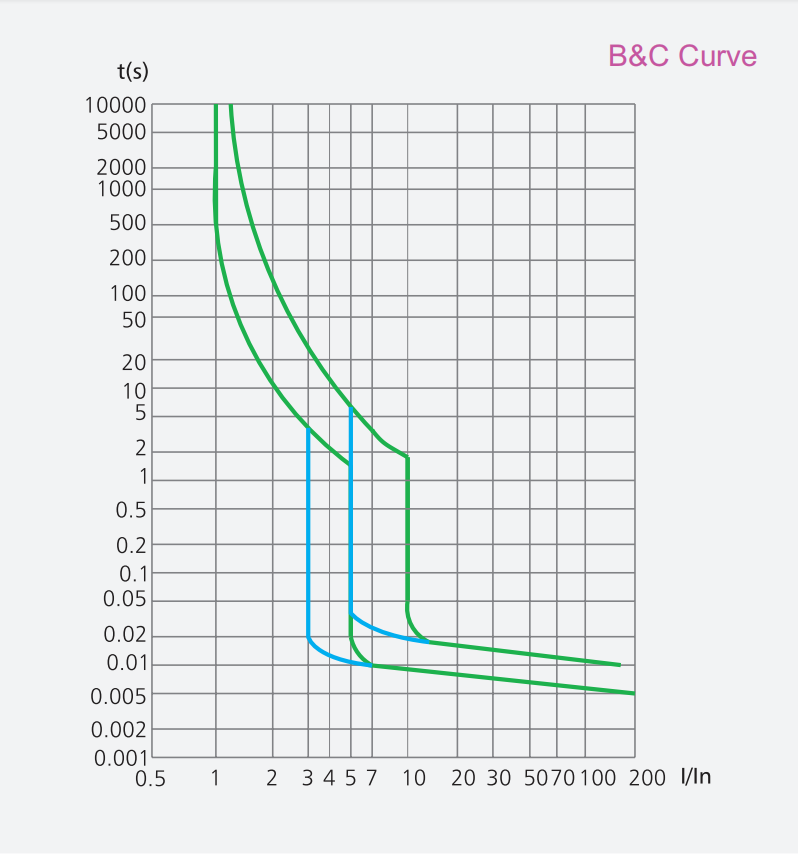

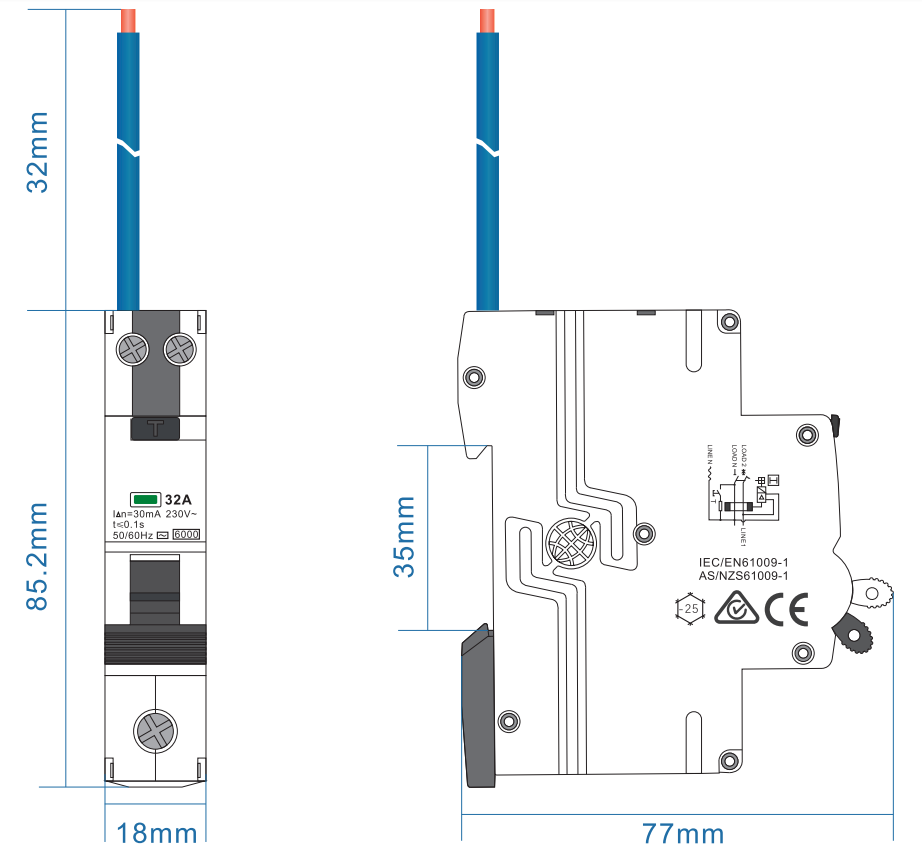

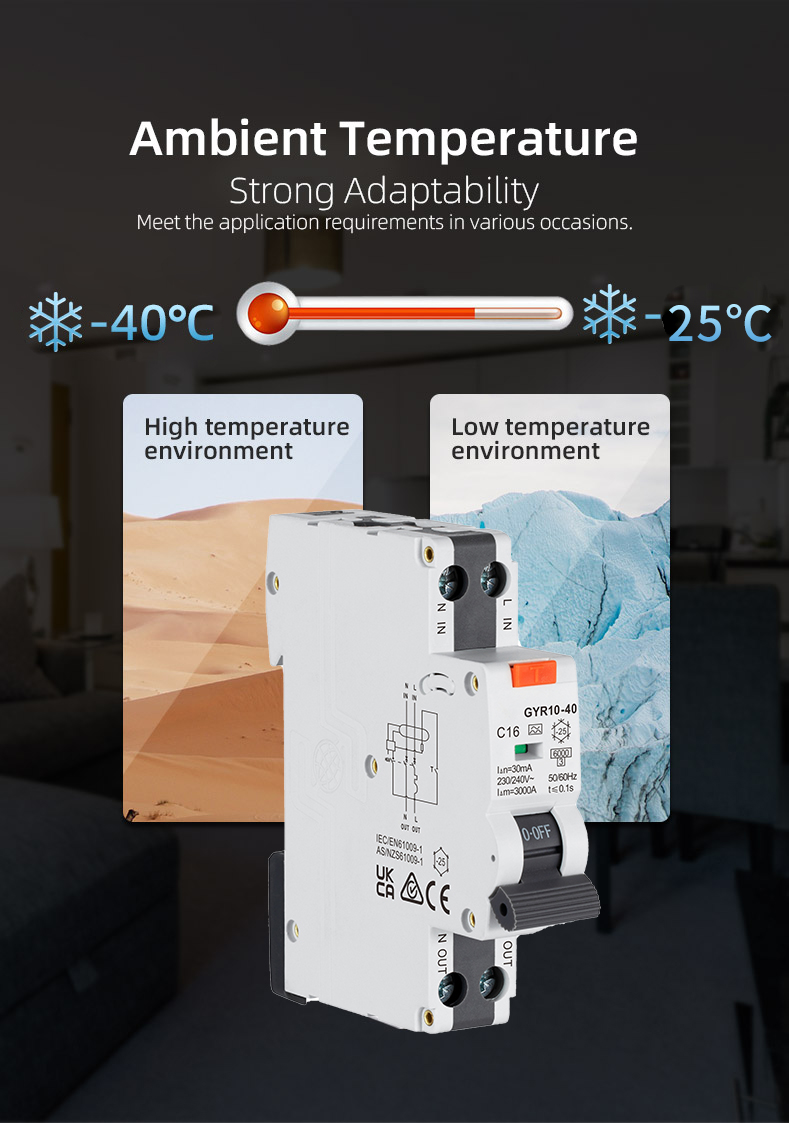

Technical Data ■Rated current: 6A, 8A, 10A, 13A, 16A, 20A, 25A, 32A, 40A ■Rated voltage: 240V(230V)~ ■Rated frequency:50/60Hz ■Number of pole: 1P+N ■Module size: 18mm ■Curve type:B&C Curve ■Breaking capacity: 6000A ■Rated residual operating current: □10mA,3 0mA, 100mA, 300mA Type A and AC ■ Optimum operating temperature:-25℃ to 40℃ ■ Terminal Tightening torque: 1.2N-m ■Terminal Capacity(top):16mm2 ■ Terminal Capacity(bottom): 16mm2 ■Electro-mechanical endurance:4000 cycles ■Mounting: 35mm Din Rail ■Line and Load reversible: □ Suitable Busbar: PIN Busbar

Compliance ■IEC61009-1 ■EN61009-1 ■AS61009-1 -NZS61009-1 ■ESV Compliant
item
value
Place of Origin
ZHE
Brand Name
GEYA
Model Number
GYR10N-40
Breaking Capacity
6000A
Rated Voltage
:240V(230V)~
Rated Current
6A,8A,10A,13A,16A,20A,25A,32A,40A
BCD Curve
B&C Curve
Type
RCBO
Rated Frequency (Hz)
50/60Hz
Number of Pole
2
Protection
Other
Module size
18mm
Rated residual operating current
10mA,30mA,100mA,300mA Type A and AC
Optimum operating temperature
-25℃ to 40℃
Terminal Tightening torque
1.2N-m
Terminal Capacity(top)
16mm2
Terminal Capacity(bottom)
16mm2
Electro-mechanical endurance
4000 cycles
Mounting
35mm DinRail
Suitable Busbar
PIN Busbar
MOQ
20
