Home > Products > Circuit Breaker > GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO

GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyr10n-50 1mod Double Trip Rcbo Circuit Protection Rcbo B&c Curve A/ac Type Single Module Mini Rcbo - Buy Rcbo 2p Ac30ma Leakage Plastic Case Miniature Circuit Breaker Ac Contactor Power Switch Button Thermal Relay Transforme Rcbo single Phase Electromagnetic Rcbo Circuit Breaker Price Residual Current Circuit Breaker With Overcurrent Protection miniature Cuit Breaker Uk Rcbo Residual Current Circuit Breaker With Overcurrent Protection Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

·····························This link price is only for GYR10N-50 1P+N A 6-50A······························

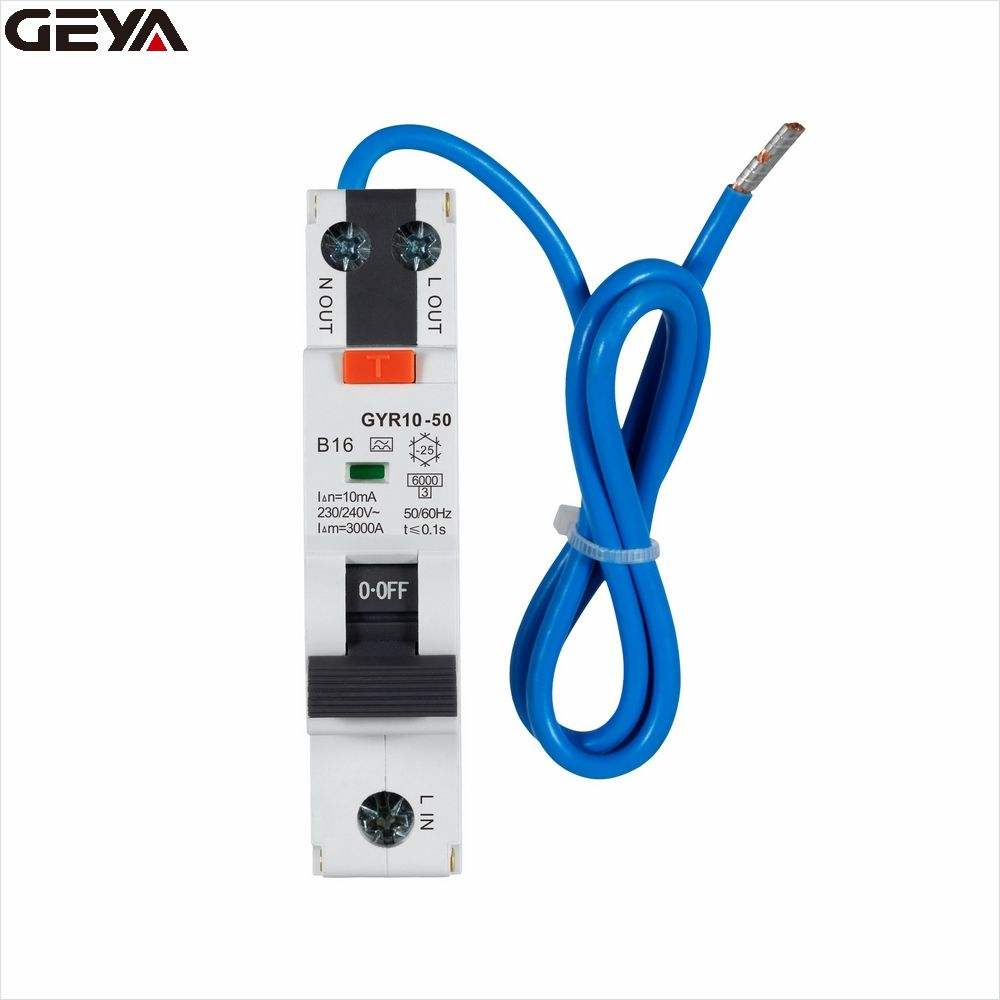

GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
GEYA GYR10N-50 1MOD Double Trip RCBO Circuit protection RCBO B&C Curve A/AC Type Single Module Mini RCBO
Technical Data ■Rated current:6A,8A,10A,13A,16A,20A,25A,32A,40A ■Rated voltage:240V(230V)~ ■Rated frequency:50/60Hz ■Number of pole:1P+N ■Module size: 18mm ■Curve type:B&C Curve ■Breaking capacity:6000A ■Rated residual operating current: □10mA,30mA,100mA,300mA Type A and AC ■ Optimum operating temperature:-25℃ to 40℃ ■ Terminal Tightening torque:1.2N-m ■Terminal Capacity(top):16mm2 ■ Terminal Capacity(bottom):16mm2 ■Electro-mechanical endurance:4000 cycles ■Mounting:35mm DinRail ■Line and Load reversible: □ Suitable Busbar:PIN Busbar

Compliance ■IEC/EN/AS/NZS61009.1:2015 ■ESV Compliant ■ESV Compliant
item
value
Place of Origin
ZHE
Brand Name
GEYA
Model Number
GYR10N-50
Breaking Capacity
6000A
Rated Voltage
:240V(230V)~
Rated Current
6A,8A,10A,13A,16A,20A,25A,32A,40A
BCD Curve
B&C Curve
Type
RCBO
Rated Frequency (Hz)
50/60Hz
Number of Pole
2
Protection
Other
Module size
18mm
Rated residual operating current
10mA,30mA,100mA,300mA Type A and AC
Optimum operating temperature
-25℃ to 40℃
Terminal Tightening torque
1.2N-m
Terminal Capacity(top)
16mm2
Terminal Capacity(bottom)
16mm2
Electro-mechanical endurance
4000 cycles
Mounting
35mm DinRail
Suitable Busbar
PIN Busbar
MOQ
20
