Product Description

*****This link price is only for GYR9NM-2P type A 32-40A-30mA*****

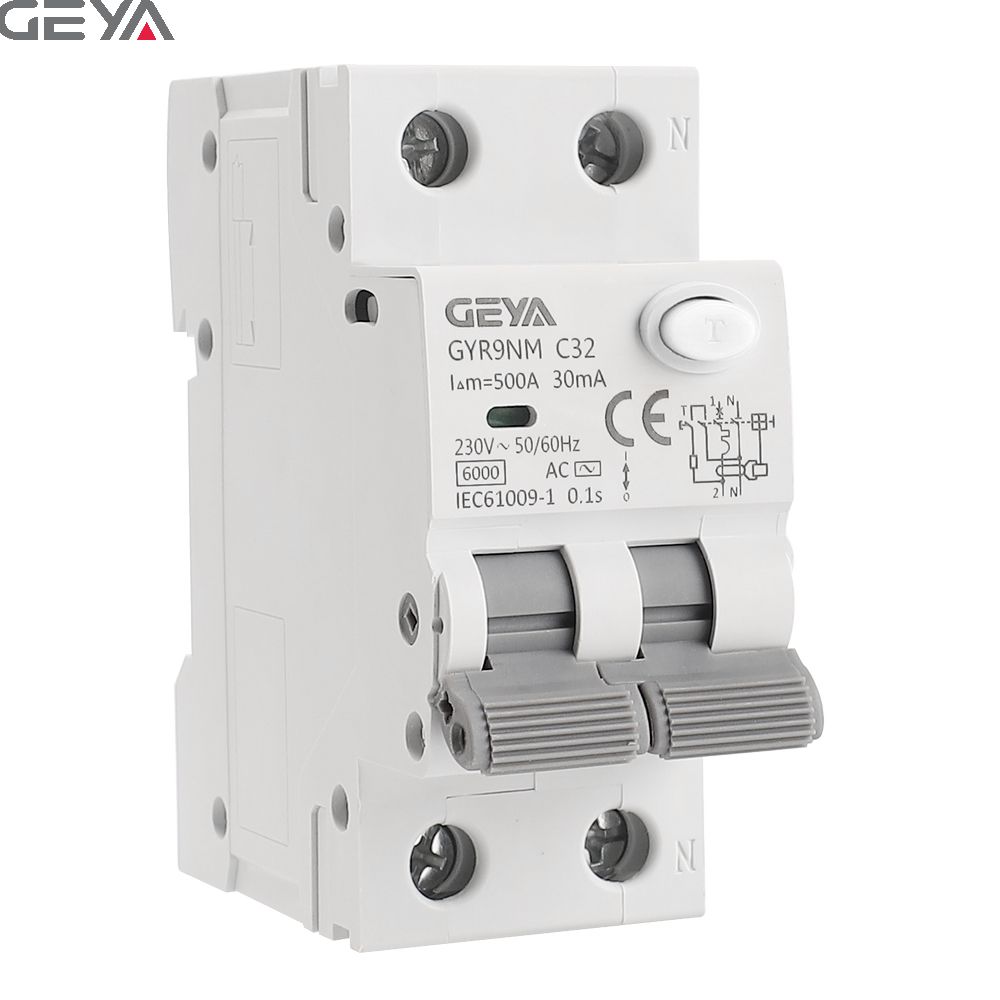

GYR9N residual current operated circuit breaker issuitable for AC 50Hz, rated voltage 240V, ratedcurrent up to 40A. When people come to electricshock or the leakage current of the network exceedsthe specified value, it can quickly cut off the faultypower supply in very short time to protect the safetyof people and electrical equipment. At the sametime, it can protect the overload or short circuit ofthe line, and can also be used for infrequentswitching of the line. It's suitable for terminaldistribution lines in commercial office buildings,residential and general industrial use.
Compliant with:GB/T16917.1,IEC 61009-1

Product name			GYR9N
Standard			IEC61009-1,GB16917.1
Type	AC	■
Type		A	■
Residual current protection type	ELE	■
Residual current protection type		ELM	■
Pole			1P+N
Rated current（In）			6、10、16、20、25、32、40
Rated residual operating current（I△n）			30、100、300mA
sensitivity	instant	■
sensitivity		delay	―
Rated working voltage（Ue）			230V~
Rated insulation voltage（Ui）			500V
working frequency			50/60Hz
Rated impulse withstand voltage（Uimp）			6kV
Rated limiting short circuit currentIm=Rated limit residual short circuit currentI△m			6kA
Rated short-circuit breaking capacity（Icn）			500A
Rated residual inoperative current			0.5I△n
Residual current action breaking time	Residual currentI△=1I△n	0.1s
		Residual currentI△=2I△n	0.08s
		Residual currentI△=5I△n	0.04s
Mechanical life / electrical life			2000
Degree of protection	Direct installation	IP20
Degree of protection		Installed in the distribution box	IP40
Working ambient temperature			-25℃+60℃
Storage ambient temperature			-35℃+85℃
Wiring capacity	Copper hard wire	1-25mm²
Wiring capacity		Flexible wire or hoop wire terminal	1-16mm²
Contact status indication			―
Fault indication window			―
Loop identification			■
