Residual current action type | B | ||
Rated Current | In | A | 6、10、16、20、25、32、40 |
Tripping curve | B、C | ||
Poles | 1P+N | ||
Rated Operational Voltage | Un | V | 240V |
Nominal Insulation Voltage | Ui | V | 400 |
Working Frequency | Hz | 50160 | |
Rated residual non-action current | I△n0 | mA | 0.5I△n |
Rated residual action current | I△n | mA | 30、100、300 |

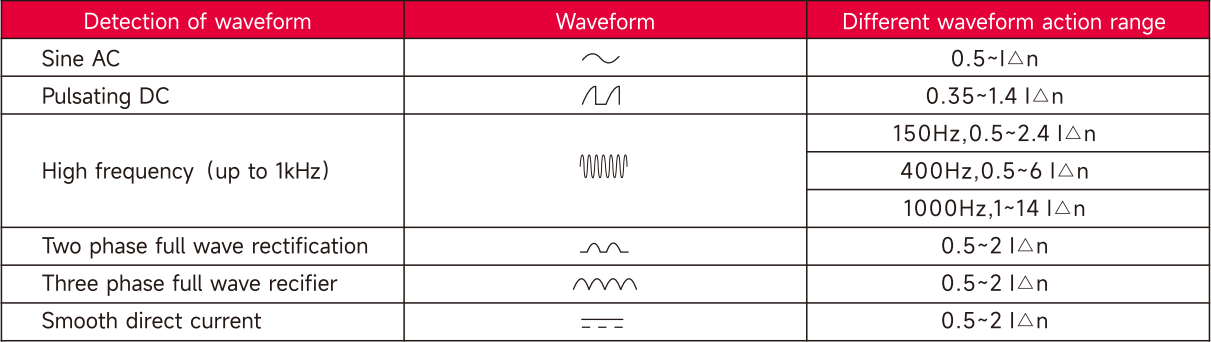

Direct current flow as sensitivity | I△ndc | mA | 0.5~2 I△n |
Rated impact tolerance voltage | Uimp | V | 4000 |
1 min dielectric voltage | V | 2000 | |
Rated limit short circuit current | Inc | A | 6000 |
Rated limit Remaining short circuit current | I△c | A | 6000 |
Rated on and off capacity | Im | A | 500A(25A,40A),or 10In(≥63A) |
Rated residual switching and breaking capacity | I△m | A | 500A(25A,40A),or 10In(≥63A) |
