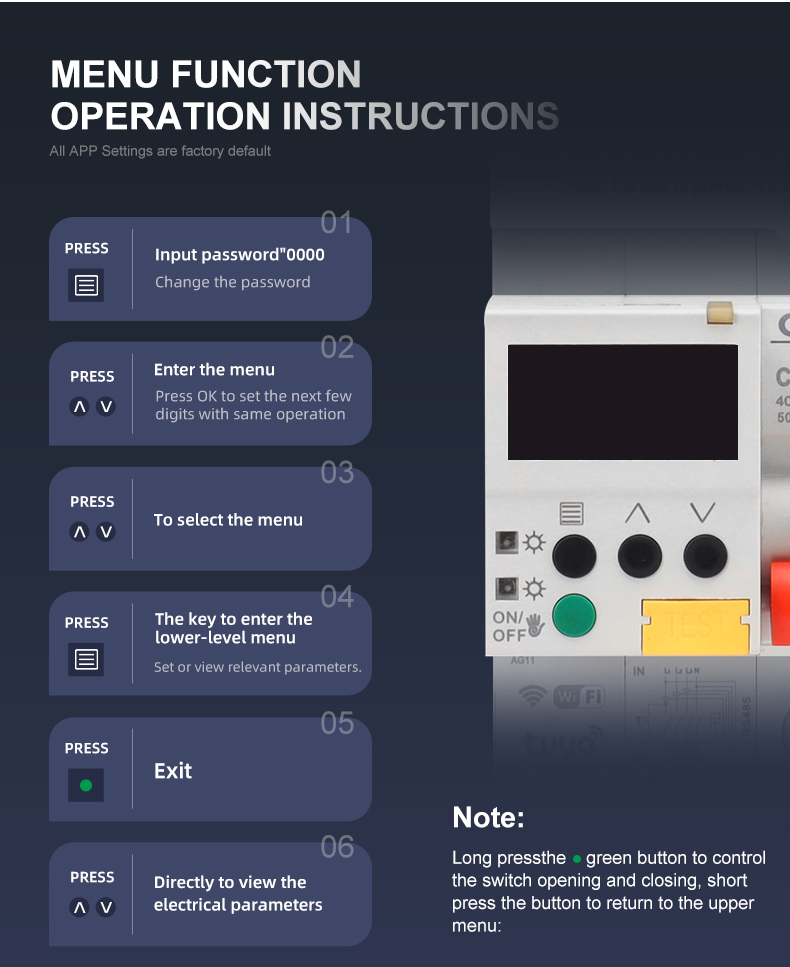

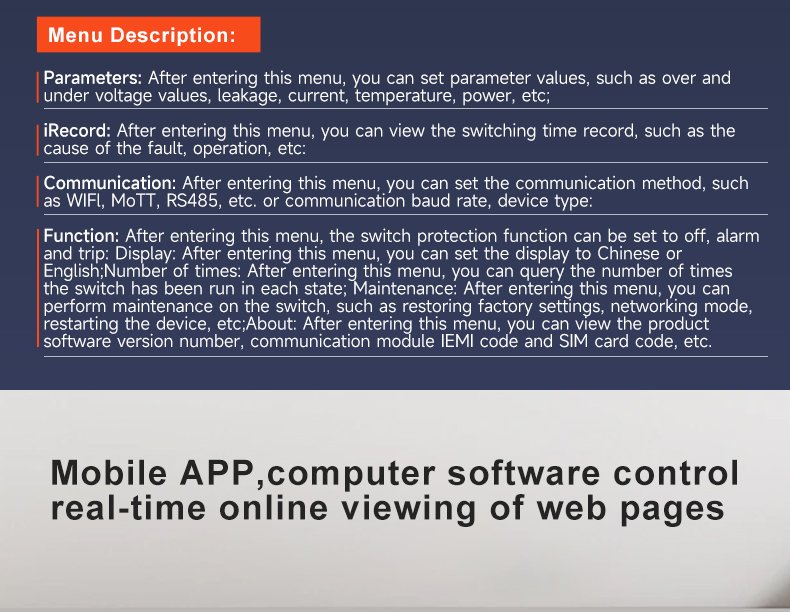

GEYA Dc Mcb Circuit Breaker 1P 2P 3P 4P Mini Miniature 16a 25amp 63a for Solar PV System 4.5ka DC1000V DC500V DC750V

All new products

GEYA GYRC-ZN01 4P/100A Overload Protector TUYA Smart Home Timer Switch Wifi Smart Circuit Breaker Remote Control Mcb Miniature

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyrc-zn01 4p/100a Overload Protector Tuya Smart Home Timer Switch Wifi Smart Circuit Breaker Remote Control Mcb Miniature - Buy Professional Factory Smart Breaker With Wifi Mccb Mcb Elcb oem Factory Wifi Controlled Smart Switch Circuit Breaker wifi Mcb Smart Circuit Breaker With Metering Electricity Meter wifi Smart Mcb 1p 2p 1p+n 4p 40a Wifi Timer Remote Intelligent 6ka Circuit Breaker 1p 1p+n 2p 3p 3p+n Wifi Circuit Breaker 16a-100a Smart Mcb Wifi Breaker With Rs485 Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

This link price is only for GYRC-ZN01 4P/100A

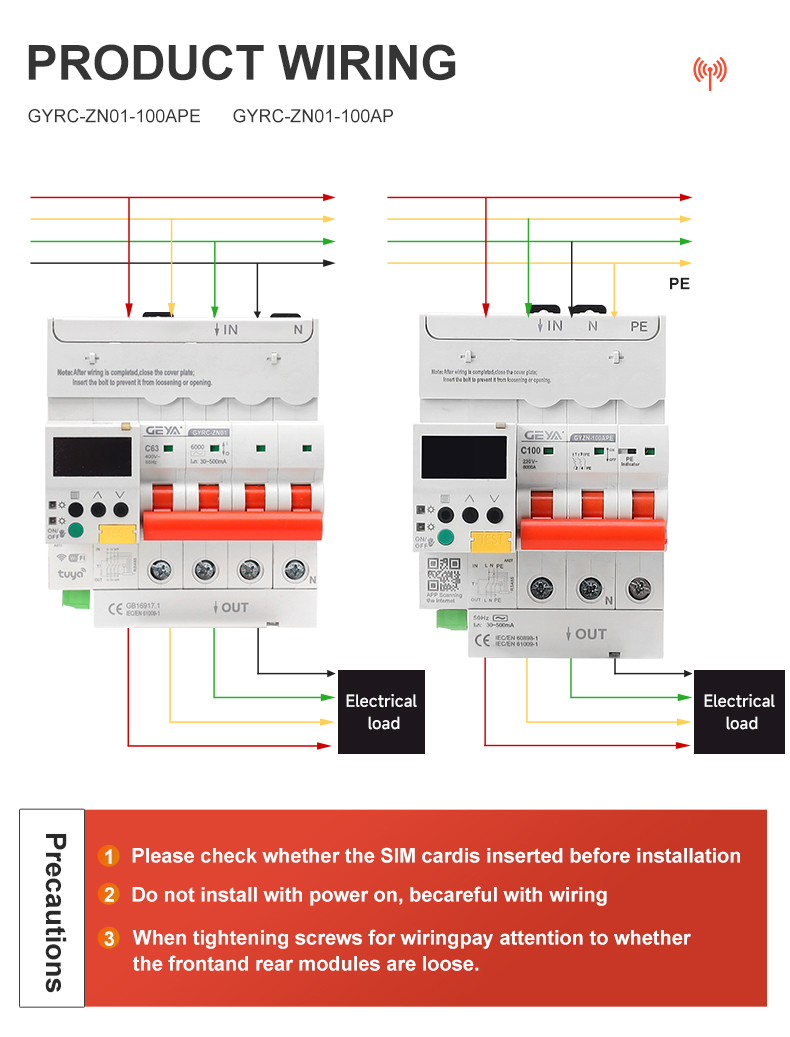

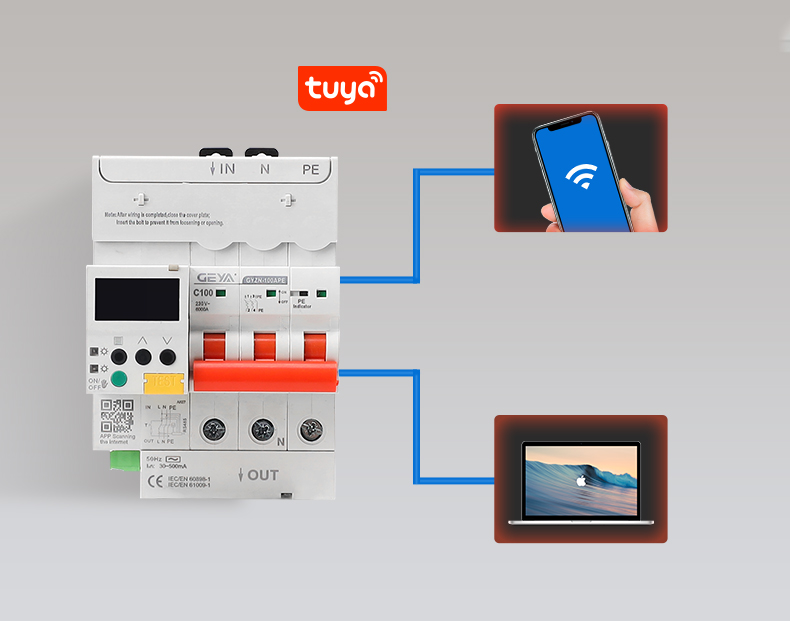

Product installation precautions: 1. Reverse connection of product inlet and outlet lines is absolutely not allowed; 2. After installing the product, check if the wiring is correct? Pay special attention not to connect N and PE incorrectly; 3. The leakage function of FSZNO1-PE product is not allowed to be turned off. Set the leakage parameter value to 30mA (recommended), which can be set to 30mA according to actual application scenarios; 4. For online products, please download and install the APP and scan the QR code on the product; 5. This product's RS485 is a standard communication port that can be connected to computers and various communication devices through an RS485 to USB converter to achieve information exchange and control; 6. The default Baud of the device is 9600bps. You can view and set the required Baud in the set communication menu; For 7G and 4G versions of products, a SIM card must be inserted before use to achieve remote information exchange control; 8. Product installation and debugging must be carried out by professional electricians; 9. This product can be customized according to user needs. Please contact relevant technical personnel for details; 10. For special purposes, please consult the manufacturer and service hotline.

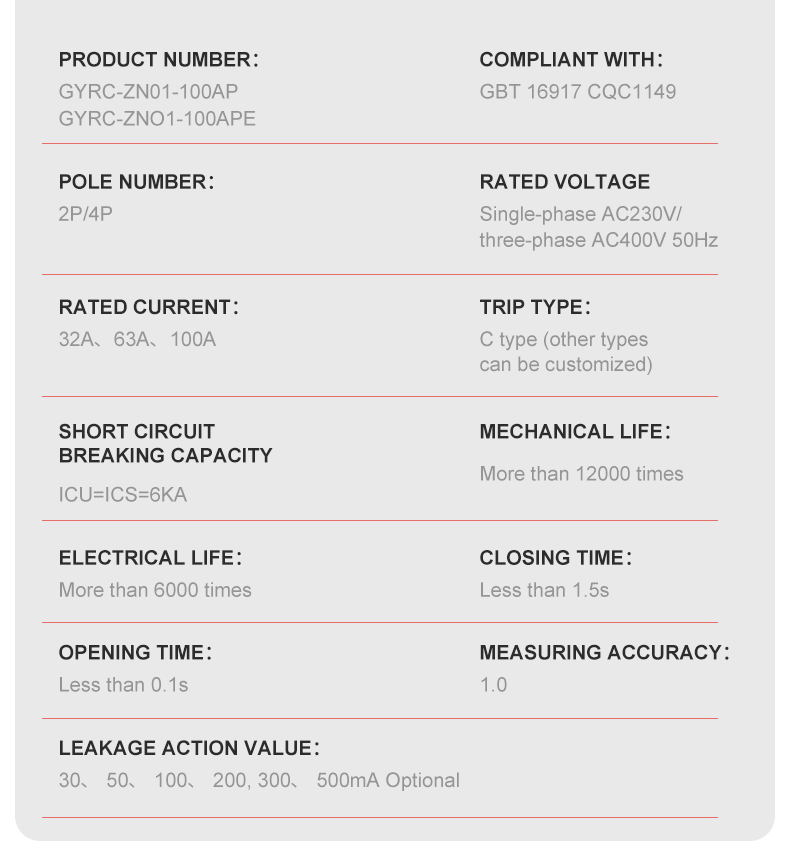

Item	Product Model
Item		GYRC-ZN01-100AP	GYRC-ZN01-100APE
Standard	GBT 16917 CQC1149	GBT 16917 CQC1149
Poles	2P、4P	2P、4P
Rated Voltage	Single phase AC230V/three-phase AC400V 50Hz	Single phase AC230V/three-phase AC400V 50Hz
Rated Current	32A、63A、100A	32A、63A、100A
Tripping Type	C-type (other types can be customized)	C-type (other types can be customized)
Short Circuit Breaking Capacity	Icu=\|cs=6KA	Icu=\|cs=6KA
Mechanical Life	≥12000times	≥12000times
Electrical Life	≥6000times	≥6000times
Close Time	≤1.5s	≤1.5s
Opening Time	≤1.0s	≤1.0s
Accuracy	1.0	1.0
Leakage action value	30、50、100、200、300、500mA	30、50、100、200、300、500mA

Type

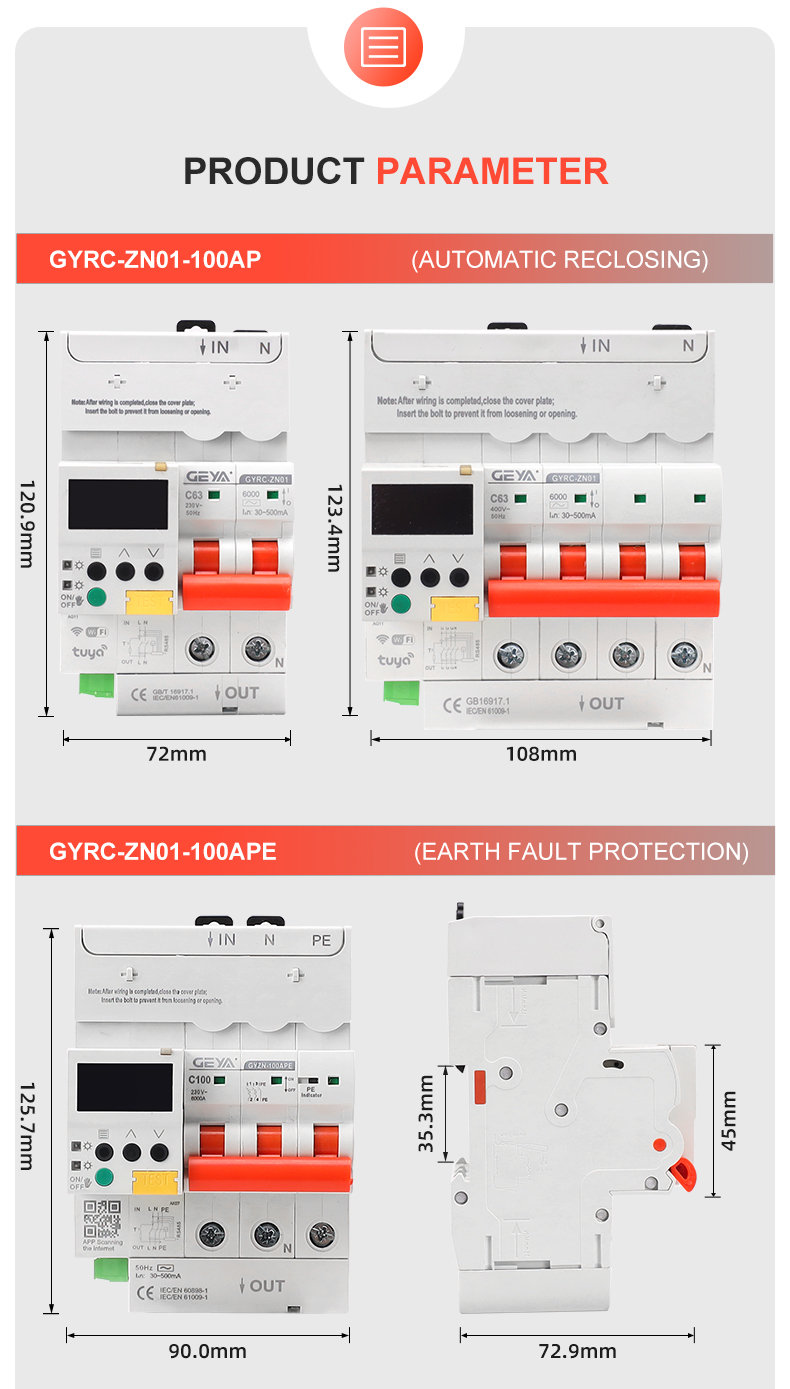

Dimension

PCS/CTN

Inner box size

(CM)

Carton Size

(CM)

G.W.

(KG)

N.W.

(KG)

GYRC-ZN01

120.9*72*72.9

16.2*8.9*10.5

33*29*17

5.95

4.59

GYRC-ZN01

123.4*108*72.9

15.3*14*10.5

33*29*18

6.25

GYRC-ZN02

102.9*36*67.3

11*6*8.5

42.5*32*19

9.85

7.85

GYRC-ZN02

102.9*72*67.3

11*6*8.5

42.5*32*19

GYRC-ZN02

102.9*90*67.3

11*9.5*8.5

42.5*32*19

15.16

13.44

GYRC-ZN02

102.9*108*67.3

11*11*8.5

42.5*32*19

18.5

16.5

GYRC-ZN02L

111.7*72*67.3

13.2*7.8*8.5

42.5*32*19

16.1

15.1

GYRC-ZN02L

111.7*90*67.3

13.2*11.4*8.5

42.5*32*19

15.84

16.88

GYRC-ZN02L

111.7*108*67.3

13.2*11.4*8.5

42.5*32*19

19.2

20.24

GYRC-ZN03

89*36*73

9.8*5.6*8.3

42*29*18.5

8.5

GYRC-ZN03

89*54*73

9.8*5.6*8.3

42*29*18.5

14.6

13.1

GYRC-ZN03

89*72*73

9.8*9.3*8.3

42*29*18.5

10.9

GYRC-ZN03

89*90*73

9.8*9.3*8.3

42*29*18.5

15.3

13.8

GYRC-ZN05

101.9*36*67.3

11.8*22*8.5

60.2*23.2*18.5

14.1

12.6
