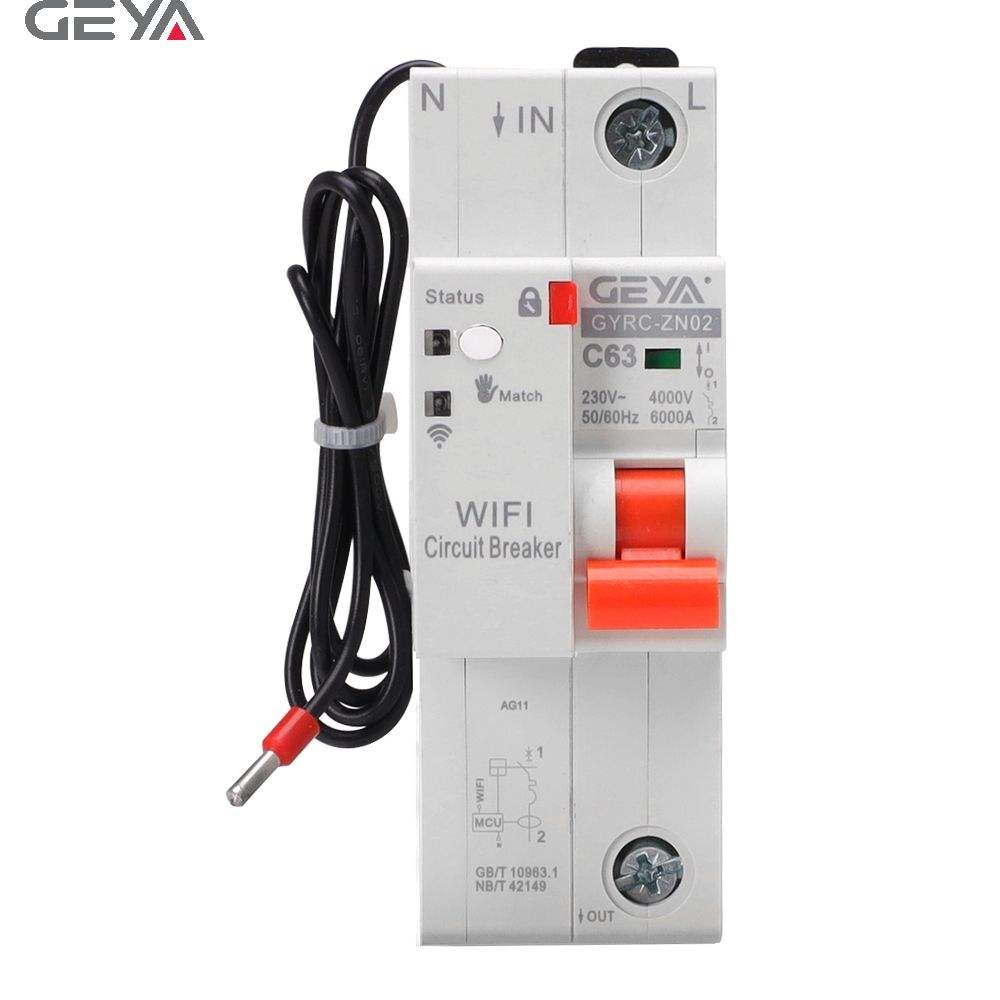

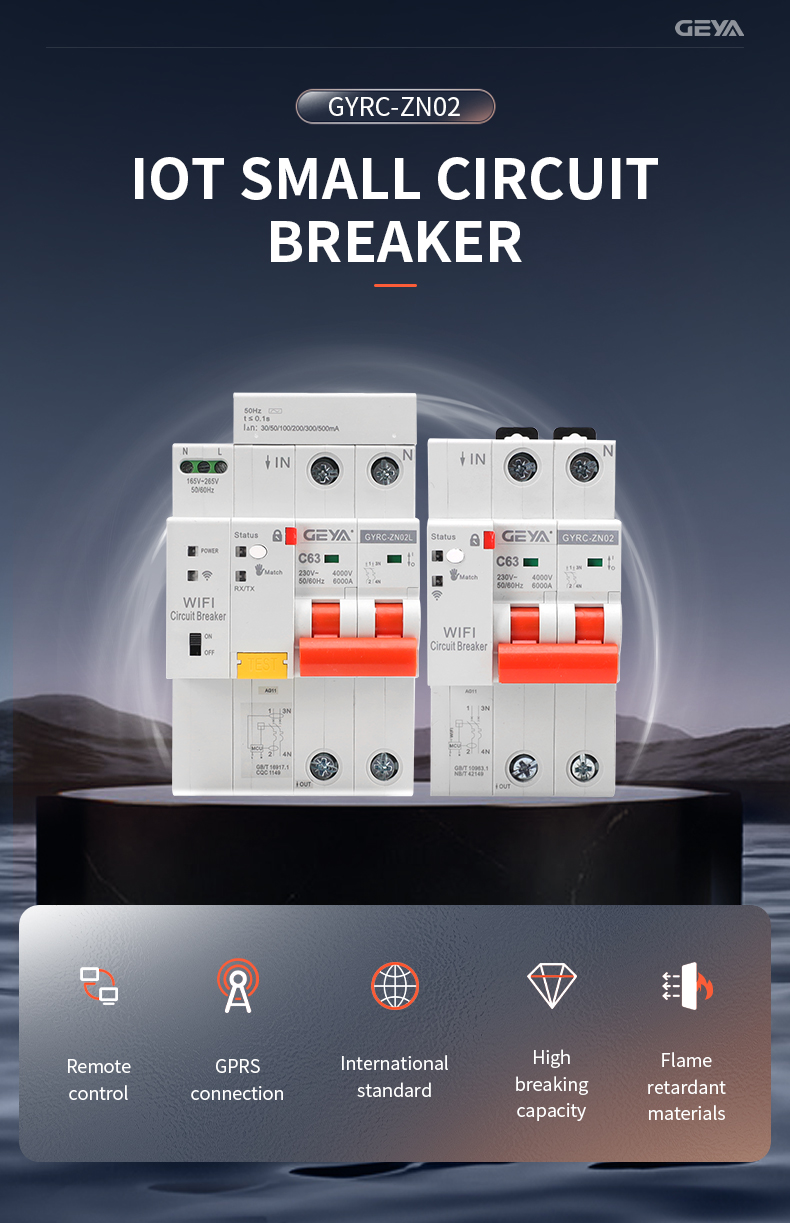

GEYA GYRC-ZN02 1P/20A TUYA System Remote Control Wireless Smart 20 Ampere Wifi Mcb Circuit Smart Breaker Switch

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyrc-zn02 1p/20a Tuya System Remote Control Wireless Smart 20 Ampere Wifi Mcb Circuit Smart Breaker Switch - Buy Wifi Circuit Breaker Wifi Mcb 100a 2 Pole tuya Circuit Breaker tuya 4p16a25a63a100a Smart Wifi Circuit Breaker Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··········This link price is only for GYRC-ZN02 1P/20A··········

Usage and precautions: 1. This product's RS485 is a standard communication port that can be connected to computers and various communication devices through an RS485 to USB converter to achieve information exchange and control; 2. The default Baud of the system is 9600bps, which can be connected to the computer through the RS485 to USB converter to view and set the required Baud; 3. For network GPRS version products, a SIM card must be inserted before use in order to achieve internet information exchange or remote control through GPRS; 4. The installation of this product must be carried out by a professional electrician for installation and debugging; 5. The product can be customized according to user needs, please contact relevant technical personnel for specific details.

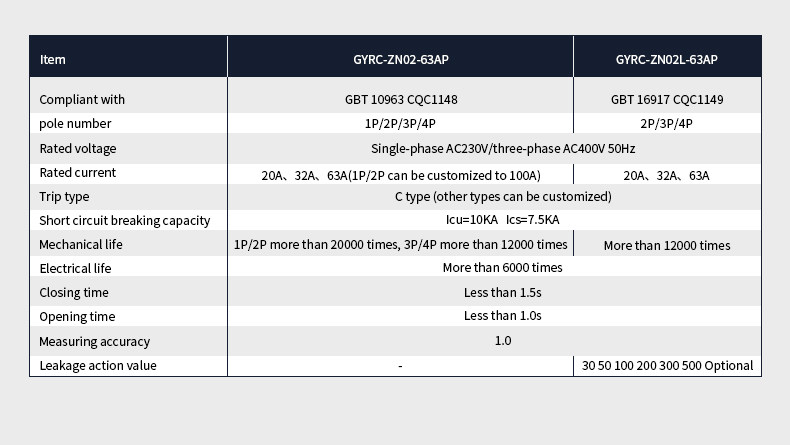

Item	Product model
Item		GYRC-ZN02-63AP	GYRC-ZN02L-63AP
Standard	GBT 10963 CQC1148	GBT 16917 CQC1149
Poles	1P、 2P、3P、4P	2P、3P、 4P
Rated voltage	Single phase AC230V/three-phase AC400V 50Hz	Single phase AC230V/three-phase AC400V 50Hz
Rated current	20A, 32A, 63A (1P/2P can be customized to 100A)	20A、32A、63A
Tripping type	C-type (other types can be customized)	C-type (other types can be customized)
Short Circuit Breaking Capacity	Icu=10KA Ics=7.5KA	Icu=10KA Ics=7.5KA
Mechanical life	1P/2P≥20000times，3P、4P≥12000times	≥12000times
Electrical lifespan	≥6000times	≥6000times
Closing time	≤1.5s	≤1.5s
Opening time	≤1.0s	≤1.0s
Measurement accuracy	1.0	1.0
Leakage action value		30、50、100、200、300、500mA

Type

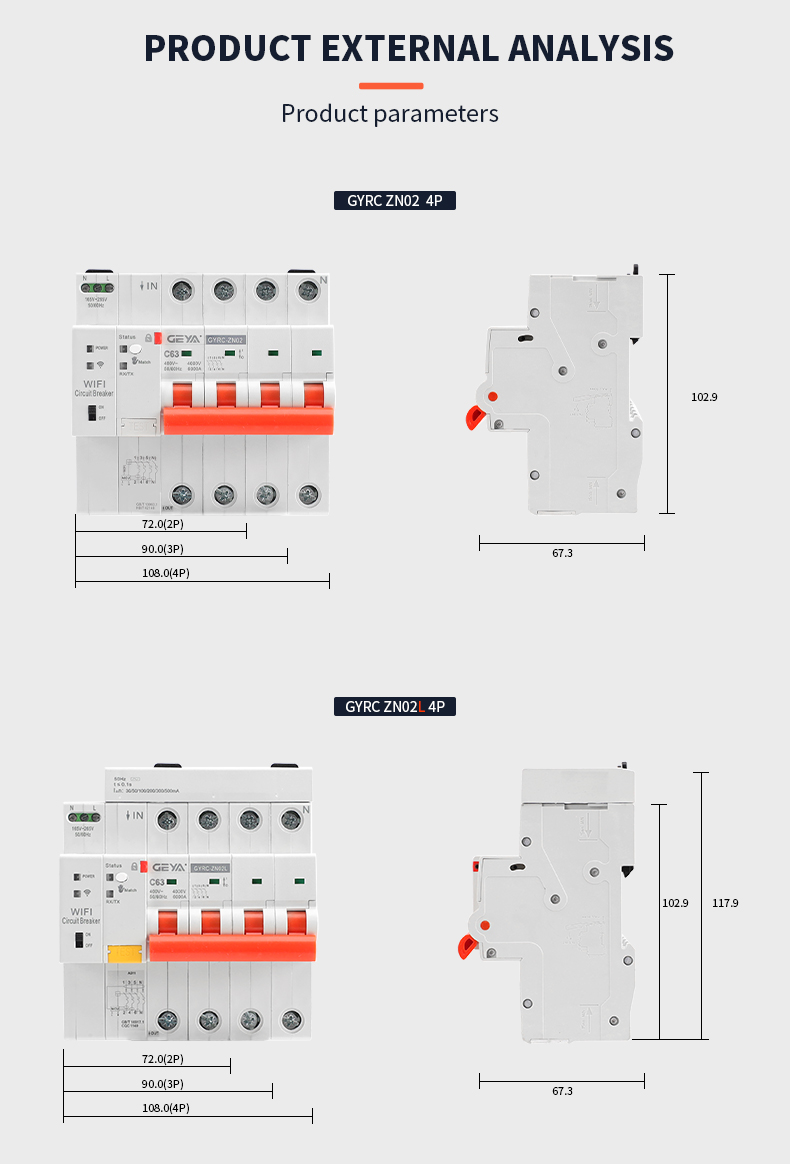

Dimension

PCS/CTN

Inner box size

(CM)

Carton Size

(CM)

G.W.

(KG)

N.W.

(KG)

GYRC-ZN01

120.9*72*72.9

16.2*8.9*10.5

33*29*17

5.95

4.59

GYRC-ZN01

123.4*108*72.9

15.3*14*10.5

33*29*18

6.25

GYRC-ZN02

102.9*36*67.3

11*6*8.5

42.5*32*19

9.85

7.85

GYRC-ZN02

102.9*72*67.3

11*6*8.5

42.5*32*19

GYRC-ZN02

102.9*90*67.3

11*9.5*8.5

42.5*32*19

15.16

13.44

GYRC-ZN02

102.9*108*67.3

11*11*8.5

42.5*32*19

18.5

16.5

GYRC-ZN02L

111.7*72*67.3

13.2*7.8*8.5

42.5*32*19

16.1

15.1

GYRC-ZN02L

111.7*90*67.3

13.2*11.4*8.5

42.5*32*19

15.84

16.88

GYRC-ZN02L

111.7*108*67.3

13.2*11.4*8.5

42.5*32*19

19.2

20.24

GYRC-ZN03

89*36*73

9.8*5.6*8.3

42*29*18.5

8.5

GYRC-ZN03

89*54*73

9.8*5.6*8.3

42*29*18.5

14.6

13.1

GYRC-ZN03

89*72*73

9.8*9.3*8.3

42*29*18.5

10.9

GYRC-ZN03

89*90*73

9.8*9.3*8.3

42*29*18.5

15.3

13.8

GYRC-ZN05

101.9*36*67.3

11.8*22*8.5

60.2*23.2*18.5

14.1

12.6

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
