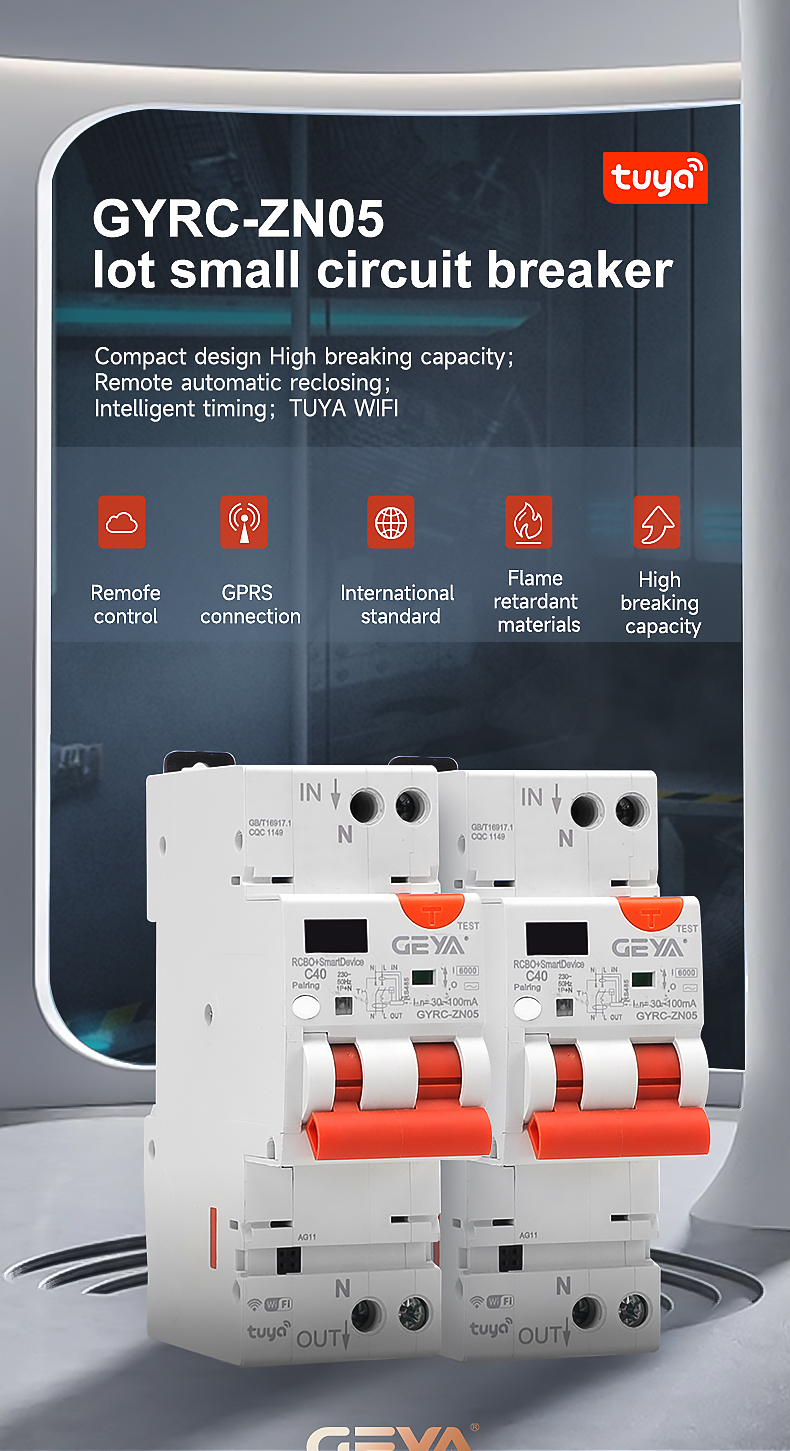

GEYA GYRC-ZN05 1P+N/20A WIFI Circuit Breaker Smart Time Timer Relay Switch Remote Control Smart Home for TUYA APP and TmallGenie

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Gyrc-zn05 1p+n/20a Wifi Circuit Breaker Smart Time Timer Relay Switch Remote Control Smart Home For Tuya App And Tmallgenie - Buy Smart Wifi Remote Control Mcb 2 Poles 100a Tuya Wifi Circuit Breaker breaker Wifi Smart Mcb Wifi 32 Amp smart Wifi Remote Tuya App Control Mcb 2 Poles 63a Wifi Circuit Breaker Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··········This link price is only for GYRC-ZN05 1P+N/20A··········

Usage and precautions: 1. The RS485 version of this product is a standard configuration for communication, which can be connected to computers and various communication devices through an RS485 to USB converter to achieve information exchange and control; 2. The default Baud of the system is 9600bps, which can be connected to the computer through the RS485 to USB converter to view and set the required Baud; 3. Network TUYA WiFi version products must be equipped with a network before use, in order to achieve internet information exchange or remote control through GPRS; 4. The installation of this product must be carried out by a professional electrician for installation and debugging; 5. The product can be customized according to user needs, please contact relevant technical personnel for specific details.

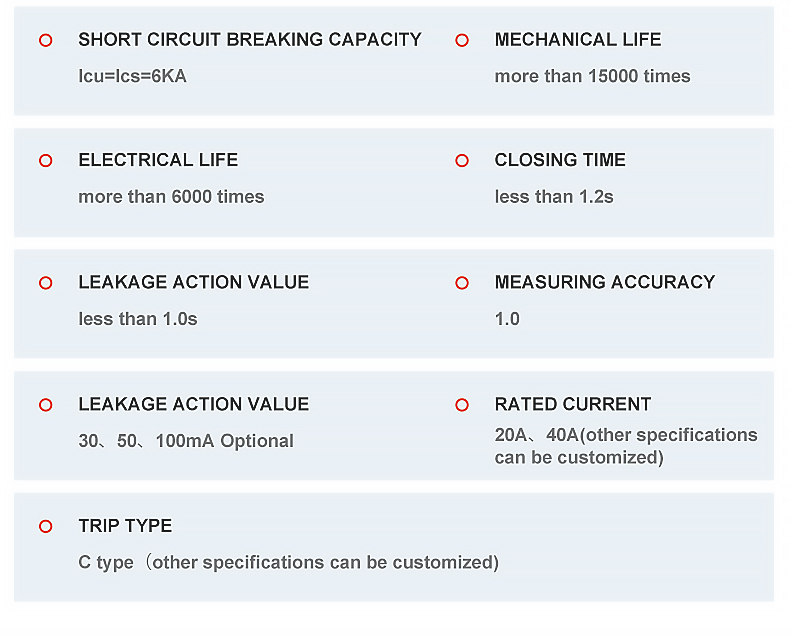

Compliant with standard: GBT 16917 CQC1149	Product pole: 1P+N
Rated voltage: single-phase AC230V 50Hz	Rated current: 20A, 40A (other specifications can be customized)
Tripping type: C-type (other types can be customized)	Short circuit breaking capacity: Icu=Ics=6KA
Mechanical life: ≥15000 times	Electrical life: greater than 6000 times
Closing time: ≤1.2s	Opening time: less than 1.0s
Measurement accuracy: 1.0	Leakage action value: 30, 50, 100mA optional

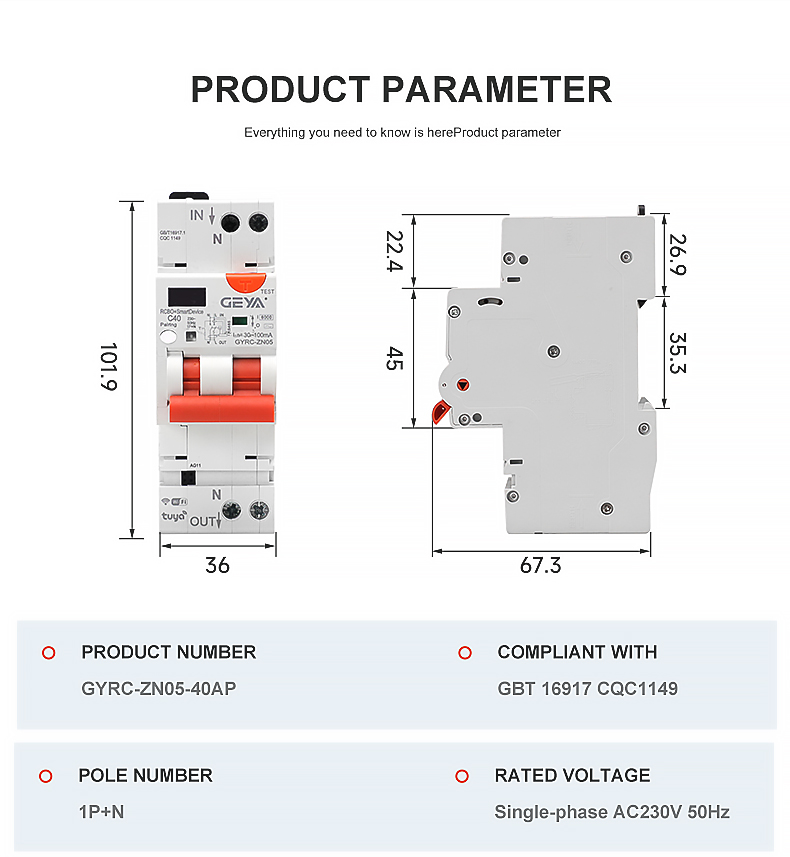

Type

Dimension

PCS/CTN

Inner box size

(CM)

Carton Size
(CM)

G.W.

(KG)

N.W.

(KG)

GYRC-ZN01

120.9*72*72.9

16.2*8.9*10.5

33*29*17

5.95

4.59

GYRC-ZN01

123.4*108*72.9

15.3*14*10.5

33*29*18

6.25

GYRC-ZN02

102.9*36*67.3

11*6*8.5

42.5*32*19

9.85

7.85

GYRC-ZN02

102.9*72*67.3

11*6*8.5

42.5*32*19

GYRC-ZN02

102.9*90*67.3

11*9.5*8.5

42.5*32*19

15.16

13.44

GYRC-ZN02

102.9*108*67.3

11*11*8.5

42.5*32*19

18.5

16.5

GYRC-ZN02L

111.7*72*67.3

13.2*7.8*8.5

42.5*32*19

16.1

15.1

GYRC-ZN02L

111.7*90*67.3

13.2*11.4*8.5

42.5*32*19

15.84

16.88

GYRC-ZN02L

111.7*108*67.3

13.2*11.4*8.5

42.5*32*19

19.2

20.24

GYRC-ZN03

89*36*73

9.8*5.6*8.3

42*29*18.5

8.5

GYRC-ZN03

89*54*73

9.8*5.6*8.3

42*29*18.5

14.6

13.1

GYRC-ZN03

89*72*73

9.8*9.3*8.3

42*29*18.5

10.9

GYRC-ZN03

89*90*73

9.8*9.3*8.3

42*29*18.5

15.3

13.8

GYRC-ZN05

101.9*36*67.3

11.8*22*8.5

60.2*23.2*18.5

14.1

12.6

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
