Product Description

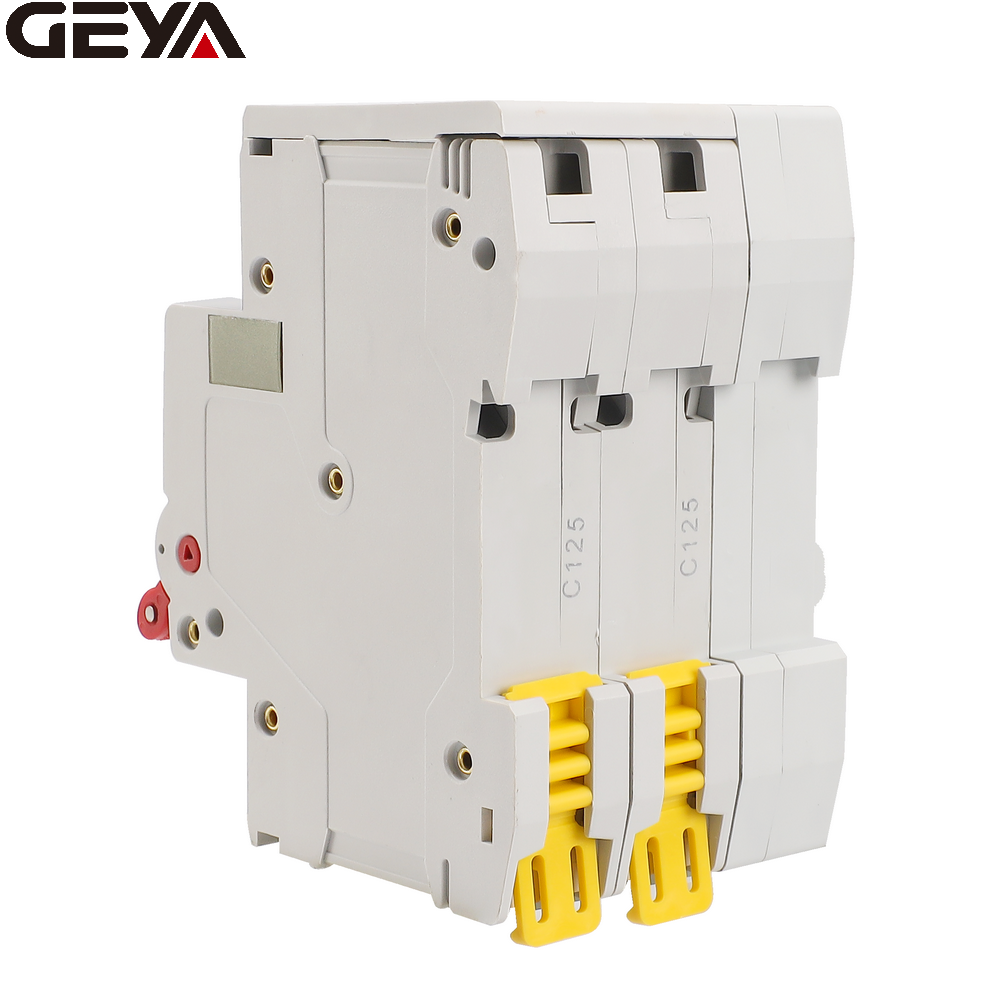

Gyrd9l-125 series photovoltaic special reclosing miniature circuit breaker is applicable to the line with AC 50Hz, rated working voltage up to 400V, and rated current up to 125A. It has the functions of overvoltage, under-voltage, loss of voltage, overload, and short circuit protection. At present, it is widely used in the photovoltaic distribution boxes. It does not require signal control. It will open and close automatically according to the voltage. It can also be used as ordinary reclosing Standard: iec60898-1

Main parameters	Parameter Data
behavior of electricity

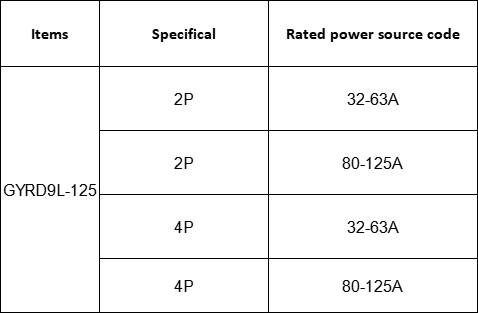

number of poles	2P、4P
Function	overvoltage,undervoltage,voltageloss,overload short circuit protection
Shell rating Inm	125A
Rated operating voltage: Ue	400V
rated current In	32、40、50、63、80A、100A、125A
The type of deduction at the time of case	c
Rated short-circuit breaking capacity	lcs=lcn=6000A
Mechanical life	10000 Times
Electricity life	4000 Times
Protection function
Over-voltage protection value	285V±5V
Over-voltage protection recovery value	275V±5V
Over-voltage protection action delay	1s
Under-voltage protection value	150V±5V
Under-voltage protection recovery value	160V±5V
Delay of under-voltage protect ion act ion	1s
Extreme operat ing voltage	300V
Loss of voltage protection function	yes
Reset delay	20s-40s
Power consumption	0.5W
Normal working and installation conditions
levels of protection	IP20
Connect ion capacity	1-3 5mm²
Use ambient temperature	-40℃~70S℃
Anti-wet touch	Class 2
height	≤2000 m
class of pollution	2
Installation environment	No significant medium strike and vibration place
Install the category	III
installation	DIN standard guide rail
