Home > Products > Automation Relay > GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor

GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Industrial Automation Emergency Stop Normally Closed Dc/ac 24 V +/- 10 % Gate Low Voltage Starter Safety Relay For Dc Motor - Buy High Voltage Amp Relay Factory Custom Horizontal Low Voltage Starter Safety Relay For Dc Motor high Voltage Dc Relay Safety Solid State Relay Brand New Original Security Module Safety Output Contacts types Of Relay Electric Safety Relay Smart Relay Module Start Stop Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

·········This link price is only for SAFE-DELAY··········
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor

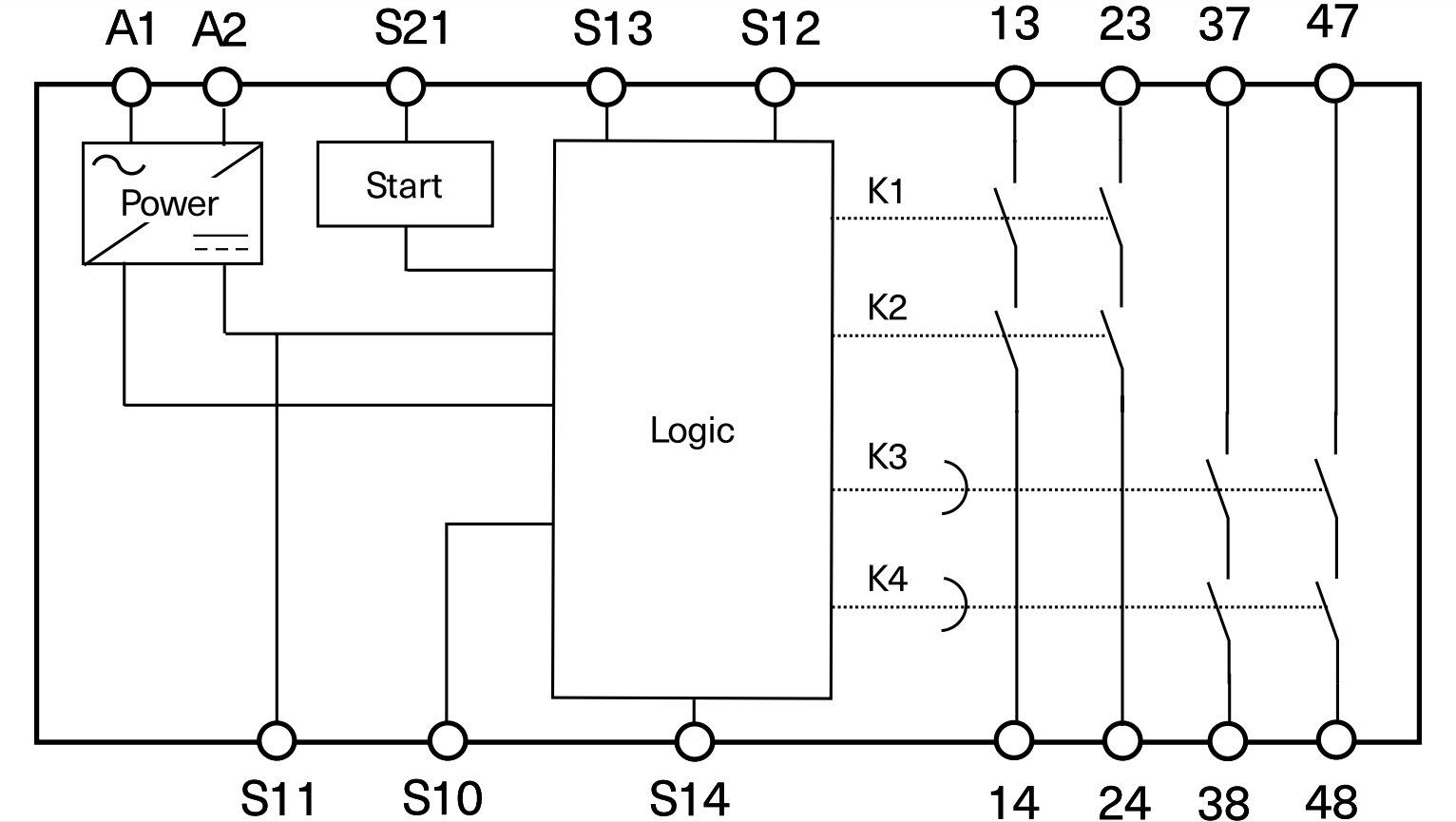

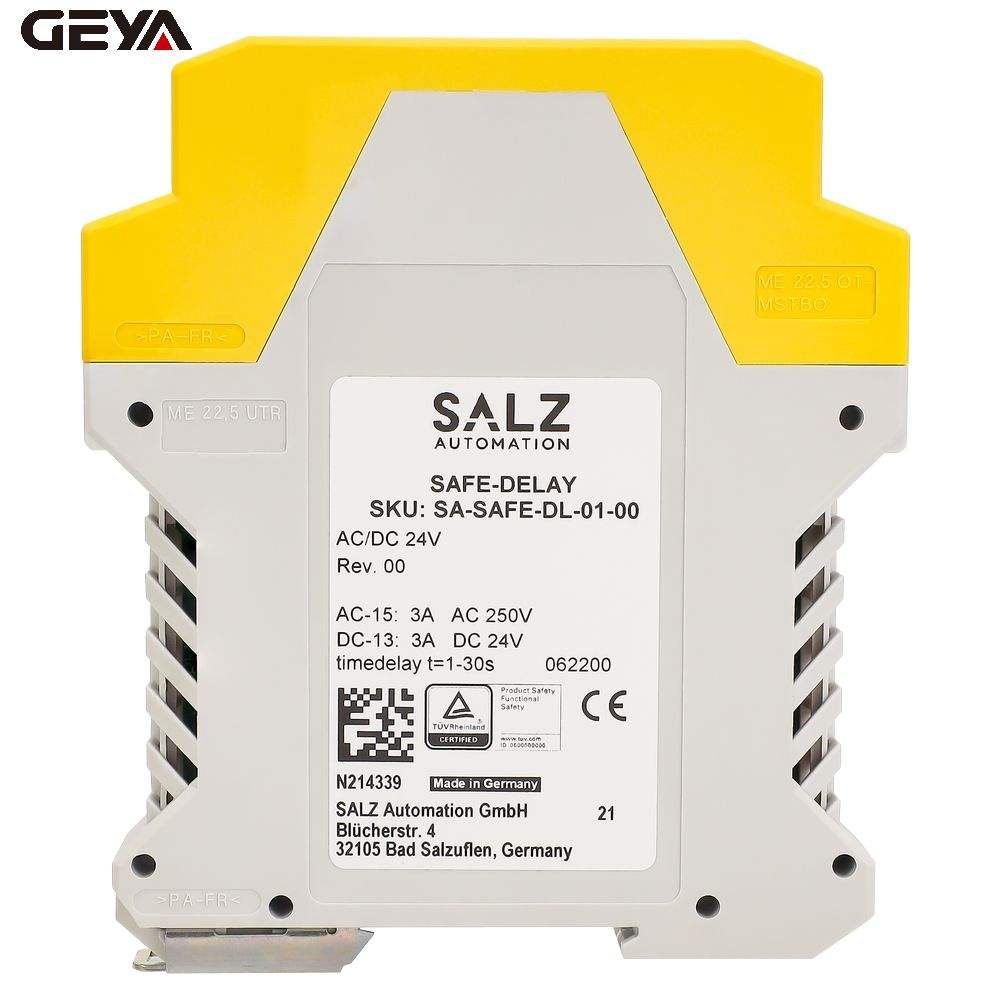

SAFE-DELAY is an all-purpose emergency stop device that combines non-time-delayed and time-delayed contacts. This permits dangerous components of a system to be switched off quickly and safely in an emergency situation. fAt the same time, other circuits can continue to be supplied with voltage for up to 30 seconds allowing a tool to be moved to its idle position or to break following parts, for example. The safety module provides two safe relay contacts without any delay and two safe relay contacts with a time-off delay of up to 30 seconds. Further applications for the SAFE-DELAY include single or dual channel emergency stop circuits and guard monitoring on machines and plants according to EN ISO 13849-1 and EN 62061.

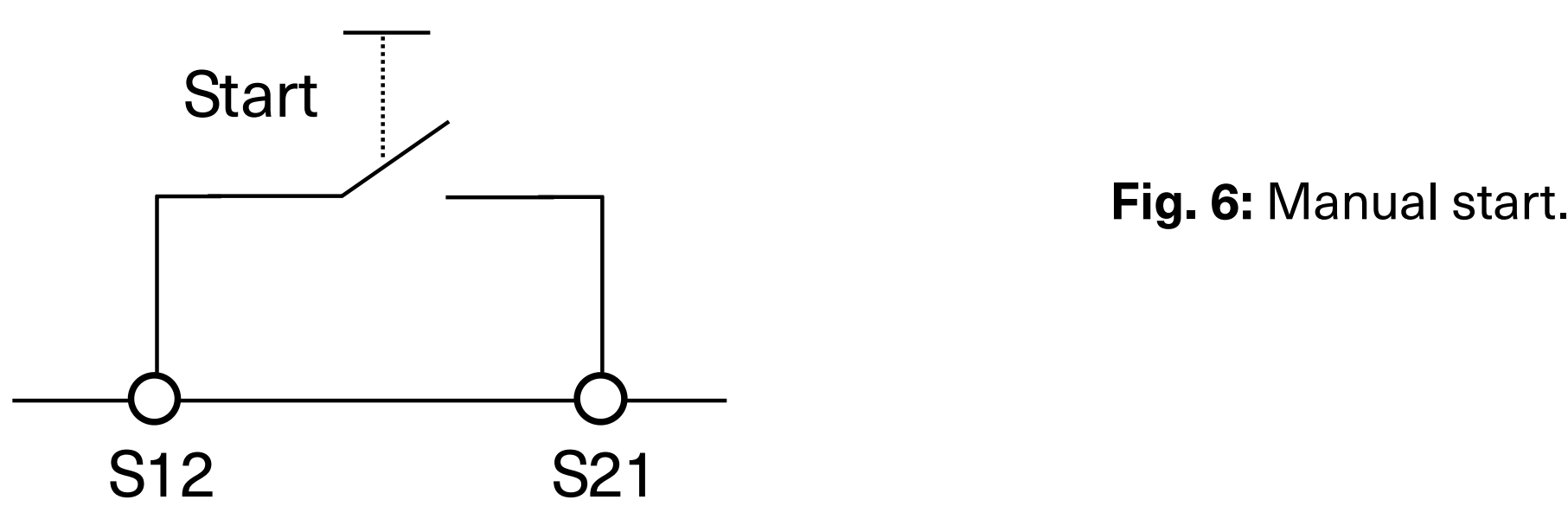

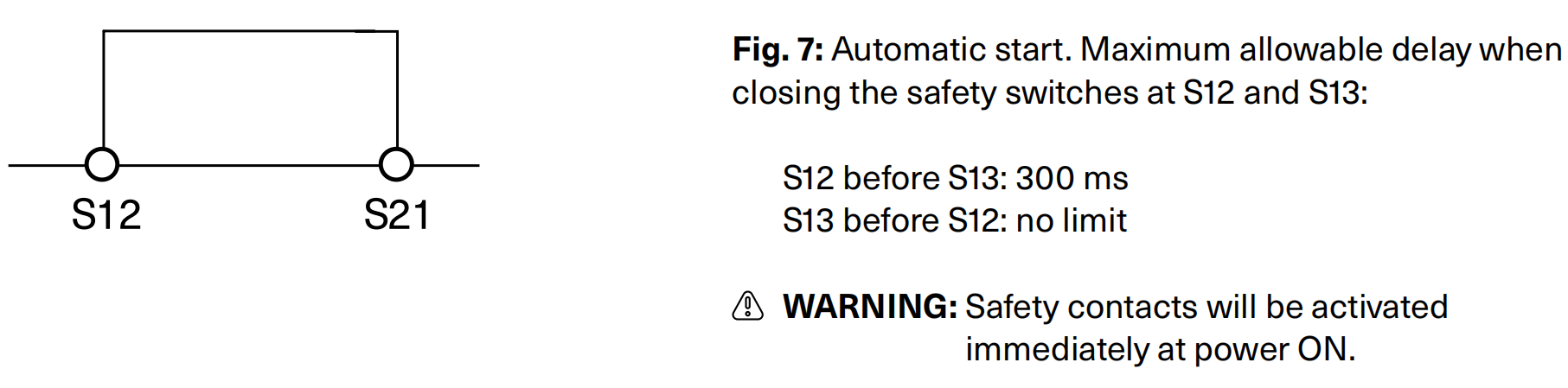

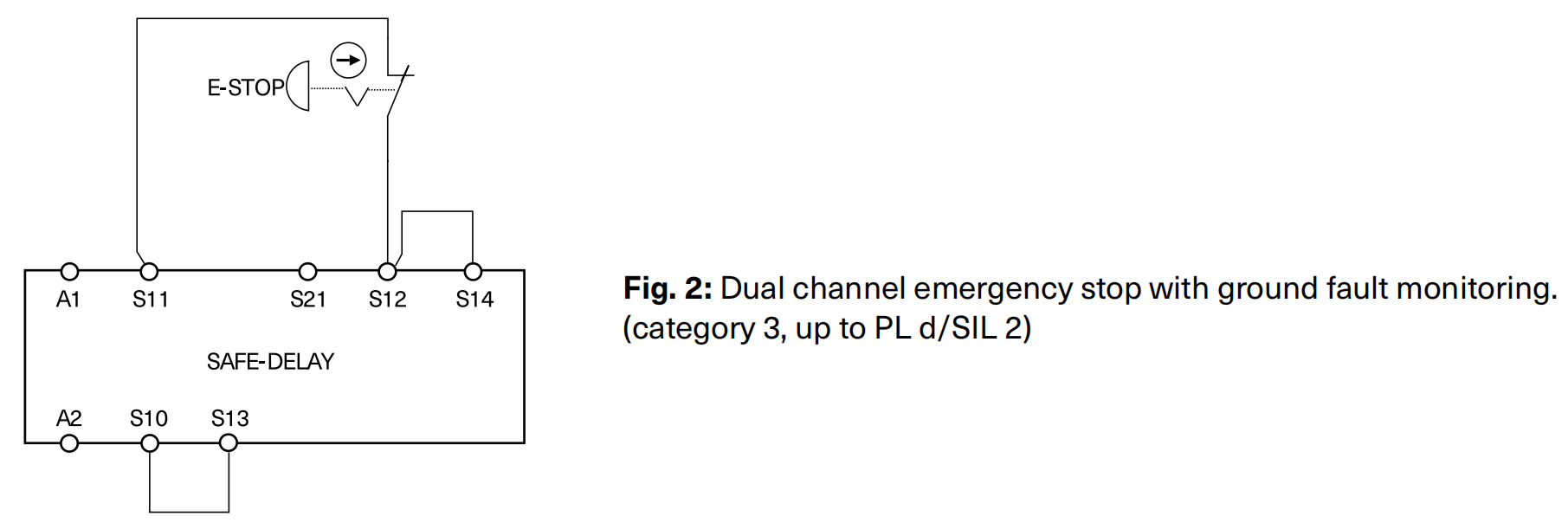

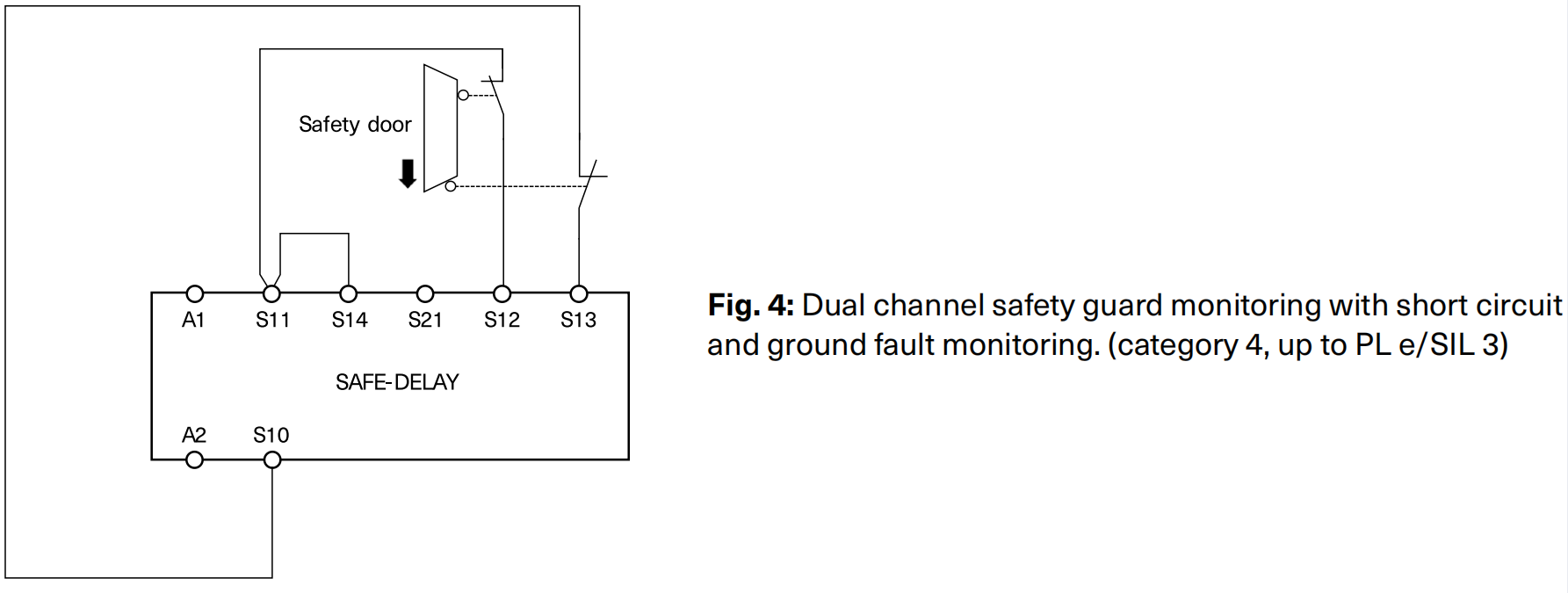

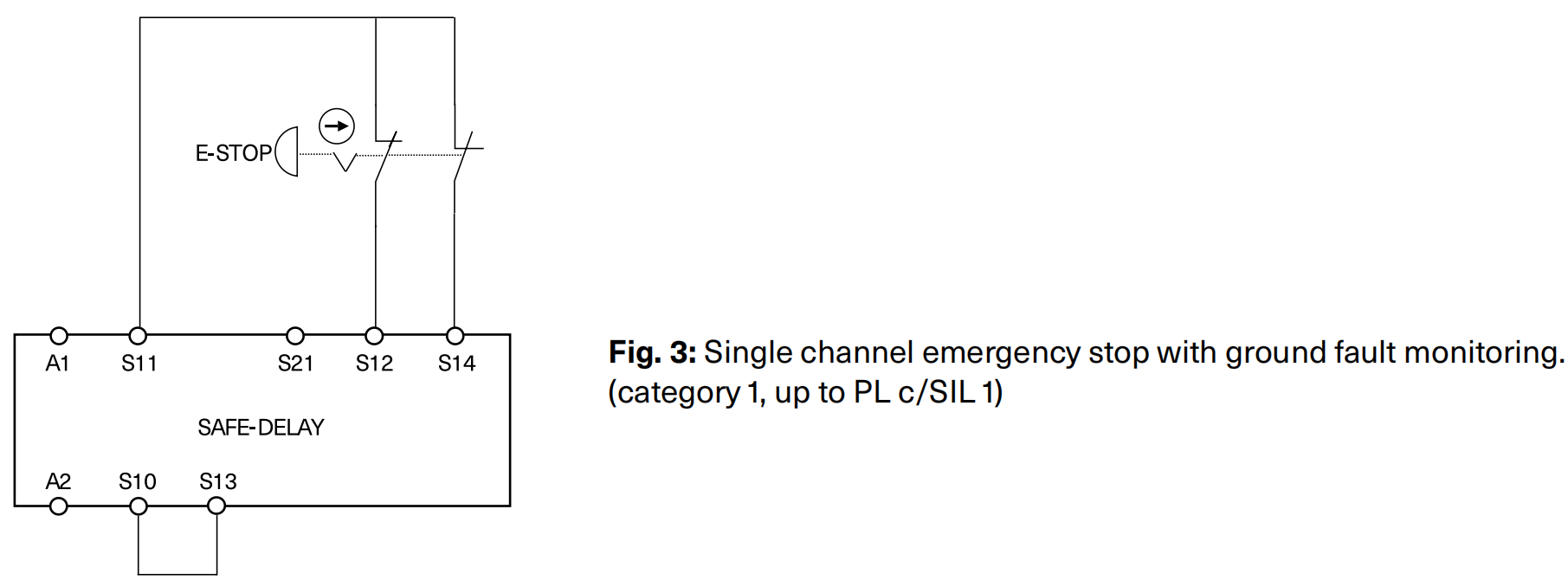

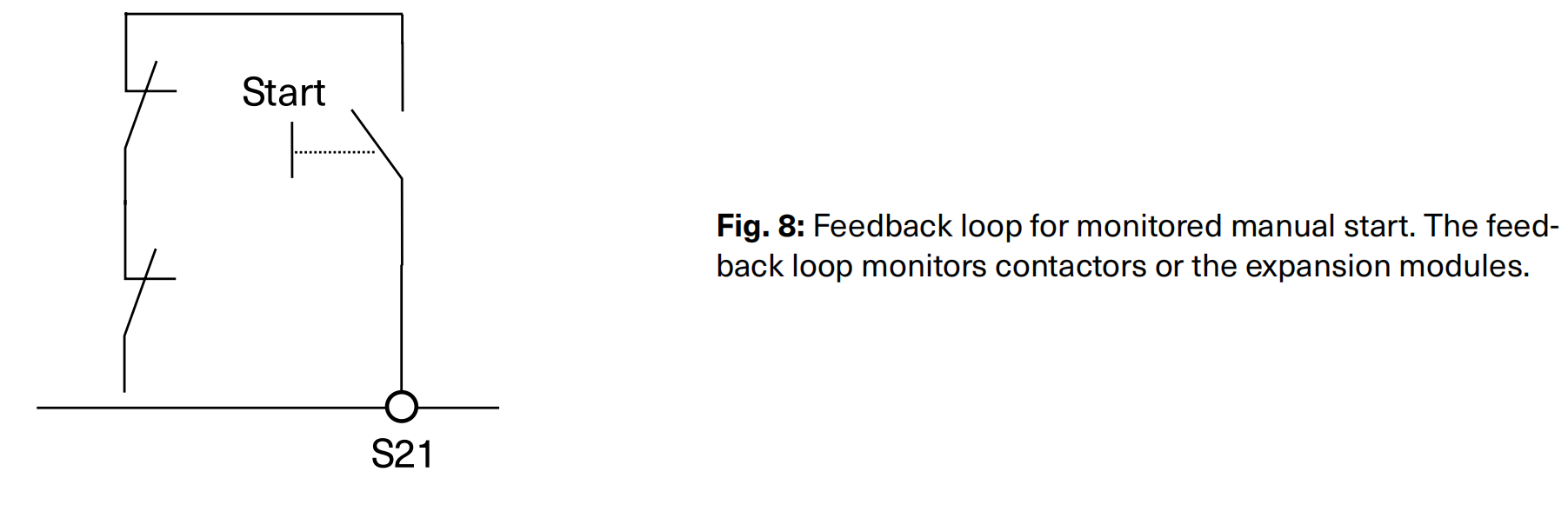

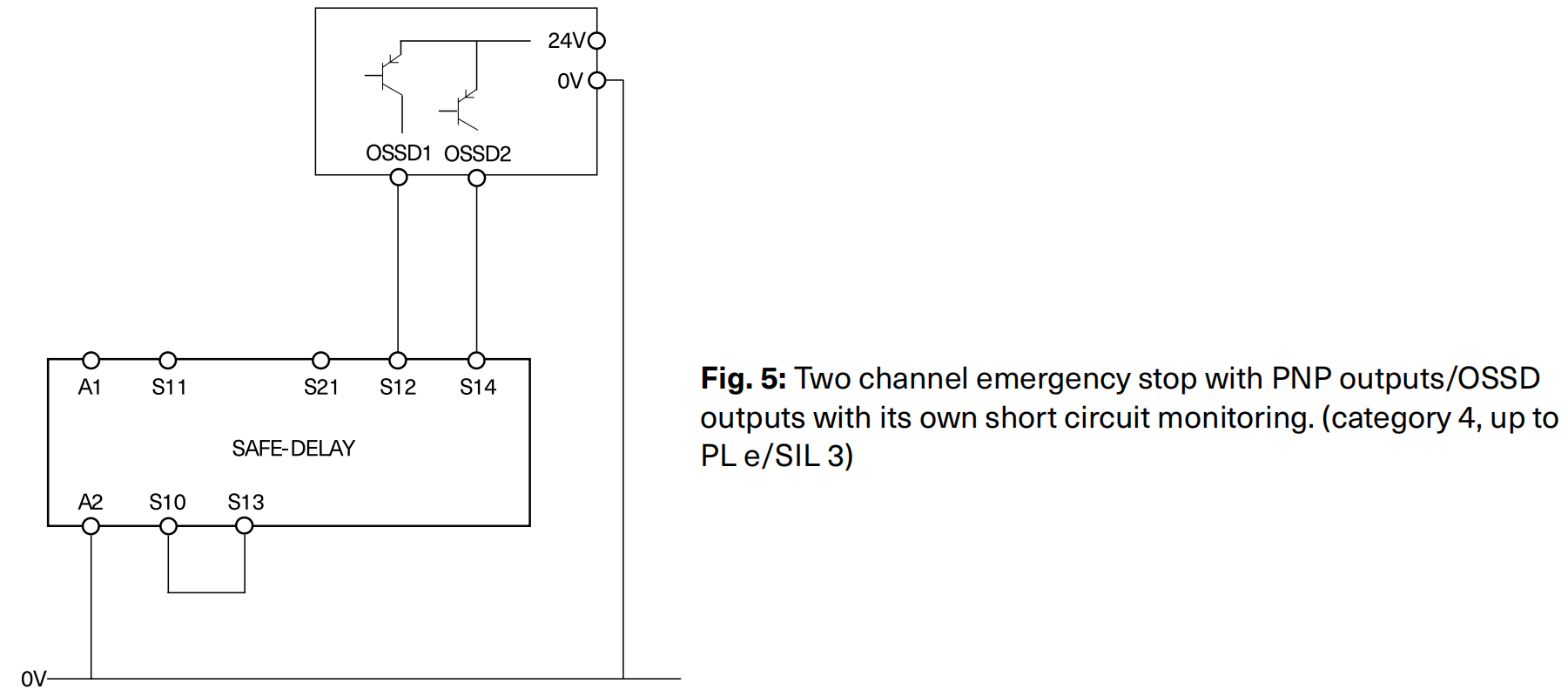

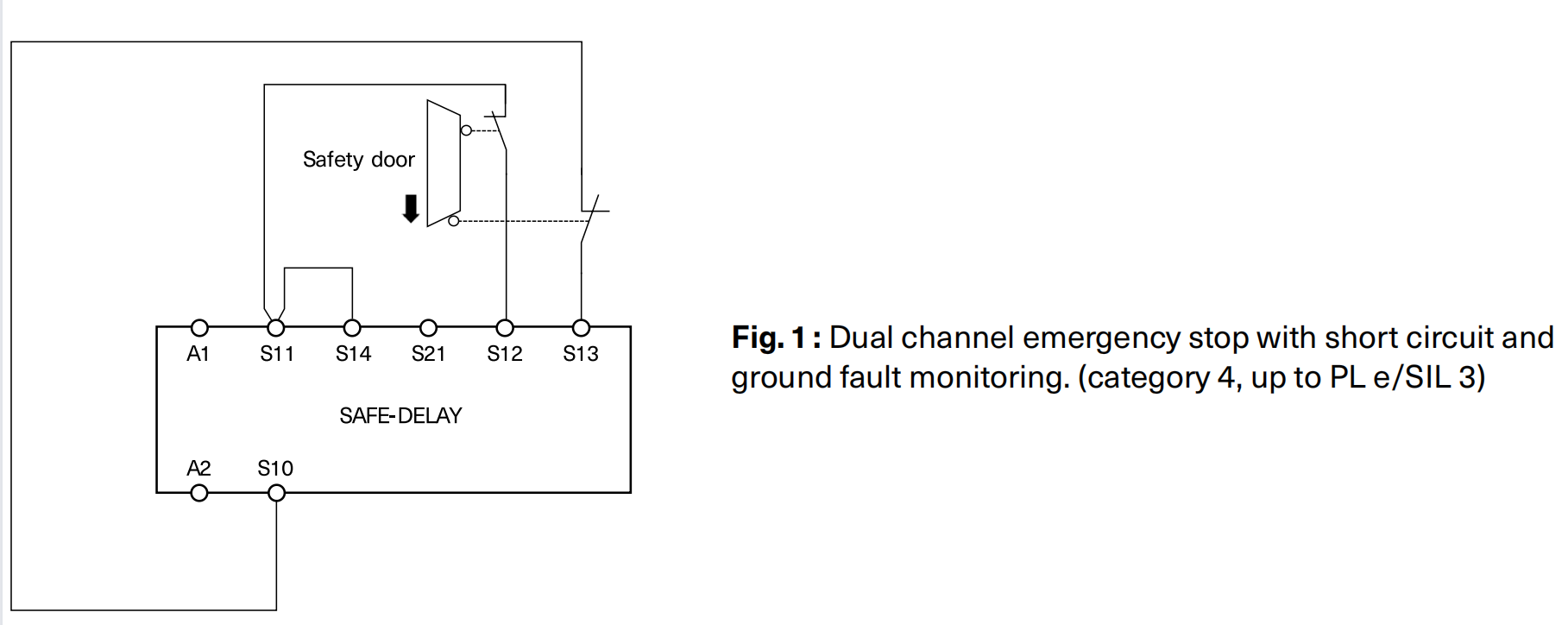

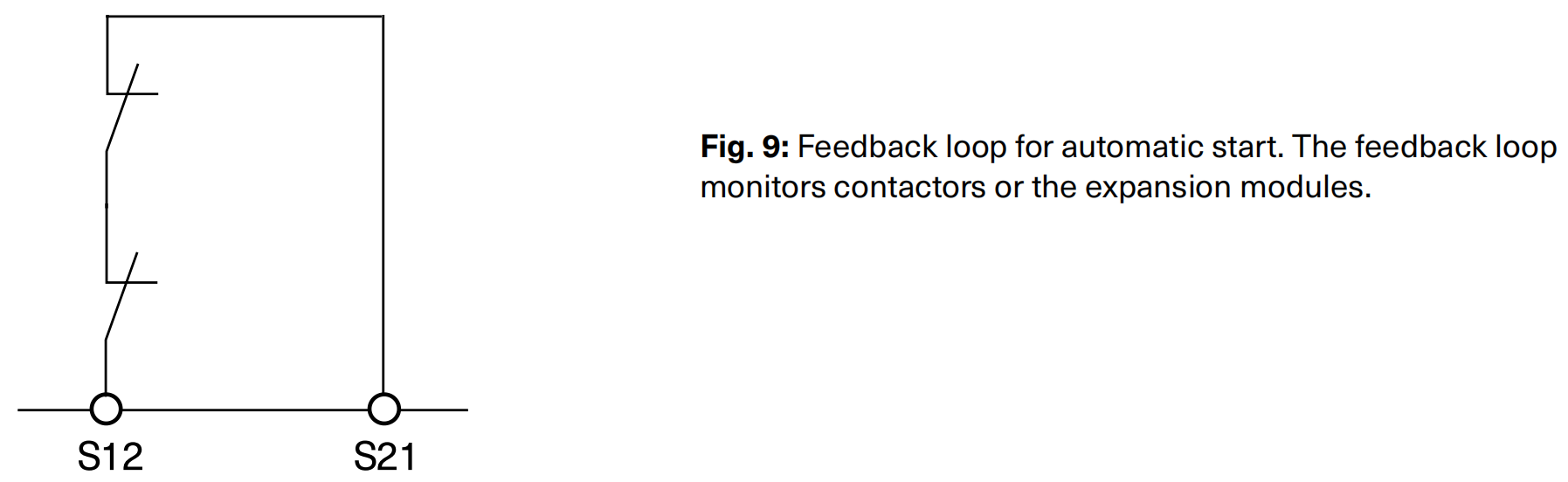

Features: 1. 2 non-delayed safety contacts 2. 2 time-off delayed contacts 3. Continuously adjustable time delay(1 to 30 s) 4. Connection of: （1）Emergency stop buttons （2）Mechanical safety switches （3）Non-contact safety switches （4）Safety components with OSSD outputs 5. Control: single or dual channel feedback loop for external contractors or extension modules 6. Cyclical monitoring of the output contacts LED indicator for power and status 7. Automatic or manual start 8. Short-circuit monitoring and ground fault monitoring. 9.Up to PLe,SILCL3,category4 (EN ISO 13849-1, EN 62061)
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
GEYA Industrial Automation Emergency Stop Normally Closed DC/AC 24 V +/- 10 % Gate Low Voltage Starter Safety Relay for Dc Motor
In compliance with
EN 60204-1;EN ISO13849-1;IEC 62061
Operating voltage
AC/DC 24V+/-10%
Power consumption
AC 5.3VA/DC 4.7W
Rated supply frequency
50-60 Hz
Control voltage at S11
DC 24V
Control current
typical 190 mA
Safety contacts non-delayed
2 NO
Safety contacts delayed
2 NO
Max.switching voltage
AC 250V
Contact rating of safety contacts 6 switching cycles/min
AC:250 V, 2000 VA,8A for resistive load 250V,3Afor AC-15
DC:40 V,320 W,8 A for resistive load 24V,3Afor DC-13
Max. total current through all contacts
15 A more than one device is closely spaced under load, the max.total current at the ambient temperature of T=20℃:9A;at T=30℃:3
A;at T=40 ℃=1A. Otherwise a distance of 5 mm between two devices is necessary.
Minimum contact load
5 V,10 mA
External fuses
10 A gG
Max.switch-on delay
< 30 ms
Switch-off delay (adjustable)
30 ms to 30 sec.
Recovery time
< 500 ms
Max.length of control line
1000 m at 0.75 mm2
Wire width
0.14-2.5 mm²
Tightening moment (Min./Max.)
0.5 Nm/0.6 Nm
Contact material
AgSnO2
Service Life
mech.approx.1x107
Test voltage
2.5 kV (control voltage/contacts)
Rated impulse withstand voltage,leakage path/air gap
4 kV (DIN VDE 010-1)
Rated insulation voltage
250V
Degree of pollution/Overvoltage category
2/3(DIN VDE 0110-0)
Protection
IP20
Temperature range Ambient
15℃ to +40℃
Temperature range Storage
-15℃ to +85 ℃
Max.altitude
≤2000 m (above sea level)
Weight approx.
250g
Mounting DIN rail according to EN 60715
TH35
Product Name
PCS/CTN
N.W of product (g)
G.W of product (g)
Carton Size
(CM)
N.W.
(KG)
G.W.
(KG)
SAFE-ESTOP
50
160
185
41*35*20
10
9
SAFE-ESTOP 50 (50 pcs/box)
50
160
160
41*35*20
10
9
SAFE-DELAY
50
225
250
41*35*20
13
12
SAFE-TWO-HAND
50
155
180
41*35*20
10
9
SAFE-SIL
50
175
200
41*35*20
11
10
SAFE-SIL (50 pcs/box)
50
175
175
41*35*20
11
10
SAFE-MULTI
25
315
400
41*35*20
11
10
