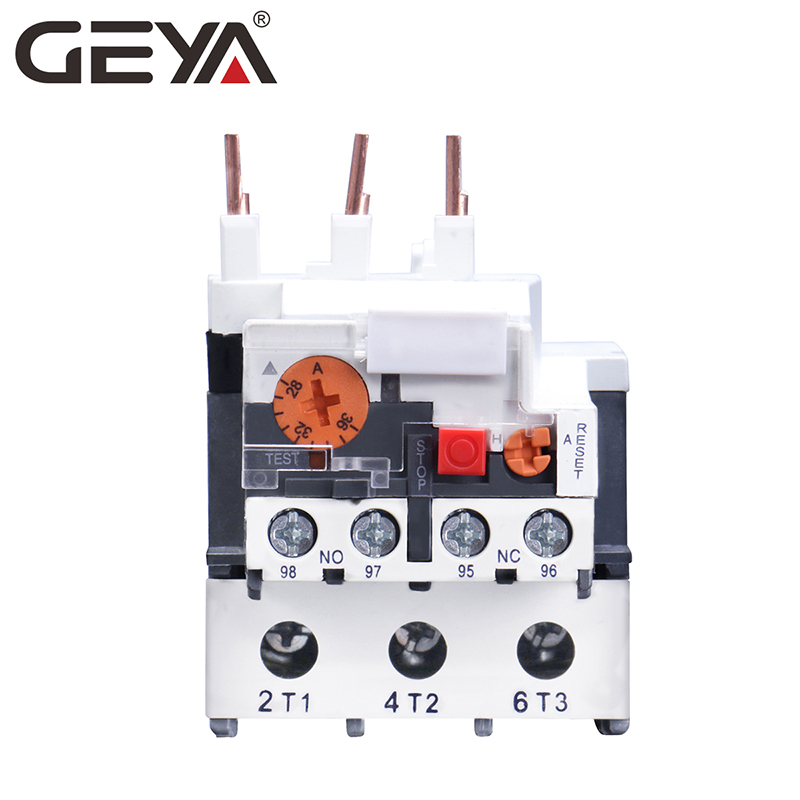

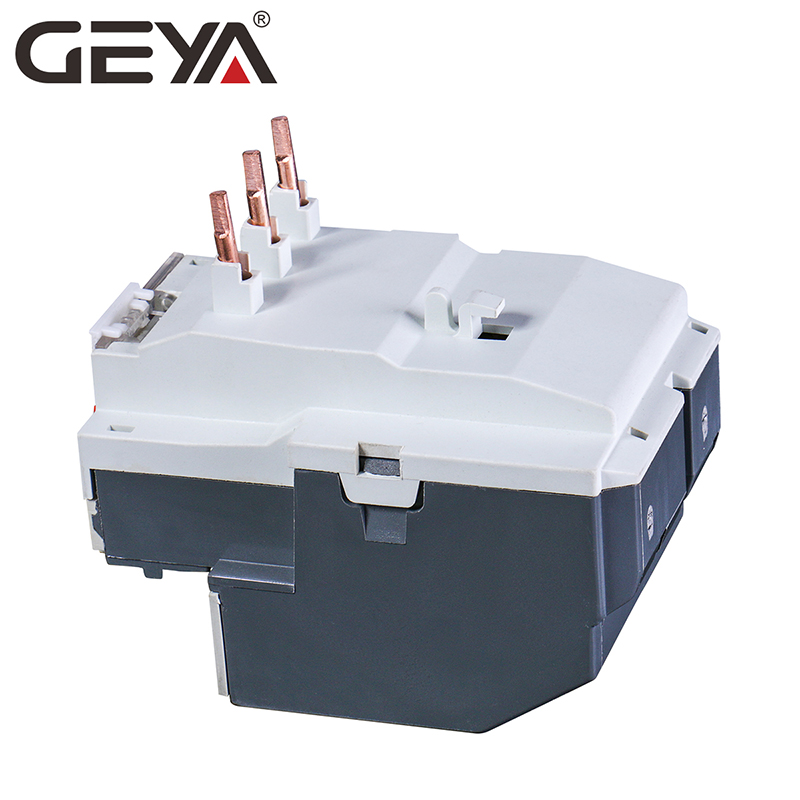

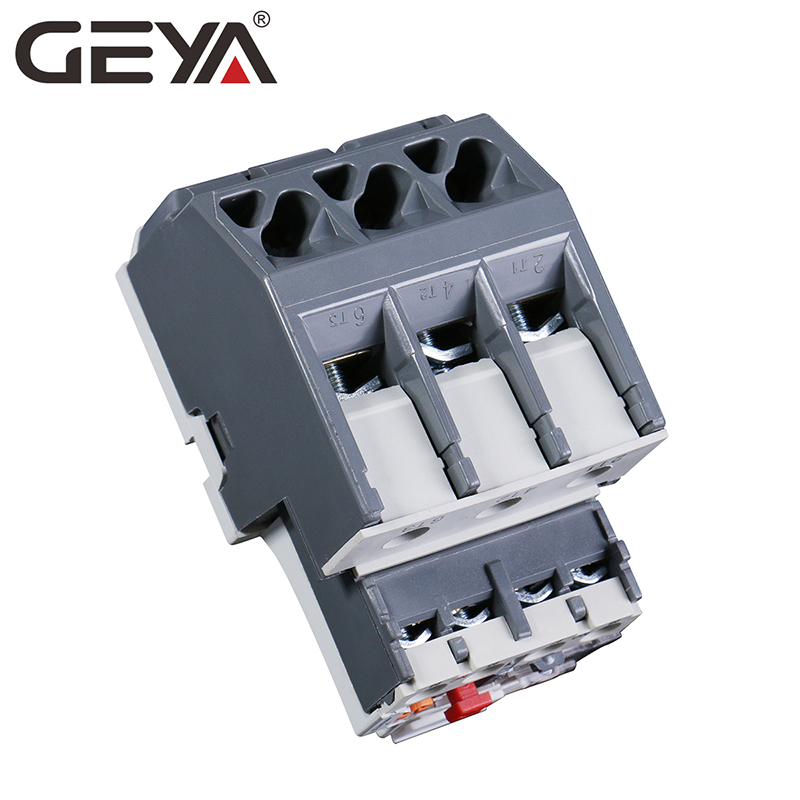

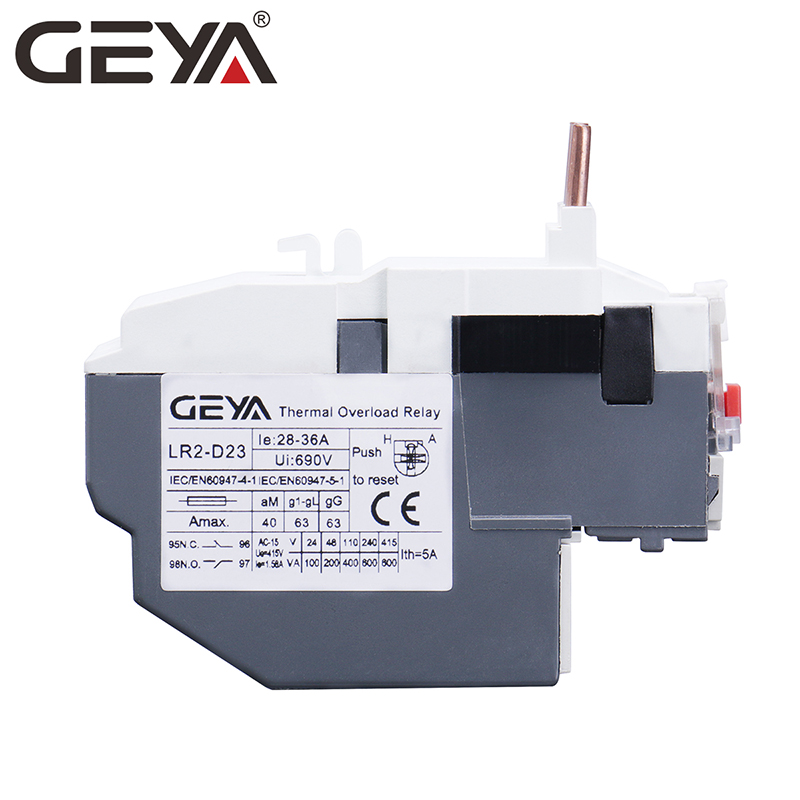

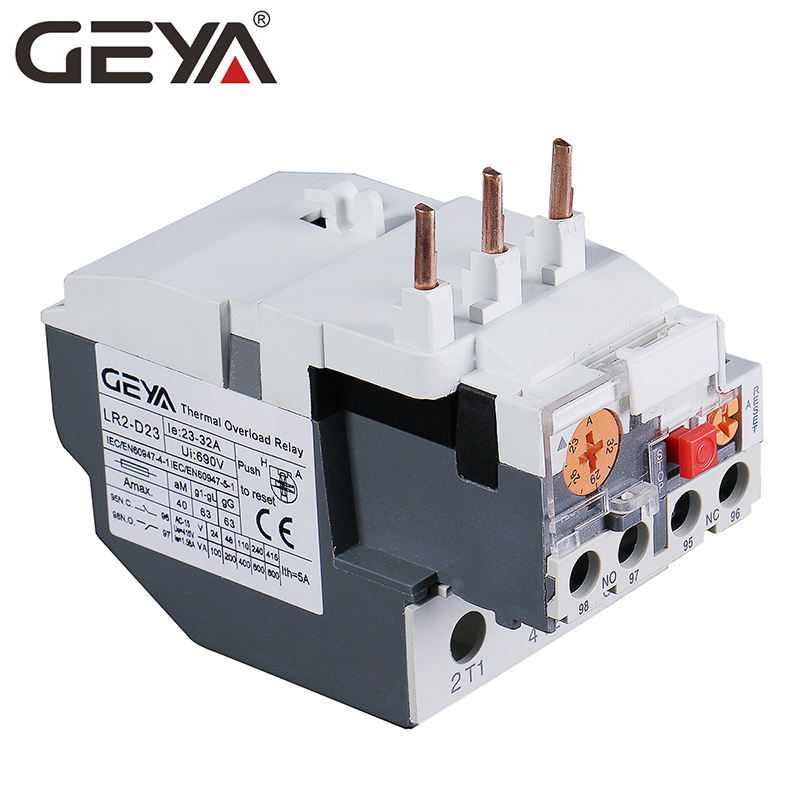

GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A

GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{border-bottom......Keywords:Geya Lr2-d23 Thermal Overload Relay Adjustable Manual Or Auto Reset Jr28-36 Motor Control Thermal Relay 23a 32a 28a 36a - Buy Auto Reset Thermal Switch telemecanique Thermal Overload Relay thermal Switch Manual Reset 9 To 13 A Thermal Relay Circuit Breaker 20a 32a 63a Thermal Overload Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A
GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A

LRD series of thermal relay can be used in the circuit of 50Hz or 60Hz, rated insulation voltage 660V, rated current 0.1-96A for protecting the phase break when the electric motor is overload. The relay has different mechanism and temperature compensation & can be plugged in GLCI-D series AC contactor.


Basic parameter of the main circuit:
1.Rated insulation voltage 660V
2.Rated working current 25,36,93A separately
3.The regulator seal of rated setting current and setting
4.current of the thermal component
Auxiliary circuit
1. There are one pair of NO and NC contacts with electrification
2 Rated insulation voltage 500V
3. Rated frequency 50-60Hz
4. Use group,rated working voltage, appoint thermal current and rated current
GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A
GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A
GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A
GEYA LR2-D23 Thermal Overload Relay Adjustable Manual or Auto Reset JR28-36 Motor Control Thermal Relay 23A 32A 28A 36A
Technical Data

Model NO.
Rated working current
Thermal component
of thermal relay
Rated current(A)
Rated or scale of rated current (A)












LR2-D13












25
LR2-D1301
0.2
0.10-0.16
LR2-D1302
0.3
0.16-0.25
LR2-D1303
0.4
0.25-0.40
LR2-D1304
0.6
0.40-0.63
LR2-D1305
1.0
0.63-1.0
LR2-D1306
1.6
1.0-1.6
LR2-D13X6
2.0
1.25-2.0
LR2-D1307
2.5
1.6-2.5
LR2-D1308
4.0
2.5-4.0
LR2-D1310
6.0
4.0-6.0
LR2-D1312
8.0
5.5-8.0
LR2-D1314
10.0
7.0-10.0
LR2-D1316
13.0
9.0-13.0
LR2-D1321
18.0
12.0-18.0
LR2-D1322
25.0
17.0-25.0

LR2-D23

36
LR2-D2353
32.0
23.0-32.0
LR2-D2355
36.0
28.0-36.0





LR2-D33





93
LR2-D3353
32.0
23.0-32.0
LR2-D3355
40.0
30.0-40.0
LR2-D3357
50.0
37.0-50.0
LR2-D3359
65.0
48.0-65.0
LR2-D3361
70.0
55.0-70.0
LR2-D3363
90.0
63.0-80.0
LR2-D3365
93.0
80.0-93.0
If you want to know more technical information or price, please kindly contact us freely!
