Home > Products > Automation Relay > GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay

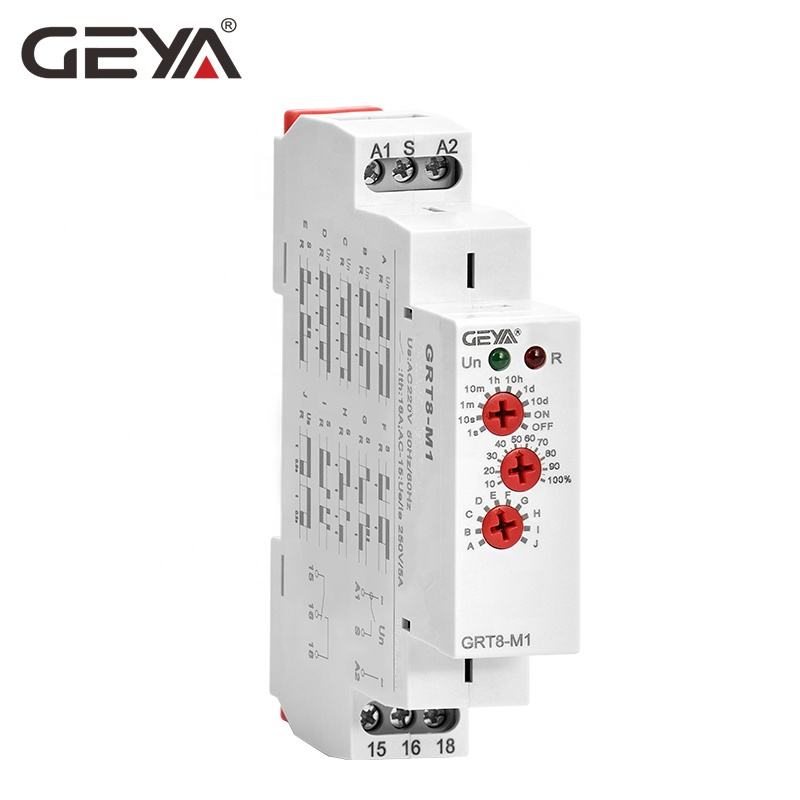

GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay

GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{border-bottom......Keywords:Geya New Design Grt8-m1 Mini Electronic Modular Timer Delay Relay 220v Multi Function Timer Relay - Buy Multi Fuction Time Relay Adjustable Timer Relay 110v Timer Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay

**This link is special for GRT8-M1 AC230V, if you need other specification, please kindly tell us!


Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions,10 time ranges, multi-voltage).

- GRT8-M Multifunction Time Relay
- Voltage Range: AC230V or AC/DC12-240V
- Output: 16A 1SPDT or 2SPDT
-10 Functions:
5 time functions controlled by supply voltage ( A B C D J )
4 time functions controlled by control input ( E F G H )
1 function of latching relay ( I )
-Time scale 0.1 s - 10 days divided into 10 ranges, setting by Potentionmeter.
0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10day, only on, only off
- 1-MODULE 18mm, DIN rail mounting, convenient install.
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GRT8-M
Multifunction Time Relay Selection
Please leave a message which specification needed?

1SPDT 16A/AC1
GRT8-M1 AC230V
GRT8-M1 AC/DC12-240V

2SPDT 16A/AC1
GRT8-M2 AC230V
GRT8-M2 AC/DC12-240V
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
If you want to know more technical information or price, please kindly contact us freely!
Recommended by seller

GEYA GRV8-02 AC / DC Supply Voltage Single Phase 10A Monitoring Voltage Relay

$6.20-8 / piece

10 pieces

GEYA GRV8-04 AC Voltage Controller Phase Sequence and Failure Protection Relay 10A

$5.66-7.31 / piece

20 pieces

GEYA GRT8-A1 Delay on Time Relay AC220V Din Rail Single Function AC230V 240V Timer Delay DC

$4.38-5.65 / piece

20 pieces

GEYA GRL8-02 Din Rail Level Control Switch with Water Level Probe AC/DC24-240V Switching Dc Control Relay for Low Voltage Switch

$8.20-10.59 / piece

20 pieces

GEYA GYM8 250V 500V 800V 1000V 1200V C20 Mcb Mini Circuit Breaker/ Mcb 2pole 4pole

$1.32-1.63 / piece

50 pieces

NEW GEYA Type B RCCB 63A 4 Pole ELCB Earth Leakage Circuit Breaker DC RCD 4P 40A 63A 30mA

$33.71-42.36 / piece

50 pieces

GEYA GRD9L-R Auto Recloser RCCB Residual Current Circuit Breaker AC220V 2P 40A 30mA RCD Autocloser Mcb

$38.70-48.62 / piece

20 pieces

GEYA W2R Auto Manual Transfer Switch 100Amp Generator ATS 63A 100A 2P 3P 4P 220V

$14.49-17.92 / piece

20 pieces

GEYA FY-T73-8C-12V 24V 8 Group Interlocking Relay Module PLC 12VDC Relay Interface

$7.65-9.46 / piece

20 pieces

GEYA W2R-100 Change Over Switch Automatic 2P 3P 4P 40A 50A 63A 100A ATS OEMS Factory

$12.39-15.32 / piece

20 pieces

GEYA GLC1 Contactor Magnetic Compressor Contactor 24V 110V 220V 380V 400V 440V

$12.72-15.72 / piece

20 pieces

Item
Specification
N.W. of product (g)
G.W. of product (g)
Medium box weight
(g)
G.W. of 60pcs/CTN (kg)
G.W. of 100pcs/CTN(kg)±50g
G.W. of 200pcs/CTN(kg)
GRT8-M1/N1
A230
62.4
75.1
817
5.25
8.64
16.98
GRT8-M1/N1
AC/DC12V~240V
62.9
76.3
829
5.32
8.76
17.22
GRT8-M2/N2
A230
81.7
94.3
1009
6.40
10.56
20.82
GRT8-M2/N2
AC/DC12V~240V
82.6
95.4
1020
6.47
10.67
21.04
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
VR
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
GEYA NEW DESIGN GRT8-M1 Mini Electronic Modular Timer Delay Relay 220V Multi Function Timer Relay
