Product Description

·············This link price is only for GRD9L-C/D/R+GYR9NM-4P 32-40A-30mA AC ·············
Applications
Can be widely used in power grid terminal lines, such as meter boxes, new energy circuit management, PV solar control boxes, smart electricity, smart home, new energy vehicle charging pile,and so on. piles

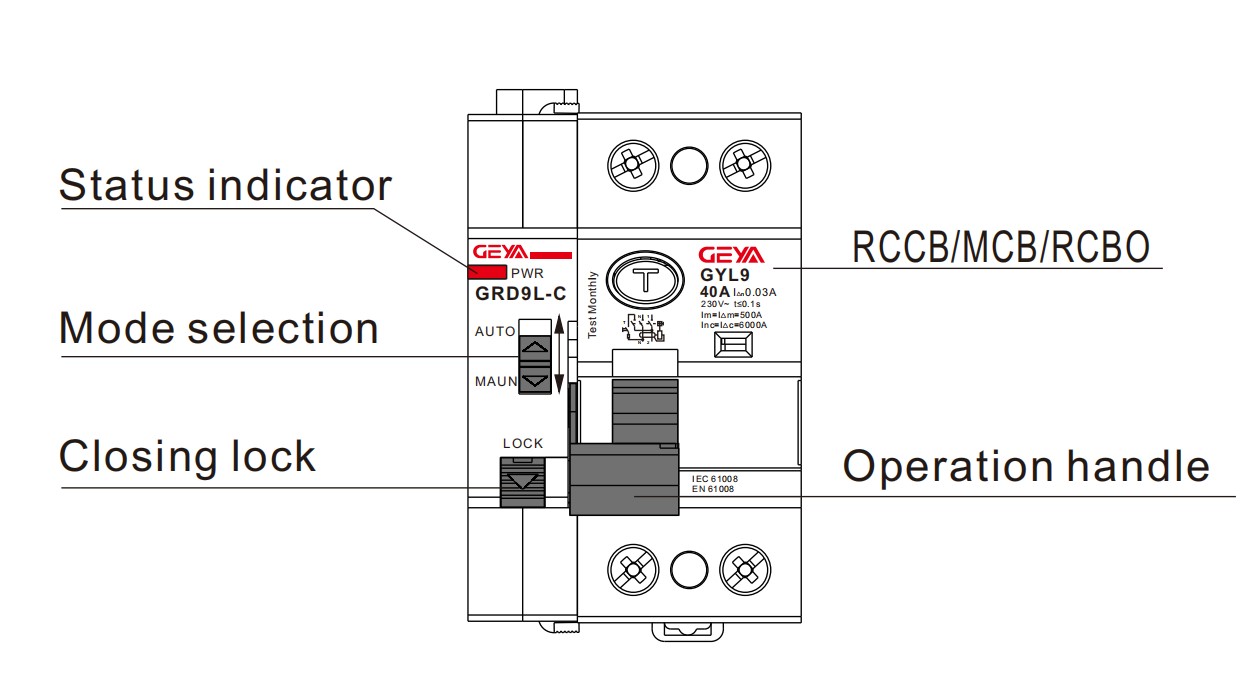

Feature
1. It can be matched with MCB/RCCB/RCBO to remotely close and open MCB/RCCB/RCBO.

2. MCB/RCCB controlled by a switch, type D has an auto reclosing function.

3. With manual/automatic selector switch.

4. With mechanical/electronic double locking function.
5. The shaft transmission mode is more stable and reliable.
6. Can match other accessories.
7. Work status is indicated by LED.
8. 1-MODULE.
GEYA NEW GRD9L-C/D/R+GYR9NM-4P 32-40A AC 30/100/300mA AC Auto Automatic Recloser Mcb Function RCBO 4p Rcbo Circuit Breaker
GEYA NEW GRD9L-C/D/R+GYR9NM-4P 32-40A AC 30/100/300mA AC Auto Automatic Recloser Mcb Function RCBO 4p Rcbo Circuit Breaker
GRD9L-C
GRD9L-D
Control mode
Controlled by switch
Controlled by switch+Auto Reclosing
Supply terminals
A1-A2
Voltage range
DC12V,DC24V~48V
Power input
DC max.1W(standby) max.20W(action)
Voltage range
AC 220V(50-60Hz)
Supply voltage tolerance
-10%;+10%
Power input
AC max.1VA(standby) max.20VA(action)
Supply voltage tolerance
-10%;+10%
Supply indication
red LED
Action time
≤1s
Auto reclosing times
——
3
Auto reclosing time interval
——
10s-60s-300s
Reset the closing times
——
No trip or manualreset within
15 minutes after successful
closing
Mechanical life
10000
Electrical life(AC1)
4000
Operating temperature
-20℃ to +55℃ （-4℉ to 3℉）
Storage temperature
-35℃ to +75℃(-22℉ to 158℉)
Mounting/DIN rail
Din rail EN/IEC 60715
Protection degree
IP20
Operating position
any
Overvoltage cathegory
III
Pollution degree
2
Max.cable size(mm²)
solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12)
Dimensions
82×18×78mm
Weight
80g
Combination with accessories
Auxillary contact
Yes
Alarm contact
Yes
Shunt release
Yes
