GEYA New Products GYW1 ACB 6300A 4 Pole Drawer Frame Intelligent Universal Air Circuit Breaker

General

GYW1series DW45 Intelligent Air Circuit Breaker(ACB)is suitable for the circuit of AC 50Hz with rated voltage 400V, 690V and rated current up to 6300A. It is mainly used to distribute electric energy and protect circuits and power-supply equipment from overload, under-voltage, short-circuit and single-phase earthing. with intelligentized and selective protection functions, the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines(for 690V) and modern high buildings, especially for the distribution system of intelligentized building.

1. Rated AC current: 400A-6300A
2. Short-circuit breaking capacity: 80KA-120KA
3. Rated Voltage: up to AC690V
4. Installation Types: Draw-out type and Fixed type
5. Number of poles: 3 Pole and 4 Pole
6. Operation type: Manual operation & Auto operation
7. Trip types: Intelligent controller, under voltage instant ( or time delay type) trip and shunt trip
8. Intelligent controller categories: L type(Basic type), M type(Standard type), and H type(Communication type)

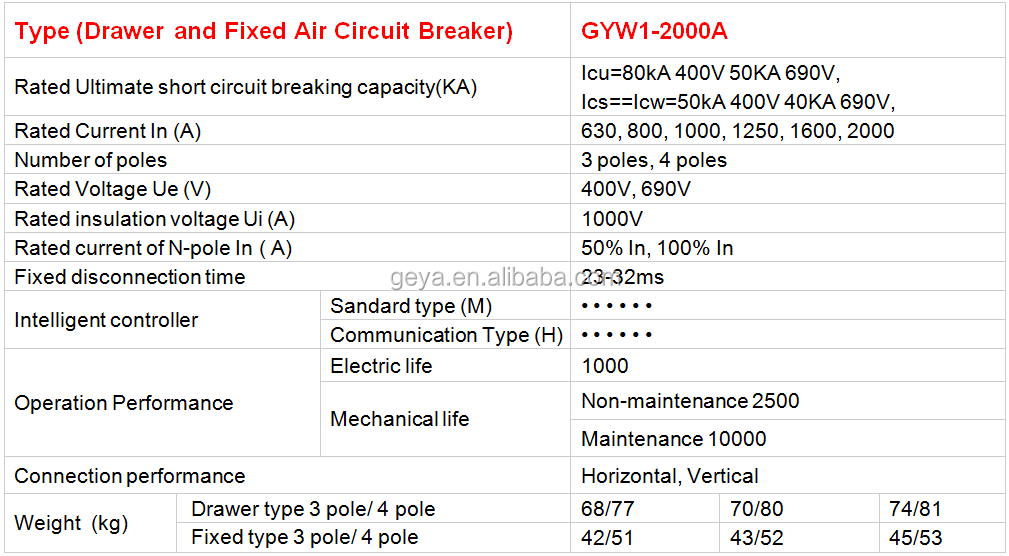

Technical Data

Q1. What advantages do you have?

A1. GEYA are the direct Manufacturer in Wenzhou China from 2007, we have professional

developing, marketing & production team to offer you the most competitive price and best service.

Q2. What’s your main product?

A2. We have two product project, low voltage electrical and automation control items.

Q3. Could you print our own logo?

A3. Yes, Our company are available for Retail & Wholesale & OEM & ODM.

Q4. How long is the quality guarantee?
A4. 18 month warranty, our products are 100% inspection.

Q5. How long is the deliver time?

A5.  It usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order.

Q6. What is your payment terms?
A6. Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight.

Q7. Any certification of your company or product?

A7.We have ISO 9001, CE, CB, SEMKO, SAA, TUV, CCC.
