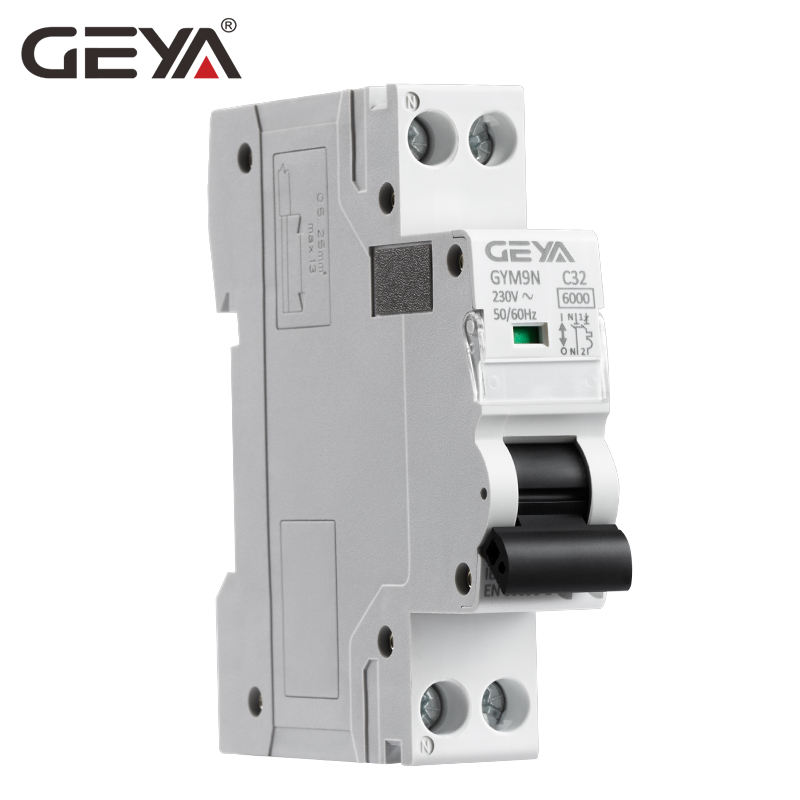

GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker

GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Newest 6ka 10ka Mcb Gym9n 1p+n 6a 10a 16a 20a 25a 32a 40a Ac Mini Circuit Breaker - Buy Mcb 1p+n dpn Mcb mini Circuit Breaker Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
********This link price is for GYM9N 1P+N 32A-40A********

GYM9N miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, rated voltage 230V and rated current from 1A to 40A.

It also can be used for non-frequent on-and-off switch operation under normal circumstance.
In complicance with IEC/EN60898-1.
With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 16mm2, wiring torque 2.5N*m, applicable to a variety of installing equipments.
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
GEYA Newest 6KA 10KA MCB GYM9N 1P+N 6A 10A 16A 20A 25A 32A 40A AC Mini Circuit Breaker
Electrical features
GYM9N Miniature Circuit Breaker
Rated current
6A 10A 16A 20A 25A 32A 40A
Poles
1P+N
Rated voltage Ue
230V~
lnsulation voltage Ui
500v
Rated frequency
50/60Hz
Rated breaking capacity
6000A
Rated impulse withstand voltage(1.2/50)Uimp
4kv
Dielectric test voltage at and ind.freq.for 1min
2kV
Polution degree
2
Thermo-magnetic release characteristic
B C D
Electrical life
4000
Mechanical life
10000
Installation
Contact position indicator
Yes
Protection Class
IP20
Reference temperature for setting of thermal element
30℃
Ambient temperature (with daily average ≤35℃)
-5~+40℃
Storage temperature
-25~+70C
Terminal connection type
Cable/U-type busbar/Pin -type busbar
Terminal size top/bottom for cable
16mm²
18-5
Tightening torque
2.5N+m
18
Mounting
On DIN rail FN 60715(35mm) by means of fast clip device
Connection
Top and bottom
Combination with accessories
Auxillary contact
Yes
Alarm contact
Yes
Shunt release
Yes
Under voltage release
Yes
Specification
Description
PCS/CTN
Carton Size
(CM)
K.W.
(KG)
N.W.
(KG)
1-4A
GYM9N
240
47*23.5*34
26
24
6-25A
240
47*23.5*34
26
24
32-40A
240
47*23.5*34
26
24
