GEYA OEM ODM GYM9 DC MCB 6kA 2P 50/60 Hz 250V 500V 750V 1000V Solar PV System Miniature Circuit Breaker

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Oem Odm Gym9 Dc Mcb 6ka 2p 50/60 Hz 250v 500v 750v 1000v Solar Pv System Miniature Circuit Breaker - Buy Dc Mcb 6ka Mcb miniature Circuit Breaker 63a 6ka 10ka Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··············This link price is only for GYM9-DC-2P 6-25A··············

GYM9-DC circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.

In complicance with IEC/EN606947-2

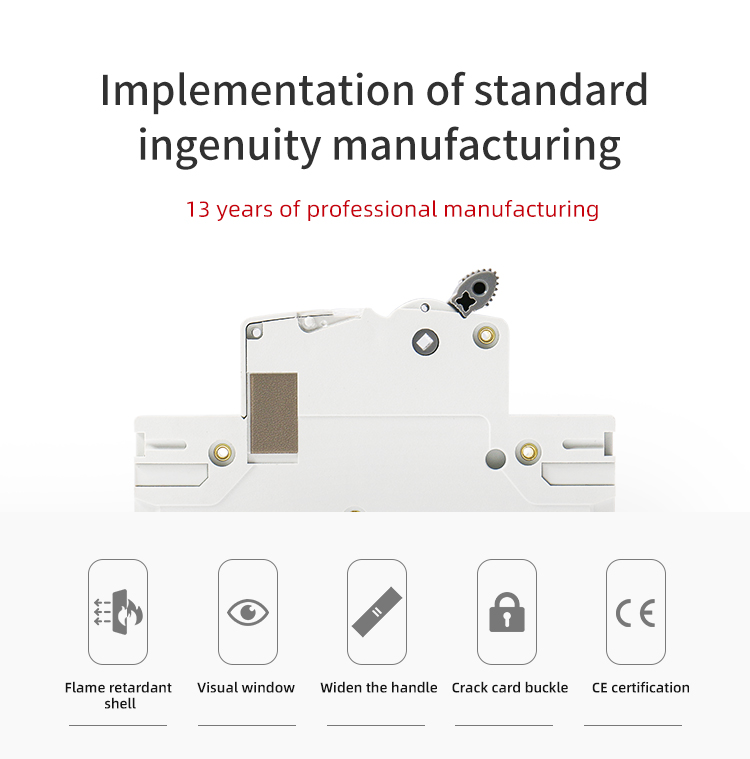

With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger

Technical Data

Electrical features
Rated current In	1-63A
Poles	1P 2P 3P 4P
Rated voltage Ue	1P;250V~ 2P:500V,3P:75OV,4P:100ov
Insulation voltage Ui	100ov
Rated breaking capacity	6000A
Rated impulse withstand voltage(1.2/50)Uimp	6kV
Dielectric test voltage at and ind.freq.for 1min	2kV
Polution degree	2
Thermo-magnetic release characteristic	B:6In±20%;C: 12In±20%
Mechanicallife	10000
Installation
Contact position indicator	Yes
Portection degree	IP20
Reference temperature for setting of thermal element	30℃
Ambient temperature (with daily average ≤35℃)	-5~+40℃
Storage temperature	-25~+70℃
Terminal connertion type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	25mm² 18-3
Tightening torque	3.0N*m 22
Mounting Connection	On DIN rail FN 60715(35mm) by means of fast clip device Top and bottom
