GEYA Online Shopping GRV8-08 3Phase+N Adjustable Voltage Relay Control Relay M265

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{vertical-alig......Keywords:Geya Online Shopping Grv8-08 3phase+n Adjustable Voltage Relay Control Relay M265 - Buy Adjustable Low Voltage Relay protection Relay Test Set control Relay Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

··········This link price is only for GRV8-08-M460···········

****This link price is for GRV8-08- M460 AC Monitoring Voltage Relay

GEYA voltage monitoring relay control for connection of moving equipment(site equipment, agricultural equipment, refrigerated trucks). Control for protection of persons and equipment against the consequences of reverse running.

Normal/Emergency power supply switching. Protection against the risk of a driving load(phase failure).

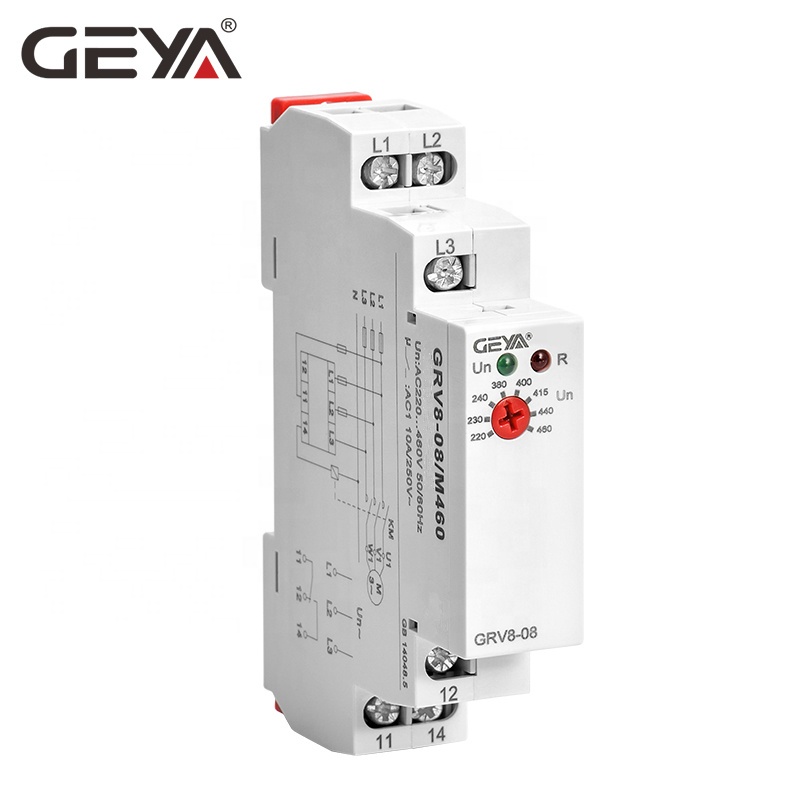

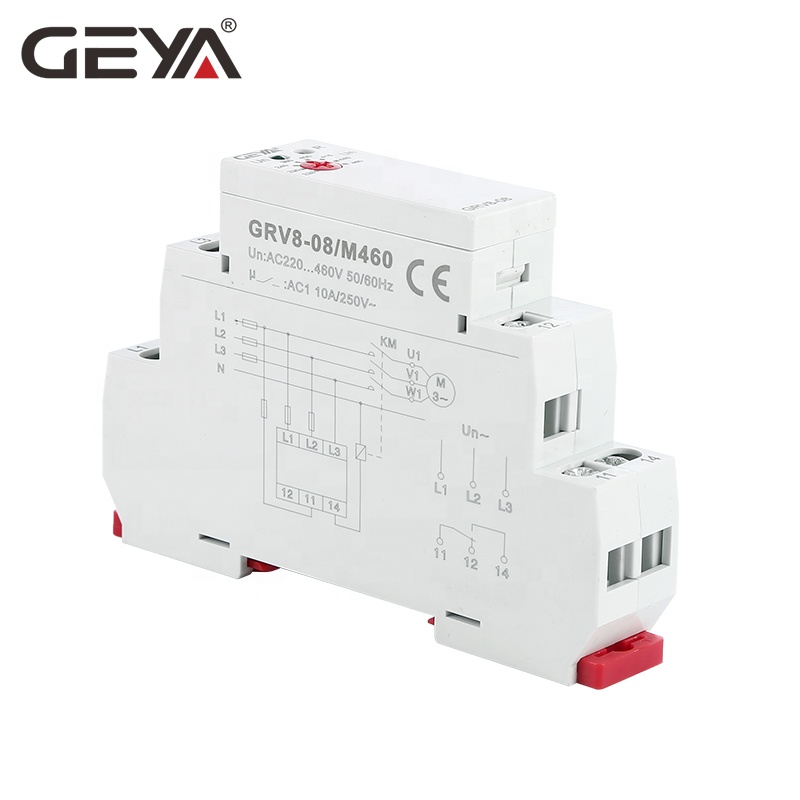

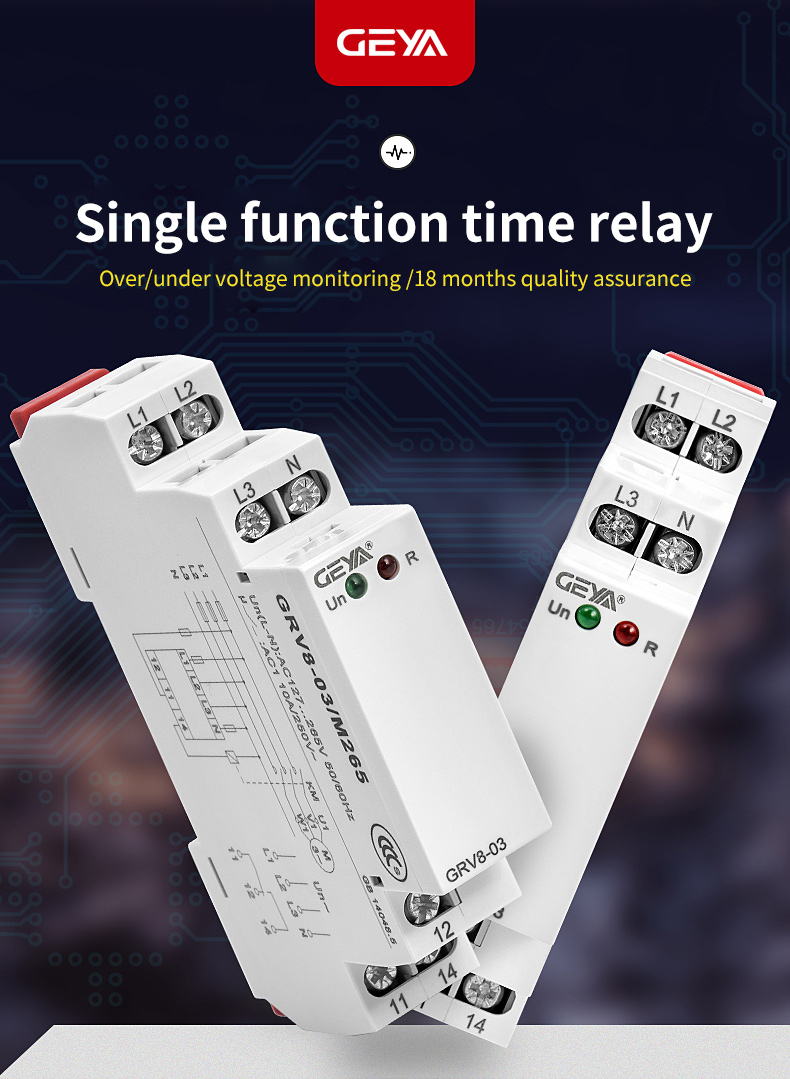

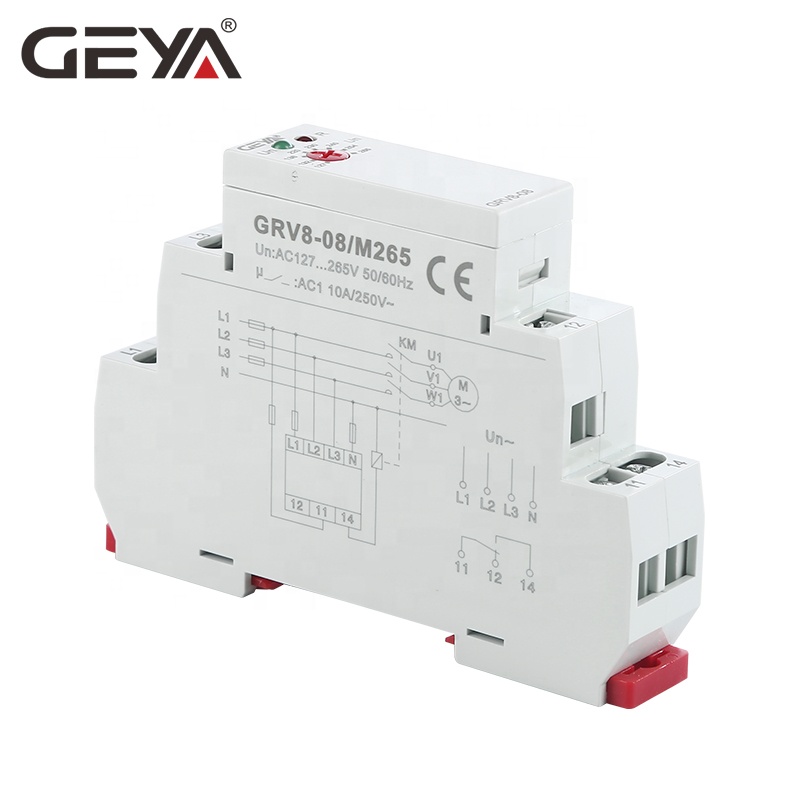

- GRV8-08 Voltage Monitoring Relay

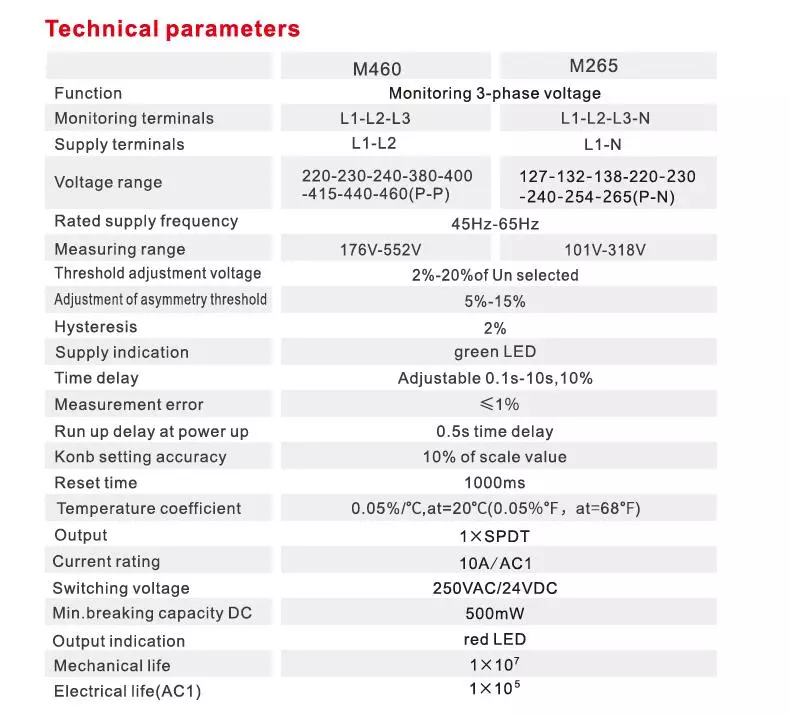

-Voltage Range: M265 M460
-Controls its own supply voltage(True RMS measurement)

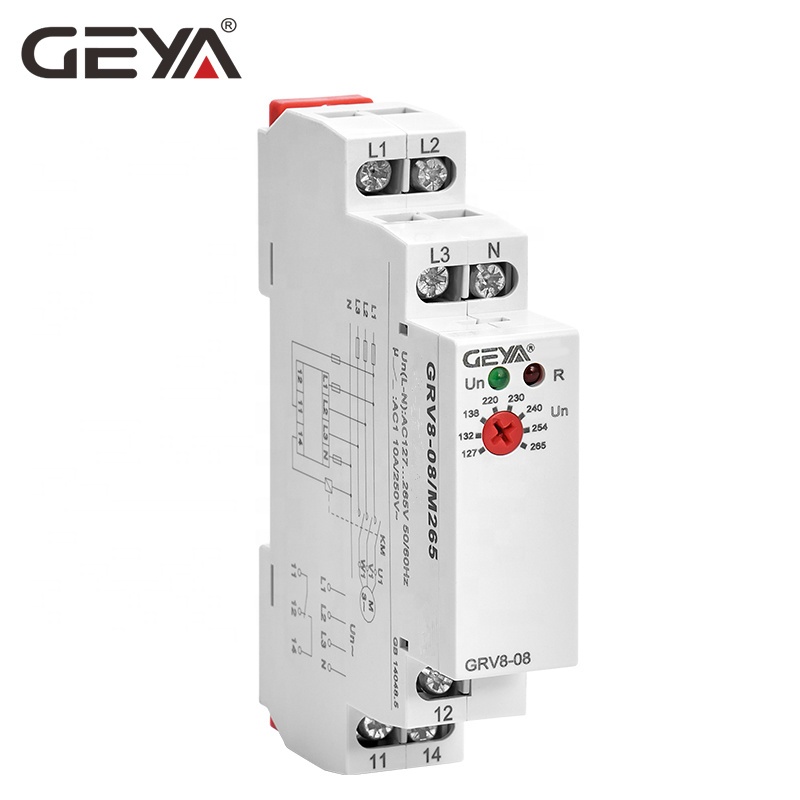

-Set 8-level rated operating voltage through knob.
-Measuring frequency range : 45Hz-65Hz.
-Voltage measurement accuracy<1%
-Relay status is indicated by LED

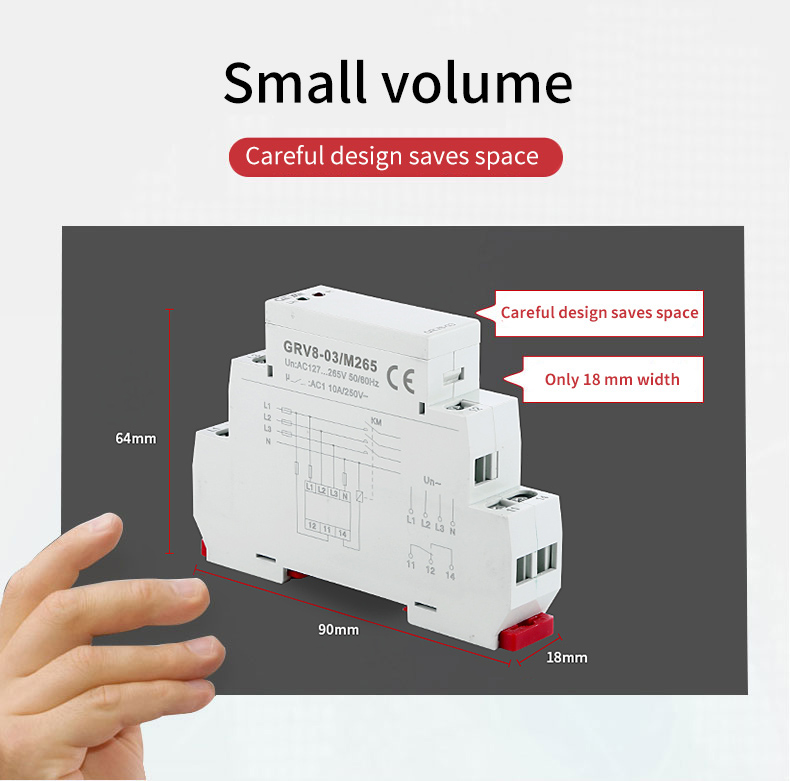

-1-MODULE,DIN rail mounting.

GRV8-08	Voltage Relay Selection
*Please leave a message which specification needed?*

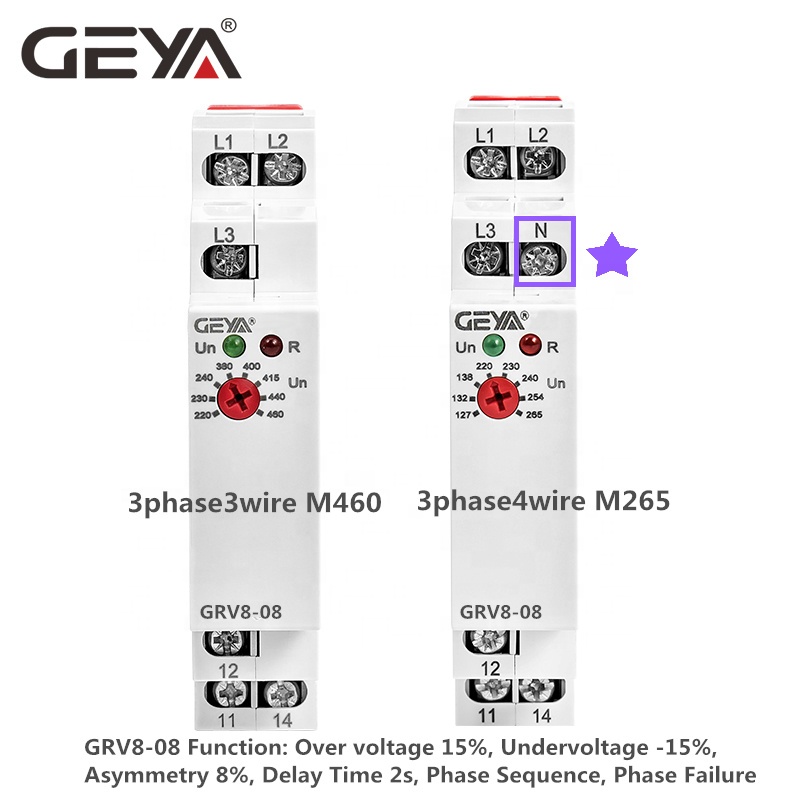

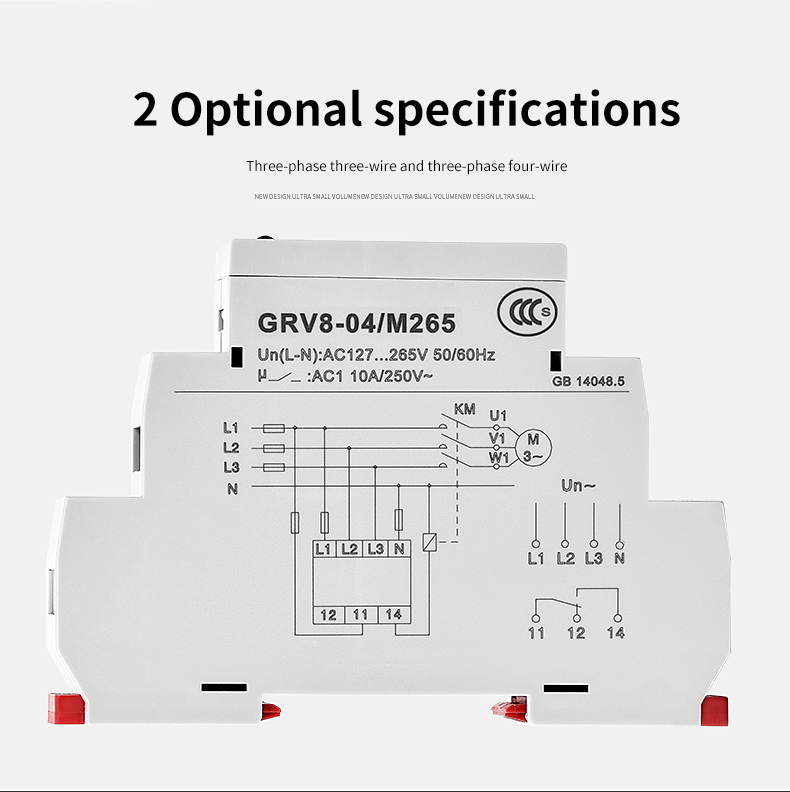

M460	220-230-240-380-400-415-440-460VAC(P-P)
M265	127-132-138-220-230-240-254-265VAC(P-N)

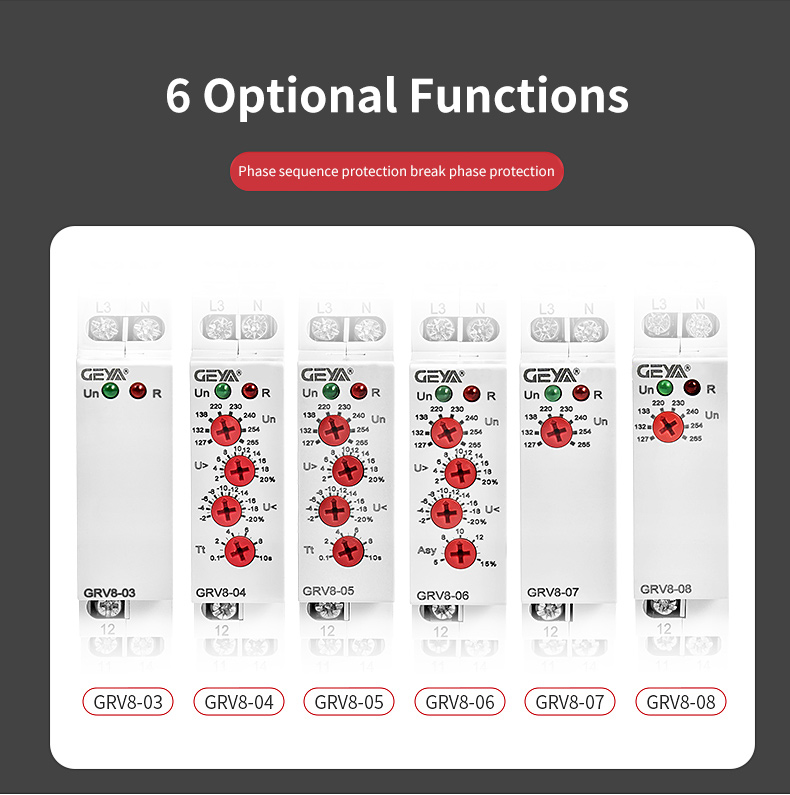

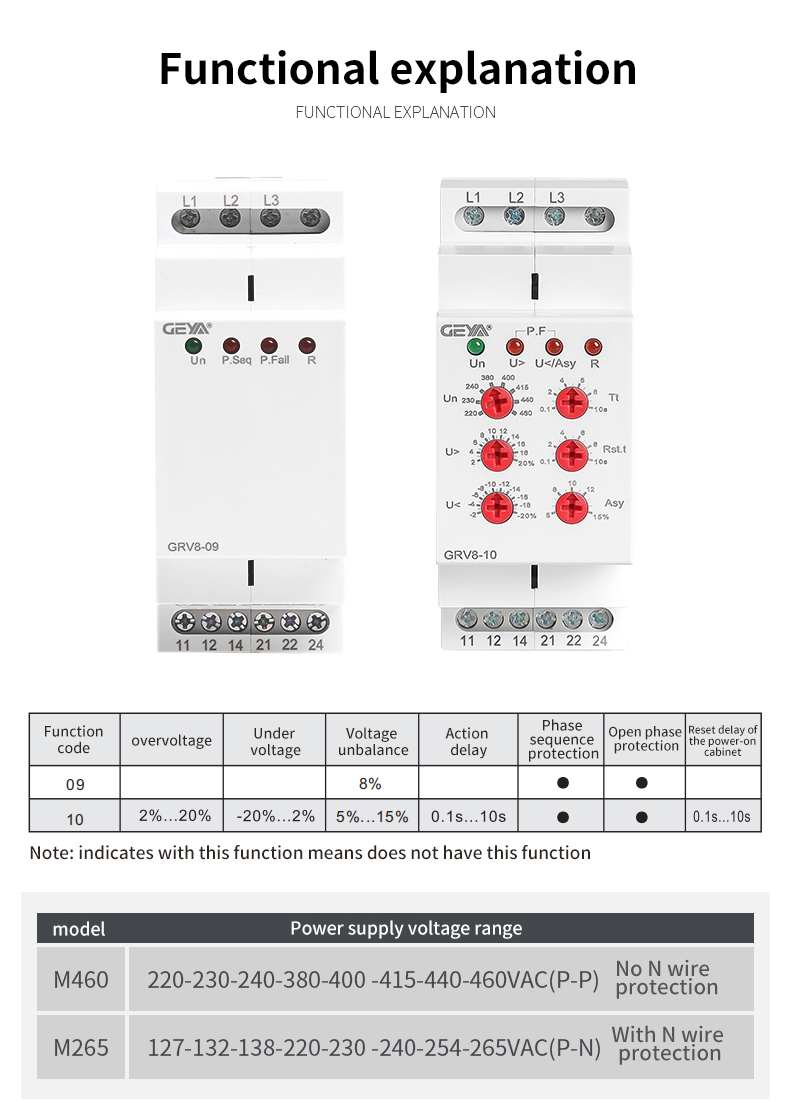

HOW TO CHOOSE THE MODEL

Function code

Over voltage

Under voltage

Asymmetry

Delay time

Phase sequence

Phase failure

●

2%~20%

-20%~2%

0.1s~10s

●

2%~20%

-20%~2%

0.1s~10s

●

2%~20%

-20%~2%

5%~15%

●

15%

-15%

●

Note: ● means the function is available

If you want to know more technical information or price, please kindly contact us freely!

Item	Specification	N.W. of product (g)	G.W. of product (g)	Medium box weight (g)	G.W. of 60pcs/CTN (kg)	G.W. of 100pcs/CTN(kg)±50g	G.W. of 200pcs/CTN(kg)
GRV8-03	M265	61.9	74.7	813	5.23	8.60	16.90
GRV8-04			62.7	76.2	828	5.32	8.75	17.20
GRV8-05			63.7	76.8	834	5.35	8.81	17.32
GRV8-06			63.7	76.8	834	5.35	8.81	17.32
GRV8-07&08			61.6	75.2	818	5.26	8.65	17.00
GRV8-03	M460	62.7	75.4	820	5.27	8.67	17.04
GRV8-04			66.6	79.4	860	5.51	9.07	17.84
GRV8-05			66.6	79.4	860	5.51	9.07	17.84
GRV8-06			66.7	79.4	860	5.51	9.07	17.84
GRV8-07&08			63.5	76.9	835	5.36	8.82	17.34
