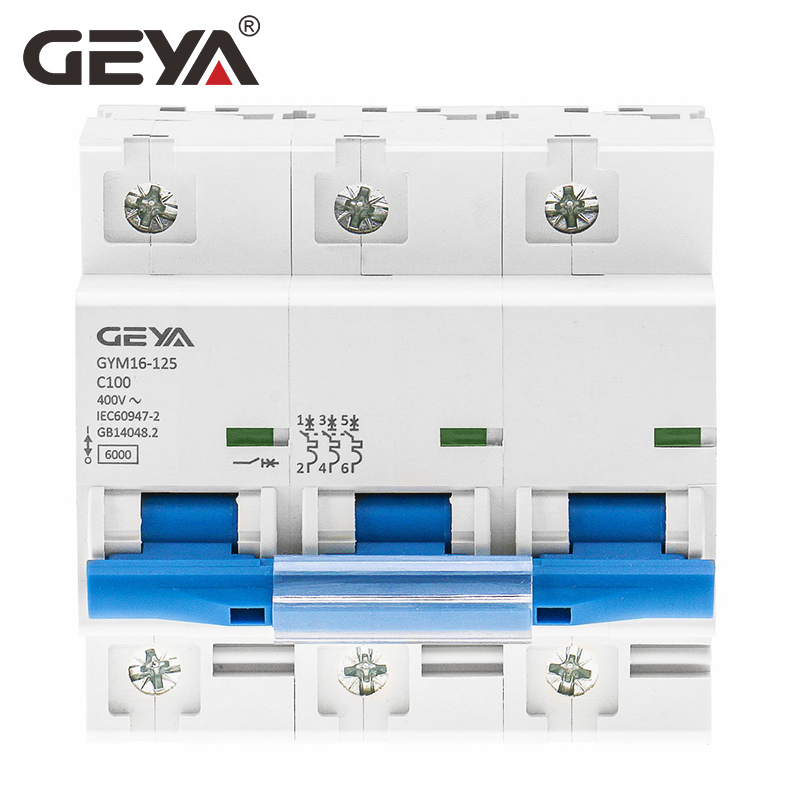

GEYA Original GYM16 80A 100A 125A 3P AC DC MCB NC100H Miniature Circuit Breaker

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;overflow:hidden}#detail_decorate_root .m......Keywords:Geya Original Gym16 80a 100a 125a 3p Ac Dc Mcb Nc100h Miniature Circuit Breaker - Buy Mini Circuit Breaker mcb 3 Pole Mini Circuit Breaker Mcb Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

00:00

GYM16 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 240V/415V and rated current from 1A to 125A.

It also can be used for non-frequent on-and-off switch operation under normal circumstance.

1. In complicance with IEC/EN60947.2
2 Maximum connecting ability of 50mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger

Technical Data

Rated current In	63 -125A
Poles	1P 2P 3P 4P
Rated voltage Ue	1P: 240/415V~ 2/3/4P:415V~
Insulation voltage Ui	500V
Rated frequency	50/60Hz
Rated breaking capacity	Icu=Ics=6000A 6kV
Rated impulse withstand voltage(1.2/50) Uimp	2kV
Dielectric test voltage at and ind. freq.for 1min Polution degree	2
Thermo-magnetic release characteristic Electrical life	(8-12)In 4000
Mechanical life	10000
Installation
Contact position indicator	Yes
Portection degree	IP20
Reference temperature for setting of thermal element	40℃
Ambient temperature (with daily average ≤35℃)	-5~+40℃
Storage temperature	-25~+70℃
Terminal connertion type	Cable/U-type busbar/Pin -type busbar
Terminal size top/bottom for cable	50mm / 18-1/0
Tightening torque	3.5N*m 31
Mounting	On DIN rail FN 60715 (35mm) by means of fast clip device
Connection	Top and bottom
