Product Description

············This link price is only for PG 230500···········

PG circuit breaker 2P, 10-15-20-25-30A, 500mA electromagnetic leakage protection, silver contact, flame-retardant shell base

PG
Model:	PG 215500	PG 230500	PG245500	PG260500
Without Ly	No residual current tripping
With l:	Residual current tripping
2 meansy	Poles(2=1+N)
15 meansy	Maximum rated current(15A)
500 meansy	Differential Sensitivity(500mA)

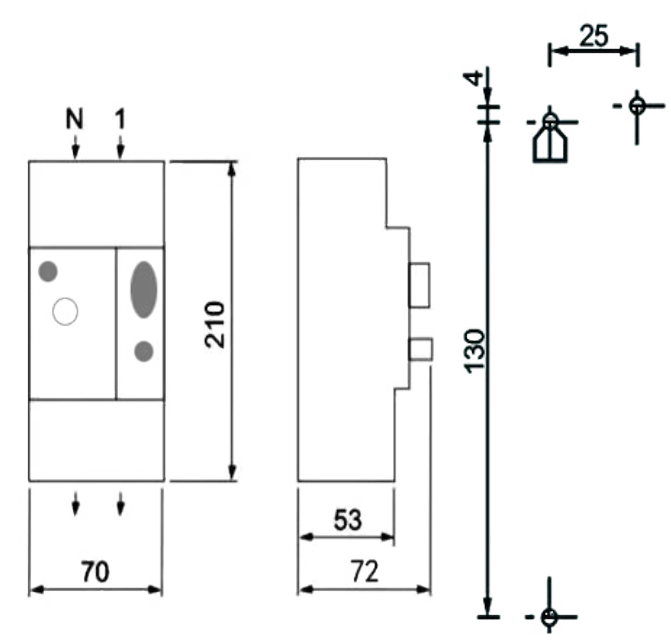

Installation diagram(with dimensions) main
Range	Multi 9
Type of product or equipment	Circuit breaker
Position of the switchgear in the installation	Arrivals group
Description of the poles	1P+N
[In]rated operational current	5A 10A 15A	10A 15A 20A 25A 30A	15A 30A 45A	30A 40A 50A 60A
Differential Sensitivity	300mA 500mA
Timeout	Selective
Position of the neutral pole	Left
Standards	IEC 60947-2
Network frequency	50/60Hz
[Ue]rated operational voltage	250VAC 50/60Hz conforming to IEC60947-2
Residual current tripping technology	voltage dependent
[lcs]rated service breaking capacity	2 kA at 250VAC 50/60 Hz conforming to IEC60947-2
Order type	By crankpin
mounting bracket	mounting plate
Height	210mm
Lenght	70mm
Depth	70mm
Product weight	0.7Kg
Connection mode	Cage typeterminal, cable section:35mm²
Differential protection	Integrated
Environment
Operating altitude	2000m
Ambient air temperature during operation	-10℃…+65℃

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
