In compliance with | EN 60204-1; EN ISO 13849-1;IEC 62061; IEC 61508 Parts 1-2and 4-7 |
Operating voltage | DC 24V+/-10% |
Power consumption | 2.6 W |
Inrush current | 5 A (approx.250 μs) |

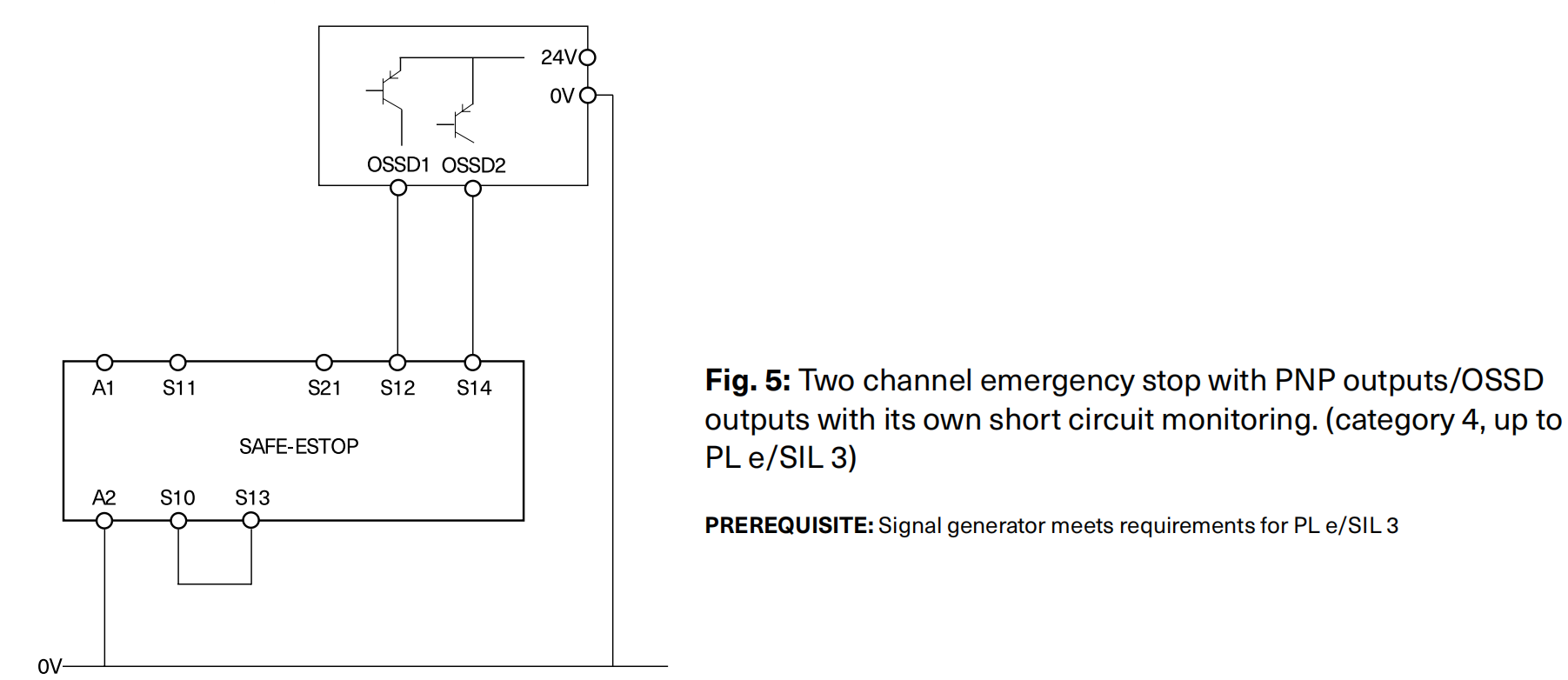

Pulse suppression(A1/S12/S14) Switch-off pulse/dark test Switch-on pulse/light test | max. 3 ms (pulse width)/500 ms (pulse rate) max.1 ms (pulse width)/500 ms(pulse rate) Note: It must be ensured that any switch-on pulses (light test) sent by thesignal generator do not lead to a short activation of the safety relay andshould therefore basically be deactivated. |

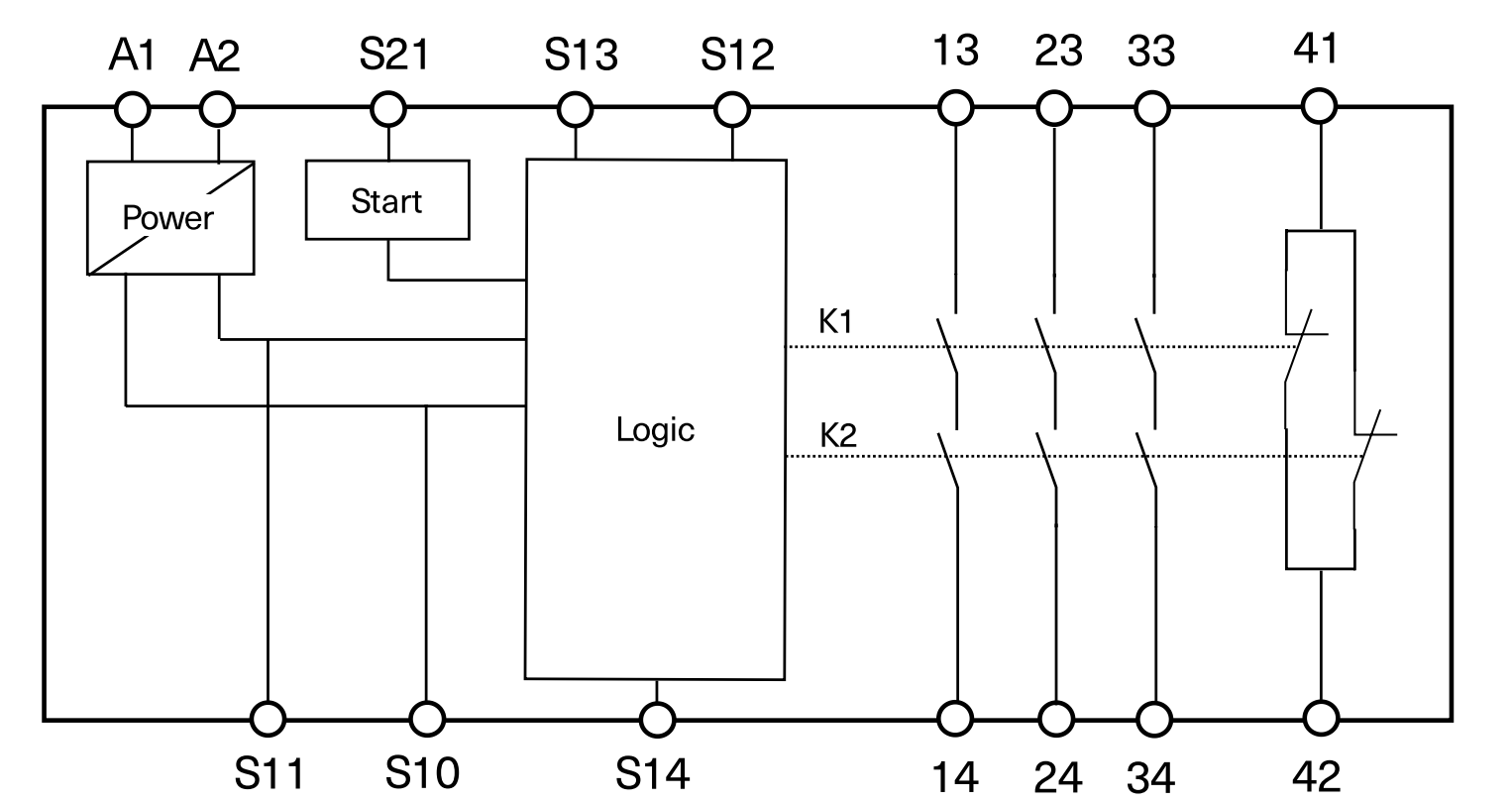

Safe contact configuration | 3 non-delayed safety contacts(NO) |
Auxiliary contacts | 1 non-delayed auxiliary contact (NC) |
Max.switching voltage | AC 250 V |
Contact rating of safety contacts(13-14,23-24,33-34) 6 switching cycles/min | AC:250 V,2000 VA,8A for resistive load 250 V,3 A for AC-15 |
DC:30 V,240 W,8 A for resistive load 24V.3Afor DC-13 | |
Thermal current Ith | Max.5 A per contact (see total current limit curve) |
Contact rating of auxiliary contact | AC: 250 V,500 VA,2Afor resistive load DC: 30V,60 W,2A for resistive load |
Minimum contact load | 5 V,10 mA |
External fuses | 10A gG (NO);6A gG(NC) |
Max.switch-on delay | <50 ms |
Max.switch-off delay | Via A1:<40 ms;Via S12 or S13/S14<20 ms |
Recovery time | < 500 ms |
Wire width | 0.14-2.5 mm² |
Tightening moment(Min./Max.) | 0.5 Nm/0.6 Nm |
Contact material | AgSnO2 |
Service Life | mech.approx.1x107 |
Rated impulse withstand voltage | 2.5 k (control voltage/contacts) |
Dielectric strength | 4kV (DIN VDE 0110-1) |
Rated insulation voltage | 250 V |
Degree of pollution/Overvoltage category | 2/3(DIN VDE 0110-O) |
Protection | IP20 |
Temperature range Ambient | 15℃ to+55℃ |
Temperature range Storage | 15℃ to+85摄氏度 |
Max.altitude | ≤ 2000 m (above sea level) |
Weight approx. | 150 g |
Mounting DIN rail according to EN 60715 | TH35 |

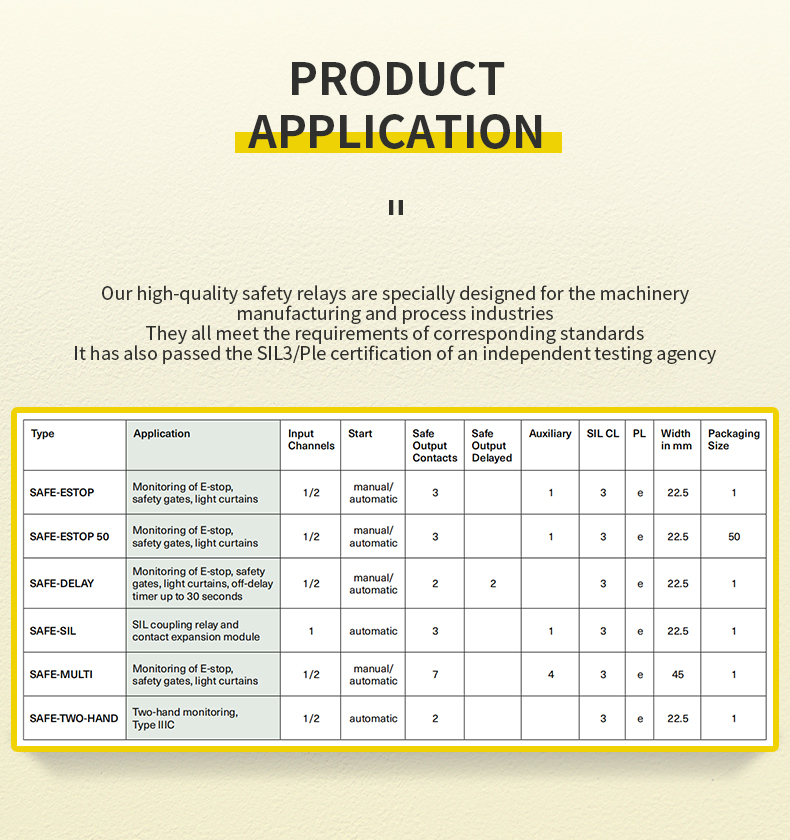

Product Name | PCS/CTN | N.W of product (g) | G.W of product (g) | Carton Size (CM) | N.W. (KG) | G.W. (KG) |

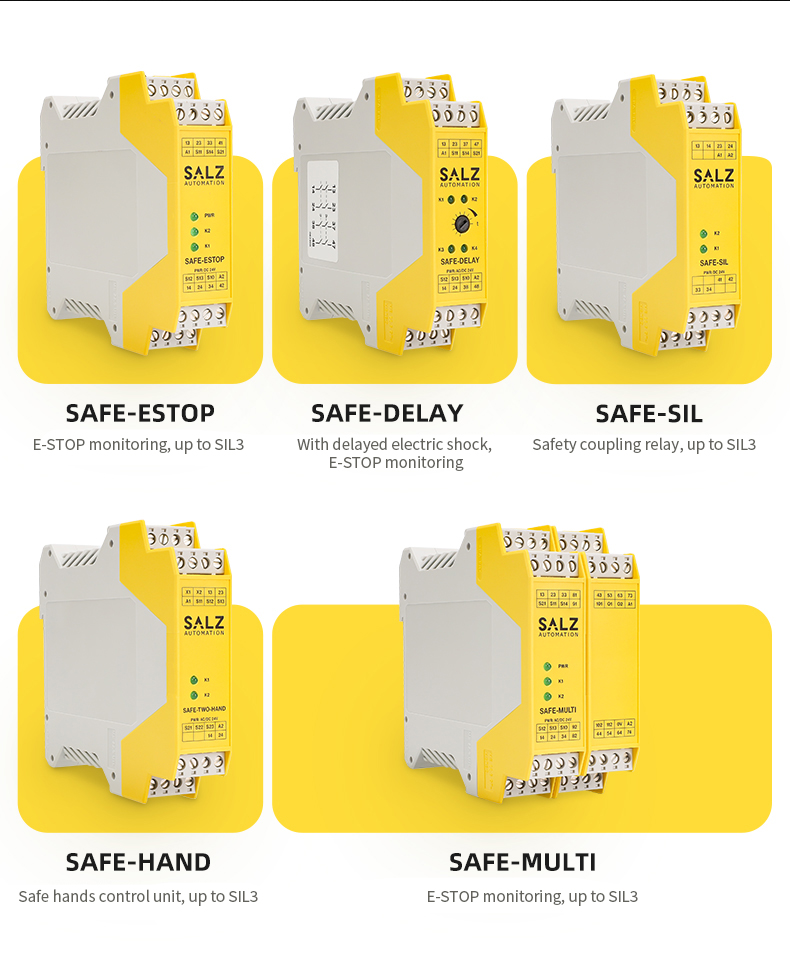

SAFE-ESTOP | 50 | 160 | 185 | 41*35*20 | 10 | 9 |
SAFE-ESTOP 50 (50 pcs/box) | 50 | 160 | 160 | 41*35*20 | 10 | 9 |
SAFE-DELAY | 50 | 225 | 250 | 41*35*20 | 13 | 12 |
SAFE-TWO-HAND | 50 | 155 | 180 | 41*35*20 | 10 | 9 |
SAFE-SIL | 50 | 175 | 200 | 41*35*20 | 11 | 10 |
SAFE-SIL (50 pcs/box) | 50 | 175 | 175 | 41*35*20 | 11 | 10 |
SAFE-MULTI | 25 | 315 | 400 | 41*35*20 | 11 | 10 |
