Product Description

··········This link price is only for SAFE-SIL···········
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay

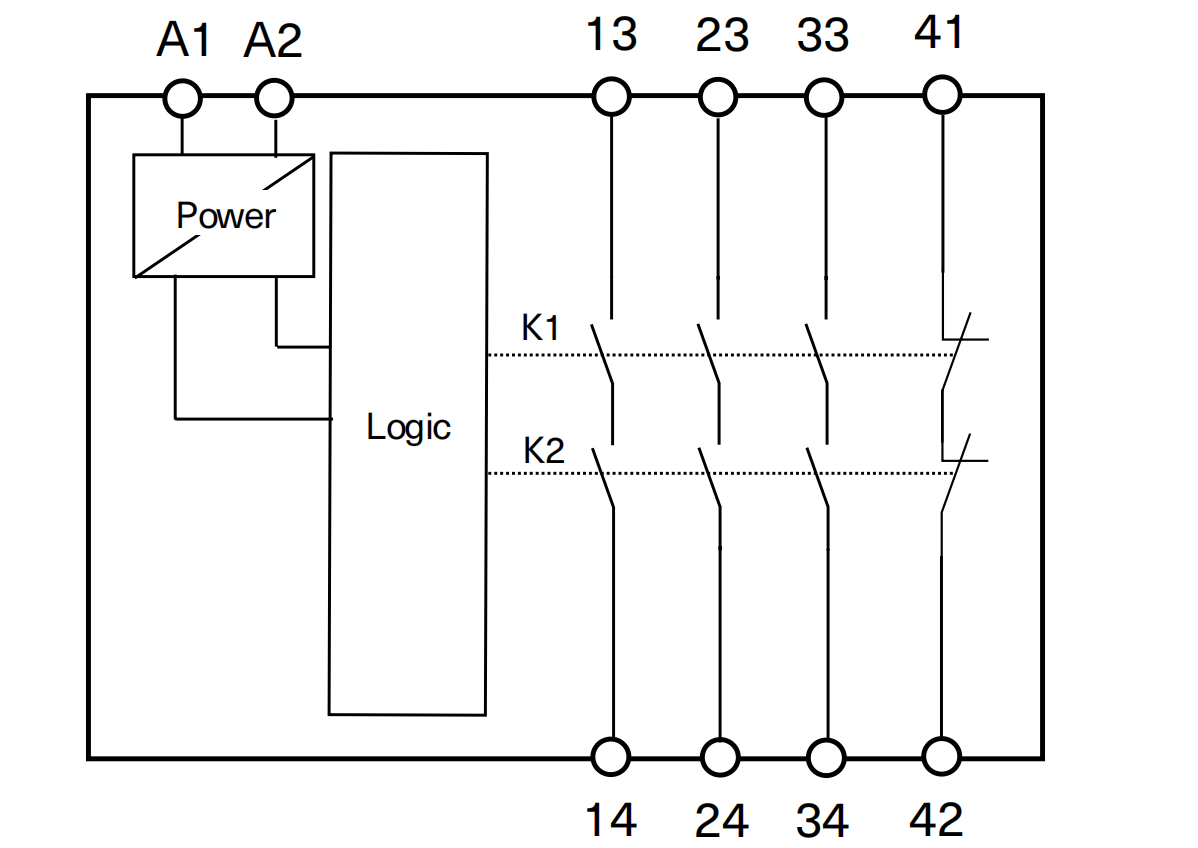

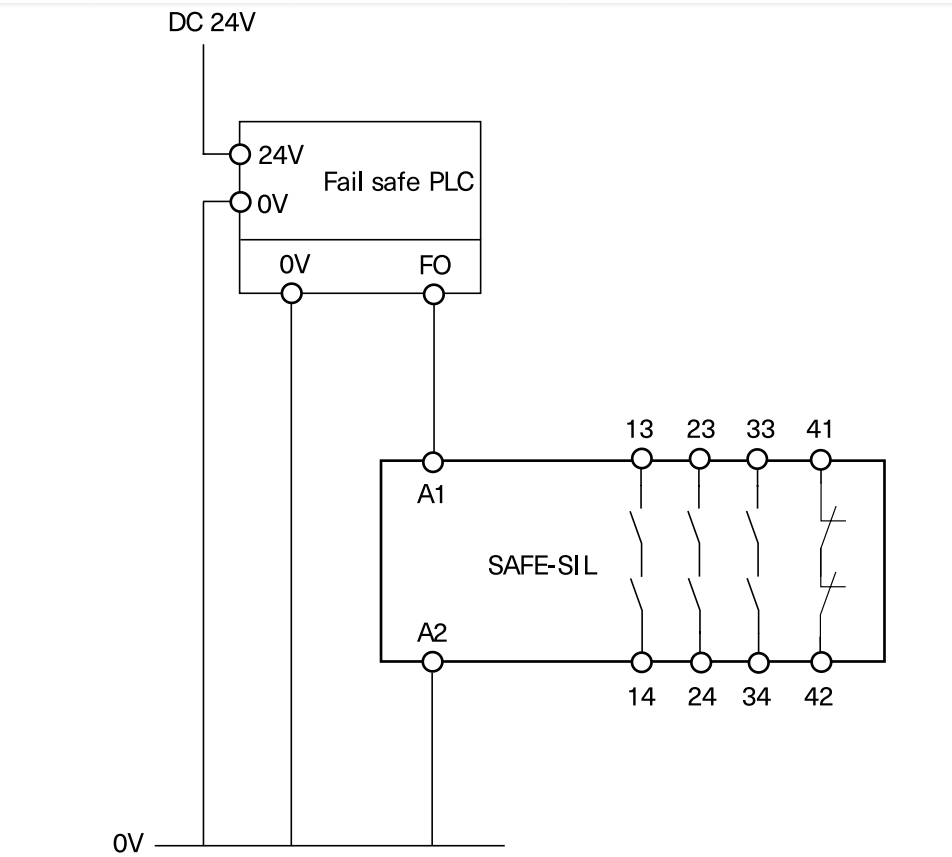

SAFE-SIL is an all-purpose safe coupling device with three safe relay contacts for safe switching, certified by TUV Rheinland. The SAFE-SIL couples safe signals of pulsed PLC outputs to the field for galvanic isolation and power adjustment or it can be used as a contact extension for a basic device. No feedback circuit is necessary. It is designed according to EN ISO 13849-1, EN 62061, and EN 61508.
Features: 1. 3 non-delayed safety contacts 2. 1 non-delayed auxiliary contact 3. Coupling of safe signals for galvanic isolation and power adjustment 4. LED indicator for status 5. Self-monitoring 6. Automatic start 7. Up to PLe,SILCL 3,category 4 (EN ISO13849-1,EN 62061,EN 61508)
(EN ISO 13849-1, EN 62061)
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
GEYA SAFE-SIL Quality and Safety DC 24 V +/- 10 % Factory Direct With Best Price Supply Industrial Automation Stop Module Relay
In compliance with
EN 60204-1;DIN EN ISO 13849-1;EN 62061;EN50156-1 EN 746-2;IEC61508 Parts 1-2 and 4-7;IEC61511-1
Operating voltage
DC 24V+/-10 %
Power consumption
Typ.2W
Safety contacts
3 N/O
Auxiliary contacts
1N/C
Max. switching voltage
AC 250V
Contact rating of safety contacts(13-14,23-24,33-34)6 switching cycles/ min
AC:250 V,2000 VA,8 A for resistive load 250 V,5A for AC-15
DC:30 V,240 W,8 A for resistive load 24V,4A for DC-13
Max. total current through all 3 contacts
15A (13-14,23-24,33-34)
Contact rating of auxiliary contact
AC: 250 V,500 VA,2A for resistive load
DC: 30 V,60 W,2A for resistive load
Minimum contact load
5V,10 mA
External fuses
10 A gG (NO)
Contact rating of auxiliary contact
AC: 250 V,500 VA,2A for resistive loadDC: 30 V,60 W,2A for resistive load
Minimum contact load
5V,10 mA
External fuses
10 A gG(NO);6A gG(NC)6A gG for applications acc. to EN50156-1and EN746-2(See EN50156-1; Chapter 10.5.5.3.4)
Max.switch-on delay
<30 ms
Max. switch-off delay
< 60 ms
Recovery time
<500 ms
Max. Iine resistance at nominal voltage
50 Ω
Wire width
0.14-2.5 mm2
Tightening moment (Min./ Max.)
0.5 Nm/0.6 Nm
Contact material
AgSnO2
Service Life
mech.approx.1x 107
Rated impulse withstand voltage
2.5 kV (control voltage/contacts)
Dielectric strength(EN 60664-1)
6 kV between relays safety loops, control lines and internal logic
Rated insulation voltage
250 V
Degree of pollution/Overvoltage category
2/3(EN60664-1)
Protection
IP20
Temperature range Ambient
-15℃ to +55 ℃
Temperature range Storage
-15℃to +85 ℃
Max. altitude
≤ 2000 m (above sea level)
Weight approx.
150g
Mounting DIN rail according to EN 60715
TH35
Product Name
PCS/CTN
N.W of product (g)
G.W of product (g)
Carton Size
(CM)
N.W.
(KG)
G.W.
(KG)
SAFE-ESTOP
50
160
185
41*35*20
10
9
SAFE-ESTOP 50 (50 pcs/box)
50
160
160
41*35*20
10
9
SAFE-DELAY
50
225
250
41*35*20
13
12
SAFE-TWO-HAND
50
155
180
41*35*20
10
9
SAFE-SIL
50
175
200
41*35*20
11
10
SAFE-SIL (50 pcs/box)
50
175
175
41*35*20
11
10
SAFE-MULTI
25
315
400
41*35*20
11
10
