Product Description

··········This link price is only for SAFE-TWO-HAND············
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
The SAFE-TWO-HAND safety relay is an extremely compact, universal safety two-hand control unit. It complies with EN ISO 13851, Type IIIC, and is intended for use in safety circuits that are designed in accordance with EN 60204-1, e.g., on presses, punches, and bending tools. Due to the internal error monitoring, the two-hand safety relay can be used for all applications up to the highest safety category 4 and PL e according to EN ISO 13849-1, SILCL 3 according to EN 62061, or Type III C according to EN ISO 13851.

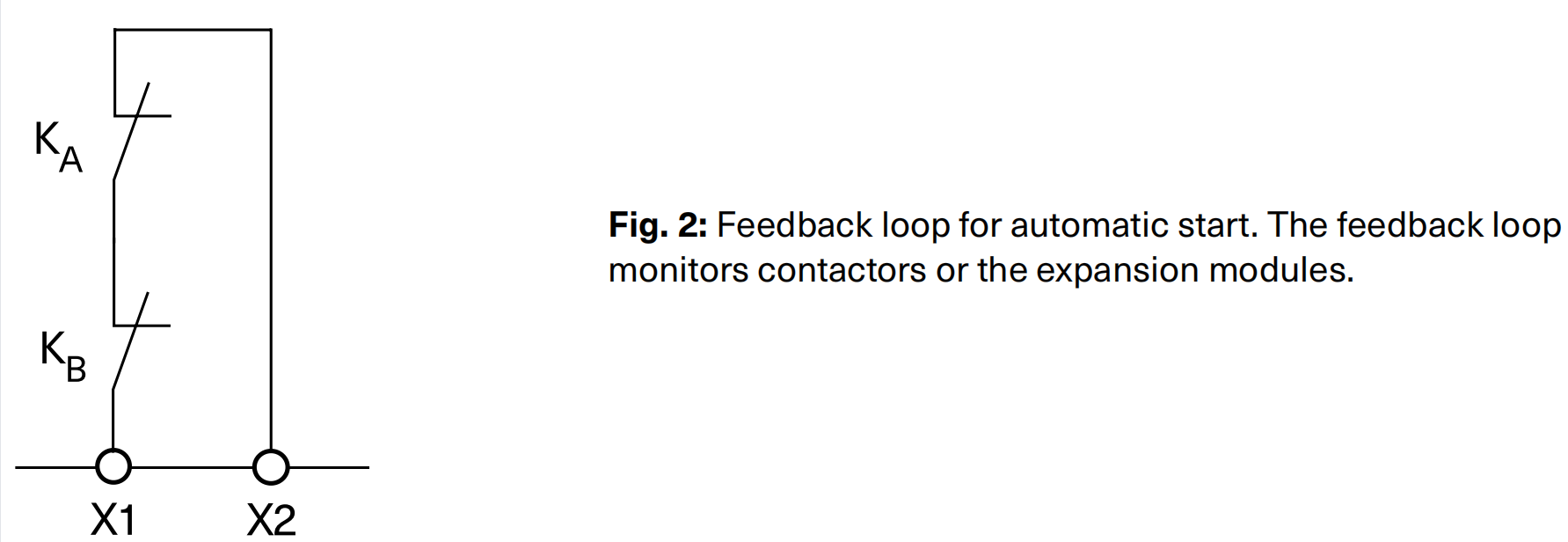

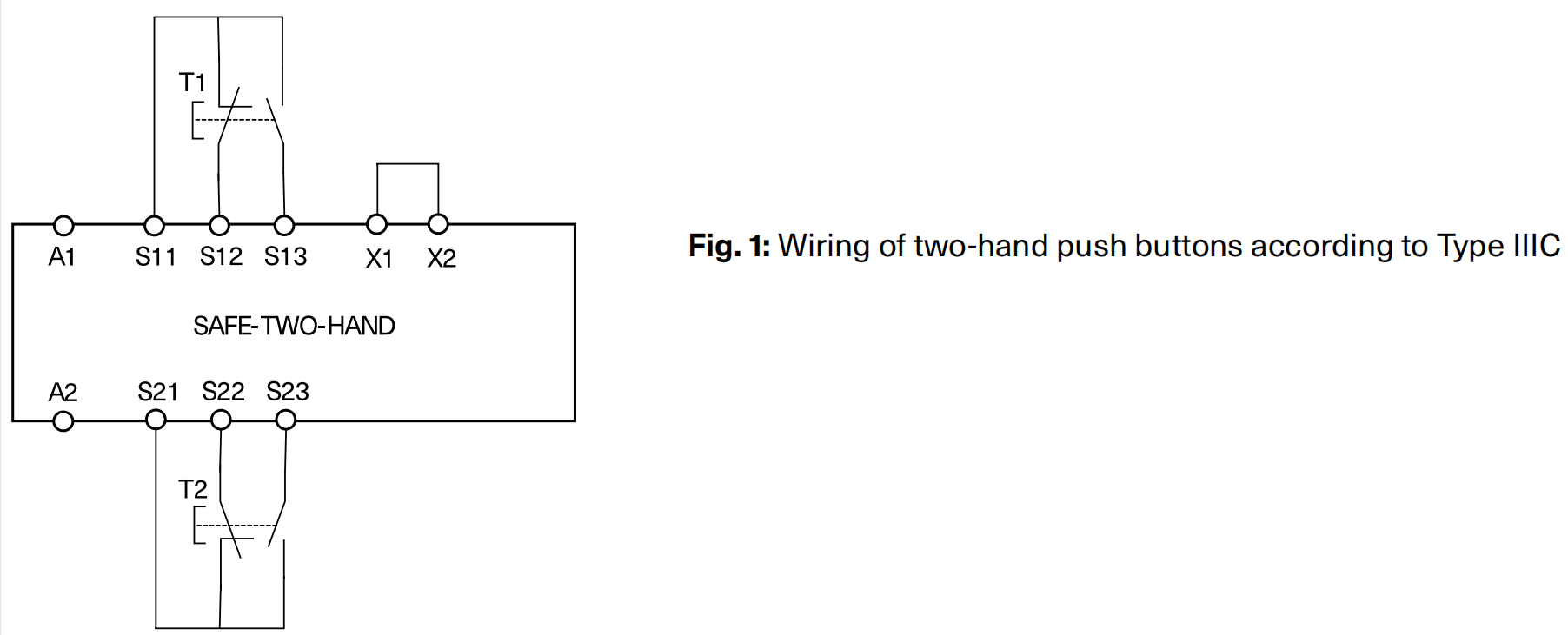

Features: 1. 2 non-delayed safety contacts 2. Cyclical monitoring of the output contacts 3. Connection of two-hand push buttons 4. Feedback loop for external contactors or extension modules 5.LED indicator for status 6. Short-circuit monitoring and ground fault monitoring 7. Up to PL e, SILCL 3, category 4, Type IIIC (EN ISO 13849-1, EN 62061, EN ISO 13851)
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
GEYA SAFE-TWO-HAND Wholesale AC/DC 24 V +/- 10% Safety Solid State Relay Brand New Original Security Module Output Contacts
In compliance with
EN ISO 13851,EN 60204-1,EN ISO 13849-1,EN 62061
Operating voltage
AC/DC 24V+/-10 %
Power consumption
AC 3.5VA/DC 1.5 W
Rated supply frequency
50-60Hz
Control voltage at S11 and S22
DC 24V
Control current
typical 2x40 mA
Safety contacts non-delayed
2 NO
Max. switching voltage
AC 250V
Contact rating of safety contacts 6 switching cycles/min
AC: 250 V,1500 VA,6 A for resistive load
250V,3 A for AC-15
DC:24 V,144 W,6Afor resistive load
24V,3A for DC-13
Max. total current through all contacts
12A
Minimum contact load
5V,10 mA
External fuses
10 A gG
Release time for the safety relays after release of a button
<20 ms
Response delay after actuation of the buttons
<20 ms
Synchronization time
0.5 s
Max. length of control line
1000 m at 0.75 mm2
Wire width
0.14-2.5 mm²
Tightening moment (Min./Max.)
0.5 Nm/0.6 Nm
Contact material
AgSnO2
Service Life
mech.approx.1x107
Test voltage
2.5 kV (control voltage/contacts)
Rated impulse withstand voltage,leakage path/air gap
4kV(DIN VDE 0110-1)
Rated insulation voltage
250 V
Degree of pollution/Overvoltage category
2/3 (DIN vDE 0110-O)
Protection
IP20
Temperature range Ambient
-15 ℃ to +60℃ (max.+40 ℃ for AC use)
Temperature range Storage
-15℃ to +85 ℃
Max. altitude
≤ 2000 m ((above sea level)
Weight approx.
190 g
Mounting DIN rail according to EN 60715
TH35
Product Name
PCS/CTN
N.W of product (g)
G.W of product (g)
Carton Size
(CM)
N.W.
(KG)
G.W.
(KG)
SAFE-ESTOP
50
160
185
41*35*20
10
9
SAFE-ESTOP 50 (50 pcs/box)
50
160
160
41*35*20
10
9
SAFE-DELAY
50
225
250
41*35*20
13
12
SAFE-TWO-HAND
50
155
180
41*35*20
10
9
SAFE-SIL
50
175
200
41*35*20
11
10
SAFE-SIL (50 pcs/box)
50
175
175
41*35*20
11
10
SAFE-MULTI
25
315
400
41*35*20
11
10
