Product Description

···········This link price is only for GYM9 DC 4P 32A············

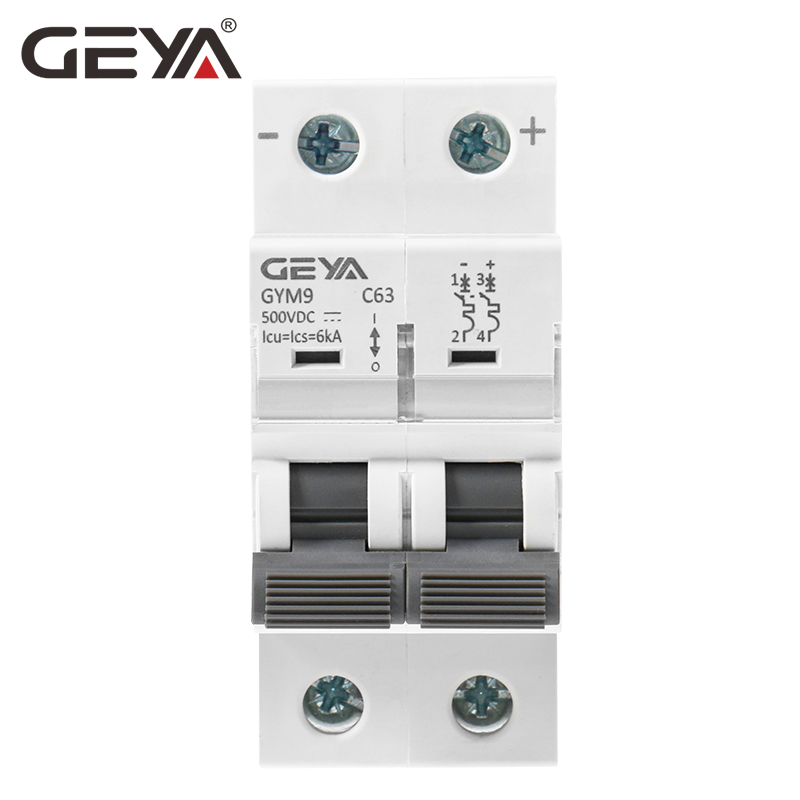

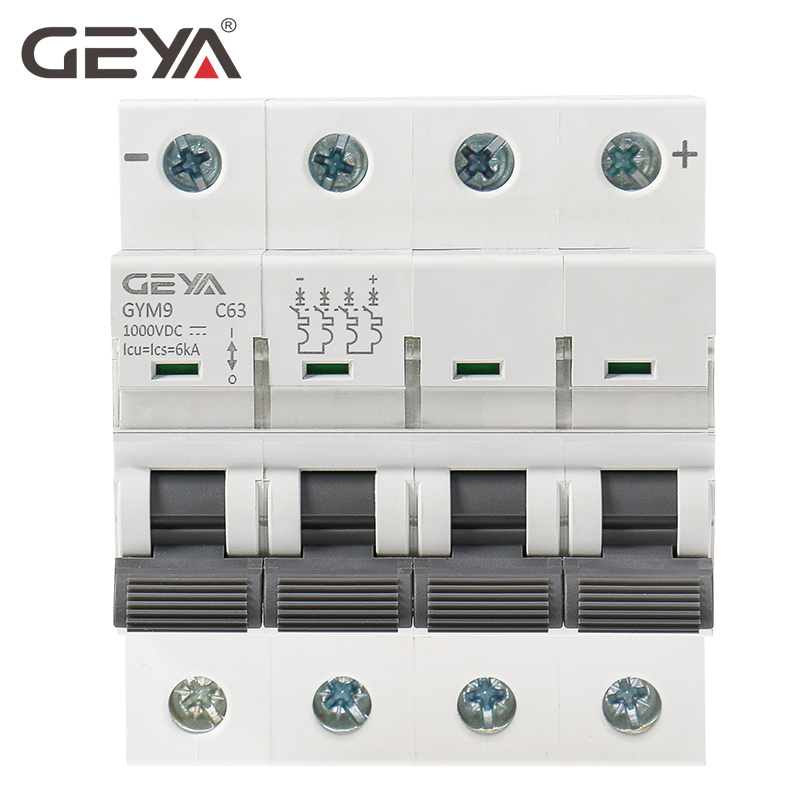

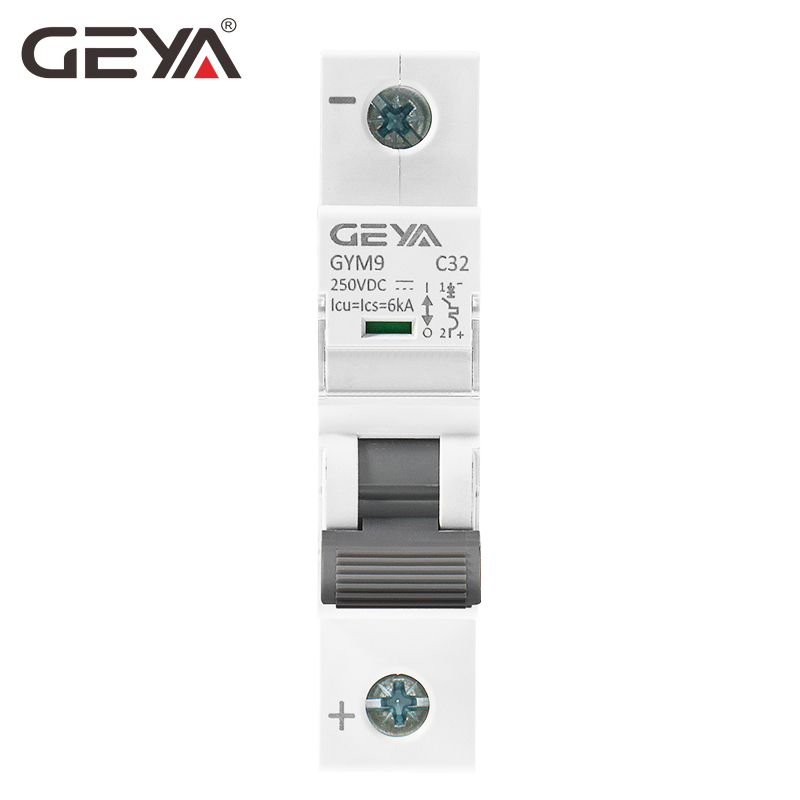

GYM9-DC circuit breaker is used for DC rated voltage to 1000V, rated current to 63A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.

In complicance with IEC/EN606947-2
With indicator function in the contact position.
Transparent cover designed to carry label.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.
Maximum connecting ability of 25mm , wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger

Electrical features
Rated current	1-63A
Poles	1P 2P 3P 4P
Rated voltage Ue	IP: 250V- 2P:500V,3P:750V,4P:1000V
Insulation voltage Ui	1000V
Rated breaking capacity	6000A
Rated impulse withstand voltage(1.2/50) Uimp	6kV
Dielectric test voltage at and ind. freq.for lmin	2kV
Polution degree	2
Thermo-magnetic release characteristic	B :6In±20% ; C : 12In±20%
Mechanical life	10000
Installation
Contact position indicator	Yes
Protection Class	IP20
Reference temperature for setting of thermal element	30°C
Ambient temperature (with daily average <35°C)	-5~+40°C
Storage temperature	-25~ + 70°C
Terminal connection type	Cable/U-type busbar/Pin -type busbar
Terminal size top/bottom for cable	25mm² 18-3
Tightening torque	3.0N*m 22
Mounting	On DIN rail FN 60715 (35mm)by means of fast clip device
Connection	Top and bottom

Specification	Description	PCS/CTN	Carton Size (CM)	K.W. (KG)	N.W. (KG)
1-4A	GYM9-DC-1P 6KA	240	4723.534	26	24
6-25A			240	4723.534	26	24
32-40A			240	4723.534	26	24
50-63A			240	4723.534	26	24
1-4A	GYM9-DC-2P 6KA	120	4723.534	26	24
6-25A			120	4723.534	26	24
32-40A			120	4723.534	26	24
50-63A			120	4723.534	26	24
1-4A	GYM9-DC-3P 6KA	80	4723.534	26	24
6-25A			80	4723.534	26	24
32-40A			80	4723.534	26	24
50-63A			80	4723.534	26	24
1-4A	GYM9-DC-4P 6KA	60	4723.534	26	24
6-25A			60	4723.534	26	24
32-40A			60	4723.534	26	24
50-63A			60	4723.534	26	24
