GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR

GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Unidirectional Single Phase Solid State Relay Dc To Ac 27vdc 24-280vac Zero Voltage Or Instantaneous Turen-on Outputs Ssr - Buy Solid State Relay 15a dc-ac Solid State Relay 24v Ac Ssr Single Phase Solid State Variable Relay 10a-24v 0-24vac With Protector Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

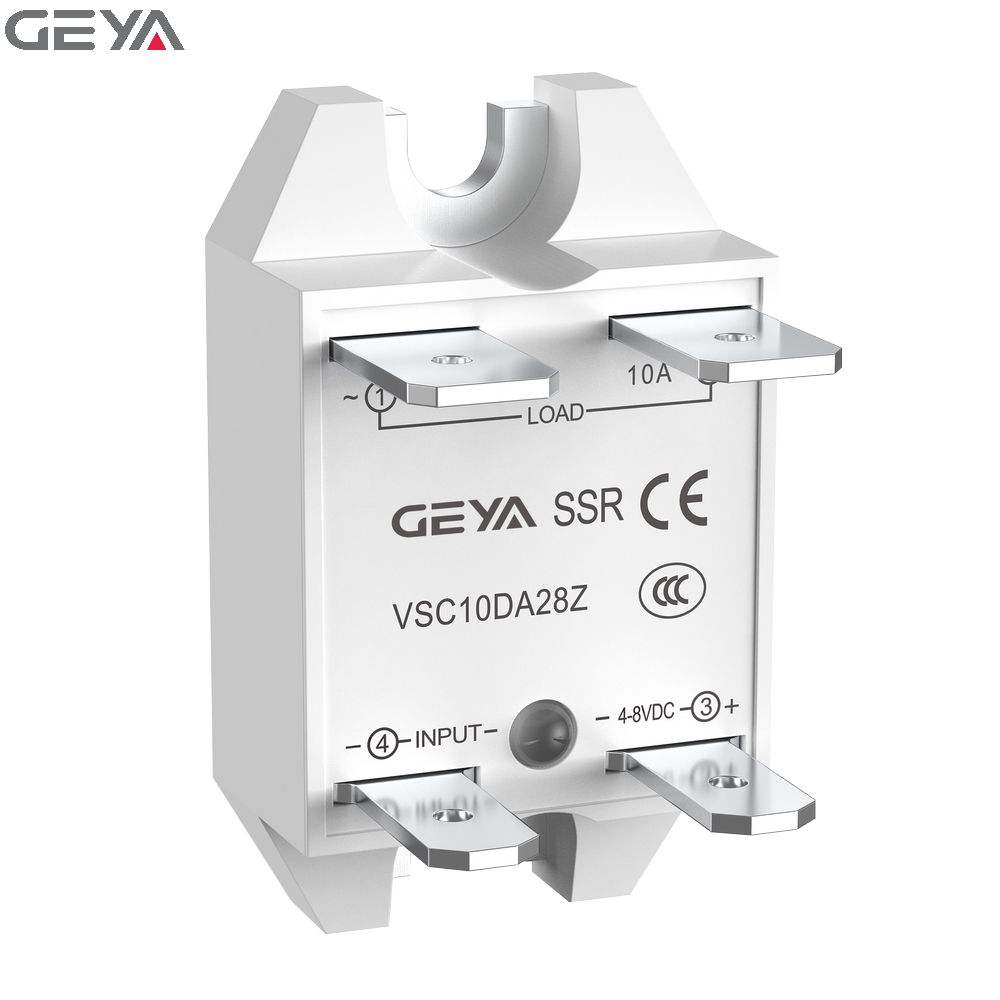

············This link price is only for VSC10DA28Z···········
Features： 1.Rating of 10A,15A and 25A 24-280VAC. 2.Zero voltage or instantaneous turen-on outputs. ·3.Easy-to-use:Fast-on connection. 4.LED input status indicator.
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
GEYA Unidirectional Single Phase Solid State Relay DC to Ac 27VDC 24-280VAC Zero Voltage or Instantaneous Turen-on Outputs SSR
Description
Parameters
Dielectric Strength, Input to Output[50/60Hz]
2500 Vrms
Dielectric Strength, Output to Baseplate [50/60Hz]
2500 Vrms
Maximum Capacitance, Input/Output
8 pF
Ambient Uperating lemperature Range
-30 to 80°℃
Ambient Storage Temperature Range
-30 to125℃
Weight [typical]
16g
Terminals
3/16×0.032 input,1/4x0.032 output QC
SSR Mounting Screw Torque Range
9.0-10.0 in-Ib[1.0-1.13 Nm]
LED Input Status Indicator
Red
Humidity per IEC60068-2-78
93% non-condensing
