Product Description

··················This link price is only for GPS8-06 32A··················

Applications Overvoltage ,undervoltage and overcurrent protection for household equipment.

Function Features 1.Voltage / current monitoring and protection. 2.Special metering chips are used to detect voltage, current, electricity, and power. 3.It is possible to control switches, monitor electrical energy, and set timing for opening and closing through WIFI. 4.Double bus wiring design stronger ability. 5.Over / under voltage value and over-current value can be set. 6.Self reset after fault. 7.Digital display voltage, current value, fault status can be displayed by LED. 8.DIN rail mounting.

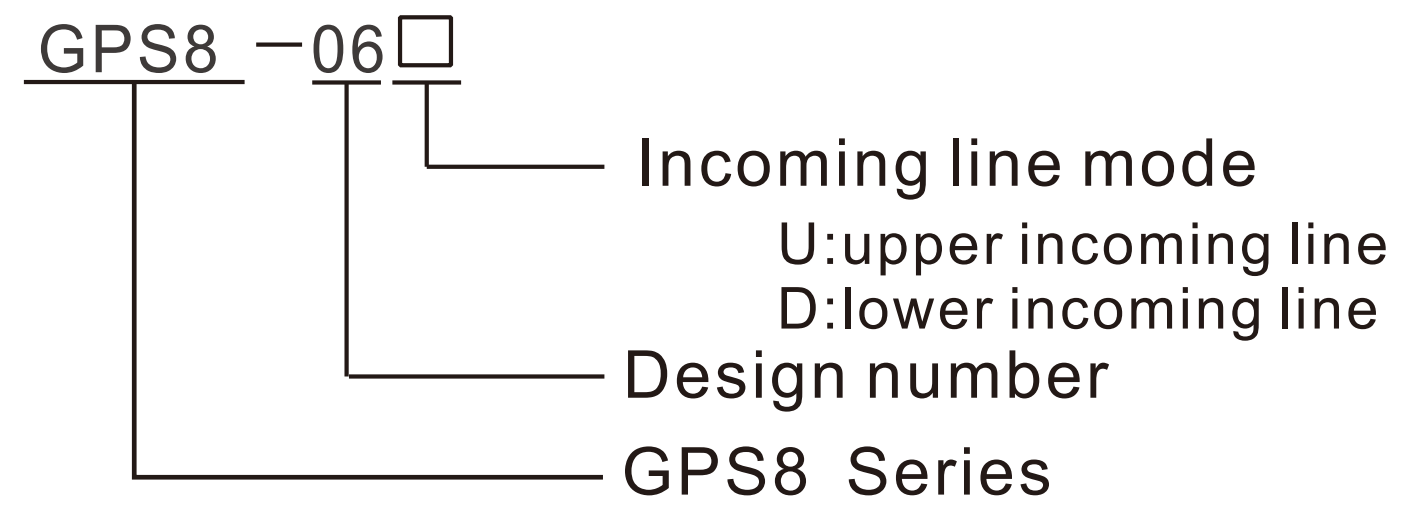

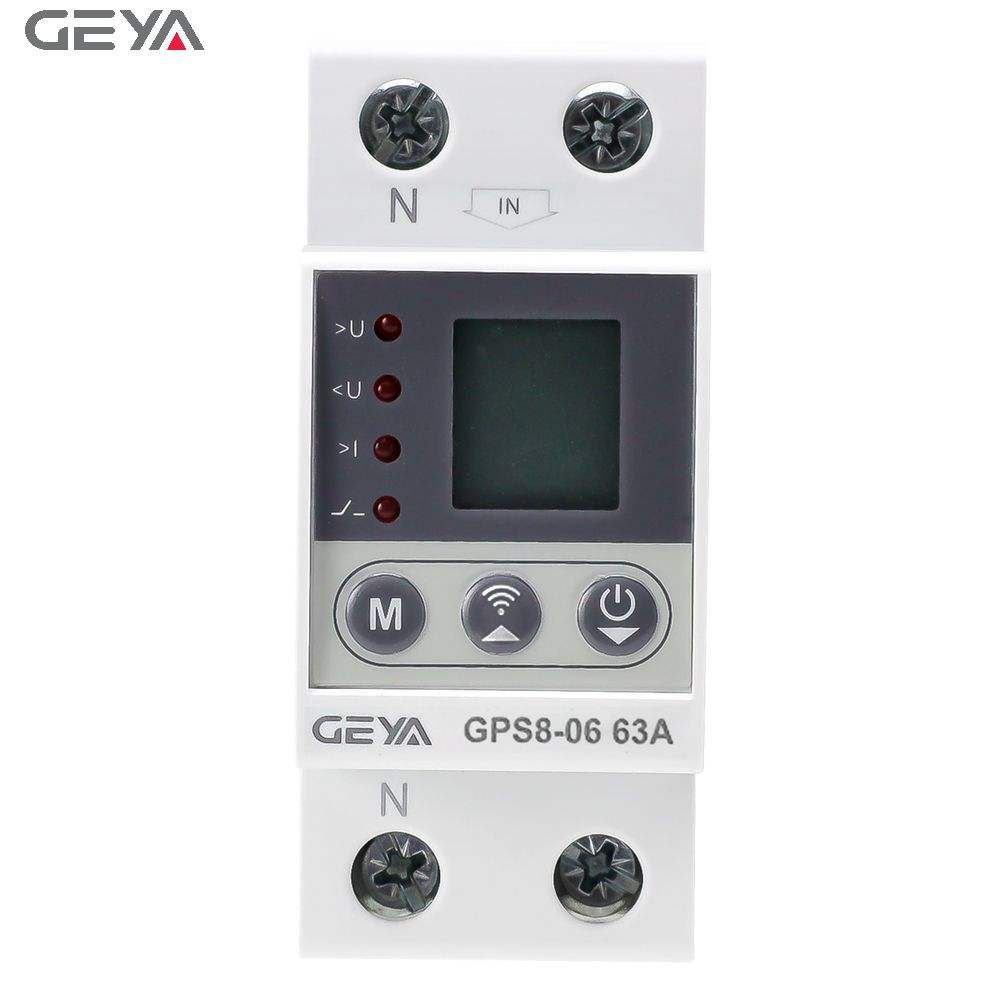

	GPS8-06
Function	Over voltage,under voltage and over current
Rated supply voltage	AC220V(L-N)
Rated supply frequency	45~65Hz
Operation voltage range	80V~400V(L-N)
Rated operational current	32A,40A,50A,63A,80A(AC1)
Burden	AC max.3VA

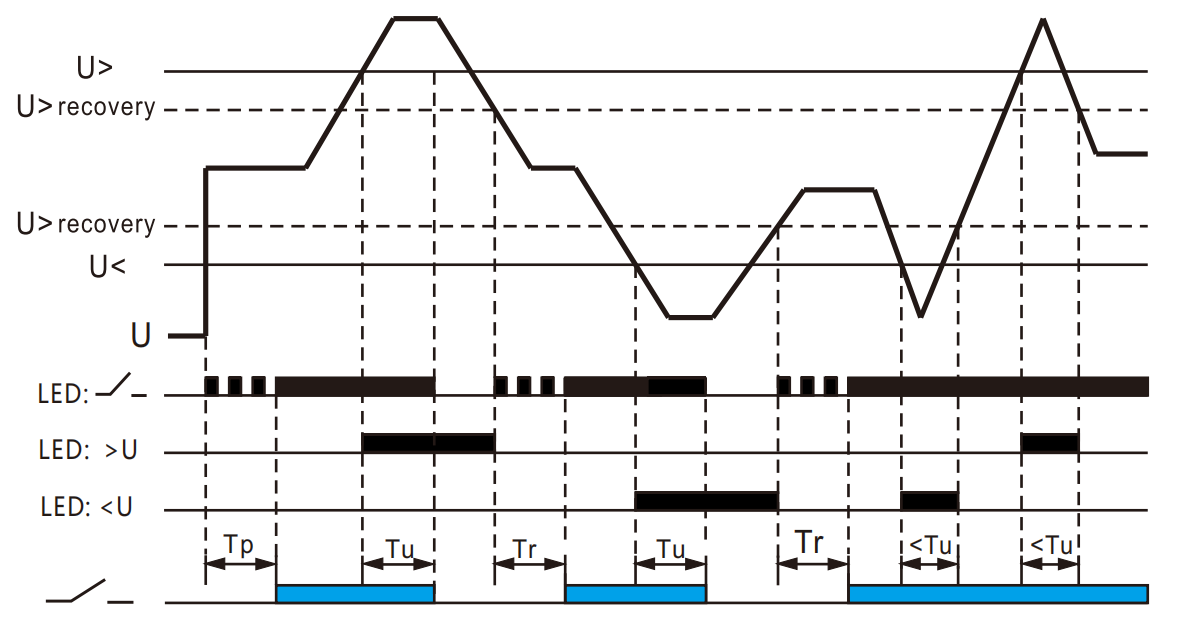

Over voltage operation value	OFF,230V~300V
Under voltage operation value	140V~210V,OFF
Over/under voltage action delay	0.1s~10s
Over current operation value	1～32A,40A,50A,63A,80A

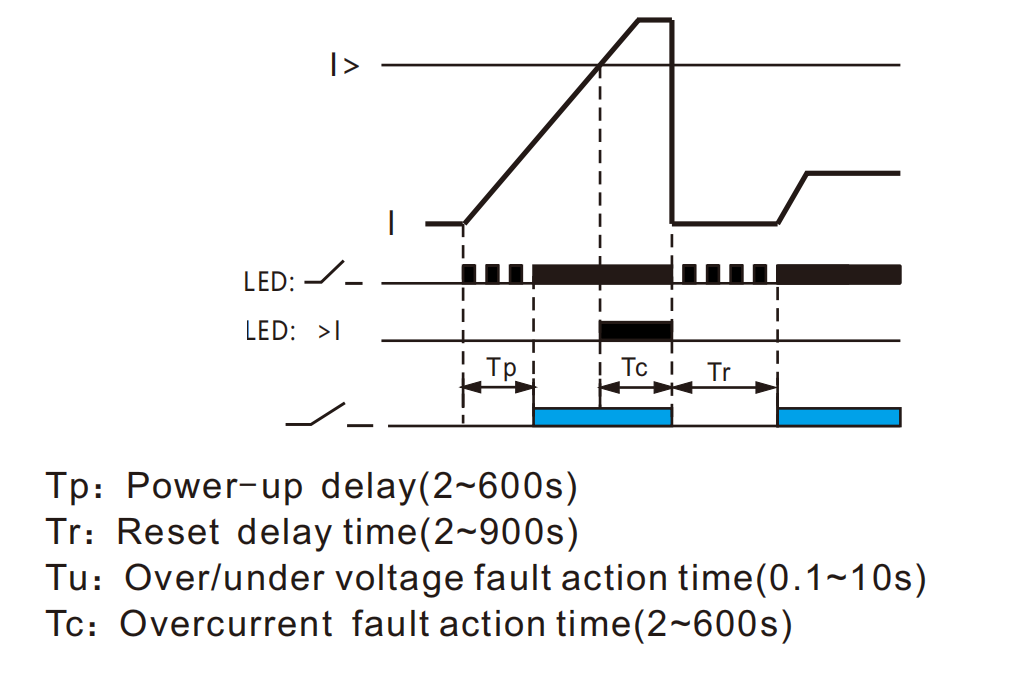

Over current action delay	2s~600s
Power-up delay	2s~600s
Reset time	2s~900s
Measurement error	≤1%
Electrical life(AC1)	1×10⁴
Mechanical life	1×106
Operating temperature	-20℃~+60℃
Storage temperature	-35℃~+75℃
Mounting/DIN rail	Din rail EN/IEC 60715
Protection degree	IP40 for front panel/IP20 terminals
Operating position	any
Overvoltage cathegory	II
Pollution degree	2

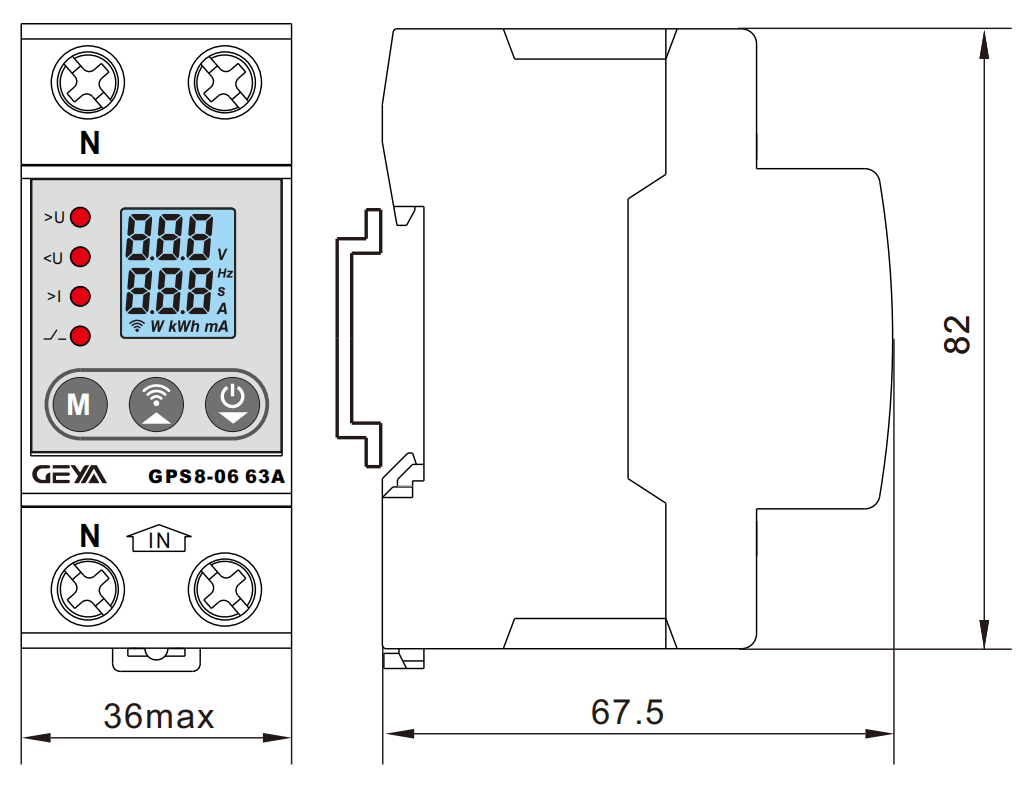

Dimensions	82×36×68mm
Weight	135g
