Home > Products > Automation Relay > GYEA VADM-2P AC 1-100A Volt-ammeter External Transformer Voltage Current DIN RAIL DISPLAY Power Meter

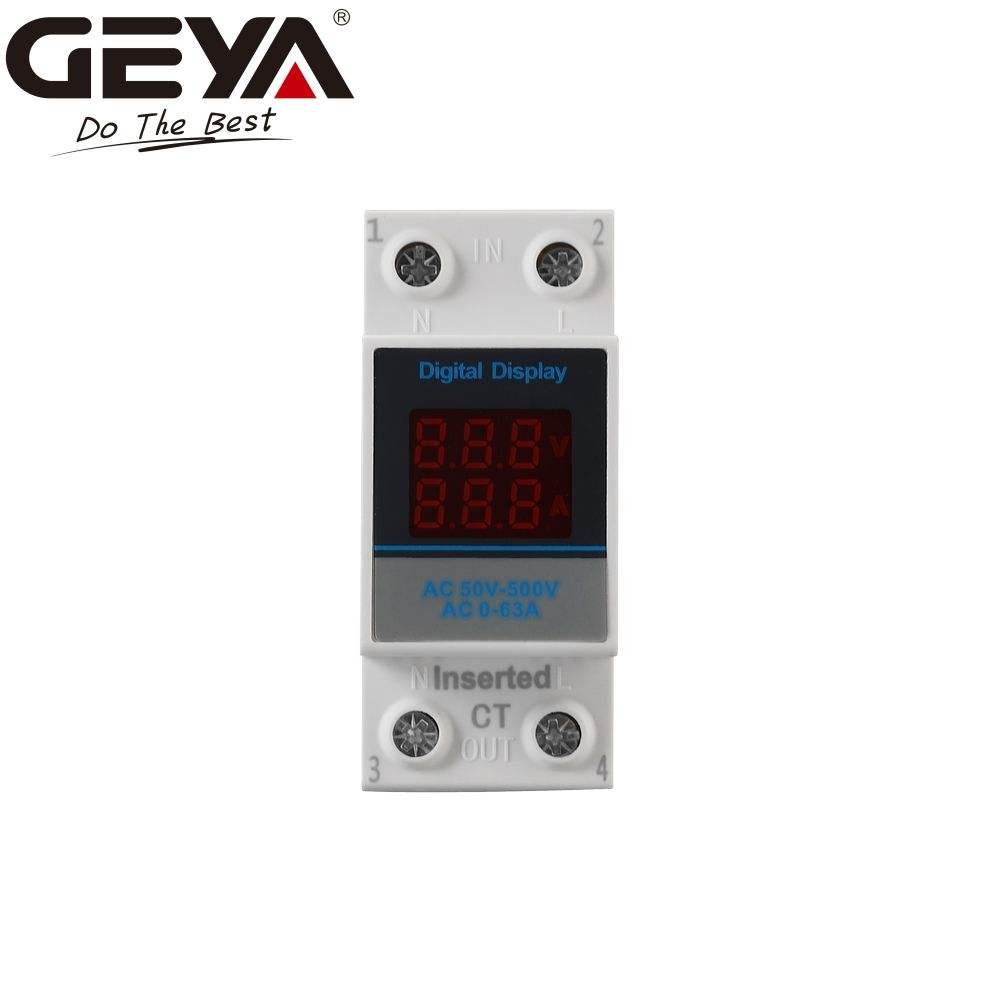

GYEA VADM-2P AC 1-100A Volt-ammeter External Transformer Voltage Current DIN RAIL DISPLAY Power Meter

GYEA VADM-2P AC 1-100A Volt-ammeter External Transformer Voltage Current DIN RAIL DISPLAY Power Meter

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Gyea Vadm-2p Ac 1-100a Volt-ammeter External Transformer Voltage Current Din Rail Display Power Meter - Buy Digital Voltage Protector 220v voltage Protector Leakage 63a 230v Din Rail Adjustable Over Under Voltage Protective Protector Relay Protection Automatic Voltage Protector Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

·········This link price is only for VADM-2P 50-500V AC 1-100A·········

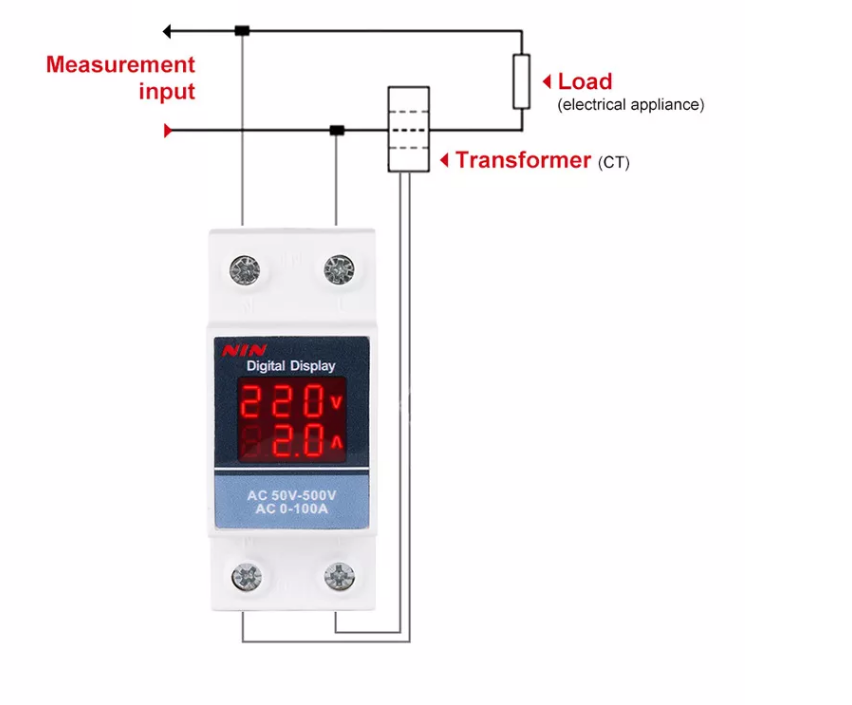

Din rail type digital display AC voltage and current dual display meter simultaneously displays the measured AC voltage and AC current on the same instrument. The instrument is equipped with a precision small transformer. The current transformer is external. 1.Accuracy: 1%±2 words 2.Display Mode:0.32-inch Led ( AC voltage with red led and AC current with green led) 3.Range:AC voltage: AC 80.0-300.0V/ AC 200.0-450.0V ( You should select the one type of meter in your order ).AC current: AC 0-99.9A (when measure current lower than 10A, the accuracy is 0.01A, when measure current between 10.0 and 99.9A, the accuracy is 0.1,the accuracy auto-change) 4.Speed: 2 times per second 5.Size: 37×87×64mm 6. Bulge Size: 37(width) * 45 (height) * 16(thickness) mm 7.Installation Width: 2P (sum of width of two DZ47/C45) 8. Installation: Din-Rail
GYEA VADM-2P AC 1-100A Volt-ammeter External Transformer Voltage Current DIN RAIL DISPLAY Power Meter
Type
AD101-22VAMS
Brand name
GEYA
Place of origin
Zhejiang Province, China(Mainland)
Voltage measuring range
AC 50-500V
Ampere measuring range
0-100A
Color
Red Green Yellow Blue White
Accuracy
± 2% V A
Display resolution
1V 1A
Sample rate
About 1time/s
Input circuit power loss
<2VA
No input signal hint message
V display 000 A display 000
