Home > Products > Automation Relay > GYEA VANP-2P 63A 220V 63A Voltage - Current Protector
GYEA VANP-2P 63A 220V 63A Voltage - Current Protector

GYEA VANP-2P 63A 220V 63A Voltage - Current Protector

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Gyea Vanp-2p 63a 220v 63a Voltage - Current Protector - Buy Adjustable Voltage Current Protector 2pole 220/230v 1-63a Din Rail Automatic Reconnect Adjustable Over Under Voltage Over Current Protector Dc Fuse factory Din Rail Current Protector Over Under Voltage Protective Relay Product on Zhejiang Geya Electrical Co., Ltd.

Send Inquiry

Product Description

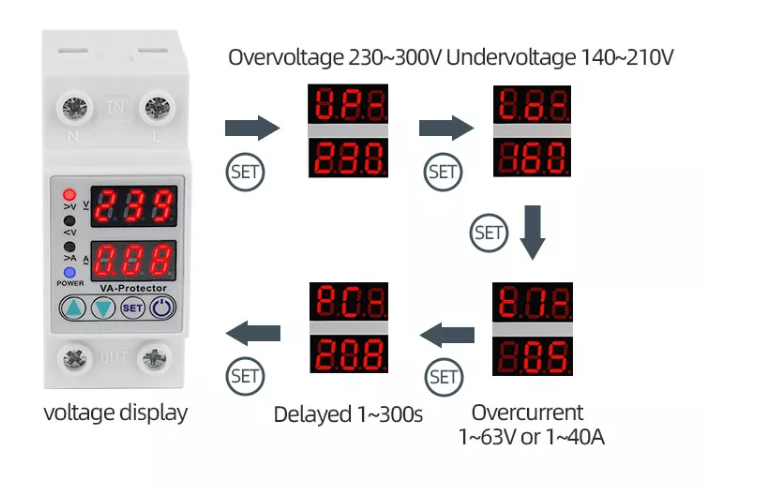

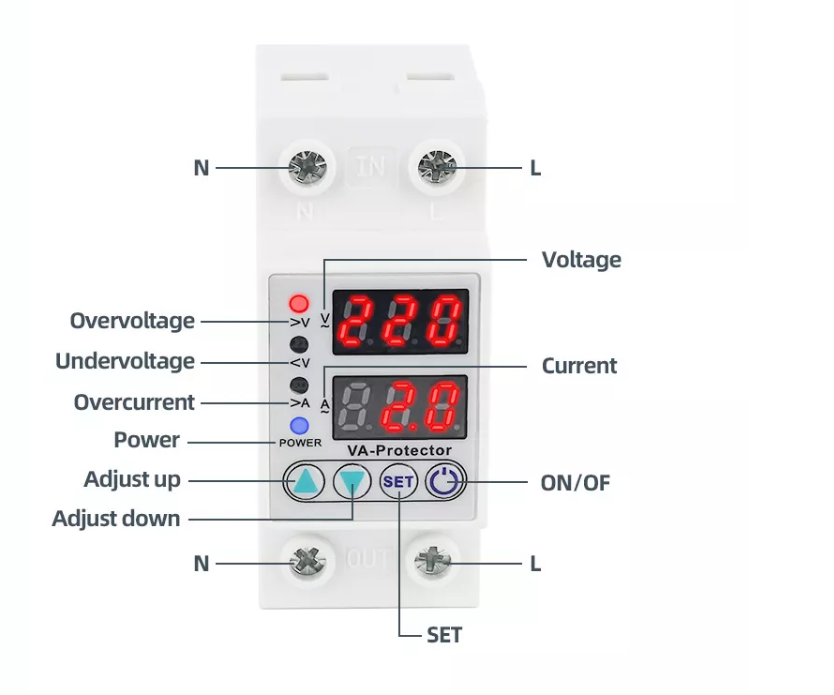

Usage : This product integrates over-voltage protection, under-voltage protection, over-current protection and integrated intelligent protector. When there is over-voltage, under-voltage and over-current solid barriers in the line, this product can instantly cut off the circuit, avoiding unnecessary damage to electrical equipment. Functions: 1.Over-voltage protection 2.Under-voltage protection 3.Over-current protection 4.Automatic recovery 5.Voltage display(voltage measurement) 6.Current display (current measurement) Product Parameters: 1.Model number:TVPS1-63B 2.Power supply:230VAC 50/60Hz 3.Max.Loading power:1~40A Adjustable(default:40A) 1~63A Adjustable(default:63A) 4.Over-voltage protection value range:230V~300~OFF(default:270V) Over-voltage recovery voltage range:225V--295V(default:250V) Over-voltage protection action time:0.1s~30s(default value:0.5s) Over-voltage r ecovery delay time:1s~500s(default:30s) 5.Under-voltage protection value range:140V--210V --OFF(default:170V) Under-voltage recovery voltage range:145V--215V (default:190V) Under-voltage protection action time:0.1s~30s(default:0.5s) Under-voltage r ecovery delay time:1s~500s(default:30s) 6.Over-current adjustment range:1-40A (default:20A) 1-63A (default:40A) Over-current action range:0.1~30 second (default:0.5s) Over-current r ecovery delay time:1s~500s(default:30s) 7.Power-on delay time:1s~500s(default:10s) 9.Power consumption : <2W 10.Electric machinery life : 100,000 times 11.Installation:35mm DIN rail
GYEA VANP-2P 63A 220V 63A Voltage - Current Protector
GYEA VANP-2P 63A 220V 63A Voltage - Current Protector
GYEA VANP-2P 63A 220V 63A Voltage - Current Protector
GYEA VANP-2P 63A 220V 63A Voltage - Current Protector
Microprocessor
import processing chip
Over-voltage protecting range
230V-300V OFF
Under-voltage protecting range
140V-210V OFF
Delayed recovery time range
1-300s
Operating voltage
AC 220V
Contact rating
63A

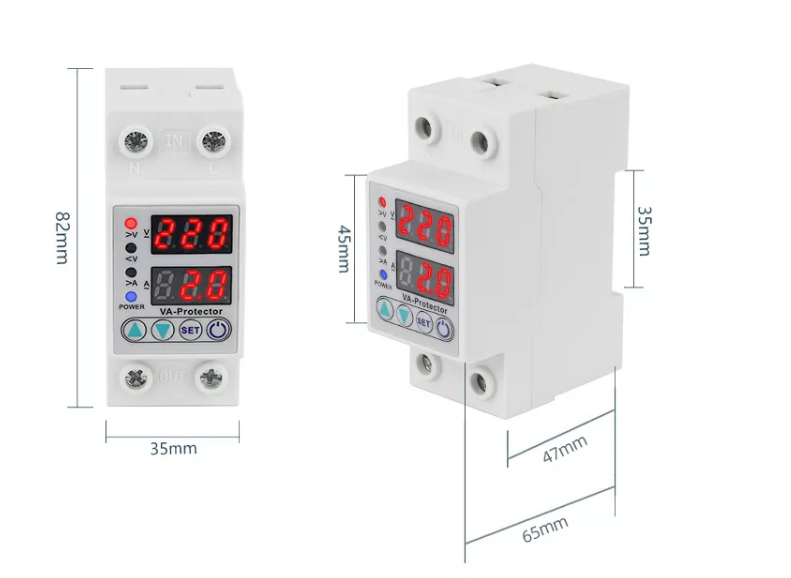

Dimension
81*36*60mm

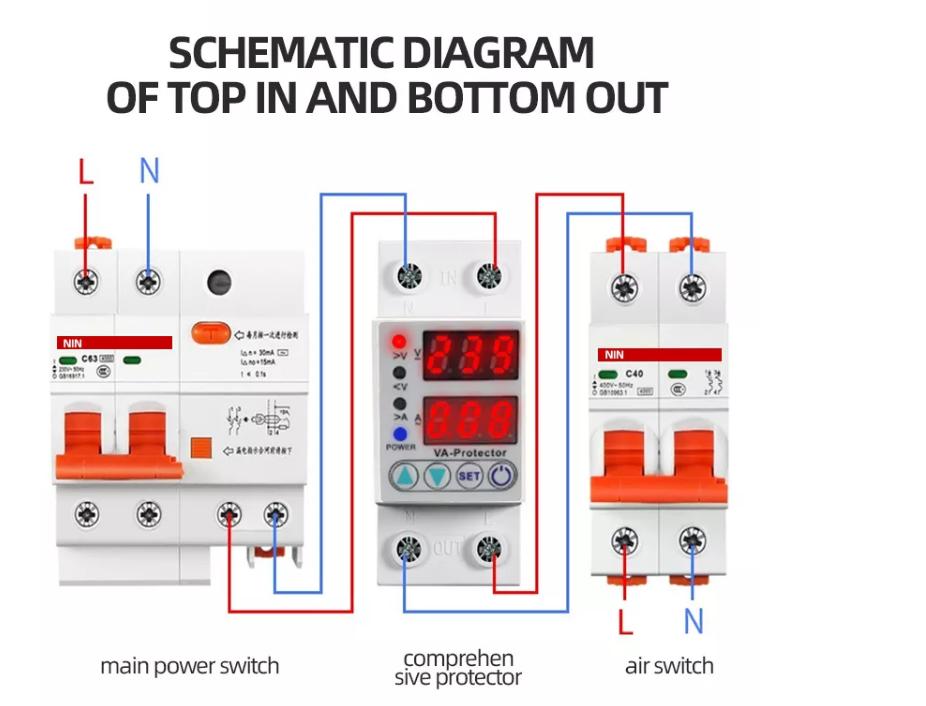

Connection
Upper input &under output
Shell’s material
flame retardant nylon PA66
Rated current (A)
32 40 50 63
Section area of conductor (mm²)
6 10 10 10
