Product Description

This price link is only for REVO E PLUS 3k-24 inverter

REVO VM II Series: High Frequency Pure sine wave off grid solar inverter with Touch buttons.

Wide PV range; All range can support parallel 9pcs; Have Dry contact; Can support Wifi and Bluetooth;Built in BMS; AC+Solar working mode together ,which can save money for users.

* Hybrid solar inverter(on/off-grid inverter).
* Output power factor PF=1.0.
* On-grid with energy storage .
* Configurable AC/Solar Charger priority via LCD setting .
* Smart battery charger design for optimized battery performance .
* Compatible with mains voltage or generator power.
* Overload, Over temperature, Short circuit protection, Fault record, History record.
* External WIFI devices .
* Parallel operation with up to 9 units.

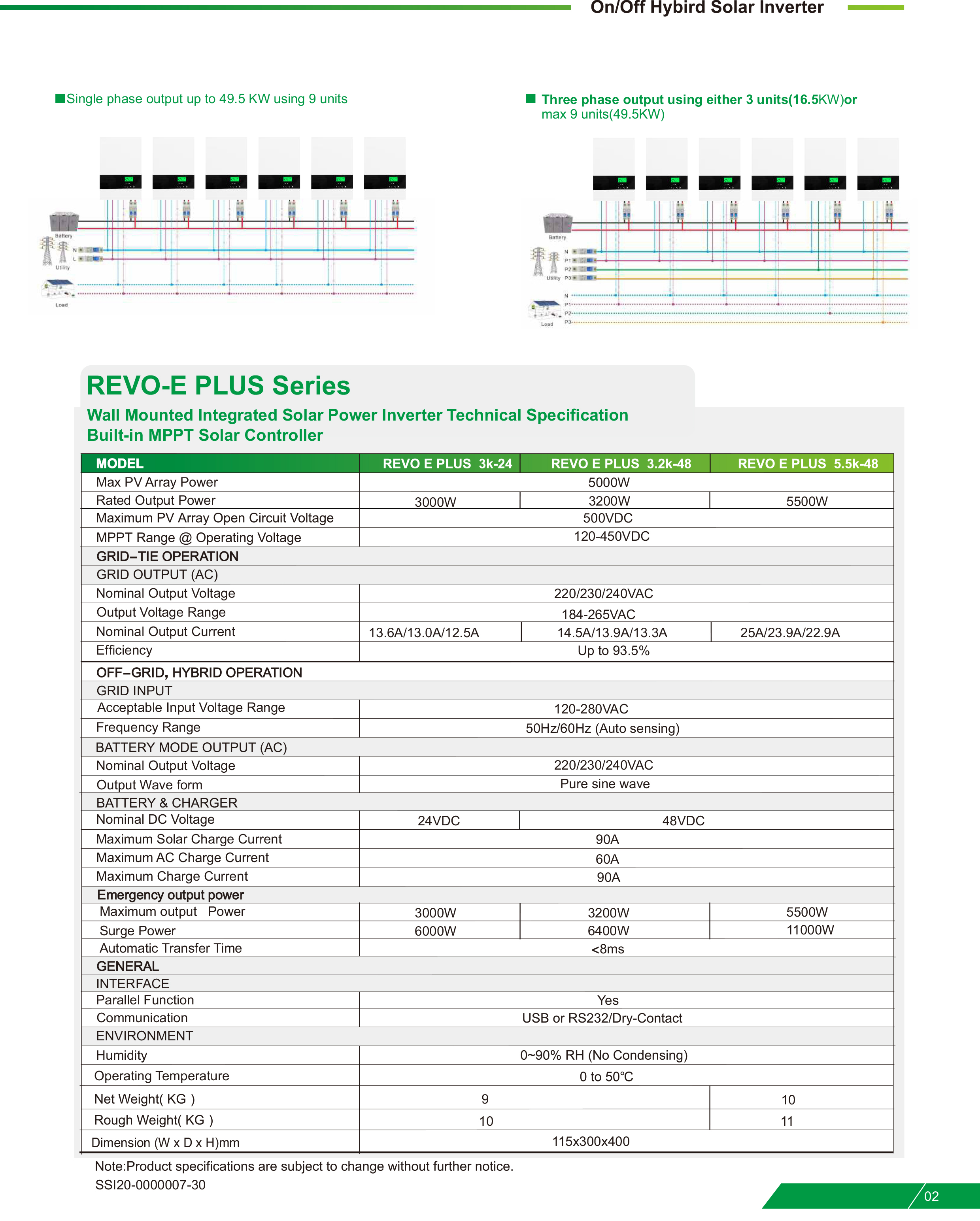

Technical Data

MODEL	REVO E PLUS 3k-24	REVO E PLUS 3.2k-48	REVO E PLUS 5.5k-48
Max PV Array Power	5000W
Rated Output Power	3000W	3200W	5500W
Maximum PV Array Open Circuit Voltage	500VDC
MPPT Range @ Operating Voltage	120-450VDC
GRID-TIE OPERATION
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	184-265VAC
Nominal Output Current	13.6A/13.0A/12.5A	14.5A/13.9A/13.3A	25A/23.9A/22.9A
Efficiency	Up to 93.5%
OFF-GRID, HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range	120-280VAC
Frequency Range	50Hz/60Hz(Auto-sensing)
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Wave form	Pure sine wave
BATTERY& CHARGER
Nominal DC Voltage	24VDC	48VDC
Maximum Solar Charge Current	90A
Maximum AC Charge Current	60A
Maximum Charge Current	90A
Emergency output power
Maximum Output Power	3000W	3200W	5500W
Surge Power	6000W	6400W	11000W
Automatic Transfer Time	<8ms
GENERAL
INTERFACE
Parallel Function	Yes
Communication	USB or RS232/Dry-Contact
ENVIRONMENT
Humidity	0~90%RH(No Condensing)
Operating Temperature	0 to 50℃
Net Weight(KG)	9			10
Rough Weight(KG)	10			11
Dimension (W x D x H)mm	115x300x400
