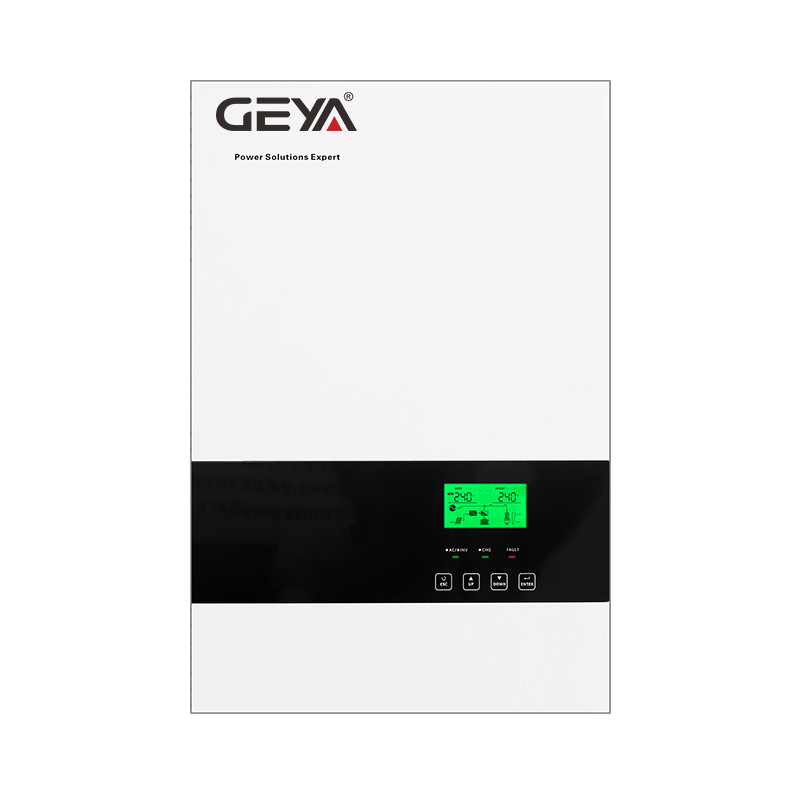

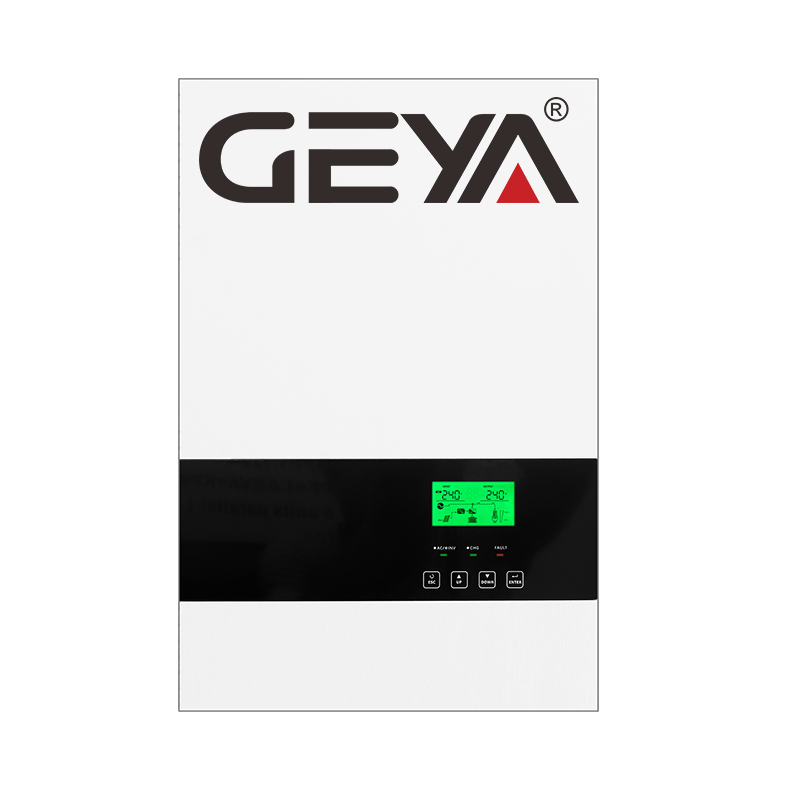

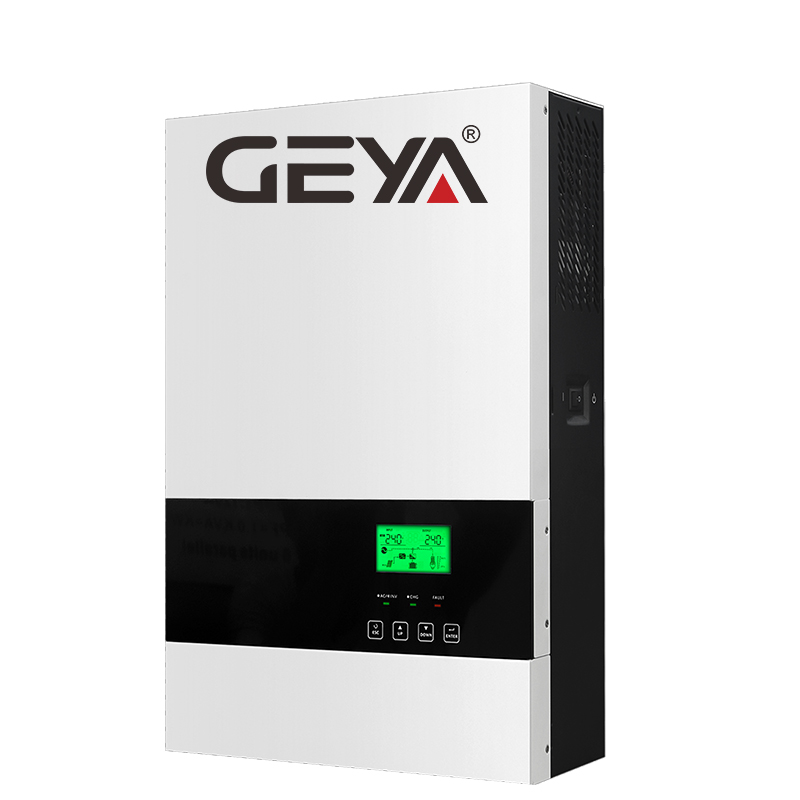

GEYA New Model Axpert Inverter HPS Series Pure Sine Wave 6kVA 11KVA 3000W 5500W 50Hz/60 Hz PWM Solar Inverter

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya New Model Axpert Inverter Hps Series Pure Sine Wave 6kva 11kva 3000w 5500w 50hz/60 Hz Pwm Solar Inverter - Buy Invertor solar Inverter/charger converter/invertor Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

This price link is only for REVO VM II 5500-48 inverter

Flexibility
1. Suitable for all kinds of pumps, including single-phase 220V pump
2. Compatible with all popular solar panels
3. Support AC input could switch to grid power supply to make the system work 24 hours

Smartness
1. Built-in MPPT technology with up to 99% efficiency
2. With water level detection function, automatically regulate the pump flow to prevent dry-running, full water level, etc.
3. Self-adaptation to the motor’s power rating

High Cost-effectiveness
1. Plug-and-play system design, no need to set any parameter
2. Wide range of input voltage
3. No need battery, suitable for all kinds of applications
4. Easy installation and effortless maintenance

Reliability
1. 10-year market-proven experience of leading motor and pump drive technology
2. Soft start feature to prevent water hammer and increase system life
3. Built-in overvoltage. overload, Undervoltage, and weak sunshine protection

Remote Monitoring
1. Standard RS485 interface, support to remote monitor the system with MICNO software on PC
2. Optional GPRS module for remote monitoring
3. Spots value of solar pump parameters monitoring available from anywhere
4. Support the lookup of the history parameters of the solar pump system

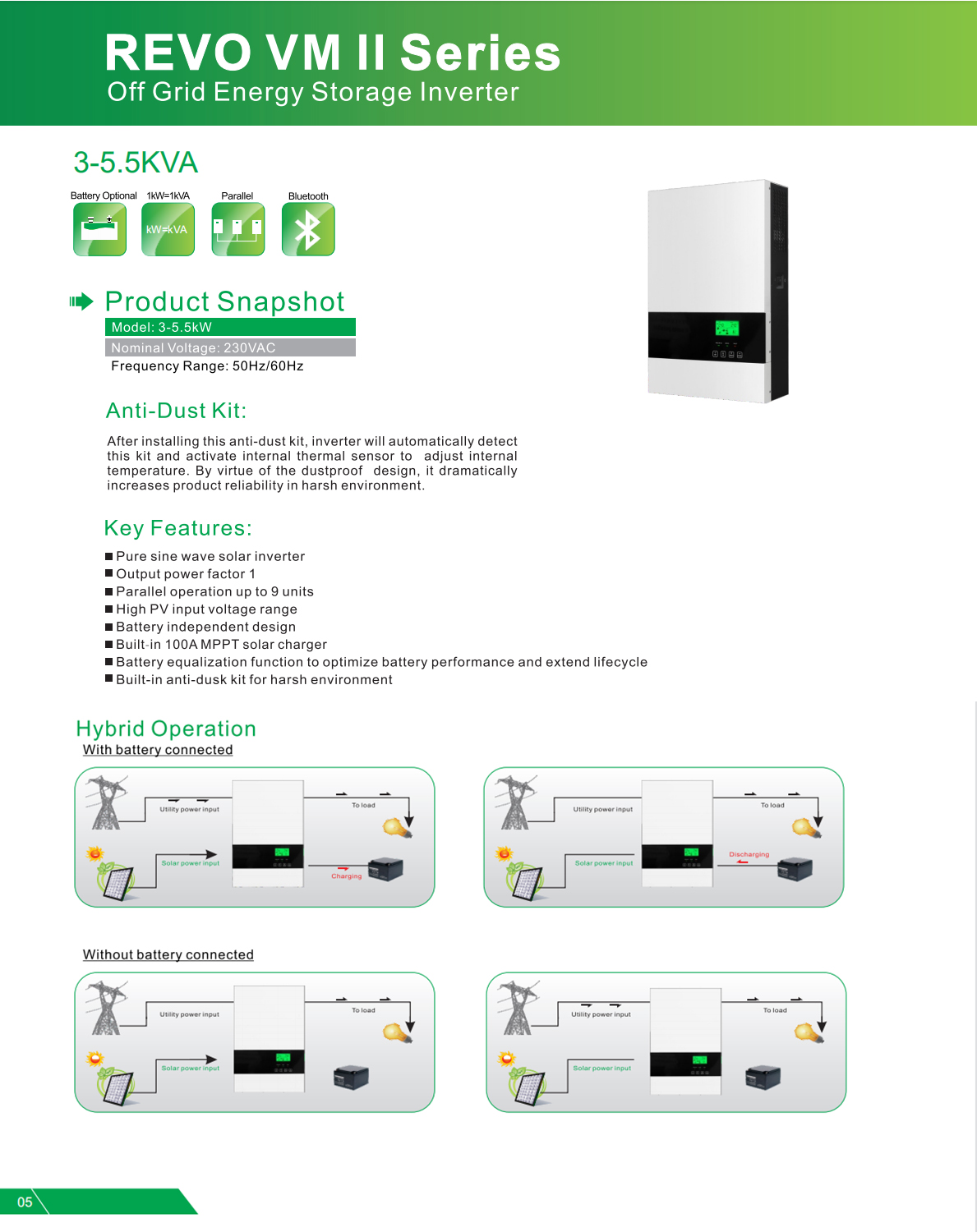

Model：1-5kw
Nominal Voltage：230VAC
Frequency Range:50Hz/60Hz

* Pure sine wave solar inverter
* Output power factor 1
* Parallel operation up to 9 units
* High PV input voltage range
* Battery independent design
* Built-in 100A MPPT solar charger
* Battery equalization function to optimize battery performance and extend the lifecycle
* Built-in anti-dusk kit for harsh environment

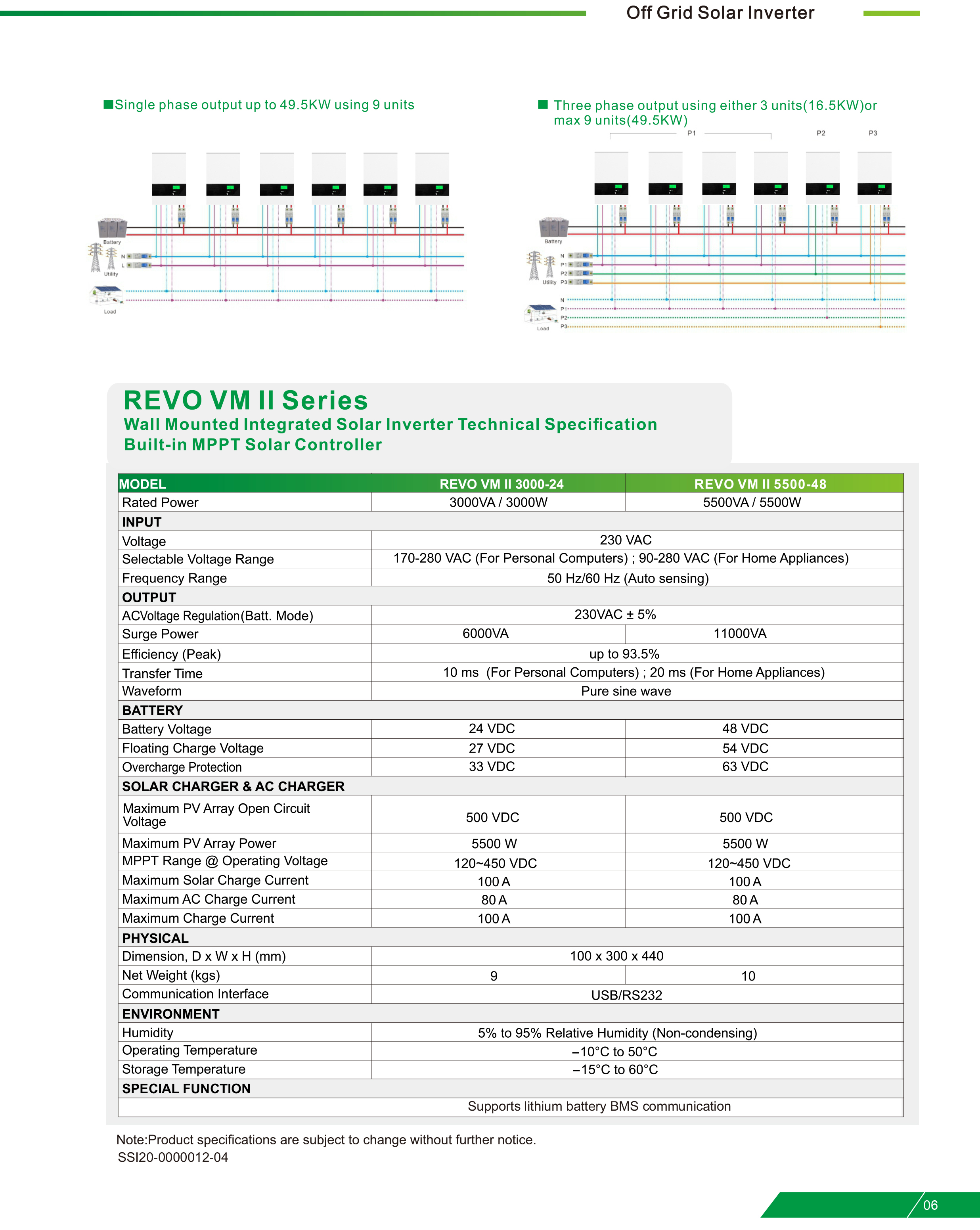

Technical Data

MODEL	REVO VM II 3000-24	REVO VM II 5500-48
Rated Power	3000VA/ 3000W	5500VA/ 5500W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers); 90-280 VAC(For Home Appliances)
Frequency Range	50Hz/60 Hz(Auto-sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	6000VA	11000VA
Efficiency (Peak)	up to 93.5%
Transfer Time	10 ms (For Personal Computers); 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24 VDC	48 VDC
Floating Charge Voltage	27 VDC	54 VDC
Overcharge Protection	33 VDC	63 VDC
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage	500 VDC	500 VDC
Maximum PV Array Power	5500 W	5500 W
MPPT Range @ Operating Voltage	120~450 VDC	120~450 VDC
Maximum Solar Charge Current	100A	100A
Maximum AC Charge Current	80A	80A
Maximum Charge Current	100A	100A
PHYSICAL
Dimension,D xWx H(mm)	100 x300 x440
Net Weight (kgs)	9	10
Communication Interface	USB/RS232
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50℃
Storage Temperature	-15°C to 60℃
SPECIAL FUNCTION
Supports lithium battery BMS communication

GEYA TEAM ONLINE

24hours
*6 Sales Manager

*20 Sales Assistant
* 5 Technical Engineer
*10 QC Inspector
*120 Professional Worker

GEYA Electrical is established in February 2007, with annual turnover more than 10 million dollars.Headquarters is based in Wenzhou, China.

In the past 12 years, GEYA was focusing on the low voltage electrical and automation control project research, development and production. The current products offers a wide range of low voltage electrical and automation control items including ACB, MCB, MCCB, RCCB, Contactor, Inverter, Solar Energy System, Time Relay, Control Relay, Voltage Relay, PLC Relay Module, Timer Switch, Distribution boxes and other related accessories and components.
GEYA products are certified to required industry standards, with approvals according to ROHS, ISO9001, CCC, CE, CB, SAA, SEMKO, TUV, EN. In addition to providing OEM&ODM service for our worldwide customers, we also welcome our customers to distributor our brand to overseas market, and we will provide our customers more competitive sales policies.
Today, GEYA sales area covers 6 continents, with more than 1000 foreign companies purchasing products from us. There is no doubt we will be promoting our products to more countries.
Our belief is Modernization - Accuracy - Reliability - Quality - Customer Satisfaction.
