Product Description

···········This link is only for GDCR7-250T-P···········

Characteristic 1.Strong control load capacity:rated operational voltage 12VDC~1000VDC,rated operational current 250A. 2.Safe:Fully sealedwith epoxy resin,contact and coil will not be oxidized,product performance isnot affected by external environment,no arc outbursts,canbe worked in explosiveand harmful environment. 3.Reliable:Adopt DC high voltage non -polarity design,the breaking capacity is higher and more reliable,convenient and reliable installation/wiring 4.Energy conservation:Using PWM control technology,effectively control the coil power and action characteristics,more energy saving.

Contact parameter
Main contact	Rated operational current le	250A
		Rated operational voltage Ue	12~1000 VDC
		Min.load	1A12VDC
		Main contact type	1SH(SPST NO DM)
		Nominal resistance of main circuit	0.2mΩ(@250A)

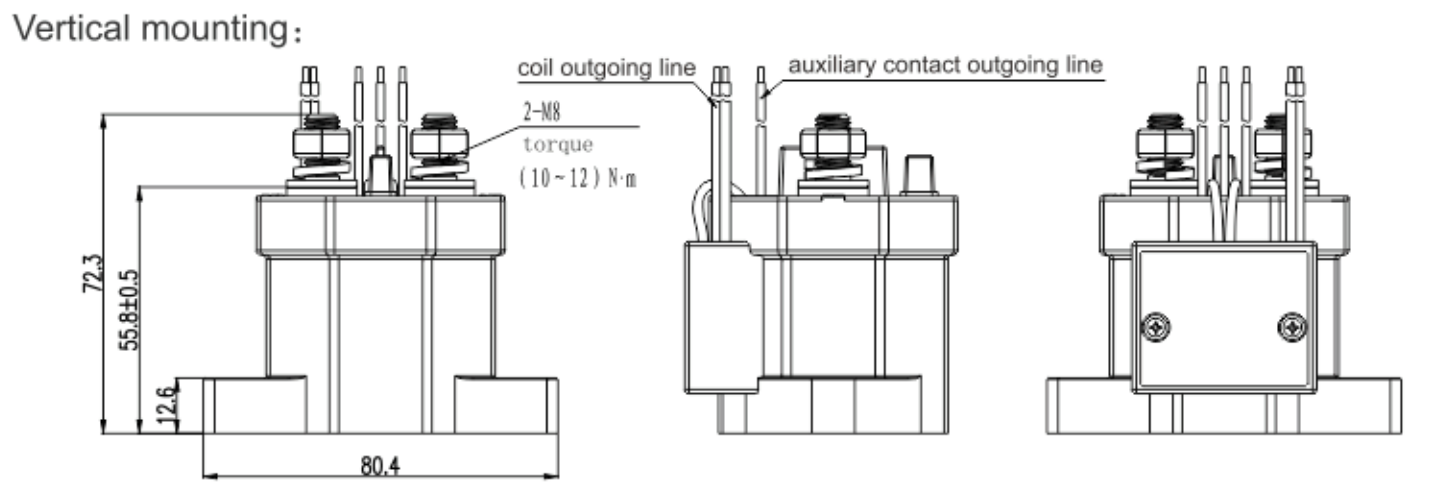

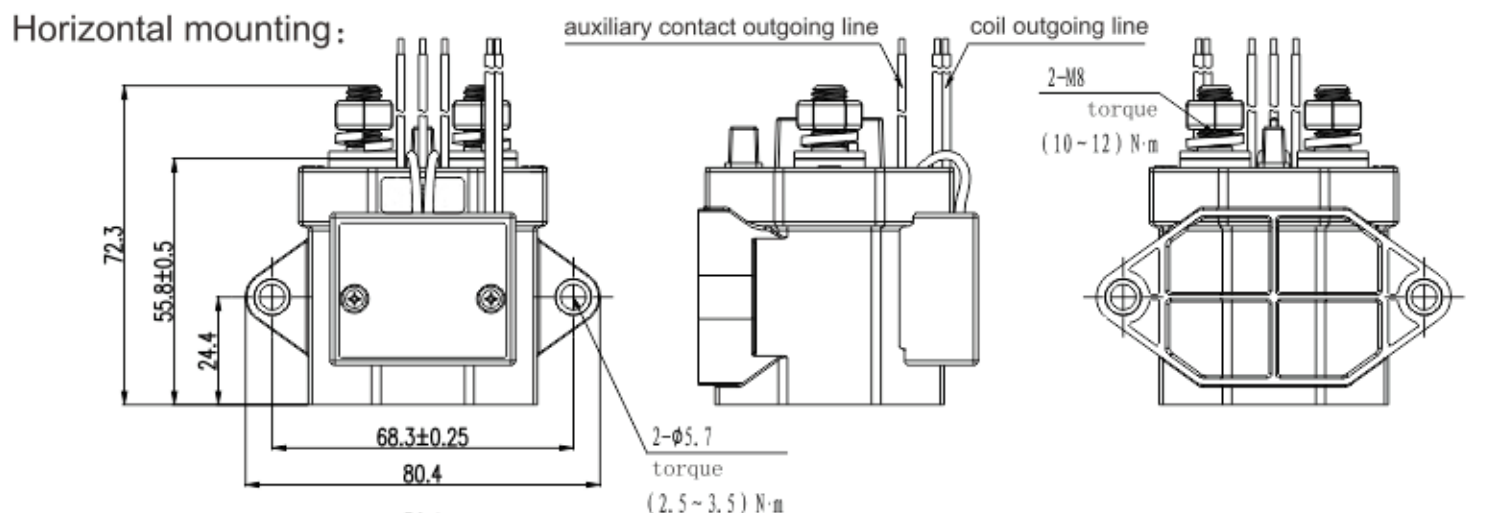

		Main contact mounting	M8 external thread
		Connecting torque	10~12 N·m
		Max.switching current (more than one cycle)	2500A320VDC
Auxiliary contact	Max.current	30VDC 2A;125VAC 3A
		Min.current	8VDC 100mA
		Contact resistance	<0.150
Coil parameter
Rated voltage Us			12/24VDC
Operational voltage Range			8~36 VDC
Pick up voltage			7~8 VDC
Release voltage			5~6 VDC
Coil power			keeping:2W
Inrush current			3A(0.1s)(@12v)
Holding current			0.17A@12V; 0.085A@24V
Close time(@Us)			≤45ms
Release time(@Us)			≤10ms
Bounce time(@Us)			≤5ms

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
