Product Description

·············This link price is only for GDCR8V-250E/1000··········

Characteristic 1.Ceramic brazing sealing technology,to achieve the contact part of airtight packaging,no risk of arcleakage,ensure no fire,no burst. 2.In the aitight package structure,the hydrogen-dominated gas is filled to effectively prevent the oxidationand burning of contact points,and the contact resistance is low and stable 3.250A 85℃ long time current carrying capacity 4.In response to abnormal conditions,it can break 10 times of over current 5.Insulation resistance up to 1000MQ(1000VDC),dielectric withstand voltage meet IEC60664-1 requirement

Contact parameter
Contact type	1H
Contact resistance	≤0.3mQ(at 20A)
Contact rated current	250A
Max.switching voltage	750VDC
Max.breaking current	2000A(450VDC),more than 1 cycle
Max.switching power	450V:112.5kW
Max.switching power		750V:187.5kW
Current carrying capacity	250A:keep
		375A:10min
		500A:120s
		1000A:30s
		2500A:0.6s

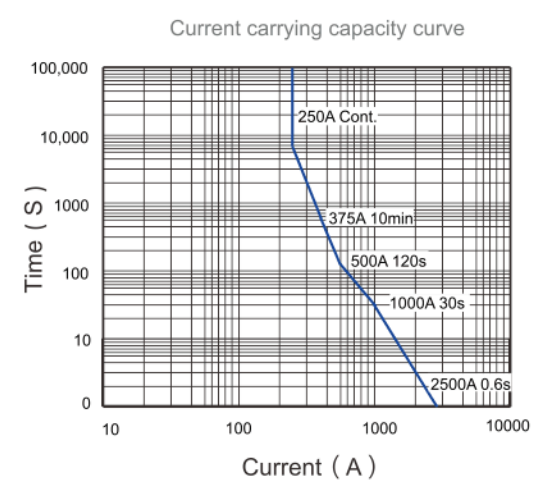

Note:Current carrying capacity data is tested at ambient temperature of 85℃,cross section≥100mm²,more detail,please see curve.

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
