GEYA MCB/RCCB/RCBO Controlled by WiFi Instruction Manual Auto Recloser Mcb Circuit Breaker 2P 40A 30mA/100mA

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya Mcb/rccb/rcbo Controlled By Wifi Instruction Manual Auto Recloser Mcb Circuit Breaker 2p 40a 30ma/100ma - Buy Remote Reset Mcb remote Control Opening And Closing Function Adjust auto Reset Elcb For 3 Phase Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

···················This link price is only for GRD9L-W+GYL9-2P-40A-30mA·················

Applications

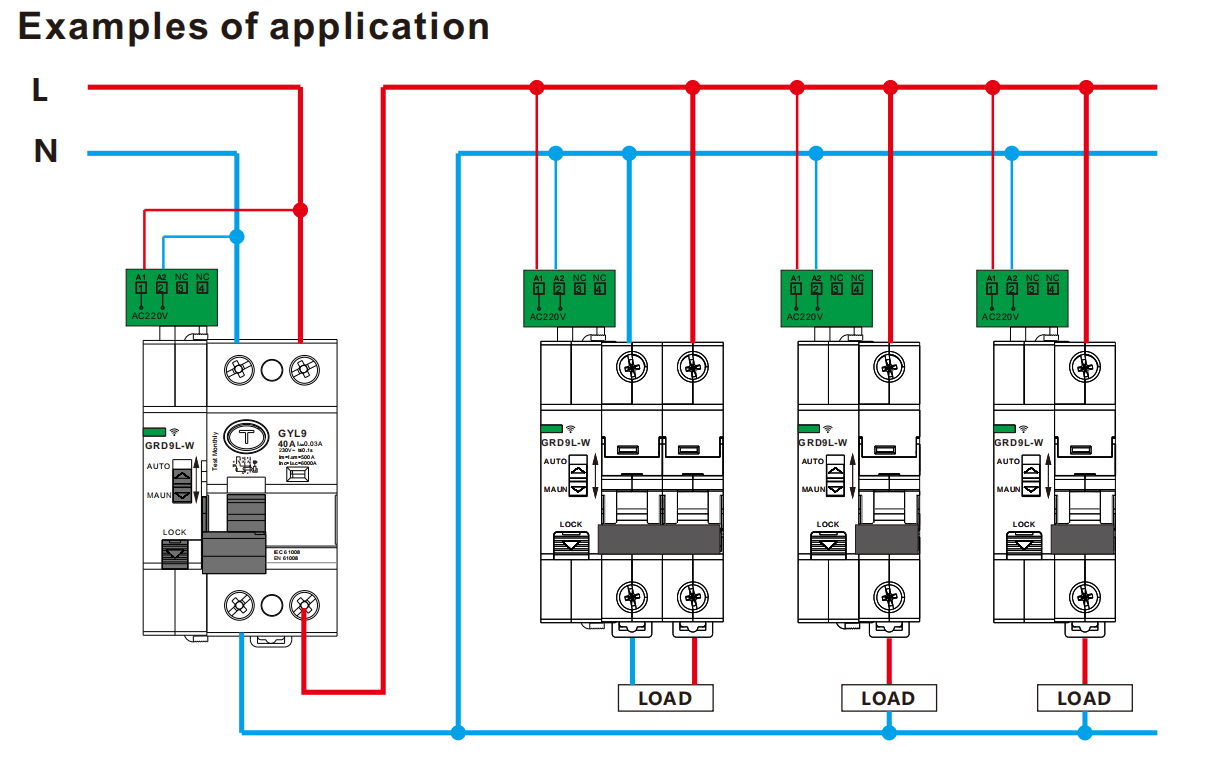

-It can be used for intelligent household electricity management and photovoltaic distribution systems.

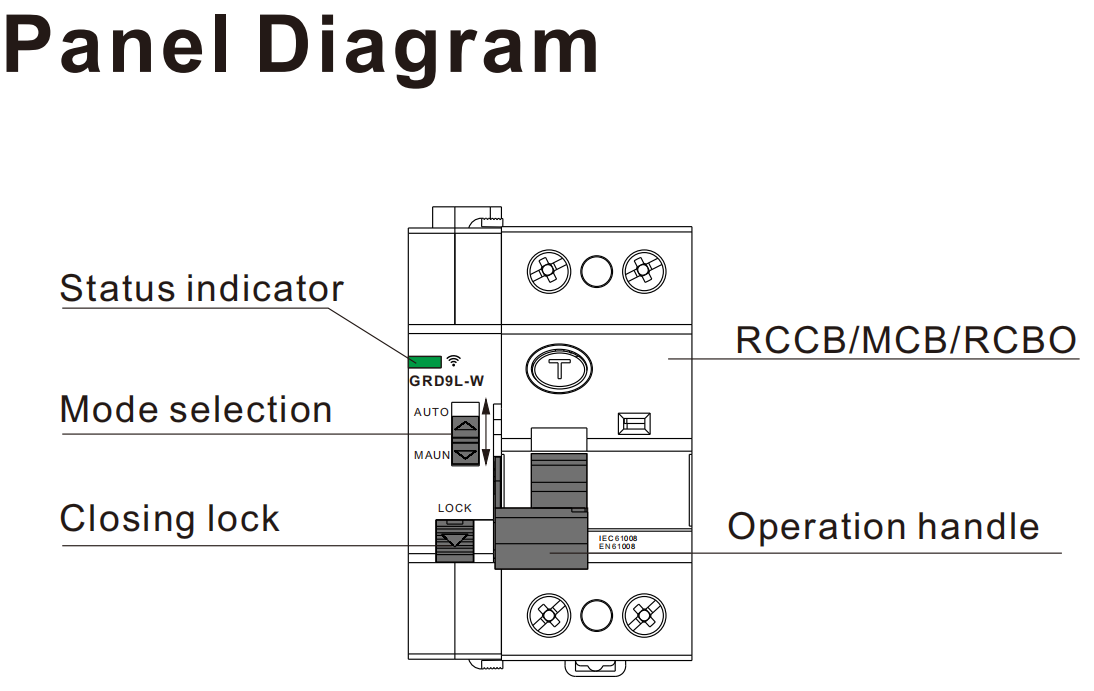

Function Features -It can be matched with MCB/RCCB/RCBO and remotely controlled for closing and opening through the APP. -RCCB/MCB/RCBO (timing switch function) can be set to be turned ON/OFF at any time through the APP. -With manual / automatic selector switch. -With mechanical / electronic double locking function. -The shaft transmission mode is more stable and reliable. -Can match other accessories. - Work status is indicated by LED. - 1-MODULE(RD).

Technical parameters	GRD9L-W
Supply terminals	A1-A2
Control mode	WiFi
Supply Voltage range tolerance	-10%;+10%
Voltage range	AC 220V(50-60Hz)
Power input	AC max. 1VA(standby) max.20VA(action)
Action time	≤1s
WIFI connectivity	802.11 b/g/n 2.4GHz
Mechanical life	10000
Electrical life	Refer to MCB/RCCB/RCBO catalogue
Operating temperature	-20℃ to +55℃
Storage temperature	-35℃ to +75℃
Mounting/DIN rail	Din rail EN/IEC 60715
Protection degree	IP20
Operating position	any
Overvoltage cathegory	II
Pollution degree	2
Max. cable size(mm²)	solid wire max.1×2.5or2×1.5/with sleeve max.1×2.5(AWG 12)

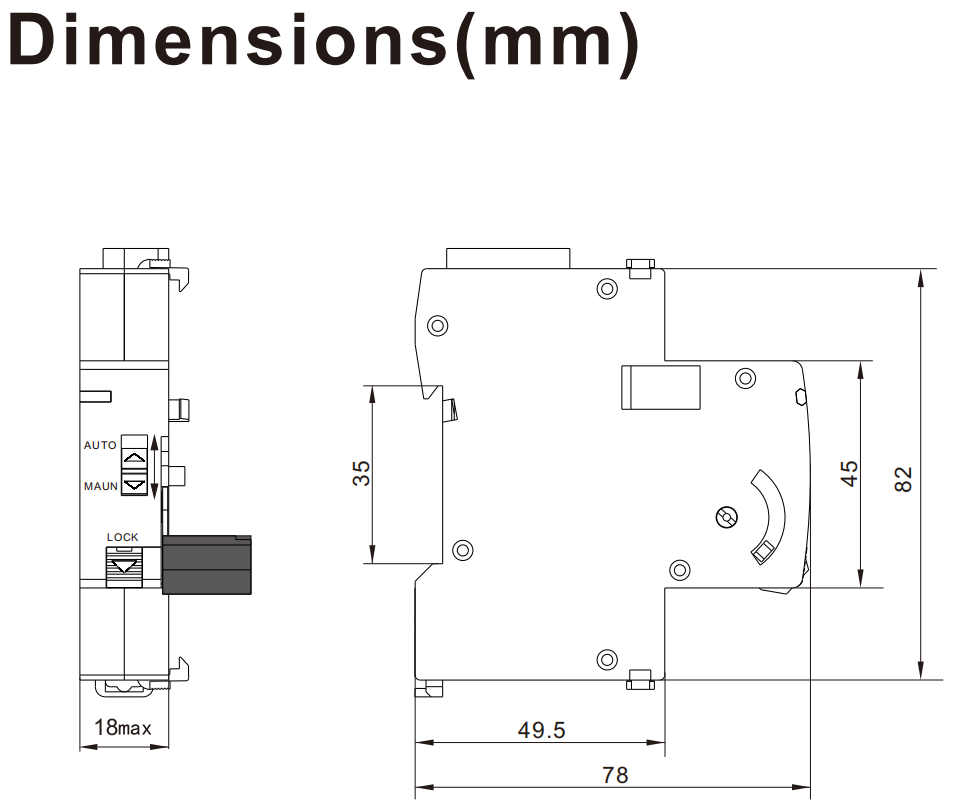

Dimensions	82×18×78mm
Weight	80g
