GEYA 3KW Grid Tie Solar System-Single Phase Solar Cable 4mm2 Solar Panels System Price List

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-2{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root ......Keywords:Geya 3kw Grid Tie Solar System-single Phase Solar Cable 4mm2 Solar Panels System Price List - Buy 2kw Solar Off Grid System In India 3.5kva 10kw Solar Inverter Power Home Made Solar Panel System 8k Solar Inverters 150w Solar Panel Product on Zhejiang Geya Electrical Co., Ltd.

Product Description

···········This link price is only for 3KW grid tie solar system-Single phase··········

Professional design 1.Based on Irradiation data from NASA

2.Optimal solutions for each project

3.Maximal system efficiency target

4.Exact design for every project case Super High Efficiency 1.The most efficient solar panel 2.Stable and efficient inverter 3.Efficient and fast charging and discharging lithium batteries 4.System configuration achieves optimal performance and efficiency 5.Intelligent energy management system 6.With unique weather prediction and energy management functions

No	Mode	Specification	Quantity

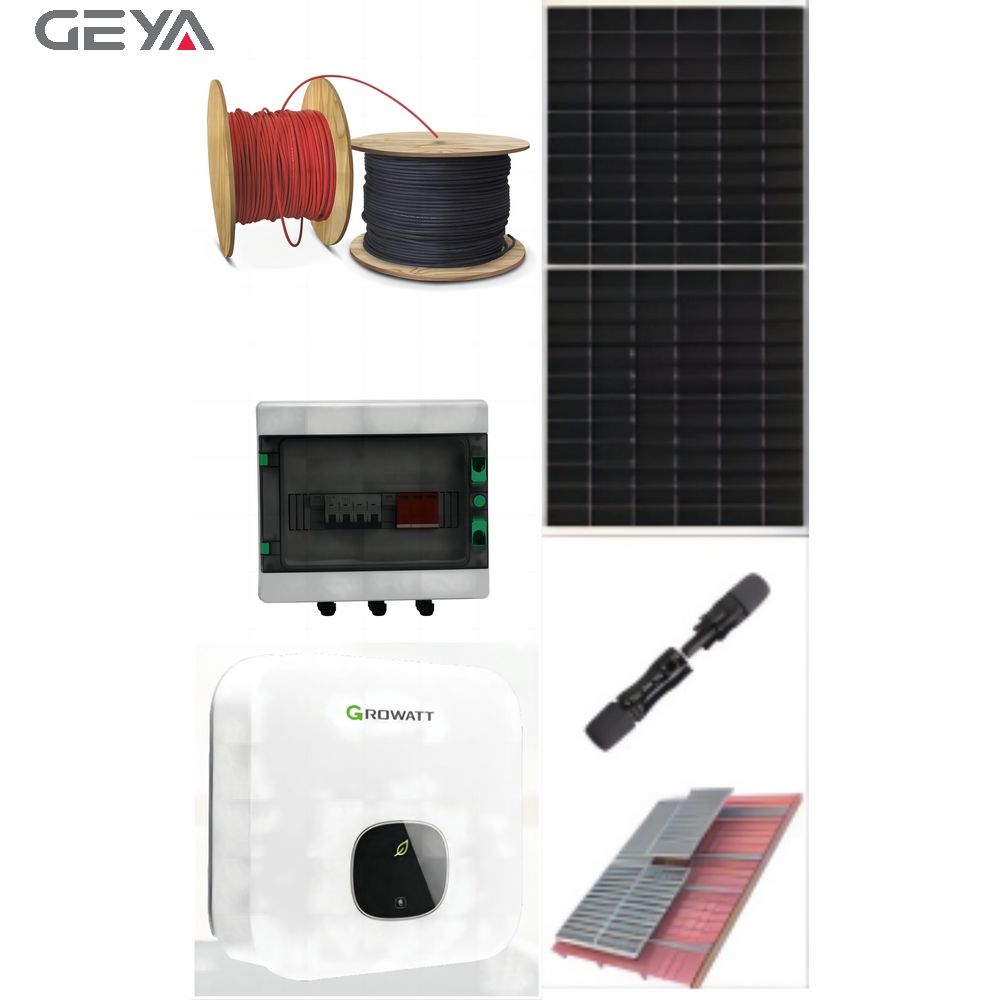

3KW grid tie solar system-Single phase
1	Mono half cell solar panels YCPV-550M10 6 pcs in one string	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	6 Pcs
2	Growatt brand Grid tie solar inverter 3KW Model：MIN 3000TL-X	Rated Output Power：3KW PV voltage range：70-550V Output：220/240V 50Hz Single phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 100M MC4：GSC4-TM1(1000V) 1000V 30A 4 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	GYPV/5-1 DC500V	1 Set
5KW grid tie solar system-Single phase
1	Mono half cell solar panels YCPV-550M10 10 pcs in one string	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	10 Pcs
2	Growatt brand Grid tie solar inverter 5KW Model：MIN 5000TL-X	Rated Output Power：5KW PV voltage range：70-550V Output：220/240V 50Hz Single phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 100M MC4： 4 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
6KW grid tie solar system-Single phase
1	Mono half cell solar panels YCPV-550M10 6 pcs in one string 2 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	12 Pcs
2	Growatt brand Grid tie solar inverter 6KW Model：MIN 6000TL-X	Rated Output Power：6KW PV voltage range：70-550V Output：220/240V 50Hz Single phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 200M MC4： 8 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
10KW grid tie solar system-Single phase
1	Mono half cell solar panels YCPV-550M10 10 pcs in one string 2 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	20 Pcs
2	Growatt brand Grid tie solar inverter 5KW Model：MIN 10000TL-X	Rated Output Power：10KW PV voltage range：70-550V Output：220/240V 50Hz Single phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 200M MC4： 8 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
10KW grid tie solar system-3 phase
1	Mono half cell solar panels YCPV-550M10 20 pcs in one string 1 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	20 Pcs
2	Growatt brand Grid tie solar inverter 10KW Model：MOD 10KTL3-X	Rated Output Power：10KW PV voltage range：140-1000V Output：380/400V 50Hz 3 phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 100M MC4： 4 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
15KW grid tie solar system-3 phase
1	Mono half cell solar panels YCPV-550M10 15 pcs in one string 2 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	30 Pcs
2	Growatt brand Grid tie solar inverter 15KW Model：MOD 15KTL3-X	Rated Output Power：15KW PV voltage range：140-1000V Output：380/400V 50Hz 3 phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 200M MC4： 8 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
20KW grid tie solar system-3 phase
1	Mono half cell solar panels YCPV-550M10 20 pcs in one string 2 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	40 Pcs
2	Growatt brand Grid tie solar inverter 20KW Model：MID 20KTL3-X	Rated Output Power：20KW PV voltage range：140-1000V Output：380/400V 50Hz 3 phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 200M MC4： 8 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
30KW grid tie solar system-3 phase
1	Mono half cell solar panels YCPV-550M10 20 pcs in one string 3 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	60 Pcs
2	Growatt brand Grid tie solar inverter 30KW Model：MID 30KTL3-X	Rated Output Power：30KW PV voltage range：140-1000V Output：380/400V 50Hz 3 phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 300M MC4： 12 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set
50KW grid tie solar system-3 phase
1	Mono half cell solar panels YCPV-550M10 20 pcs in one string 5 strings totally	Crystalline：Mono half cell Max work power：550W Weight：26.9KG Dimension：2279113435mm Max system Voltage：1500V Warranty：10 Years	100 Pcs
2	Growatt brand Grid tie solar inverter 50KW Model：Max 50KTL3-X	Rated Output Power：50KW PV voltage range：140-1000V Output：380/400V 50Hz 3 phase Warranty：5 Years	1 PC
3	Mounting structure for solar panels Roof top type	Roof type solar racks Max Wind Speed：55m/s, Max Snow Pressure：1.5kn/m2 Material：High Strenghth Aluminum Alloy	1 Set
4	Cables & Accessories	PV cable：4mm2* 500M MC4： 20 Pairs Breakers and accessories	1 Set
5	Grid Connect Control box	Grid Isolation breaker Surge protection automatic reclosing breaker for Solar system	1 Set

Geya is a high-tech private enterprise focusing on the independent research and development of low-voltage electrical appliances and automation control intelligent products.High-tech enterprise in Zhejiang Province.The company's sales revenue has reached over 100 million RMB in 2023.Comprehensively advancing towards automated production. Continuously meeting customer delivery requirements.Our primary task is to meet customer needs. We will deliver products with zero defects in a timely manner.Our main categories are low-voltage products, industrial control products, and photovoltaic products, such as relays, circuit breakers, and DC fuses.All types of certificates are complete, such as CE CB, etc.

Q:What advantages do you have? A: GEYA is the direct Mlanufacturer in Wenzhou China from 2007, we have professional developing, marketing & production team to offer you the most competitive price and best service. Q: What's your main product? A: We have two product projects, low voltage electrical and automation control items Q: Could you print our own logo? A: Yes, Our company is available for Retail & Wholesale & OEM & ODM. Q: How long is the product guarantee? A: 18 month warranty, have QC department in charge of the products quality, our products are 100% inspection. Q:What is your quality control process? A: The quality of our production depends on all the components and therefore when selecting our suppliers we have to pay more attention to the quality of the raw material supplied. To prevent possible errors we perform testing at different levels and intemmediate stages of the product production phases. Q: How long is the delivery time? A: lt usually takes about 3 - 5 working days for sample order and 10 - 25 days for big order. Q: What is your payment term? A: Our Payment term is T/T, Aliexpress, Western Union, PayPal, Money Gram, L/C at sight. Q: Any certification of your company or product? A: We have ISO 9001.CE.CB.SEMKO,SAA.TUV.CCC， ROHS
